WNS Manual Bead Roller 464mm

£165.00

(excl. VAT)

WNS Manual Bead Roller 464mm

£165.00

(excl. VAT)

WNS Manual Bead Roller 464mm

£165.00

(excl. VAT)

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

Description

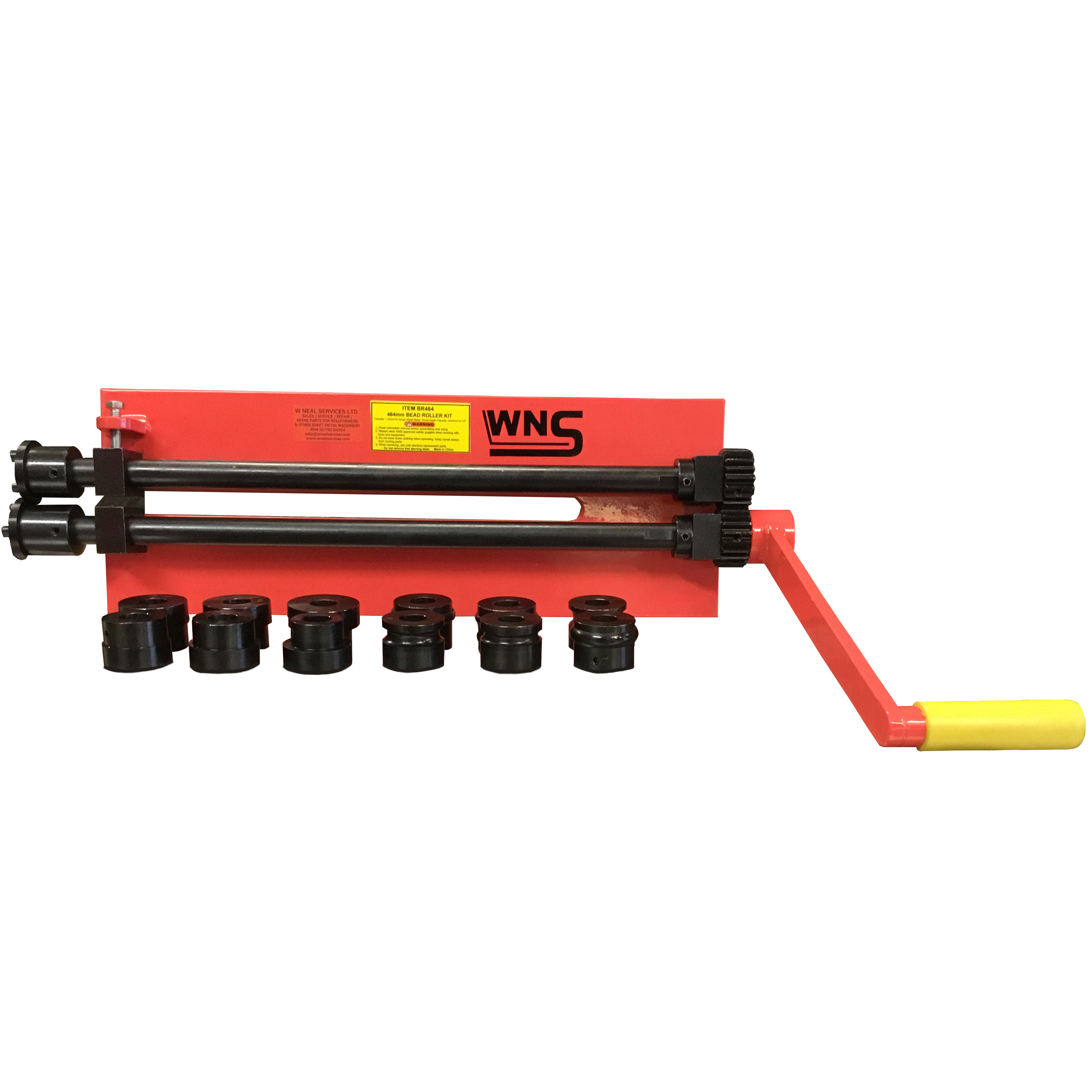

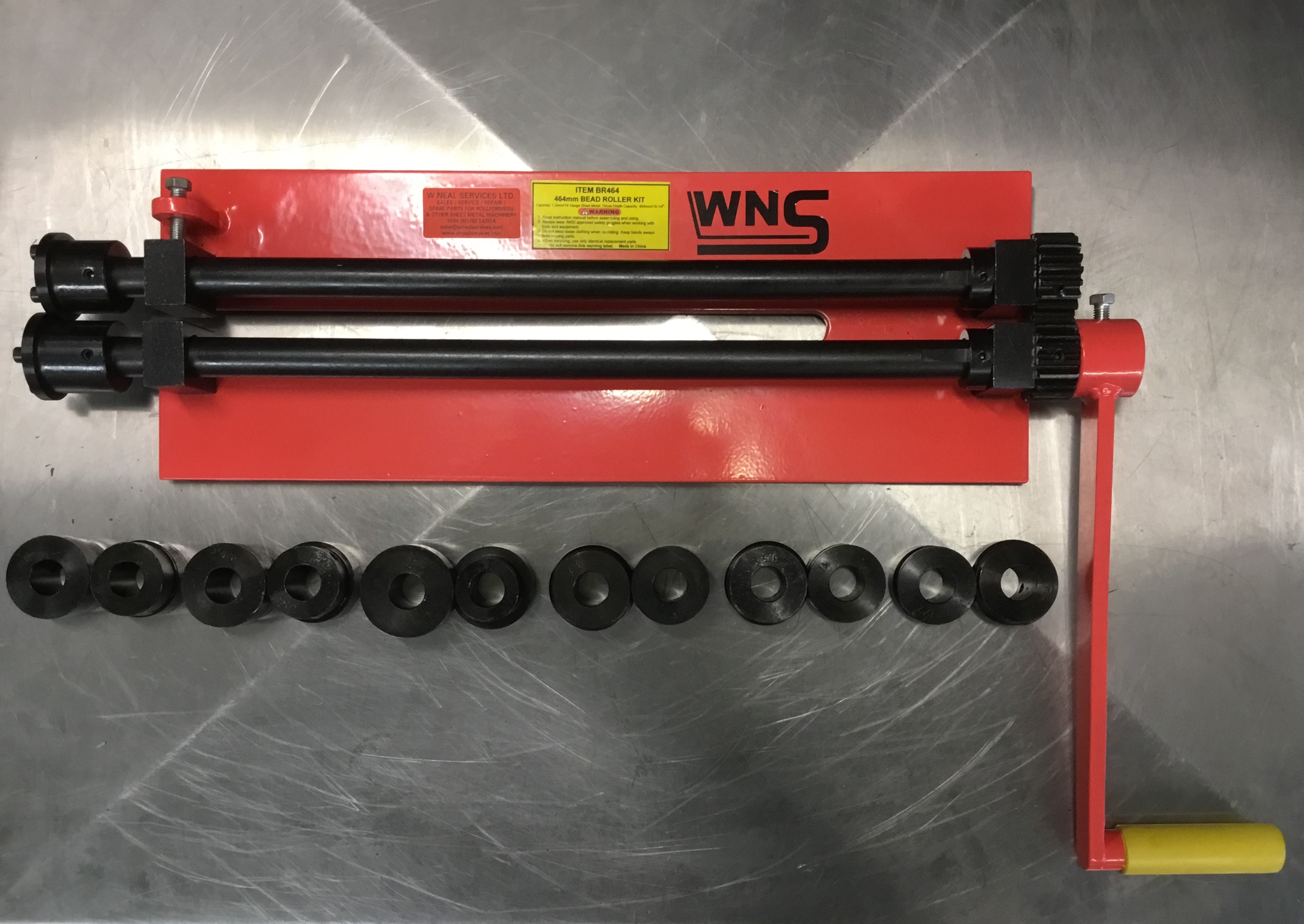

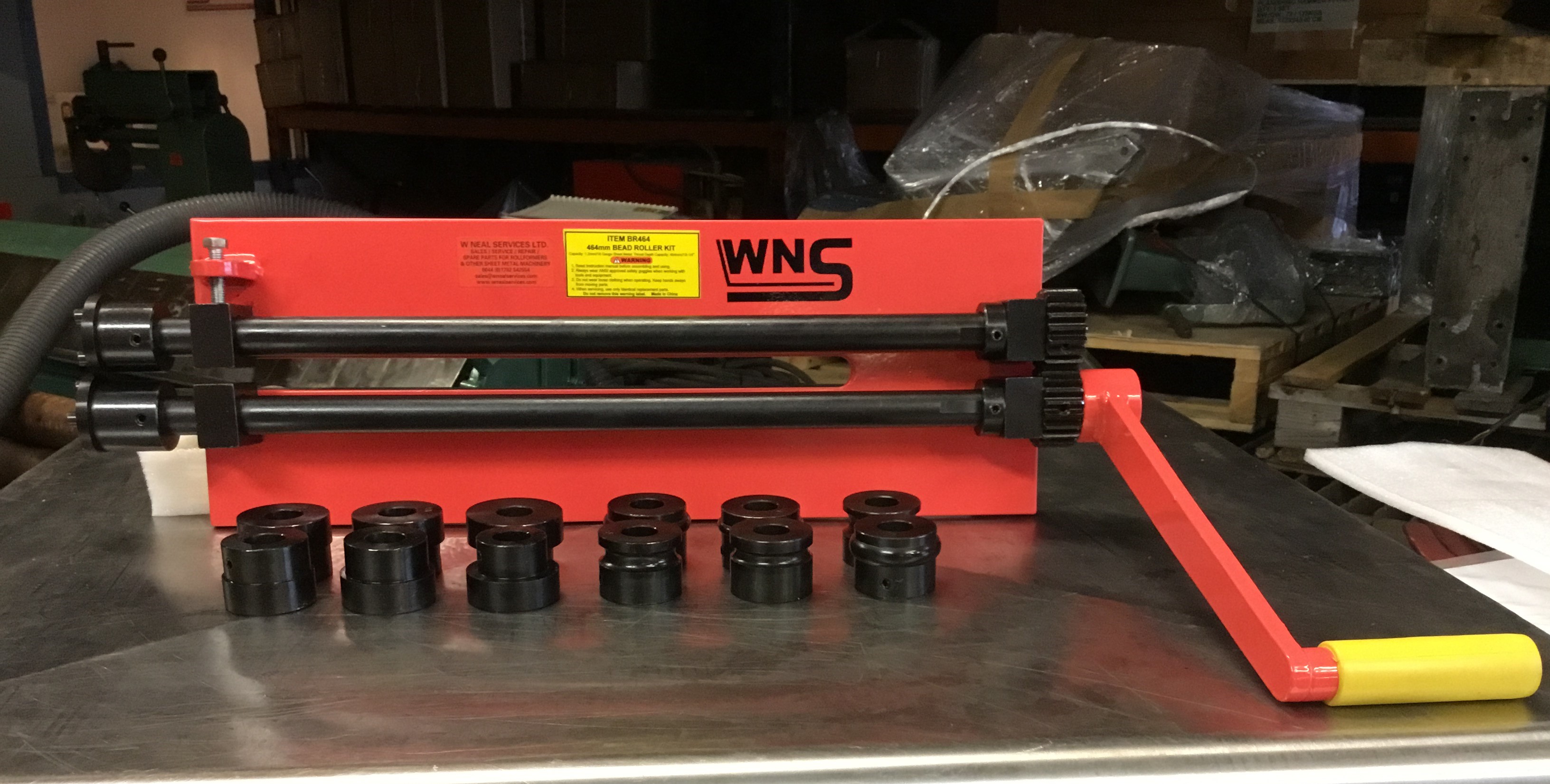

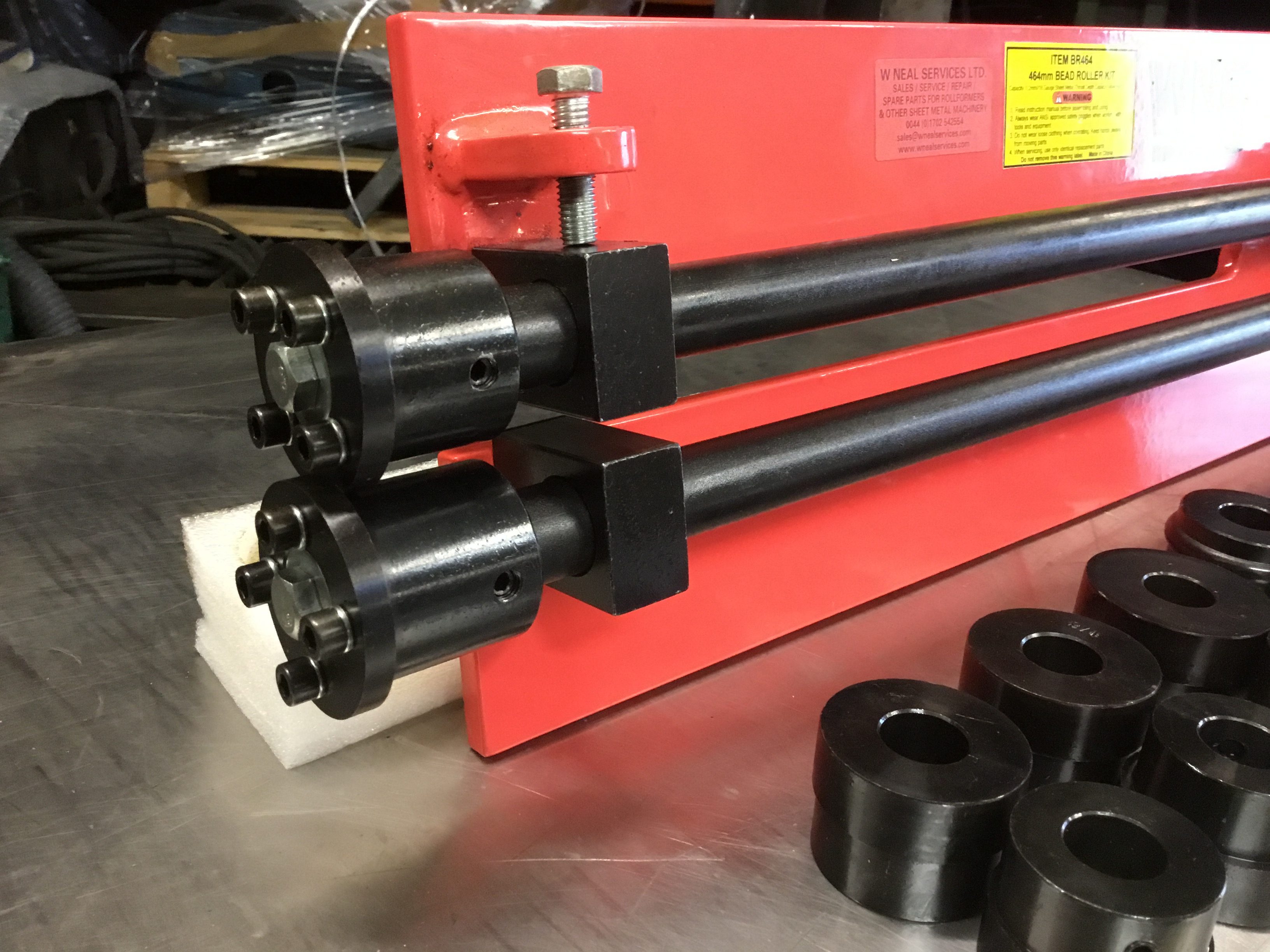

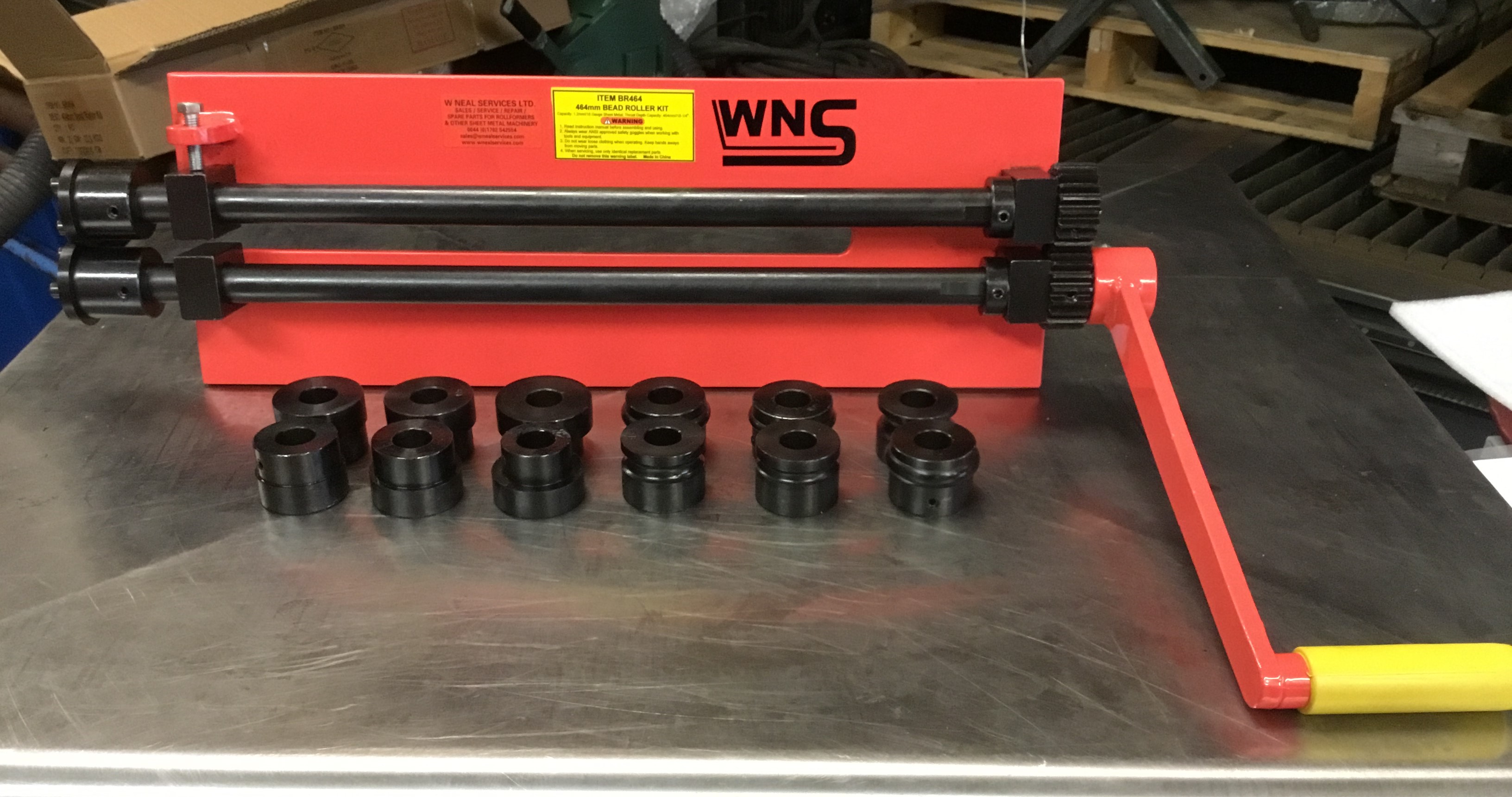

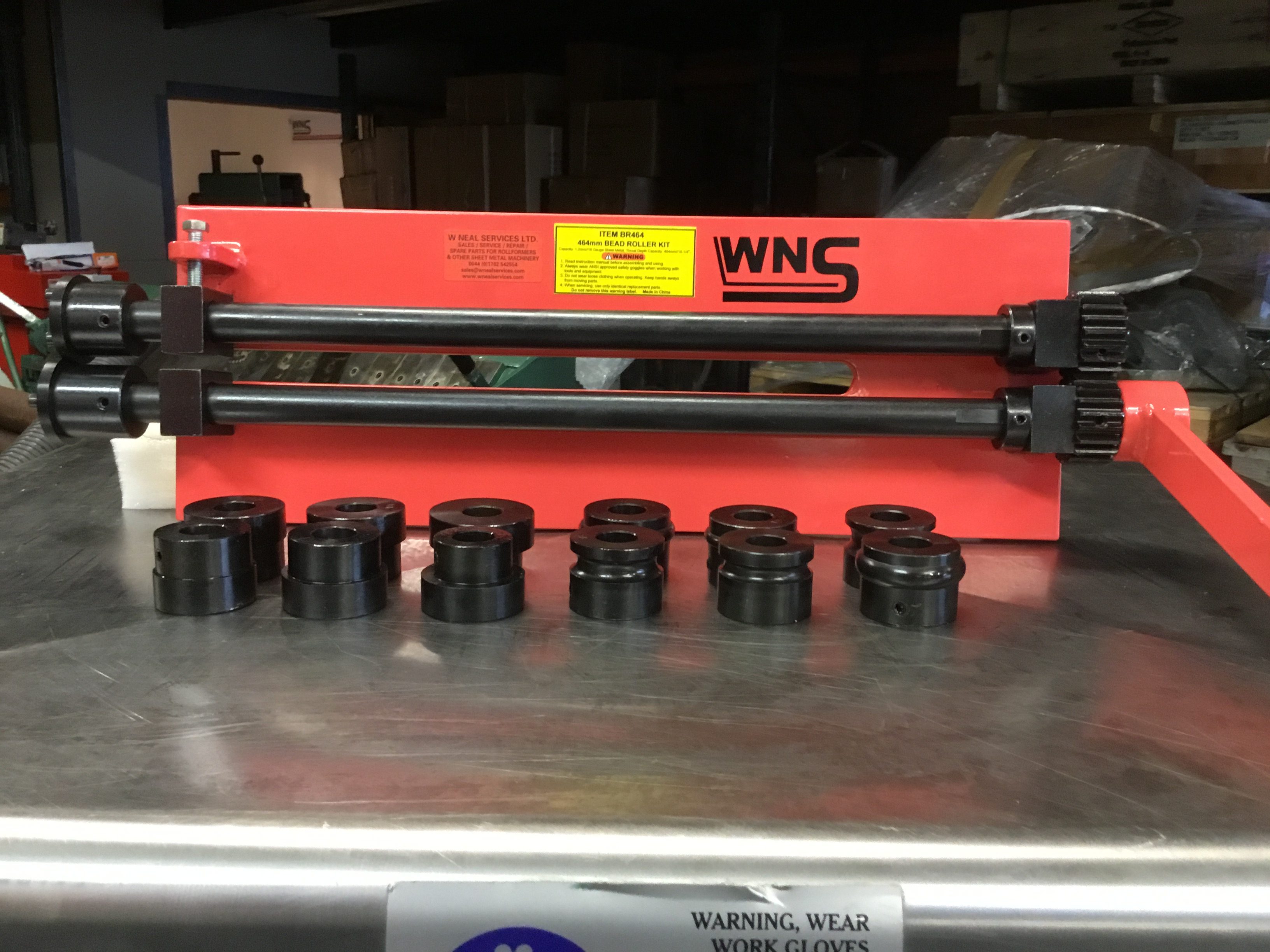

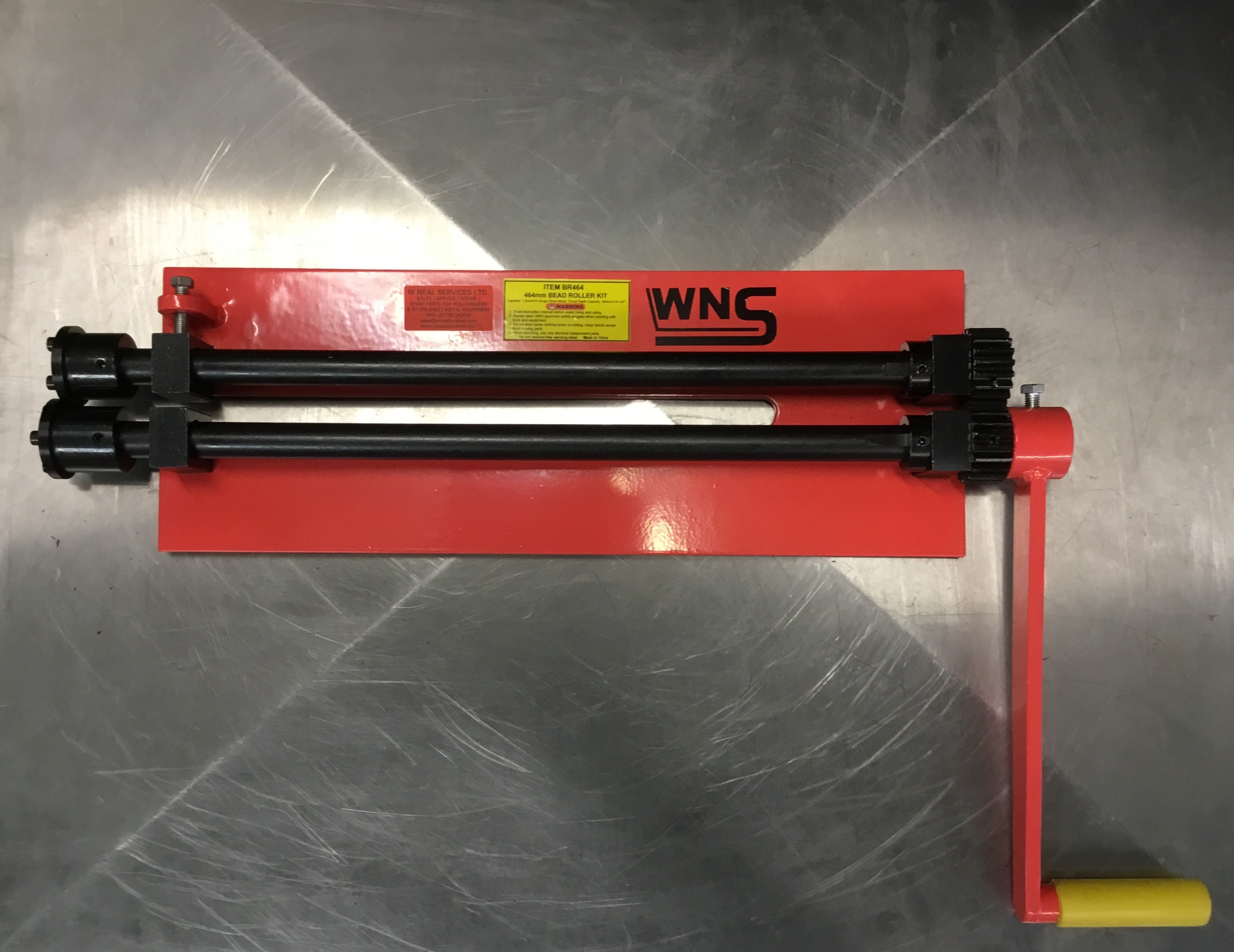

WNS BEAD ROLLERS (BR464) are principally used for swaging, beading and forming of sheet metal. The BR464 has a 464mm (18″) throat and can accommodate mild steel up to 1.2mm thick.  This machine comes complete with 7 sets of rolls (including bead/swage, flange/stepped and shearing rolls).

Additional Rolls, Drive System & Adjustable Guide Fence are available separately.



Additional information

Weight 25 kg
Dimensions 71 × 25 × 10 cm
SPECIFICATIONS
Model: BR464
Throat Depth: 464mm (18″)
Maximum Thickness: 1.2mm Capacity Mild Steel

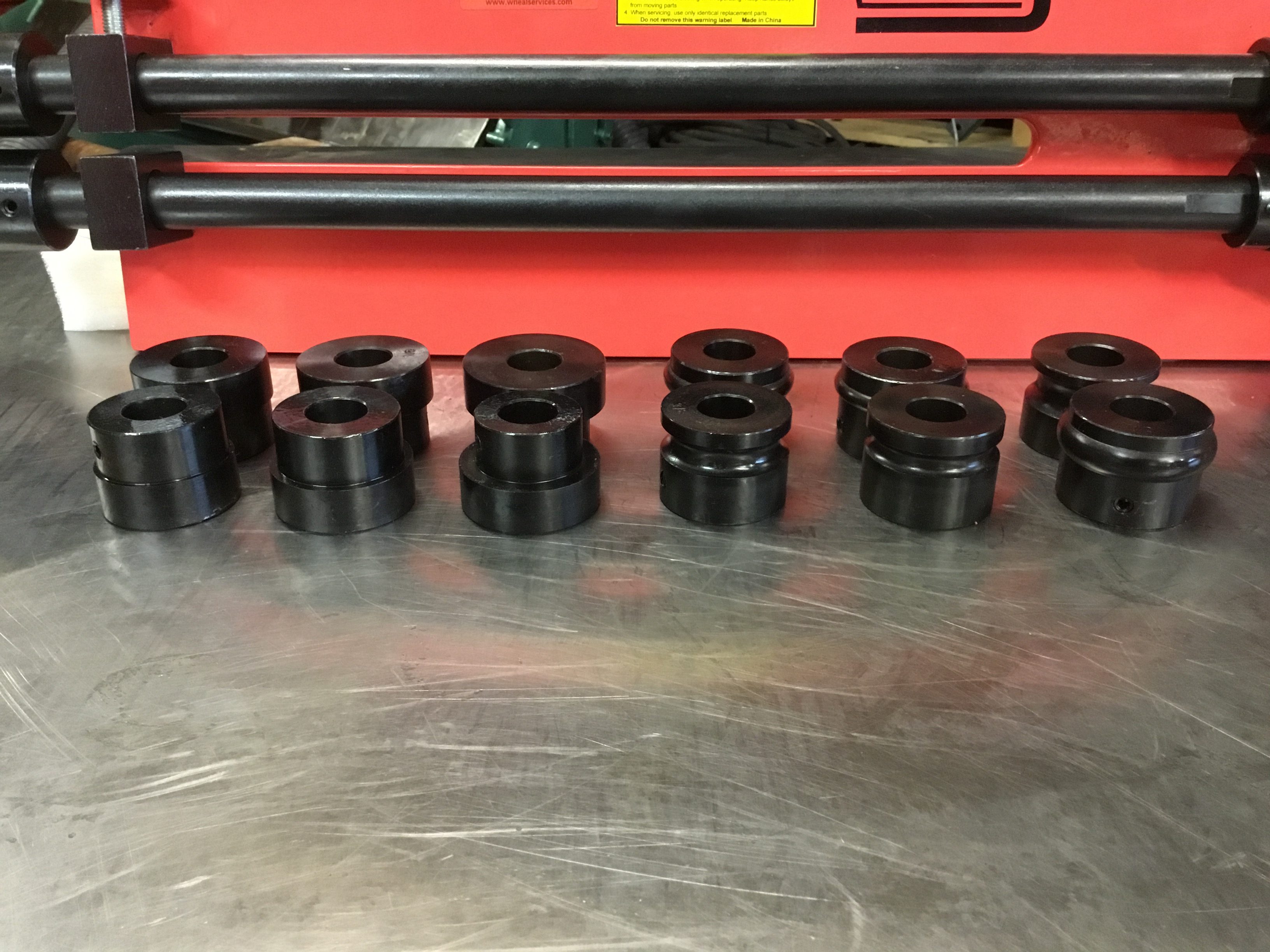

Bead/Swage Rolls (x 3):
6.35mm
9.0mm
12.7mm
Flange/Stepped Rolls (x 3):
1.6mm
3.0mm
6.35mm
Shearing Rolls (x 1): 1 x Set
Roll – Inside Diameter: 22mm
Roll – Outside Diameter: 50mm – 55mm
Shaft Diameter: 22mm
Machine Body: 11mm Thick Steel
Handle Length (apx): 350mm
Dimensions – machine (without handle): 680mm x 70mm x 200mm (l x w x h)
Dimensions – packing (apx): 710mm x 250mm x 100mm (l x w x h)
Weights – net/gross (apx): 23Kg/25Kg

*please see Terms & Conditions. **fees apply.

All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
