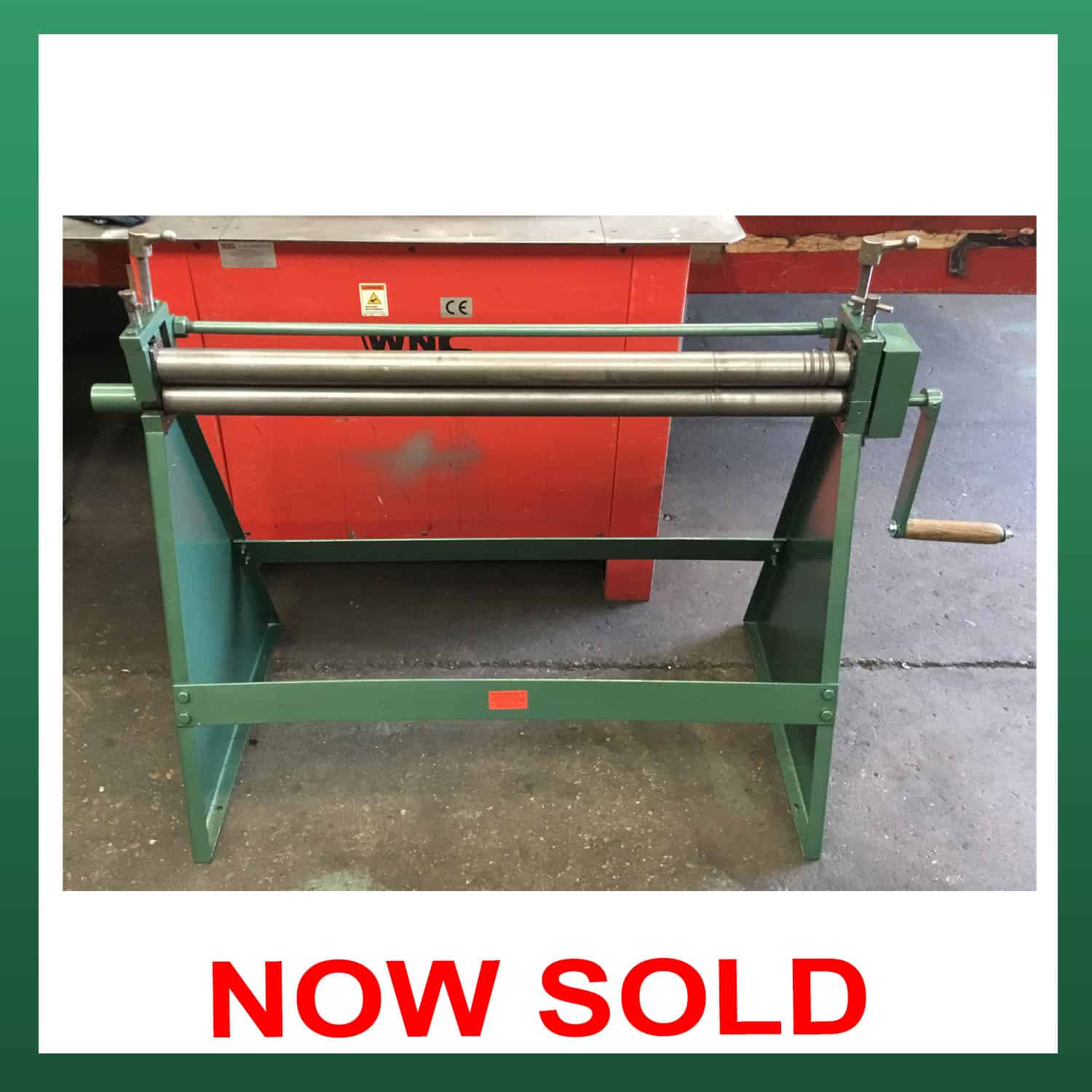

NATIONAL Bending Rolls 1015mm

  • Used
  • 1015mm Roll Length
  • 50mm Roll Diameter
  • 1.2mm Capacity Mild Steel
  • c/w 4x Wiring Grooves – 3.0mm, 5.0mm, 6.0mm & 8.0mm
  • Manual Operation
  • Bottom Slip
  • Traditional British Design
  • UK Manufactured
  • Part Exchange Considered

Description

This is a used machine.
NATIONAL BENDING ROLLS (NBR1015) are principally used for rolling tubes/cylinders in sheel metal. The metal is pinched between two rolls and curves as it comes into contact with the third (back) forming roll. The NBR1015 has a 1015mm roll length, 50mm roll diameter and can accomodate mild steel up to 1.2mm thick. The rolls are bottom slip, with an Edwards style fabricated steel frame.

This machine is now sold.

SPECIFICATIONS
Model: NBR1015
Rolling Size: 1015mm Length x 50mm Diameter
Maximum Thickness: 1.2mm Mild Steel
Rolls: Bottom Slip
Wiring Grooves (x4) 3.0mm
5.0mm
6.0mm
8.00mm
Frame: Fabricated Steel
Dimensions – machine (apx): 1450mm x 1010mm x 610mm (l x w x h)

All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. Please note products are not to scale. E&OE.
