View Literature Manufactured by W. Neal Services Ltd

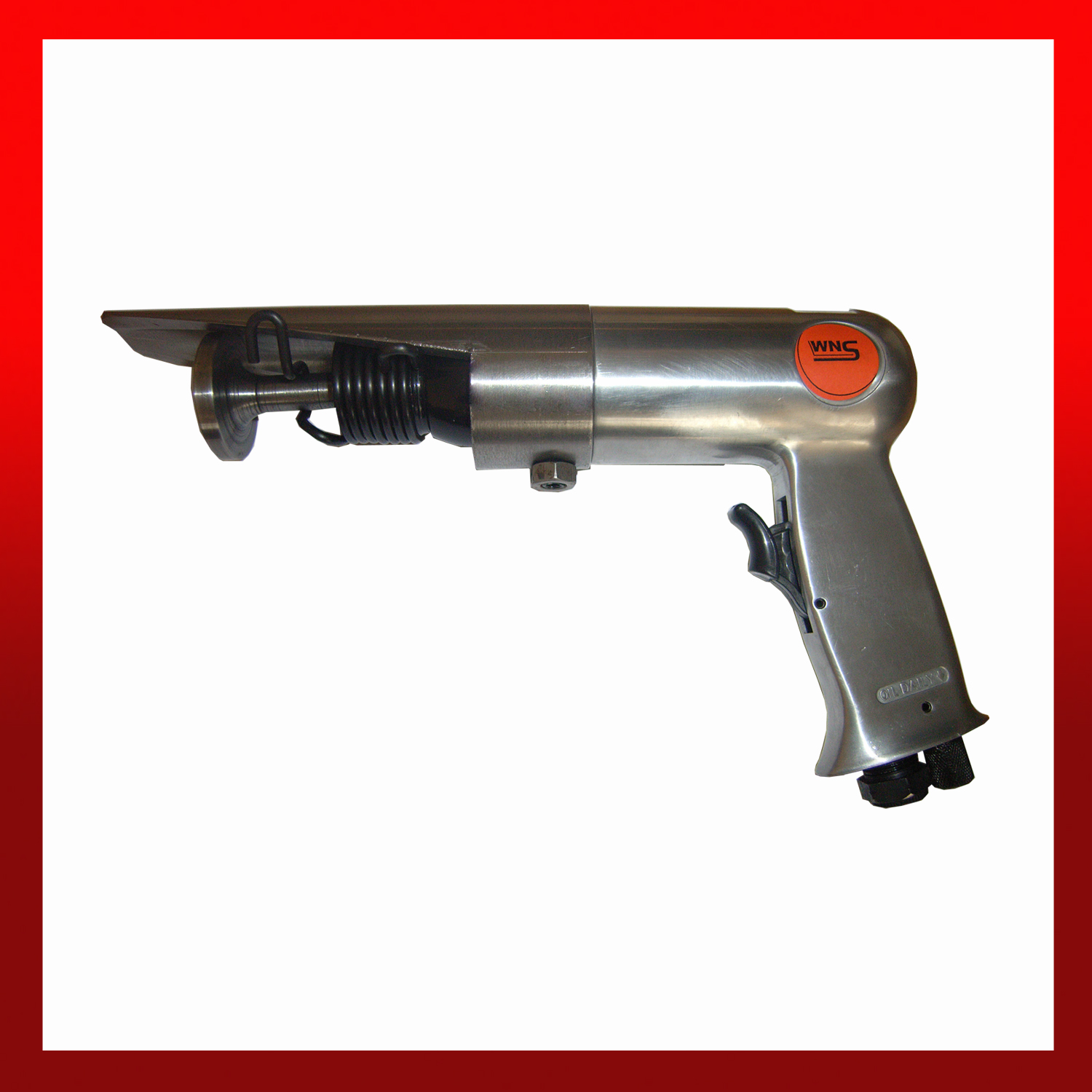

The AH20 closes Pittsburgh Lock 20swg and lighter. The force and speed of the hammer blows can be regulated by the depression on the trigger. Light pressure on the trigger starts the hammer blows at a slow rate, whereas full power is reached when the trigger is fully depressed. The maximum efficiency is received from the hammer when operated at 90 psi.
| Weight | 5 kg |
|---|
| SPECIFICATIONS | |
| Model: | AH20 |
| Maximum Thickness: | 20swg (1.0mm) |
| Hammer Head: | 40mm Diameter |
| Hammer Speed: | 3500 BPM |
| Air Pressure: | 90 Psi |
| Air Supply: | 4.5 CFM |
| Air Inlet: | 1/4” NPT |
| Hose: | 3/8” Diameter |
| Dimensions – machine (apx): | 250mm x 150mm x 50mm (l x w x h) |
| Dimensions – packing (apx): | 400mm x 350mm x 100mm x (l x w x h) |
| Weight (apx): | 2.5Kg |
