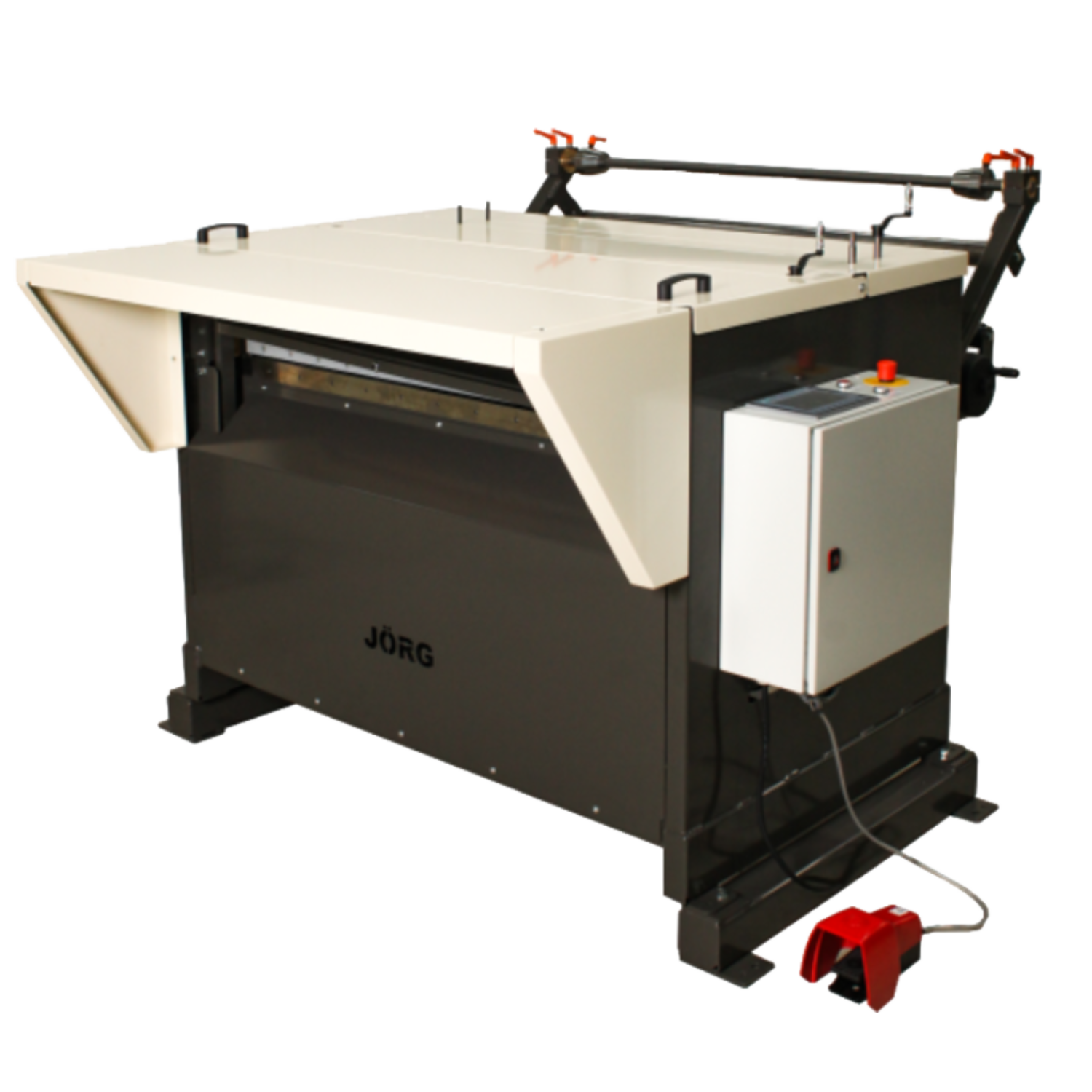

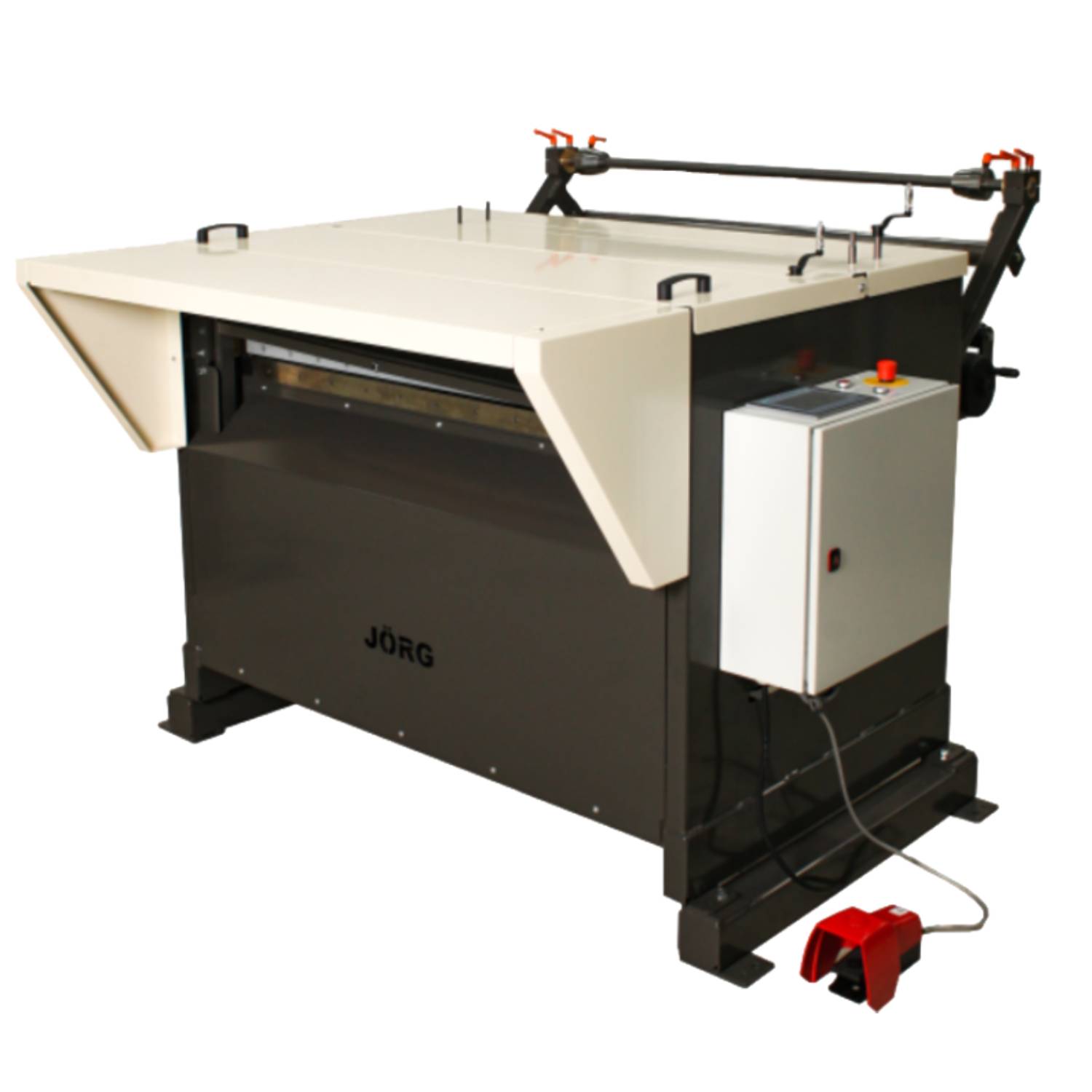

JORG 4923 Cut to Length Line (JCL4923) is a compact machine for the decoiling, straightening, slitting and cutting of rolls of zinc, steel, aluminium, stainless steel, and other materials. This machine has a cutting length of 1270mm and can accommodate mild steel up to 1.25mm. It is complete with a fully welded steel construction, and easily programmable electronic controls. This machine has 415v, 3 phase electrics.Â
Â
| SPECIFICATIONS | |
| Model: | JCL4923 |
| Working Length: | 1270mm |
| Maximum Thickness: | 1.25mm Capacity Mild Steel |
| Number of Straightening Rolls: | 4 |
| Working Speed: | 25m/min Variable |
| Motor Power: | 1.5kW |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – Machine Without Slitting Unit (apx): | 1400mm x 1700mm x 1130mm (l x w x h) |
| Weight – net (apx): | 1100Kg |
Â
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
