Punch & Flare Die Set

£650.00

(excl. VAT)

Punch & Flare Die Set

£650.00

(excl. VAT)

Punch & Flare Die Set

£650.00

(excl. VAT)

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

  • Punch & Flare Die Set
  • Comes in 13 different sizes
  • 1.5mm Capacity Mild Steel
  • Finish Hole Diameter: + 1/8″
  • Flare Height: 1/4″
  • Worldwide Delivery*

Description

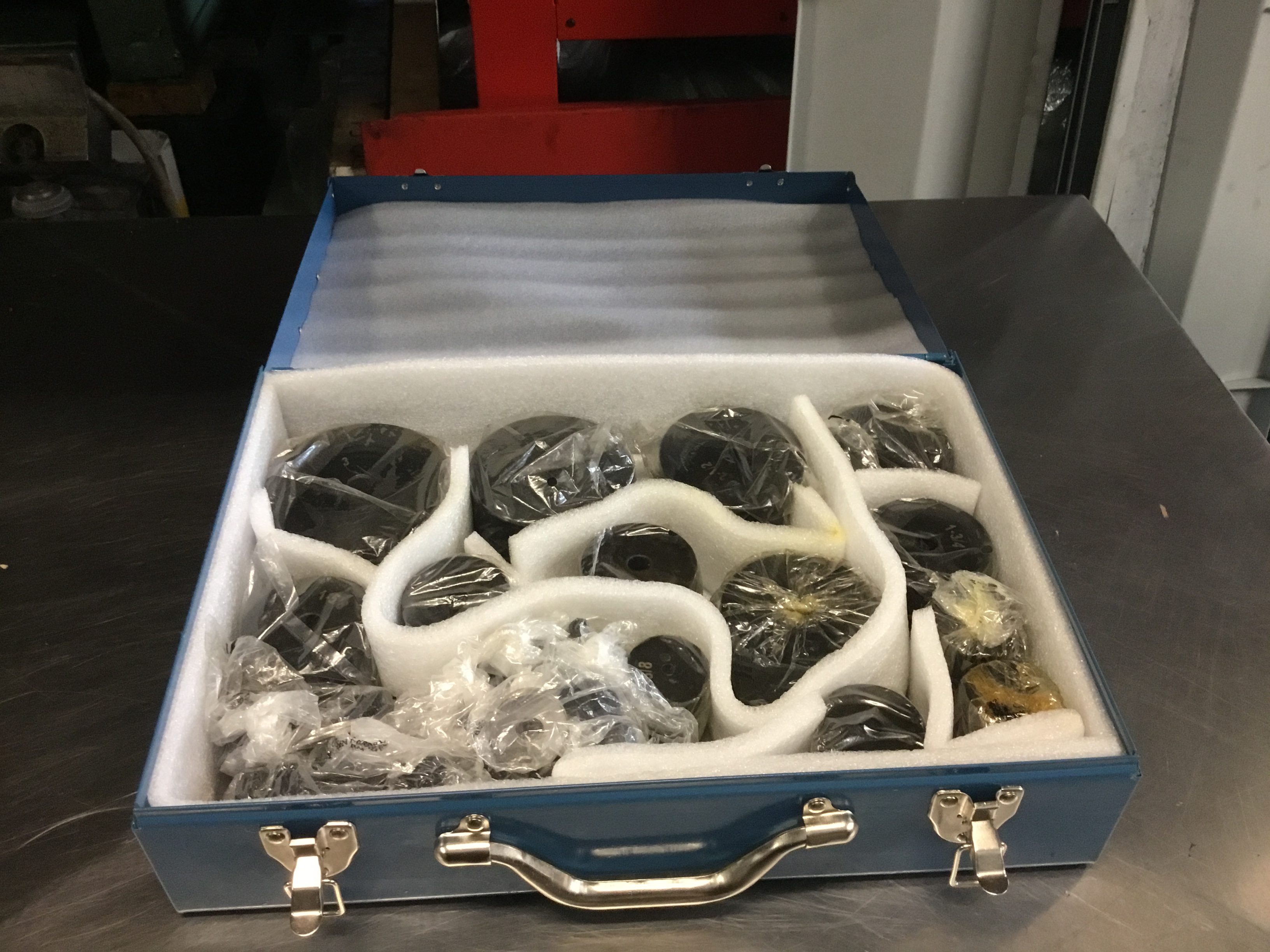

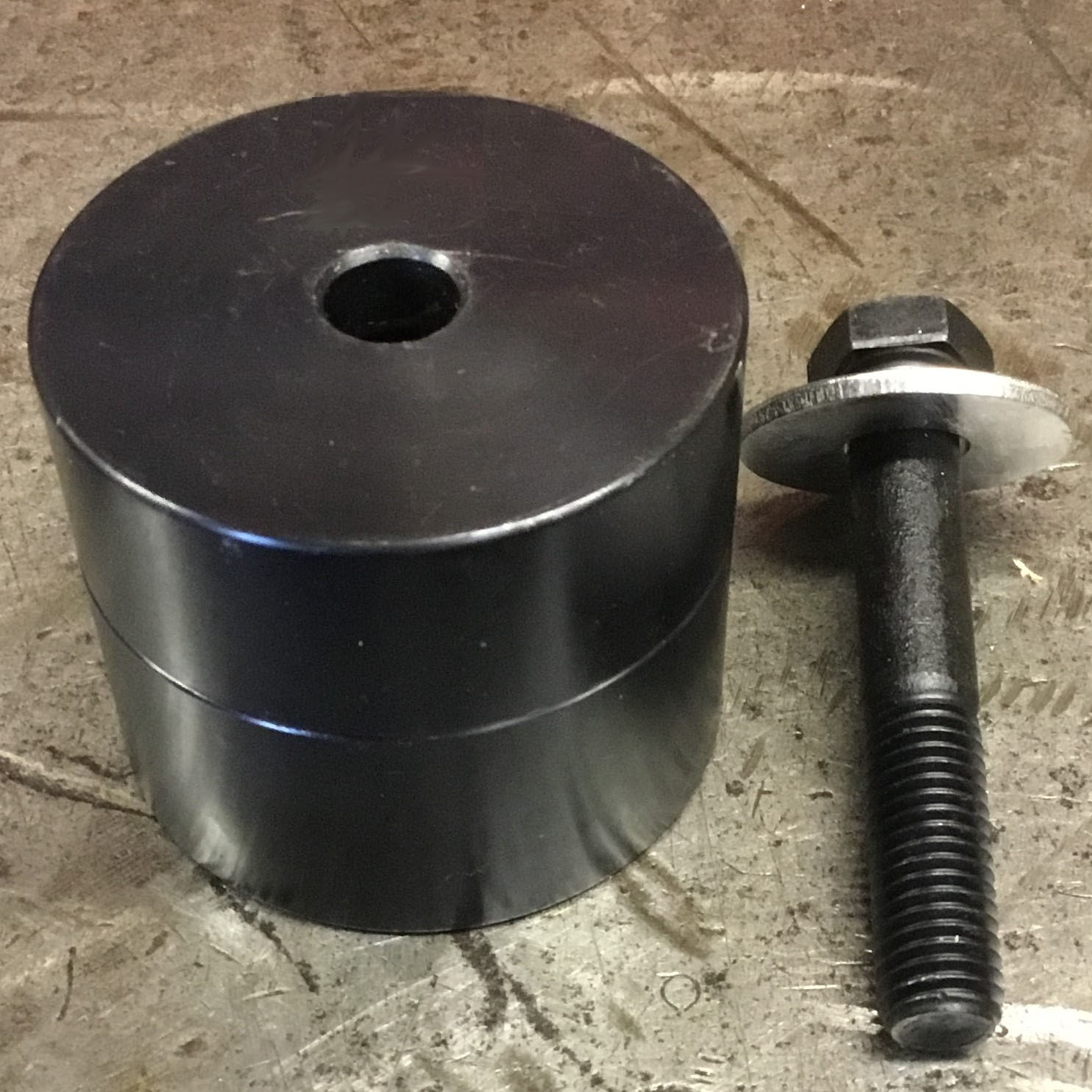

WNS PUNCH AND FLARE DIES (PFD-SET-13) can create a smooth hole, with or without a flare in one easy step. Simply drill a pilot hole for the draw bolt, then apply the tool and tighten the bolt. The set is complete with 13 dies: 1/2″, 5/8″, 3/4″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/4″, 2 1/2″, 2 3/4″ & 3″.







Additional information

Weight 20 kg
SPECIFICATIONS
Model: PFD-SET-13
Capacity: 1.5mm Mild Steel
Sizes Included in the Set:

1/2″ 5/8″ 3/4″
1″ 1 1/4″ 1 1/2″
1 5/8″ 1 3/4″ 2″
2 1/4″ 2 1/2″ 2 3/4″
3″
Finish Hole Diameter (apx): + 1/8″
Flare Height (apx): 1/4″
Packing – Dimensions (apx): 300mm x 300mm x 80mm
Weights – net/gross (apx): 18.5Kg/19.5Kg

*fees apply.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
