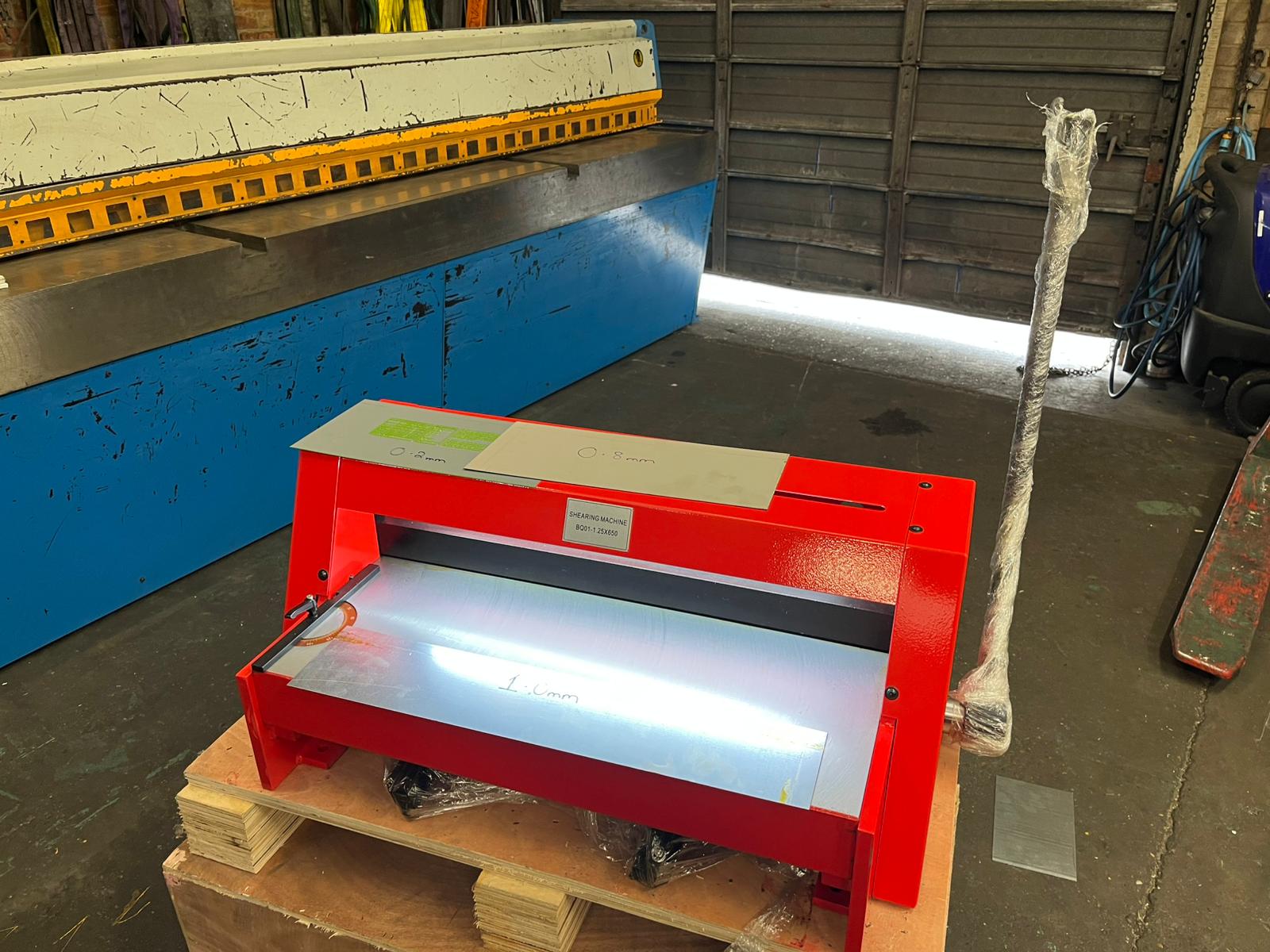

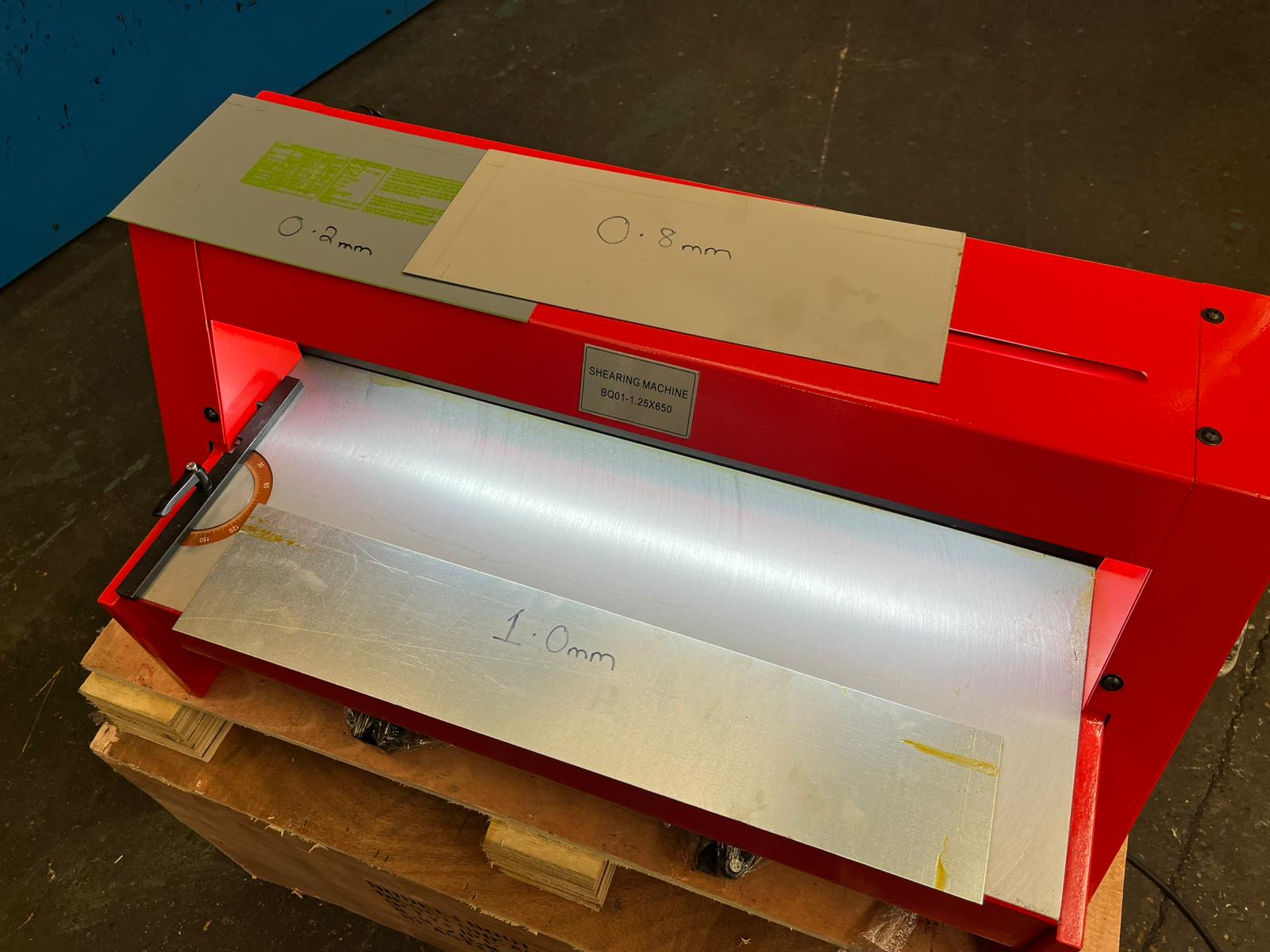

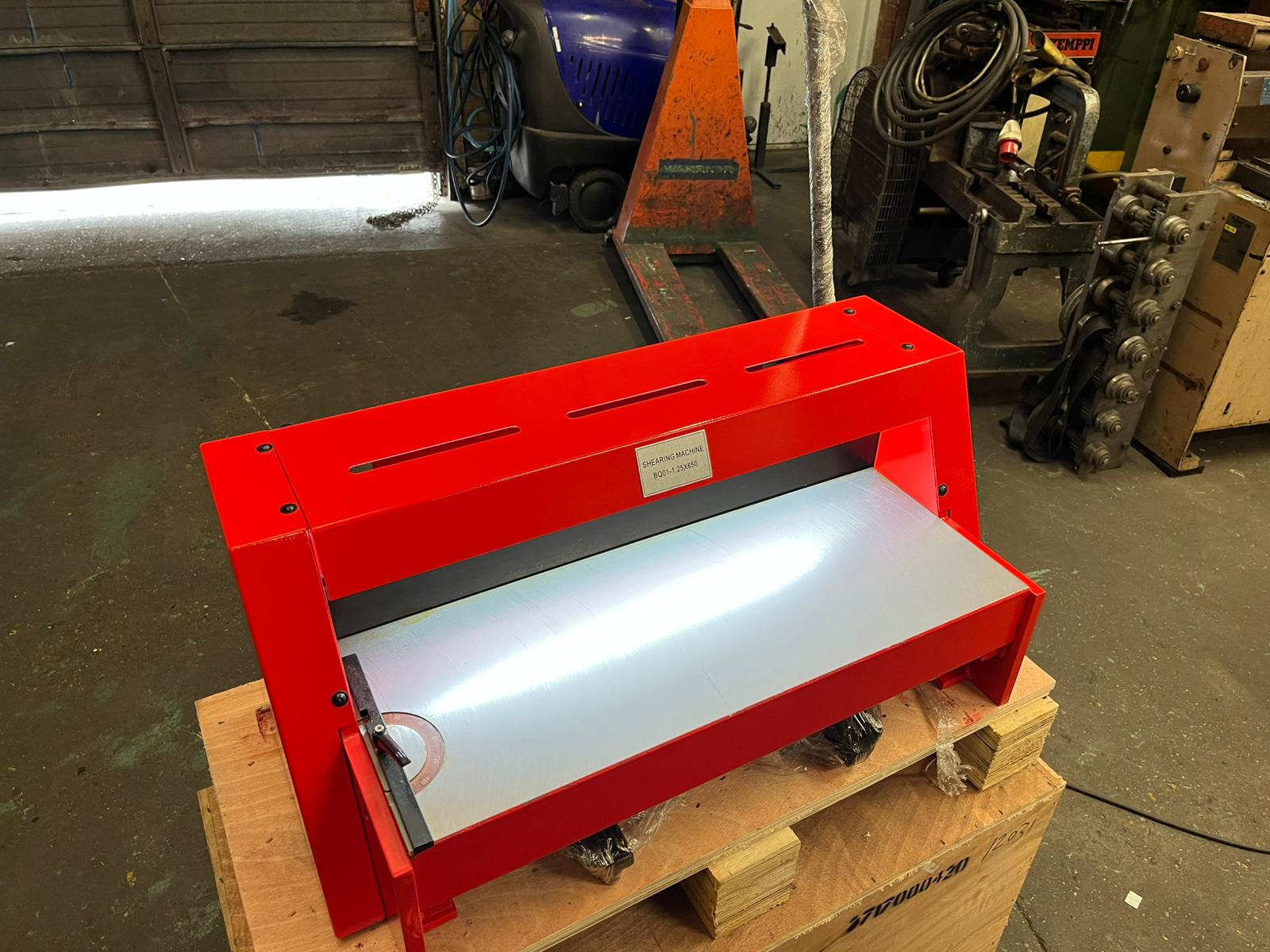

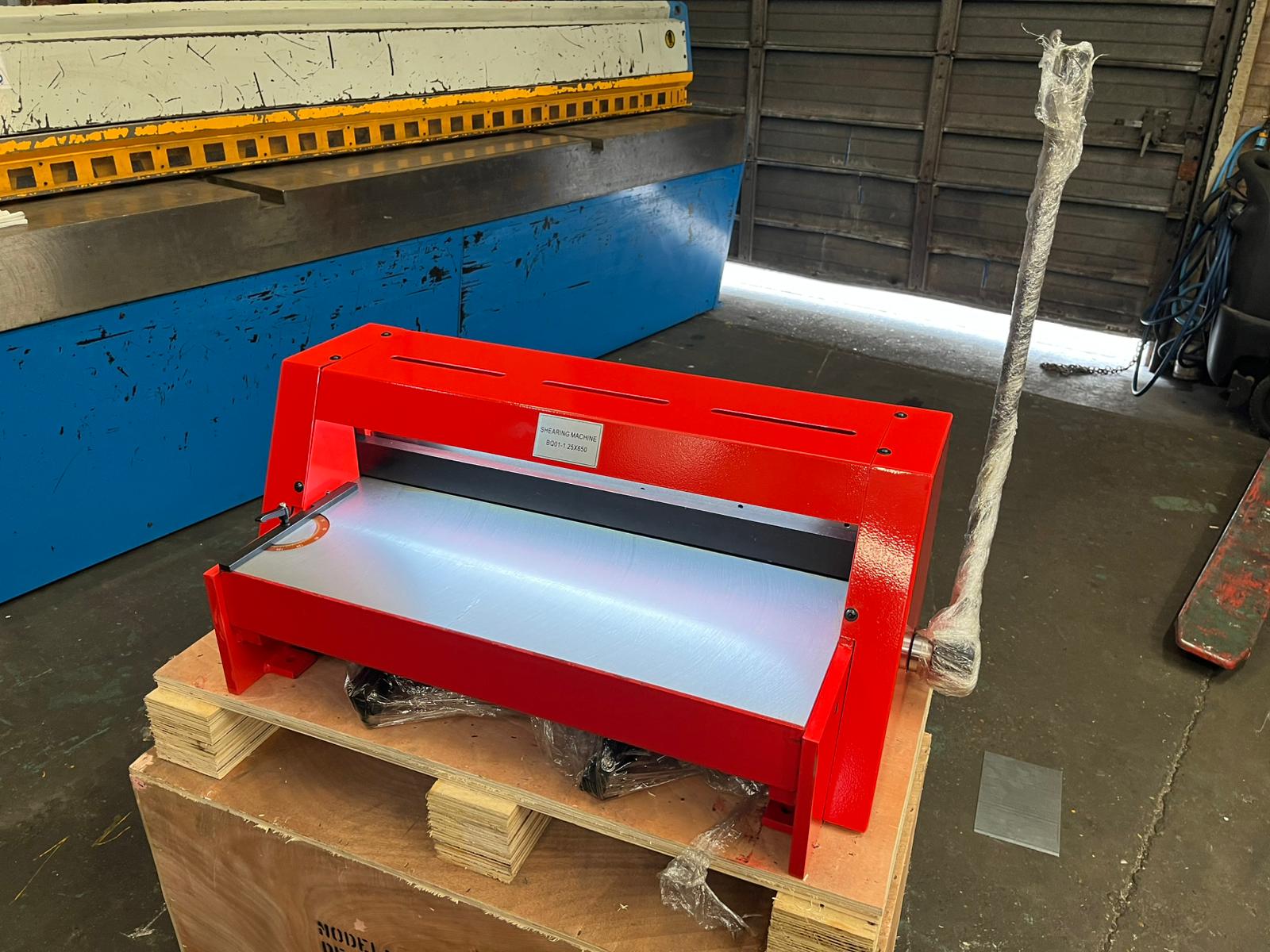

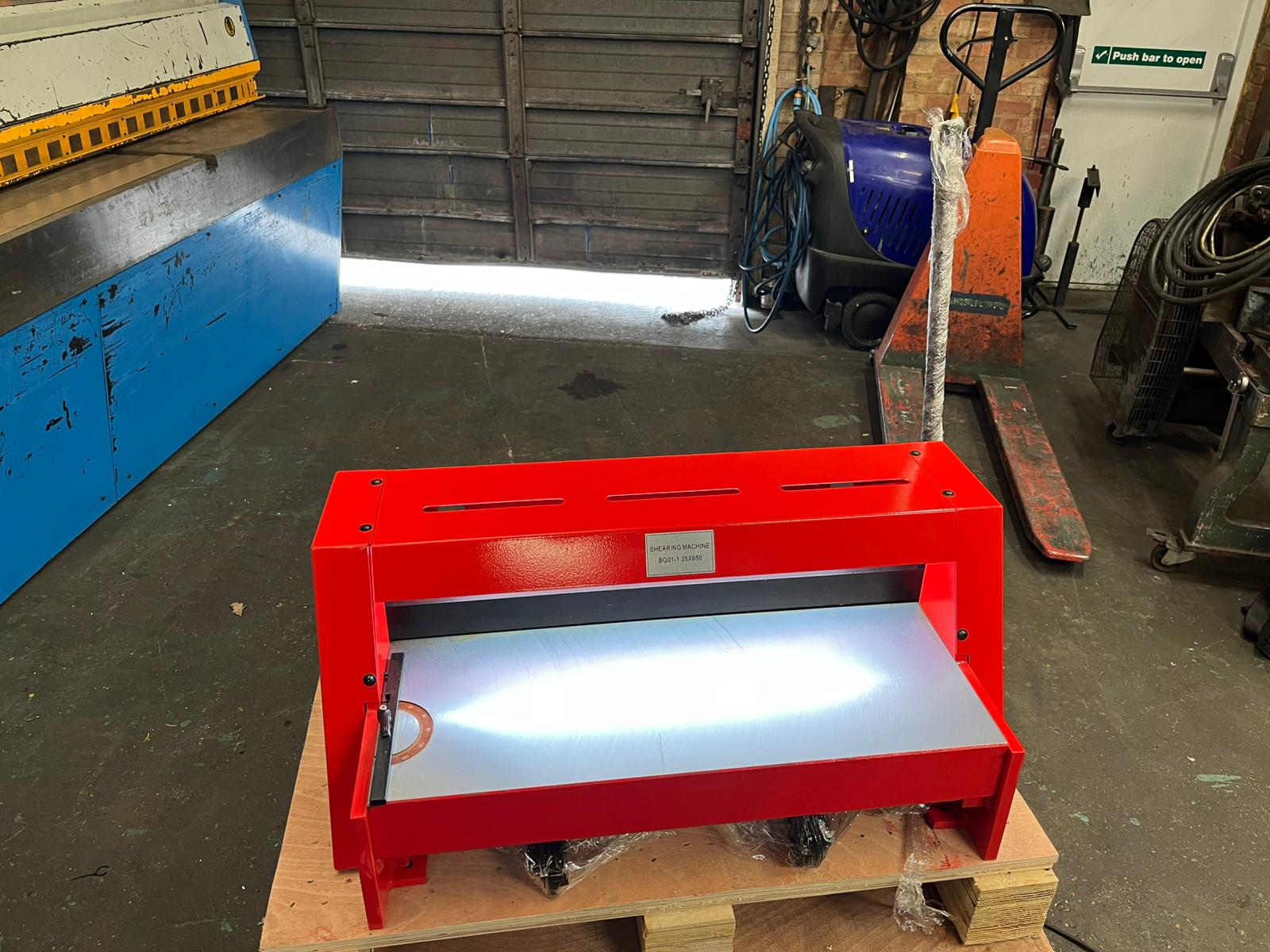

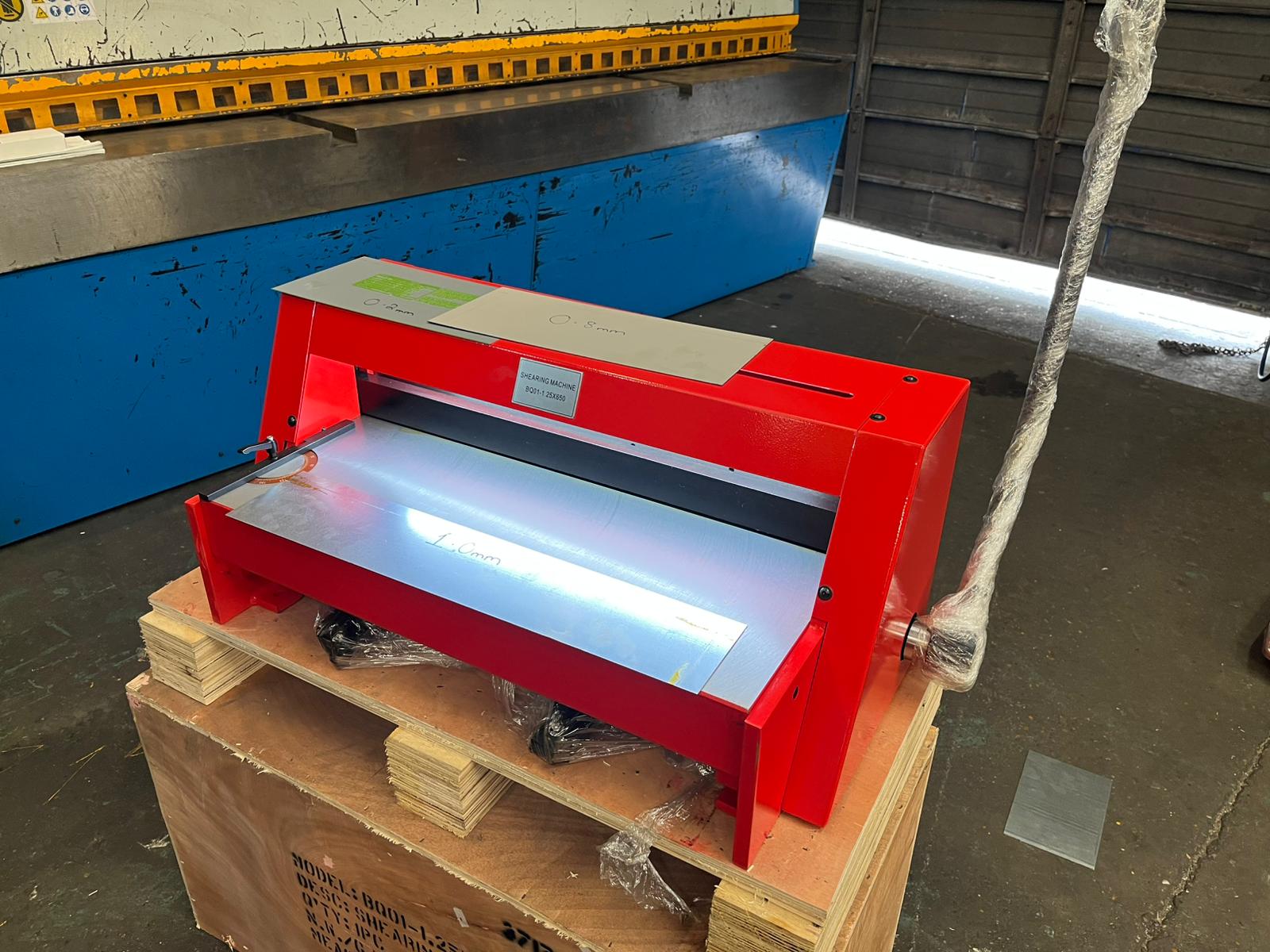

WNS LEVER GUILLOTINES/SHEARS (LG650) are used for shearing mild steel, aluminium, copper, brass and zinc. The LG650 has a cutting length of 650mm long and can accommodate a maximum thickness of mild steel up to 1.25mm. The machines are hand operated and comes complete with a light.
| Weight | 250 kg |
|---|
| SPECIFICATIONS | |
| Model: | LG650 |
| Cutting Length: | 650mm |
| Maximum Thickness: | 1.25mm Mild Steel |
| Back Gauge Range/Stop: | 0 – 500mm |
| Dimensions – machine (apx): | 800mm x 400mm x 340mm (l x w x h) |
| Dimensions – packing (apx): | 1370mm x 480mm x 640mm (l x w x h) |
| Weights – net/gross (apx): | 128Kg/144Kg |
All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. Please note products are not to scale. E&OE.
