WNS Corner Notcher 150mm

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

  • 150mm x 150mm Notch
  • 1.5mm Capacity Mild Steel
  • 20mm Ram Stroke
  • 90° Fixed Notch Angle
  • Precision Ground Guide Plate
  • Integrated Rulers
  • Finger Guard
  • Spare Blades Available
  • Optional Stand Available
  • 12 Month Warranty*
  • Worldwide Delivery

Description

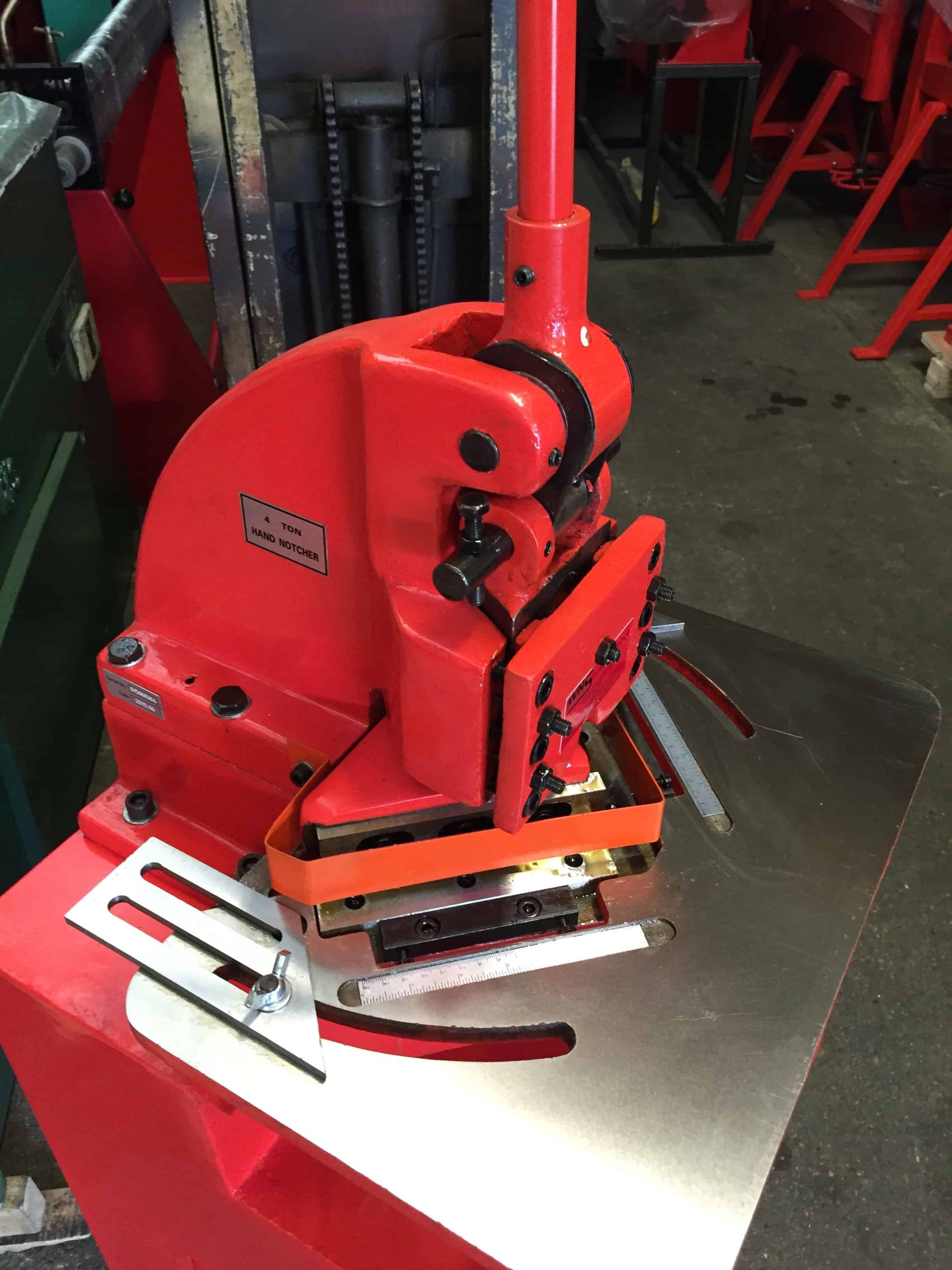

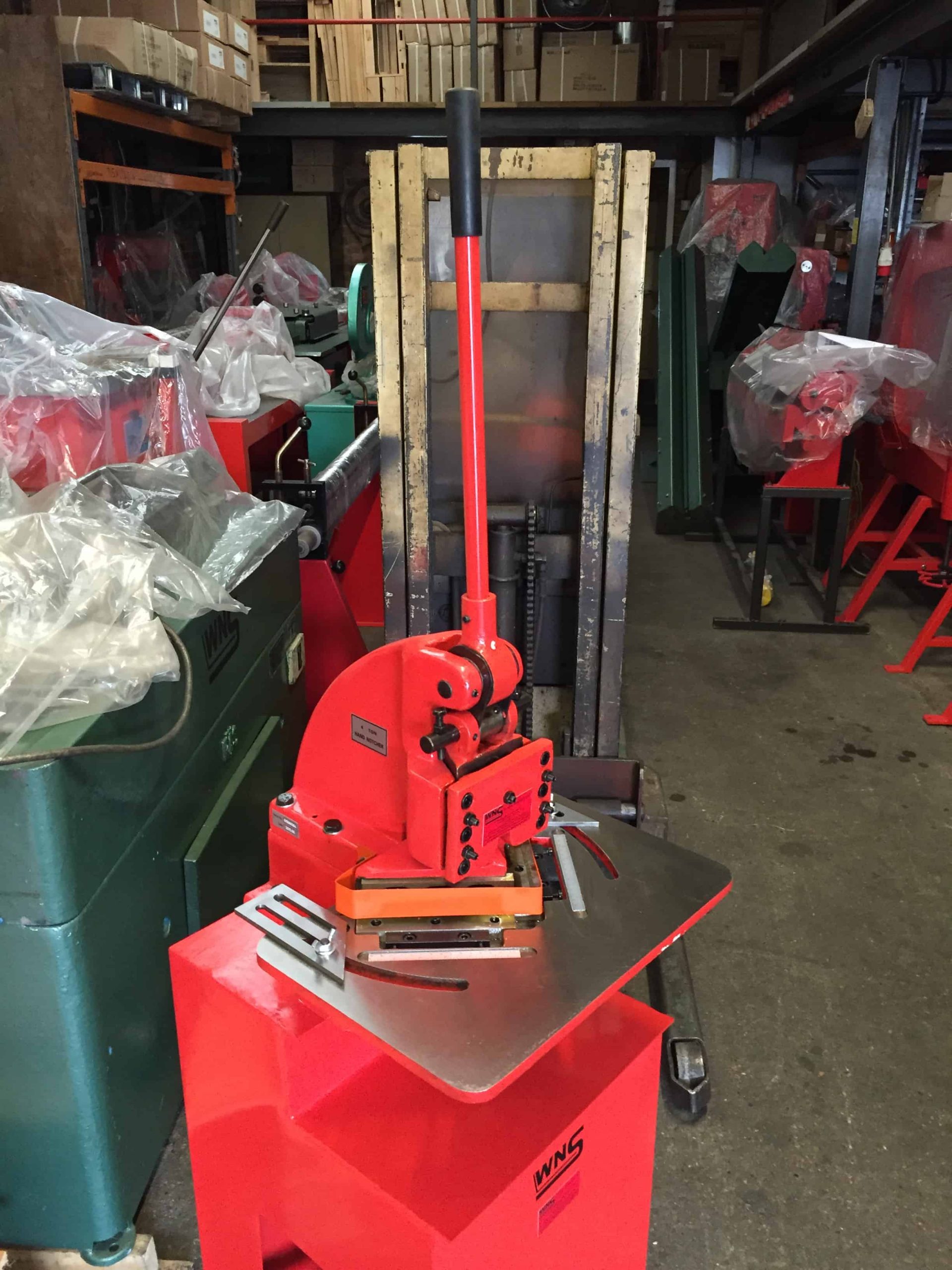

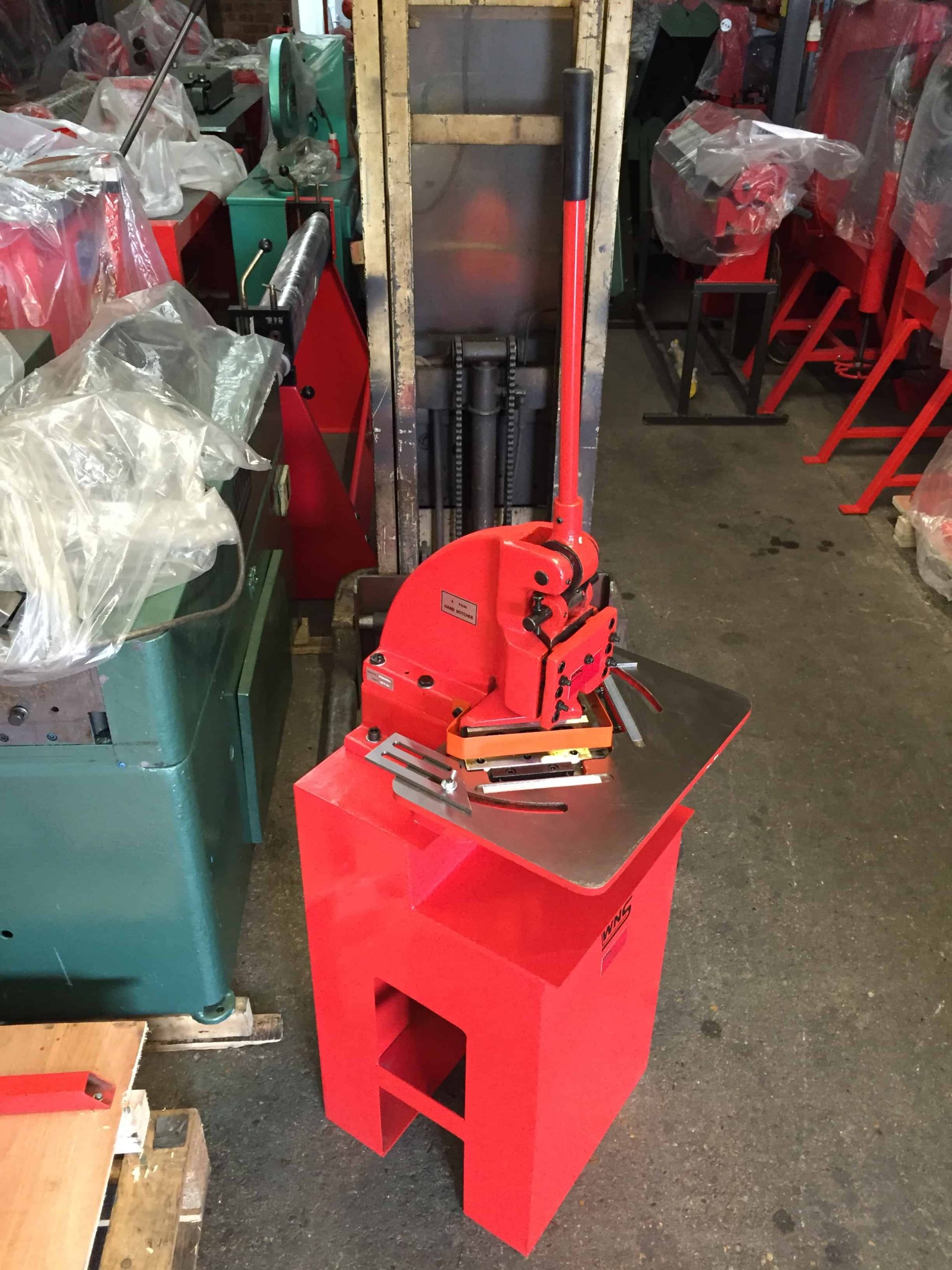

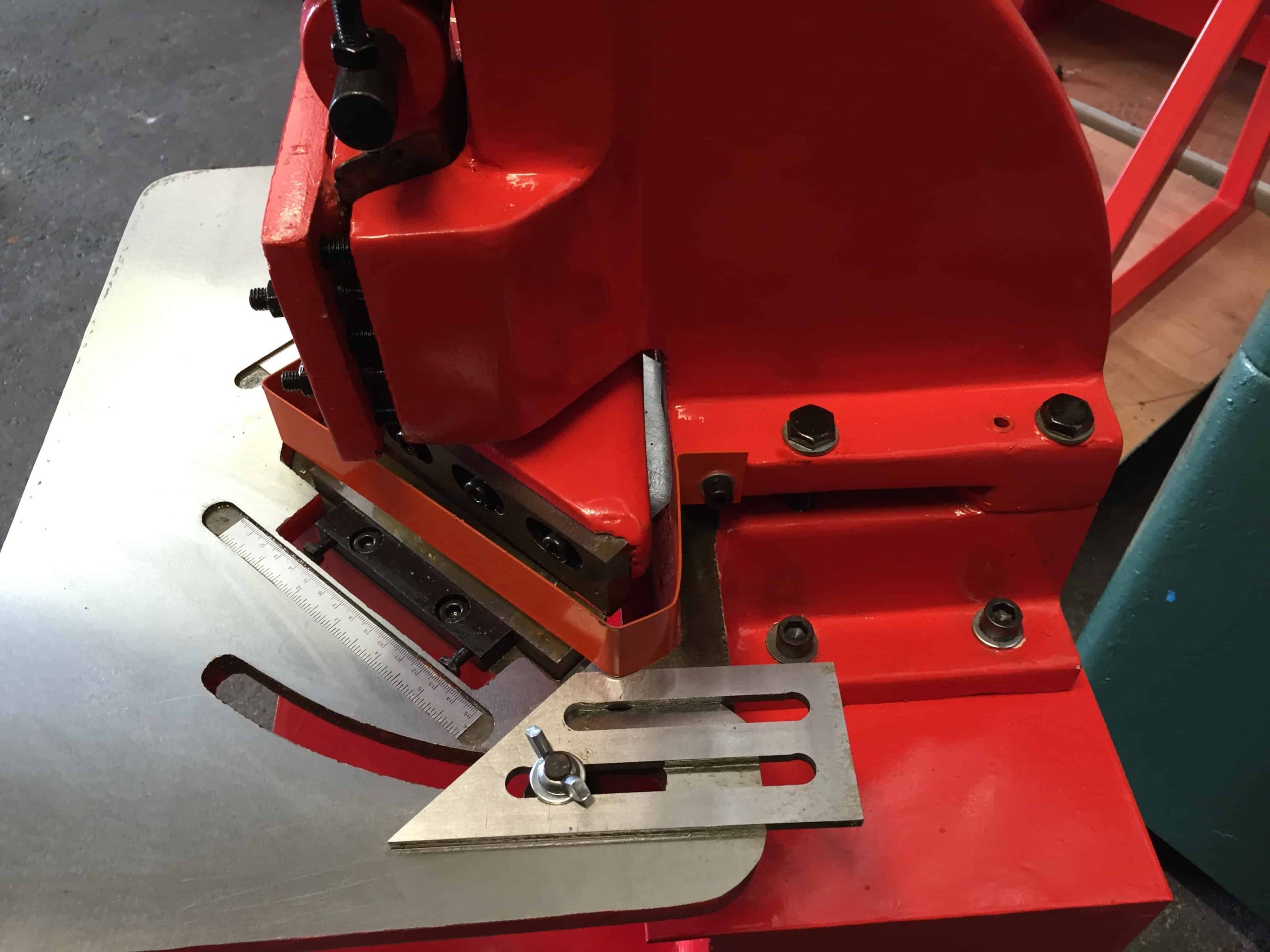

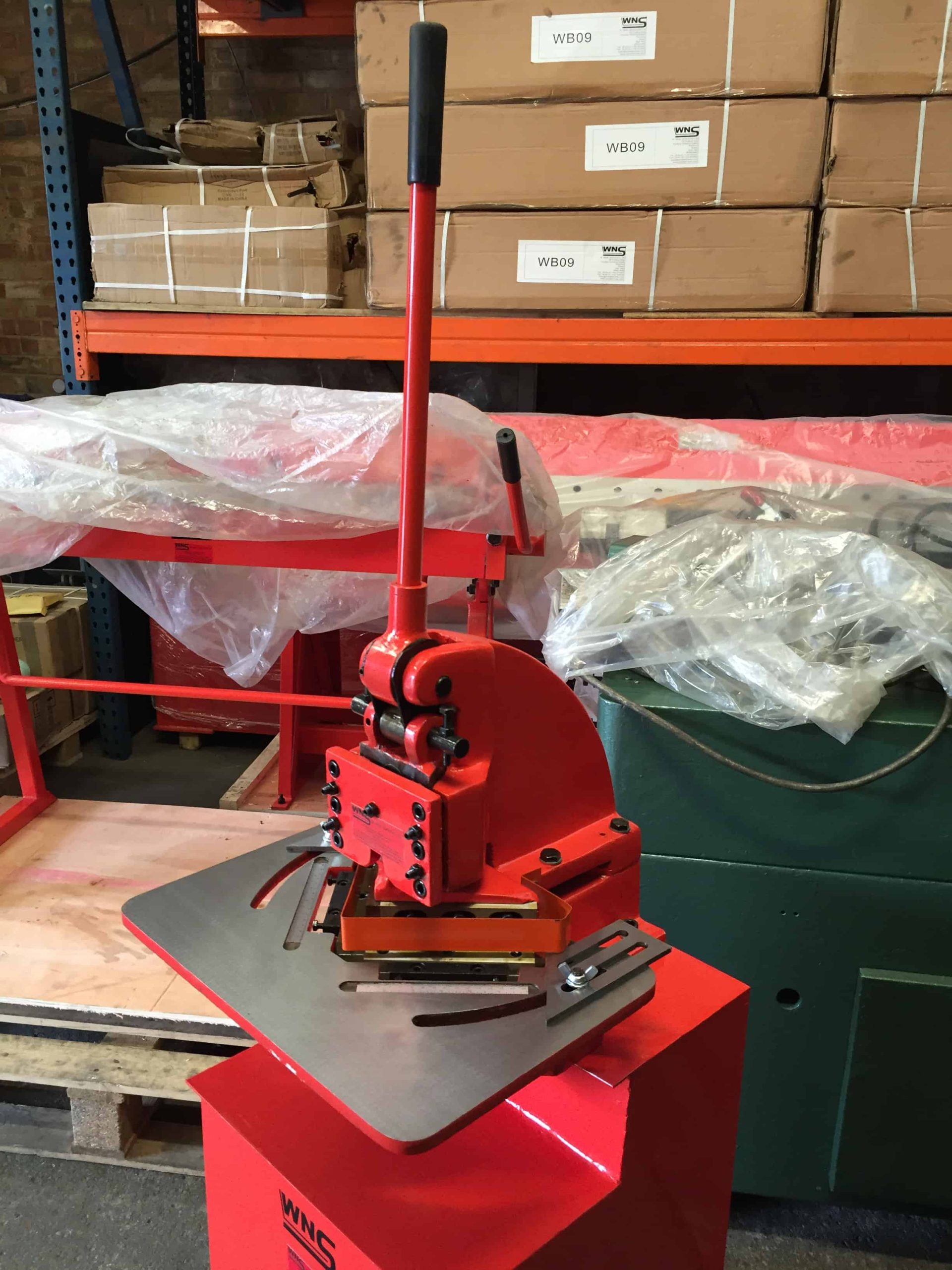

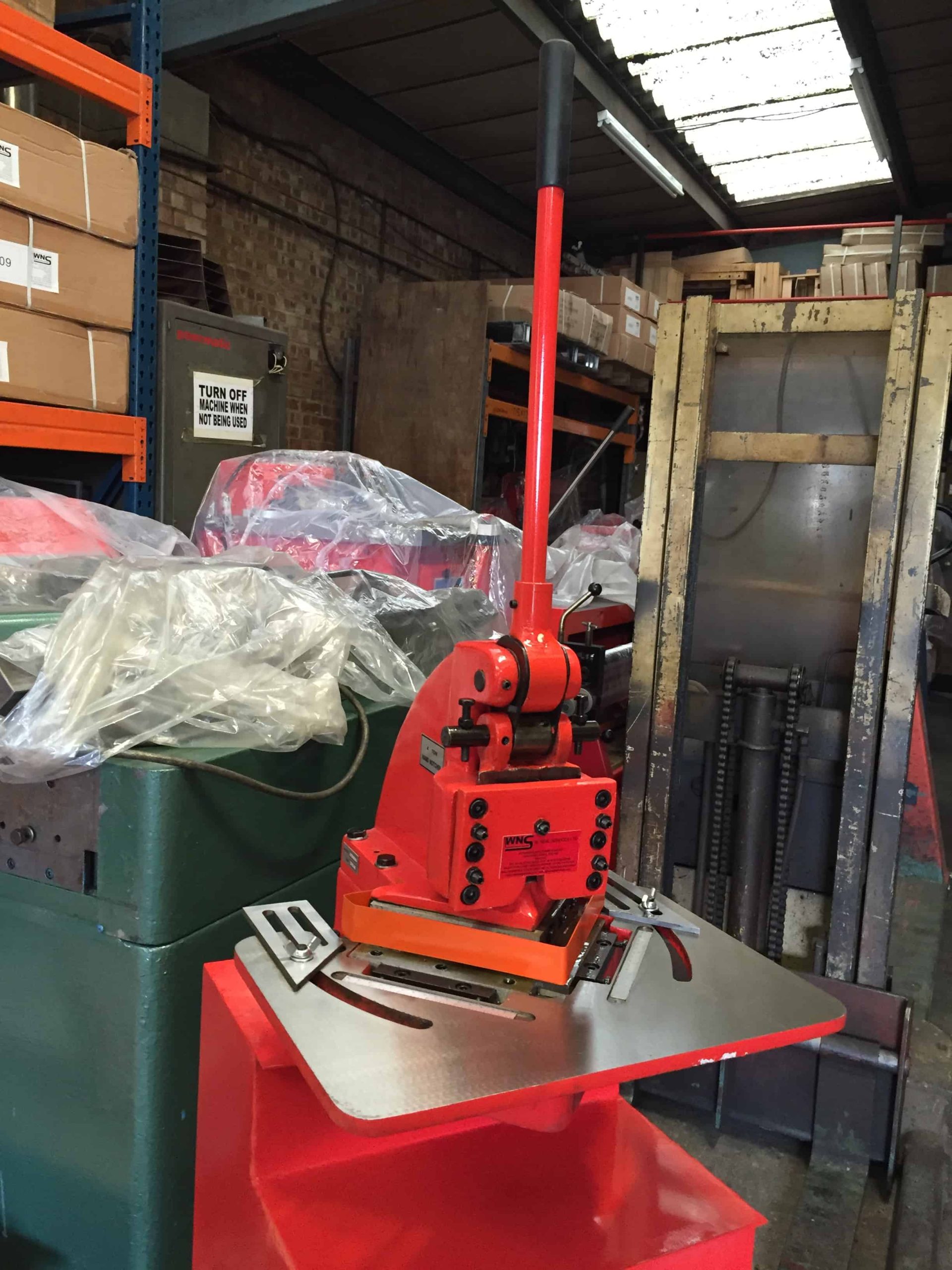

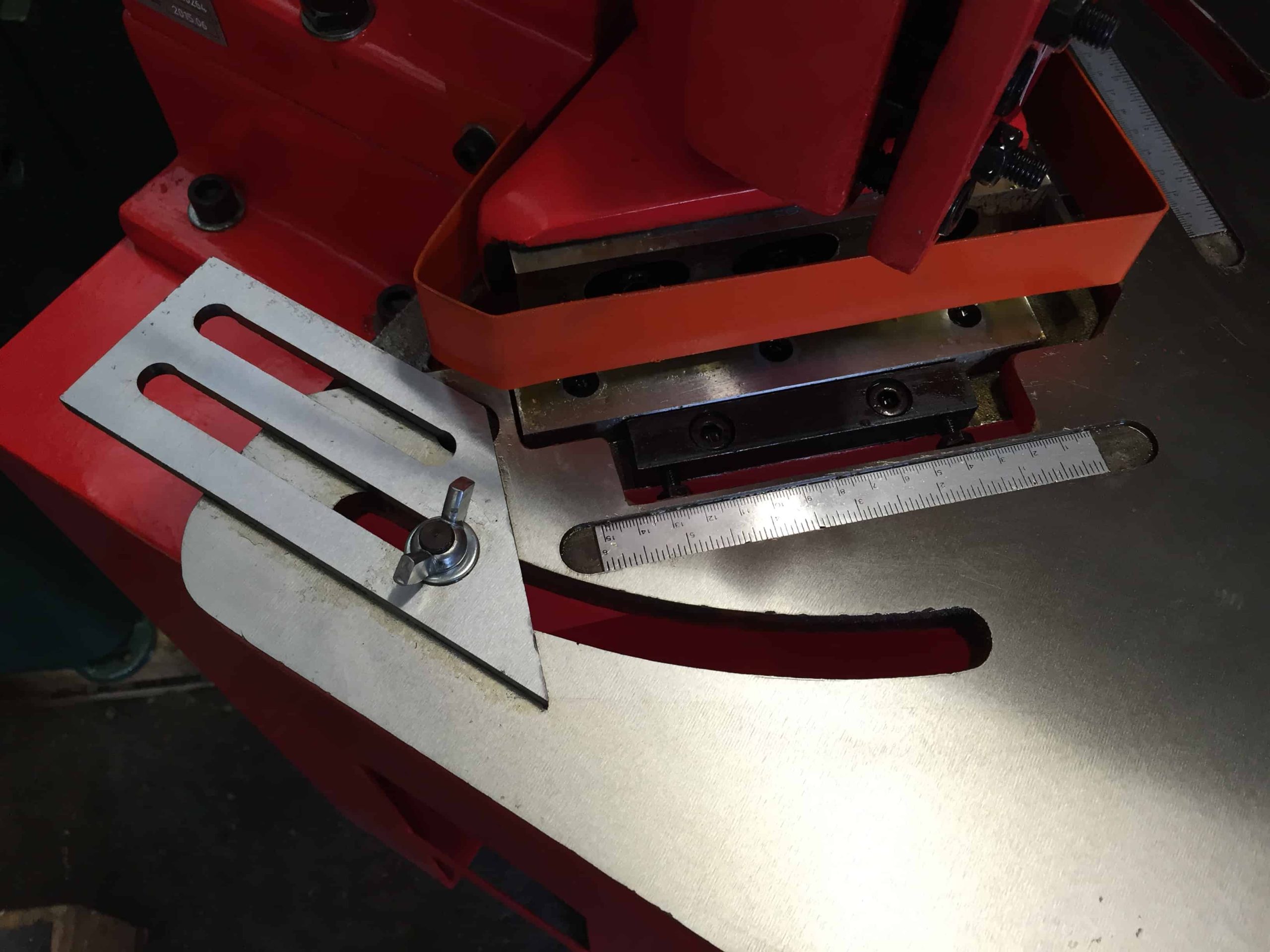

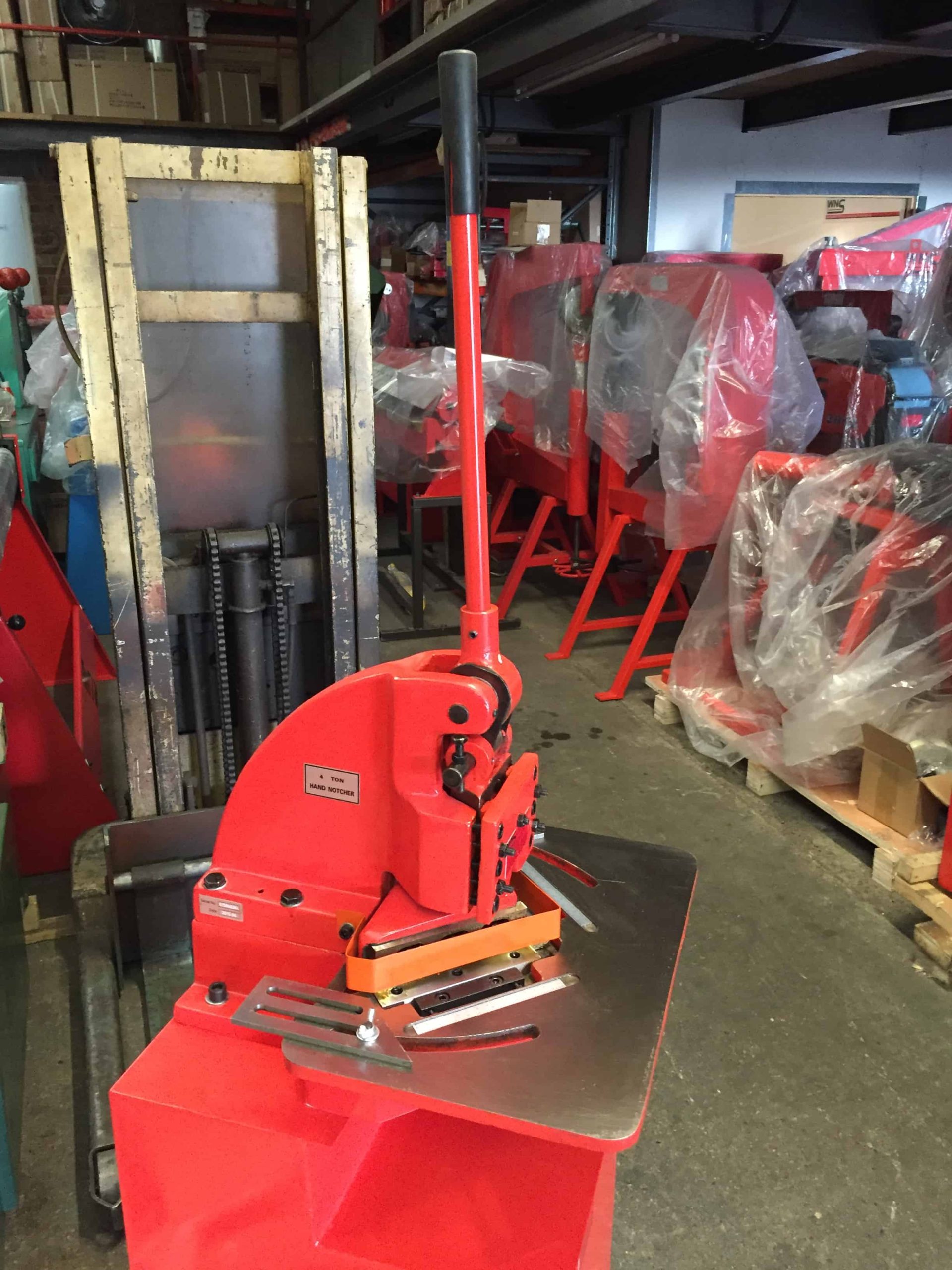

WNS CORNER NOTCHER (CN150) has a cutting angle fixed at 90° and can notch 150mm notches at a maximum capacity of 1.5mm. This machine can be bench mounted and is hand operated with a 450mm long handle. The Corner Notcher features fully adjustable precision ground guide plates and integrated rulers.

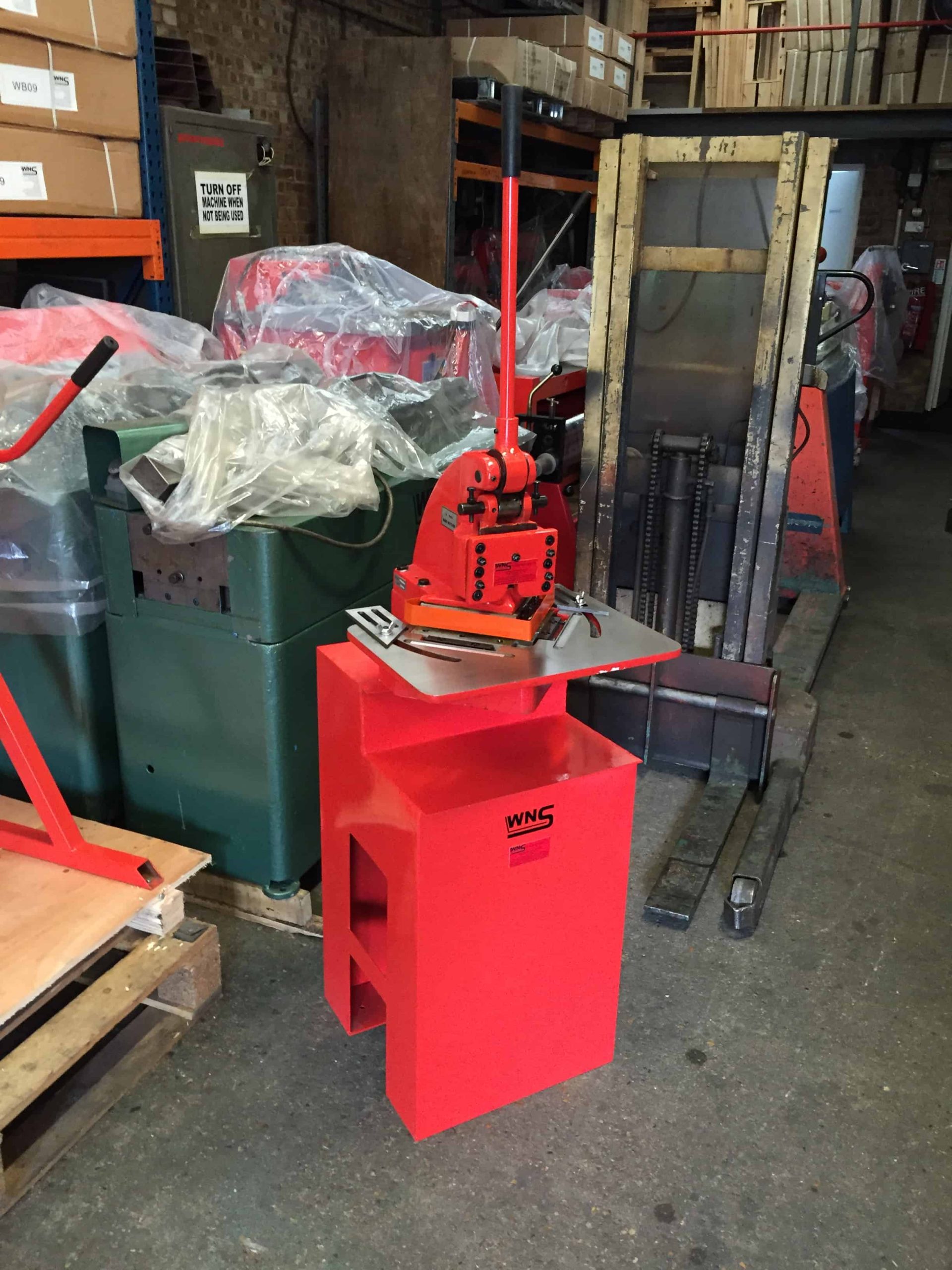

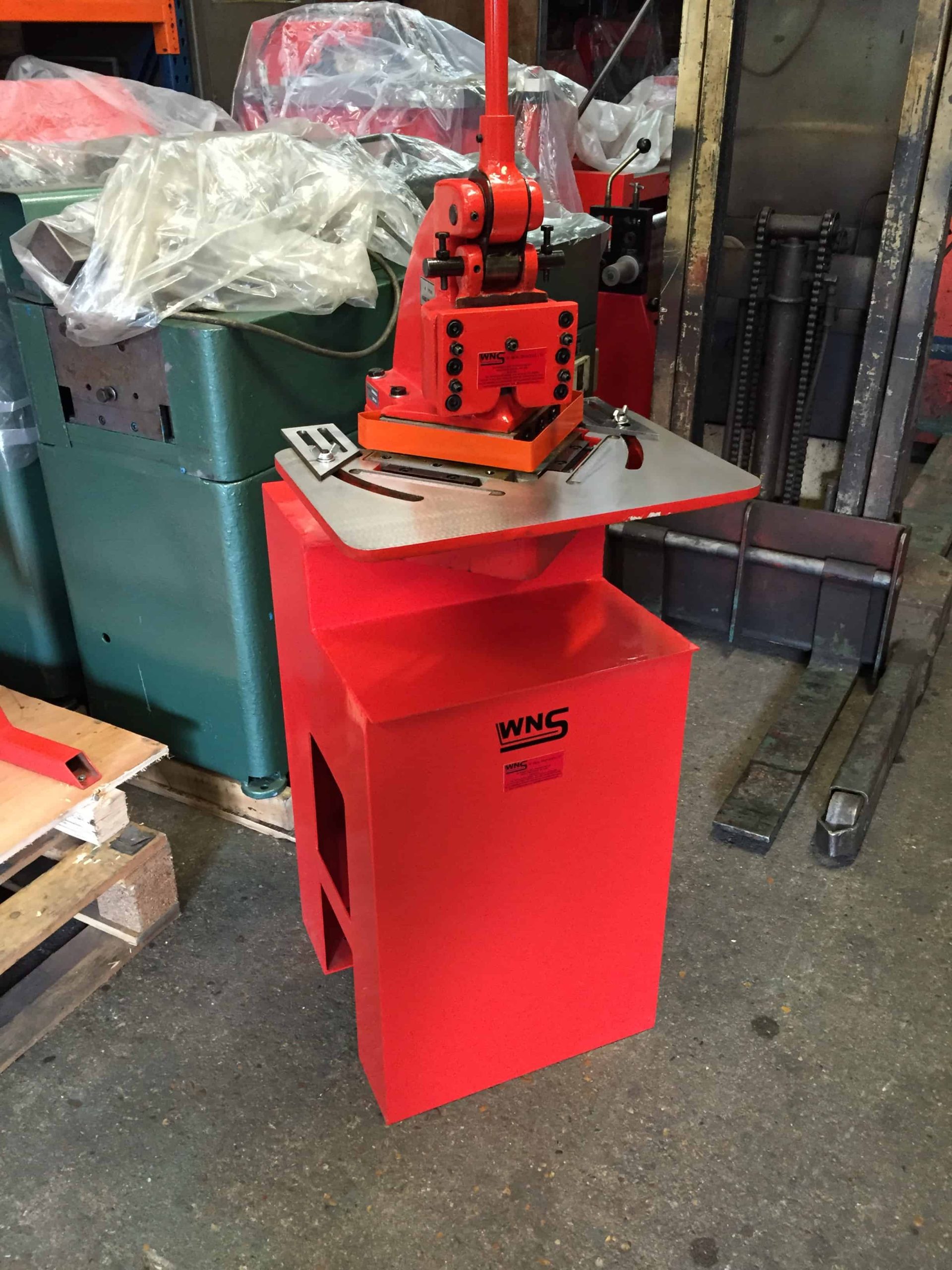

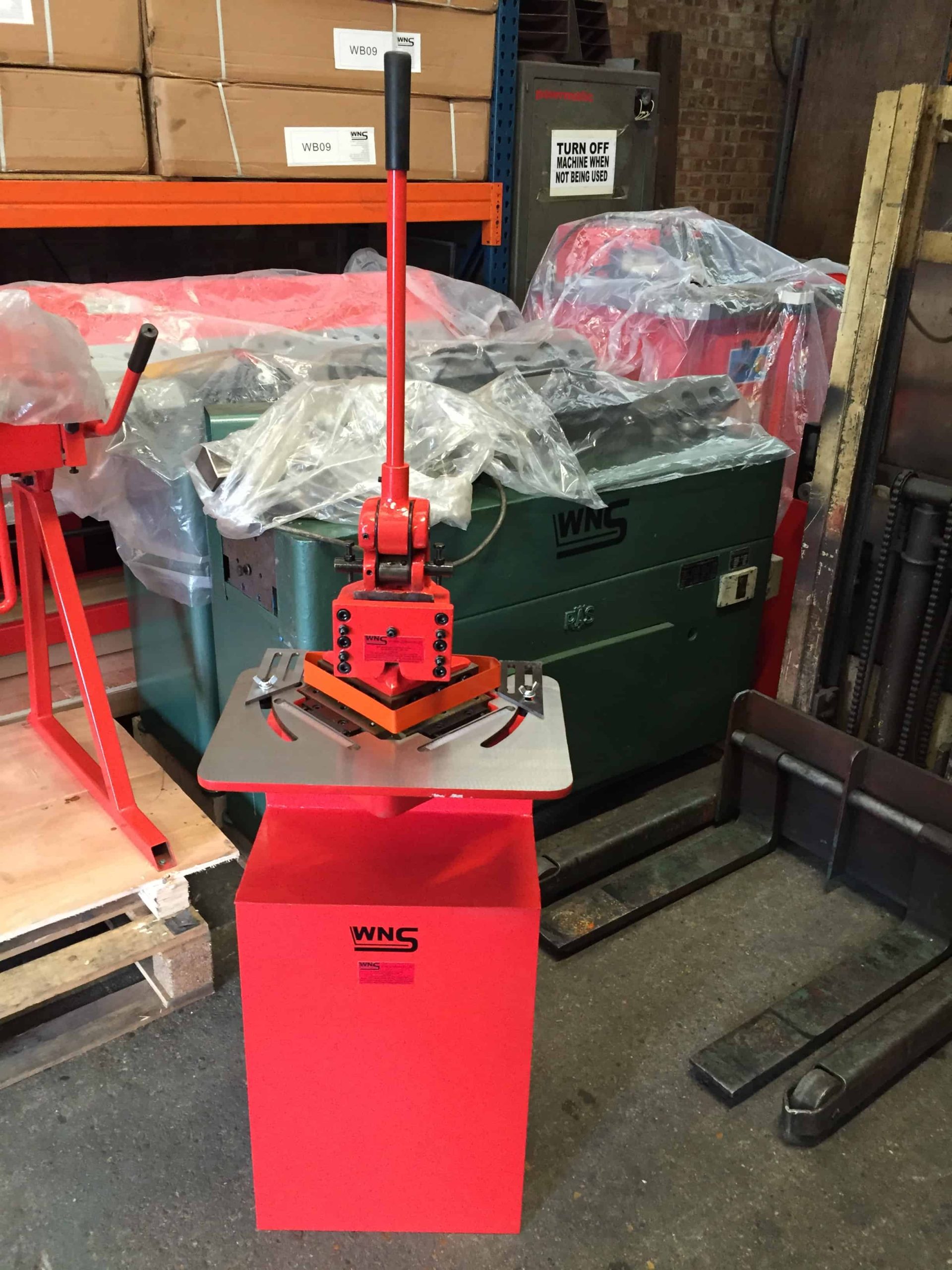

Optional stand available, please contact us.









Additional information

Weight 85 kg
SPECIFICATIONS
Model: CN150
Notch: 150mm x 150mm
Maximum Thickness: 1.5mm Mild Steel
Cutting Angle: 90°
Ram Stroke: 20mm
Dimensions – handle (apx): 450mm
Dimensions – machine (apx): 460mm x 490mm x 500mm (l x w x h)
Dimensions – packing (apx): 610mm x 570mm x 560mm (l x w x h)
Weights – net/gross (apx): 75Kg/85Kg



All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
