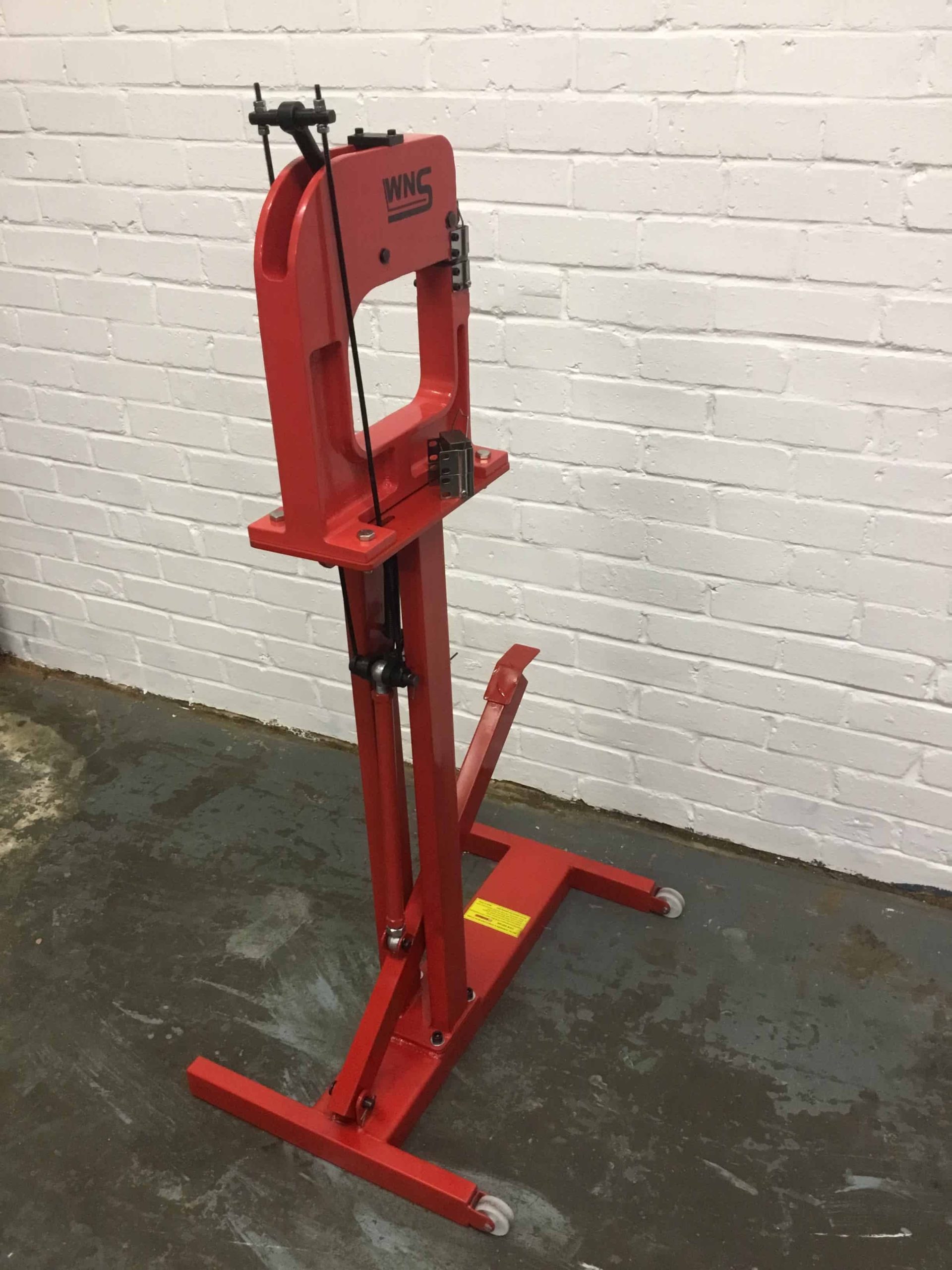

WNS Deep Throat Shrinker/Stretcher

Shrinker / Stretchers


WNS Shrinker/Stretchers are used to create smooth radius curves in sheet metal, without cutting, welding, heating or hammering. The Shrinker contracts the metal for inside curves and the Stretcher expands the metal for outside curves. These machines are predominantly used on body panels for cars and aeroplanes, however are also utilised in many other areas to fabricate or repair metal work where the combination of a curve and an angle is required.

Description

WNS SHRINKER/STRETCHER (SSF208H) accommodates mild steel sheet up to 1.5mm thick. This heavy duty metal shrinker/stretcher combination is great for making smooth professional shop quality radius bends in sheet metal without cutting, heating, or hammering the material. The foot pedal operation leaves the operators hands free to handle the panel they are trying to shape, while the 8″ throat makes this machine suitable for any professional metal worker. The shrinker contracts the metal for inside curves and the stretcher expands the metal for outside curves. These machines are predominantly used on body panels for cars and aeroplanes, however, are great for creating trim flanges, door edges, channels and wheel arch rims in flat or right angled sections.


View Literature



Additional information

Weight 75 kg
SPECIFICATIONS
Model: SSF208H
Throat Depth: 208mm
Maximum Thickness: 1.5mm Mild Steel
Dimensions – machine (apx): 660mm x 500mm x 1300mm (l x w x h)
Dimensions – packing (apx): 830mm x 600mm x 500mm (l x w x h)
Weights – net/gross (apx): 43Kg/44Kg

All capacities are based on the use of Rollforming quality Mild Steel unless otherwise stated. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W.Neal Services Ltd reserves the right to alter any specifications. *For warranty terms please see our full Terms & Conditions. E&OE.

Reviews

There are no reviews yet.

Be the first to review “WNS Deep Throat Shrinker/Stretcher”

Your email address will not be published. Required fields are marked *

SKU: SSF208H

WNS Deep Throat Shrinker/Stretcher

£425.00 excluding VAT

1 in stock

12 Month Warranty

  • 208mm Throat
  • 1.5mm Capacity Mild Steel
  • Heavy Duty Cast Iron Frame

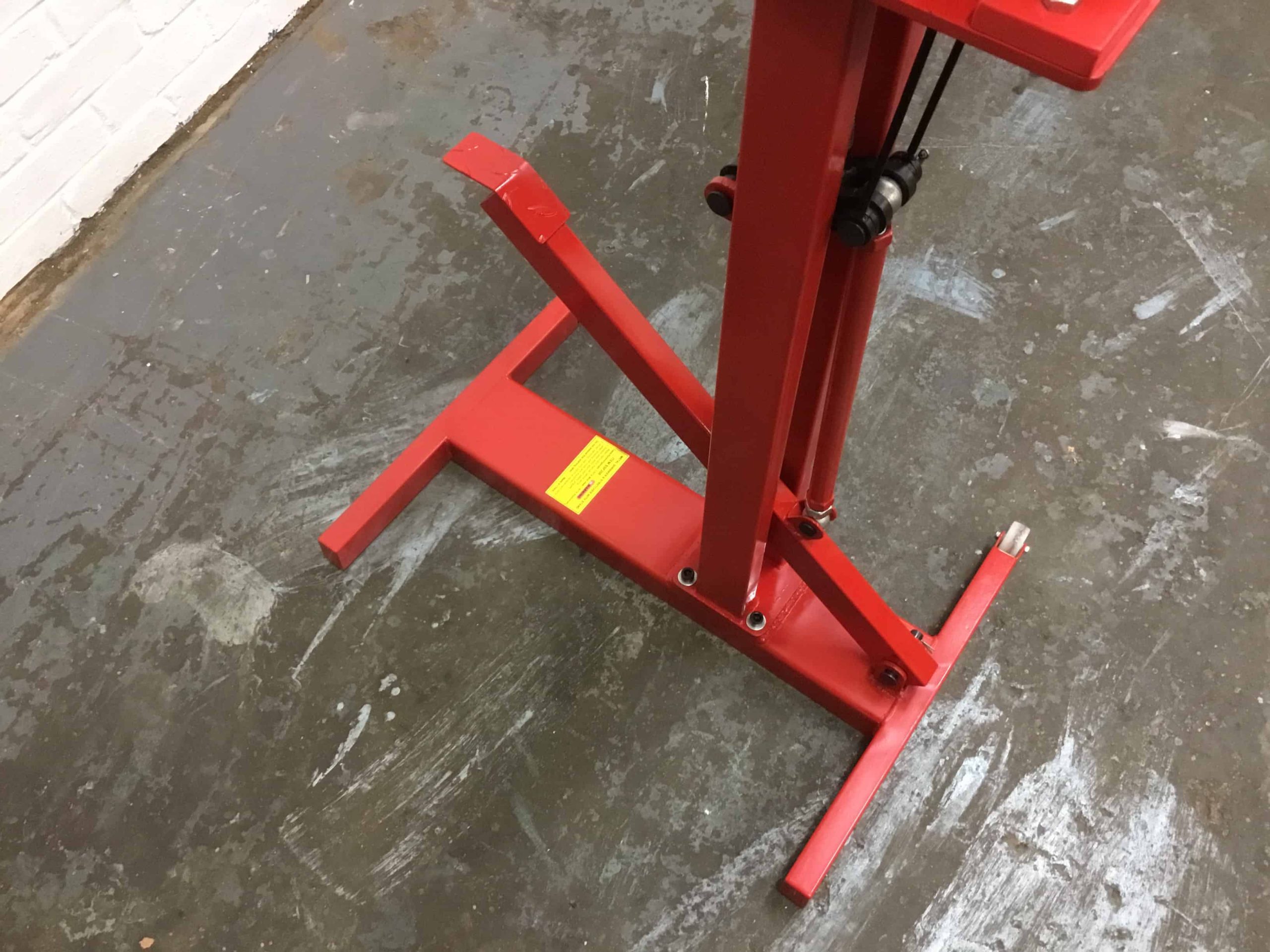

  • Foot Operated

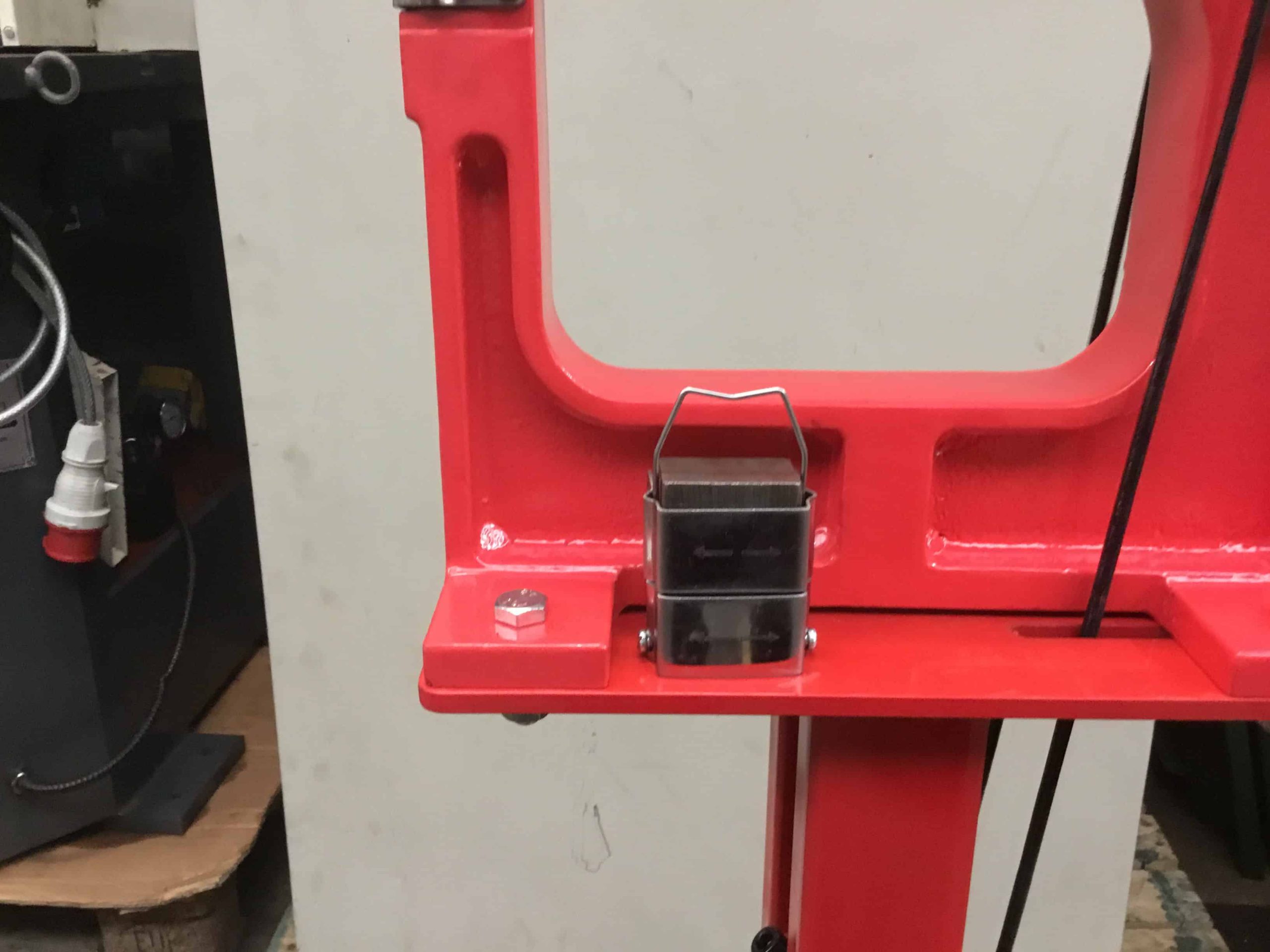

  • c/w 2 Sets of Jaws
  • 12 Months Warranty*
  • Worldwide Delivery

Find out more or call us 01702 542 554

Worldwide shipping available.

Opening hours 08:30 to 17:30 Monday to Friday.
