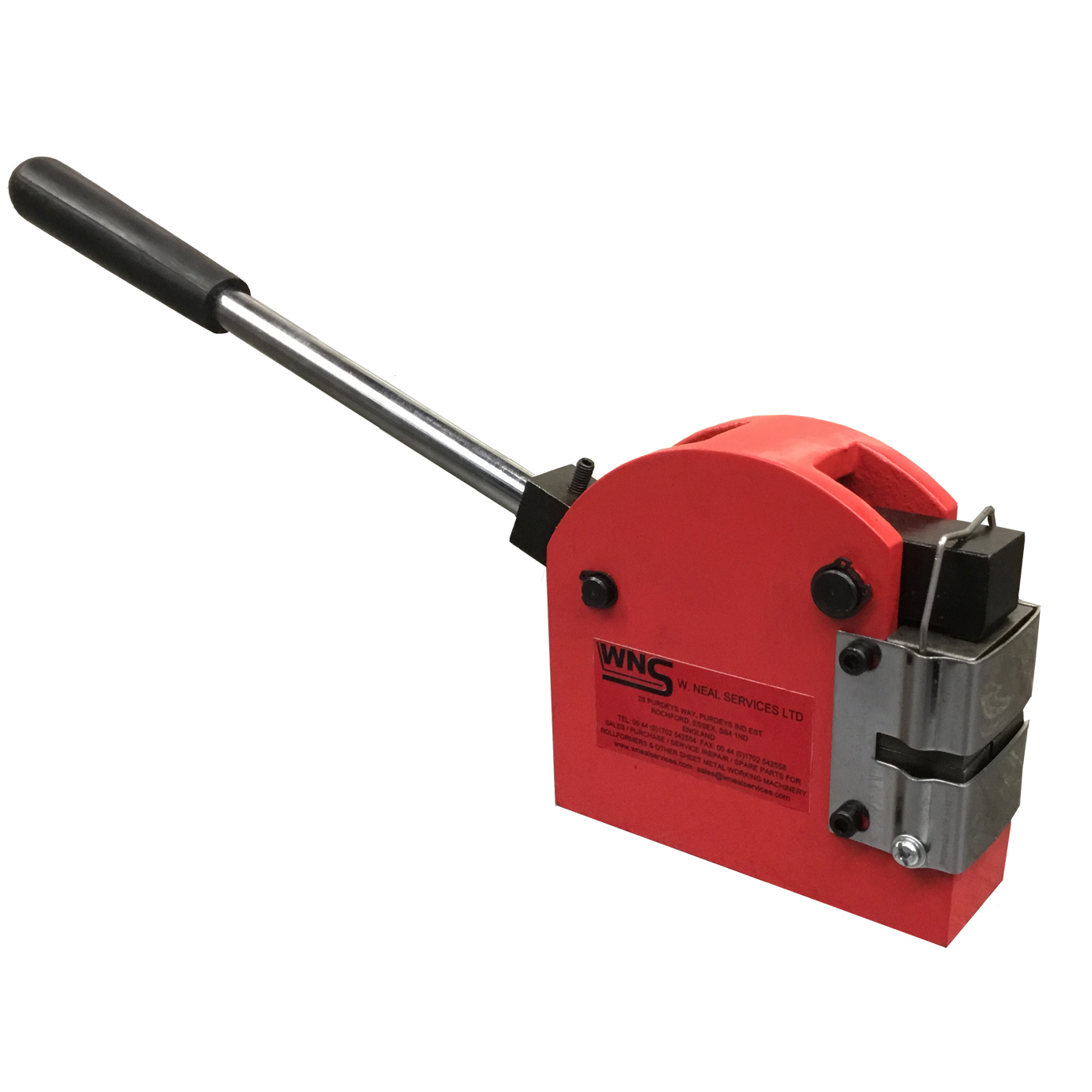

Hand Shrinker/Stretcher 25mm x 1.2mm

Shrinker / Stretchers


WNS Shrinker/Stretchers are used to create smooth radius curves in sheet metal, without cutting, welding, heating or hammering. The Shrinker contracts the metal for inside curves and the Stretcher expands the metal for outside curves. These machines are predominantly used on body panels for cars and aeroplanes, however are also utilised in many other areas to fabricate or repair metal work where the combination of a curve and an angle is required.

Description

WNS SHRINKER/STRETCHER (SS25H) can accommodate mild steel sheet up to 1.2mm thick. It is hand operated and complete with quick changing jaws. Shrinker/Stretchers are used to create smooth radius curves in sheet metal, without cutting, welding, heating or hammering.  The Shrinker contracts the metal for inside curves and the Stretcher expands the metal for outside curves.  These machines are predominantly used on body panels for cars and aeroplanes, however, are also utilised in many other areas to fabricate or repair metal work where the combination of a curve and an angle is required.

View Literature





Additional information

Weight 7 kg
SPECIFICATIONS
Model: SS25H
Throat Depth: 25mm
Maximum Thickness: 1.2mm Mild Steel
Dimensions – machine (apx): 170mm x 150mm x 70mm (l x w x h)
Dimensions – packing (apx): 350mm x 200mm x 90mm (l x w x h)
Weight – net/gross (apx): 6.0Kg/7.0Kg

All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. Please note products are not to scale. E&OE.

Reviews

There are no reviews yet.

Be the first to review “Hand Shrinker/Stretcher 25mm x 1.2mm”

Your email address will not be published. Required fields are marked *

SKU: SS25H

Hand Shrinker/Stretcher 25mm x 1.2mm

£100.00 excluding VAT

4 in stock

12 Month Warranty

  • Hand Operated
  • 25mm Throat
  • 1.2mm Capacity Mild Steel

Find out more or call us 01702 542 554

Worldwide shipping available.

Opening hours 08:30 to 17:30 Monday to Friday.
