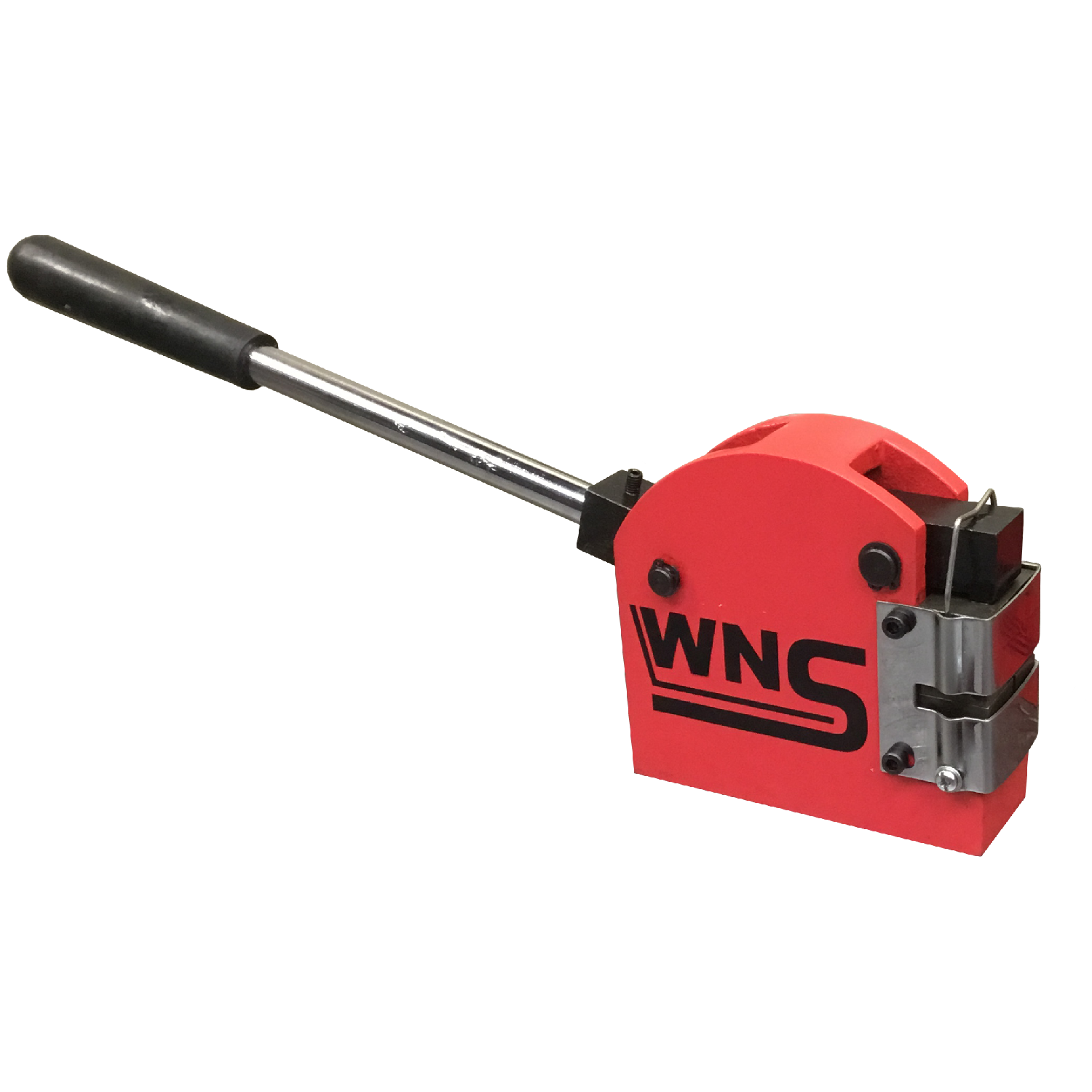

WNS Hand Shrinker/Stretcher 25mm Throat x 1.2mm (SS25)

Shrinker / Stretchers


WNS Shrinker/Stretchers are used to create smooth radius curves in sheet metal, without cutting, welding, heating or hammering. The Shrinker contracts the metal for inside curves and the Stretcher expands the metal for outside curves. These machines are predominantly used on body panels for cars and aeroplanes, however are also utilised in many other areas to fabricate or repair metal work where the combination of a curve and an angle is required.

Description

WNS SHRINKER/STRETCHER (SS25) can accommodate mild steel sheet up to 1.2mm thick. It is hand operated and complete with quick changing jaws. Shrinker/Stretchers are used to create smooth radius curves in sheet metal, without cutting, welding, heating or hammering.  The Shrinker contracts the metal for inside curves and the Stretcher expands the metal for outside curves.  These machines are predominantly used on body panels for cars and aeroplanes, however, are also utilised in many other areas to fabricate or repair metal work where the combination of a curve and an angle is required.

View Literature





Additional information

Weight 6 kg
SPECIFICATIONS
Model: SS25
Throat Depth: 25mm
Maximum Thickness: 1.2mm Mild Steel
Dimensions – machine (apx): 450mm x 50mm x 140mm (l x w x h)
Dimensions – packing (apx): 350mm x 170mm x 75mm (l x w x h)
Weight – net/gross (apx): 5.5Kg/5.8Kg

All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. Please note products are not to scale. E&OE.

SKU: SS25

WNS Hand Shrinker/Stretcher 25mm Throat x 1.2mm (SS25)

£165.00 excluding VAT

3 in stock

12 Month Warranty

• Hand Operated
• 25mm Throat
• 1.2mm Capacity Mild Steel
