Description

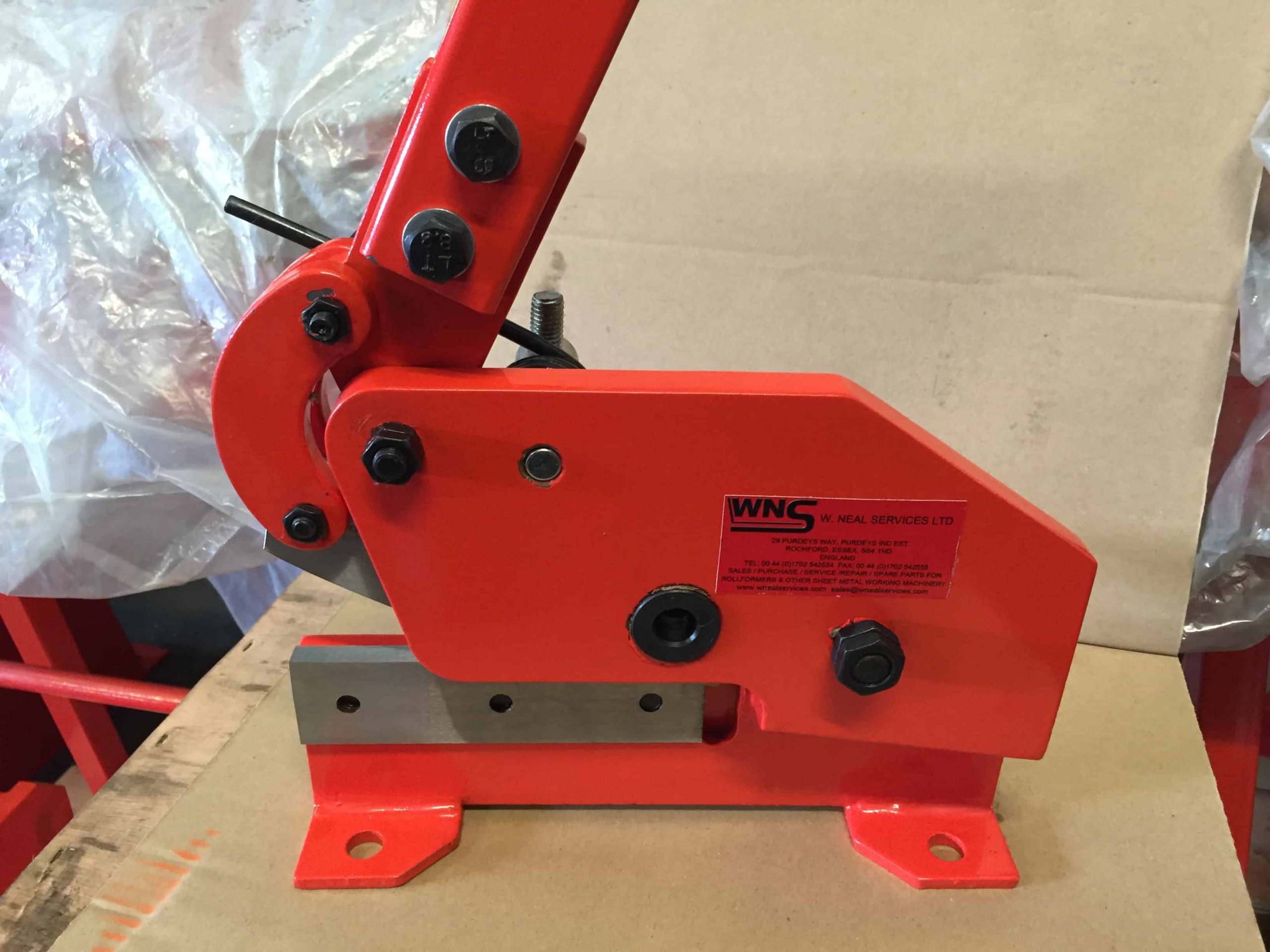

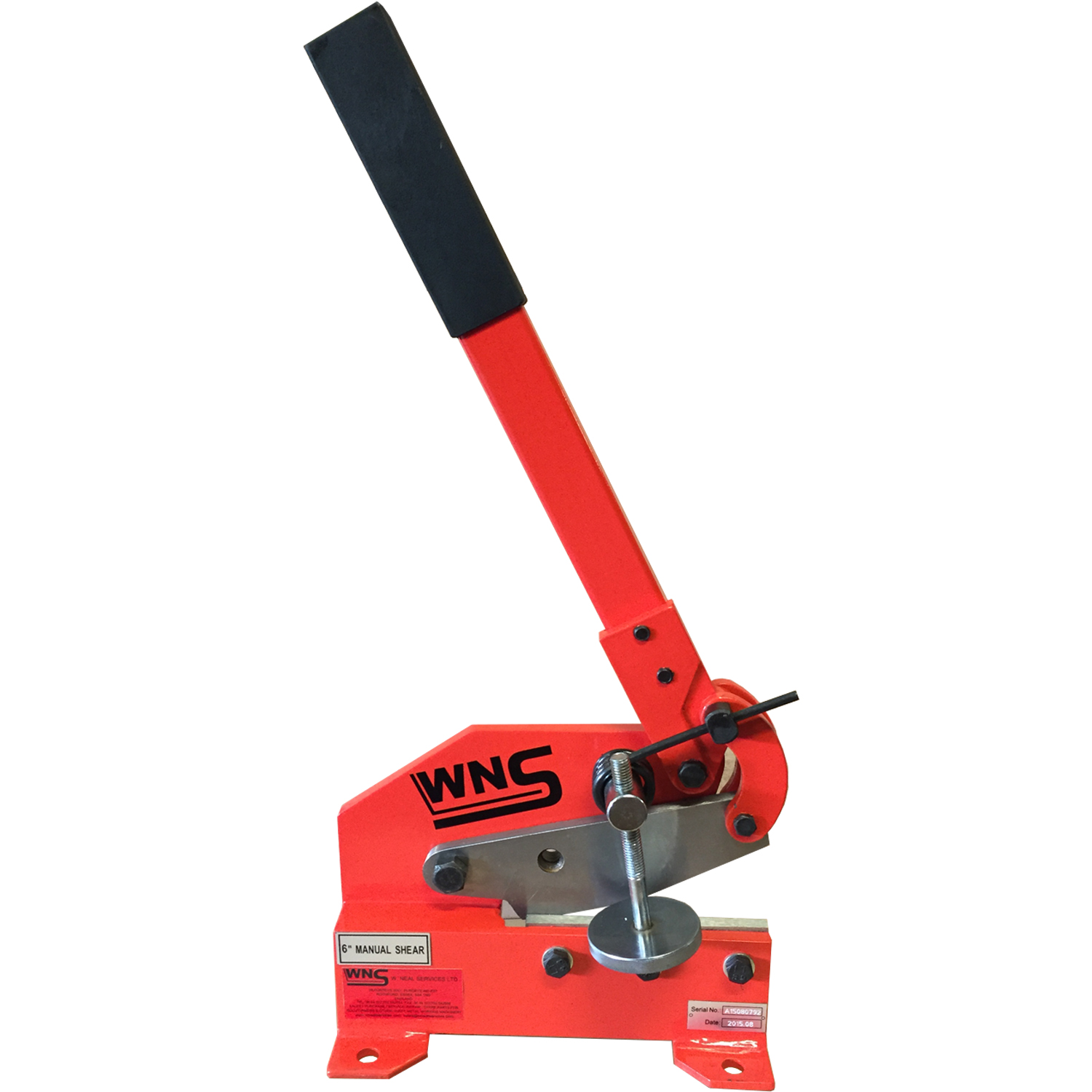

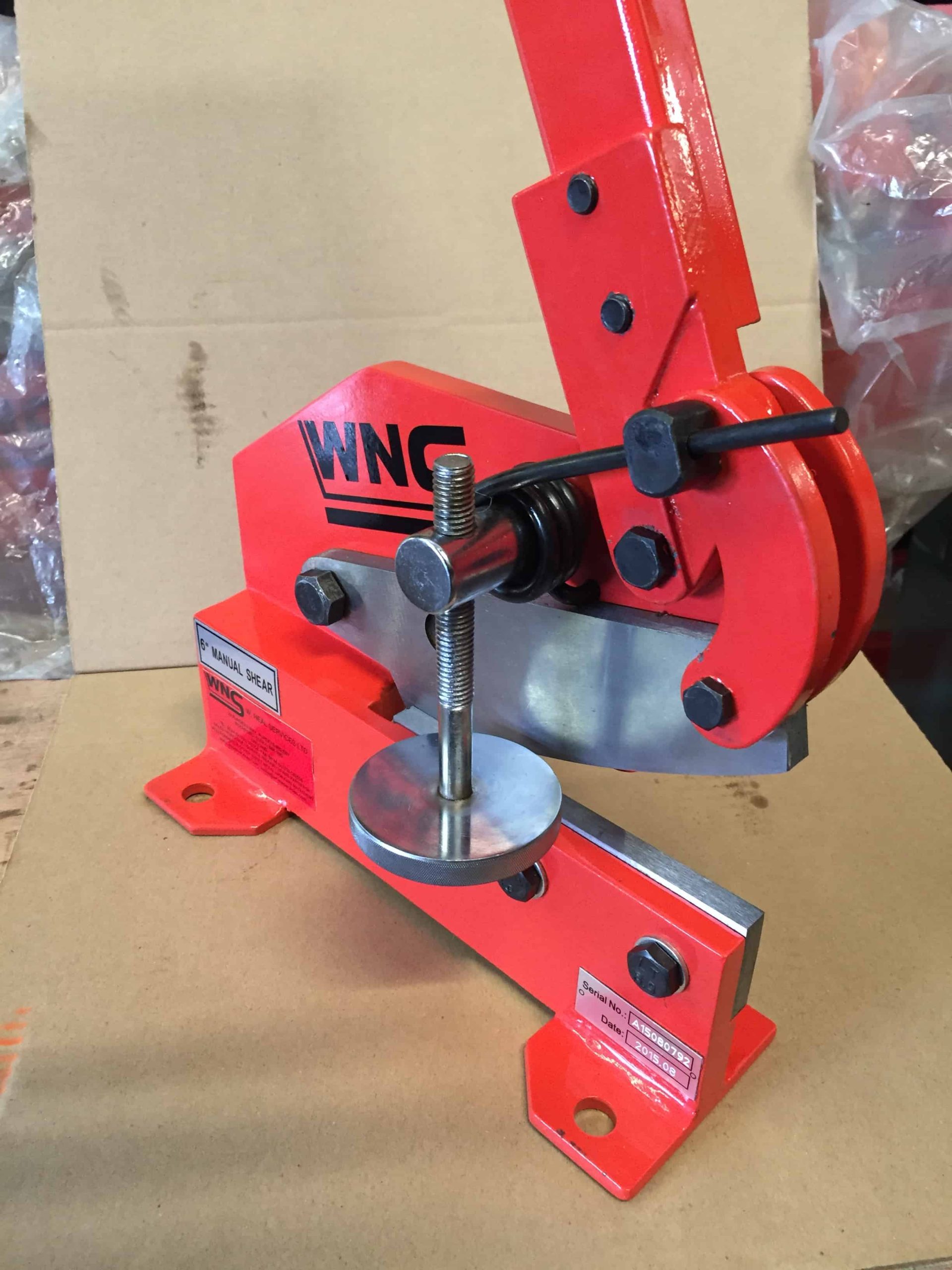

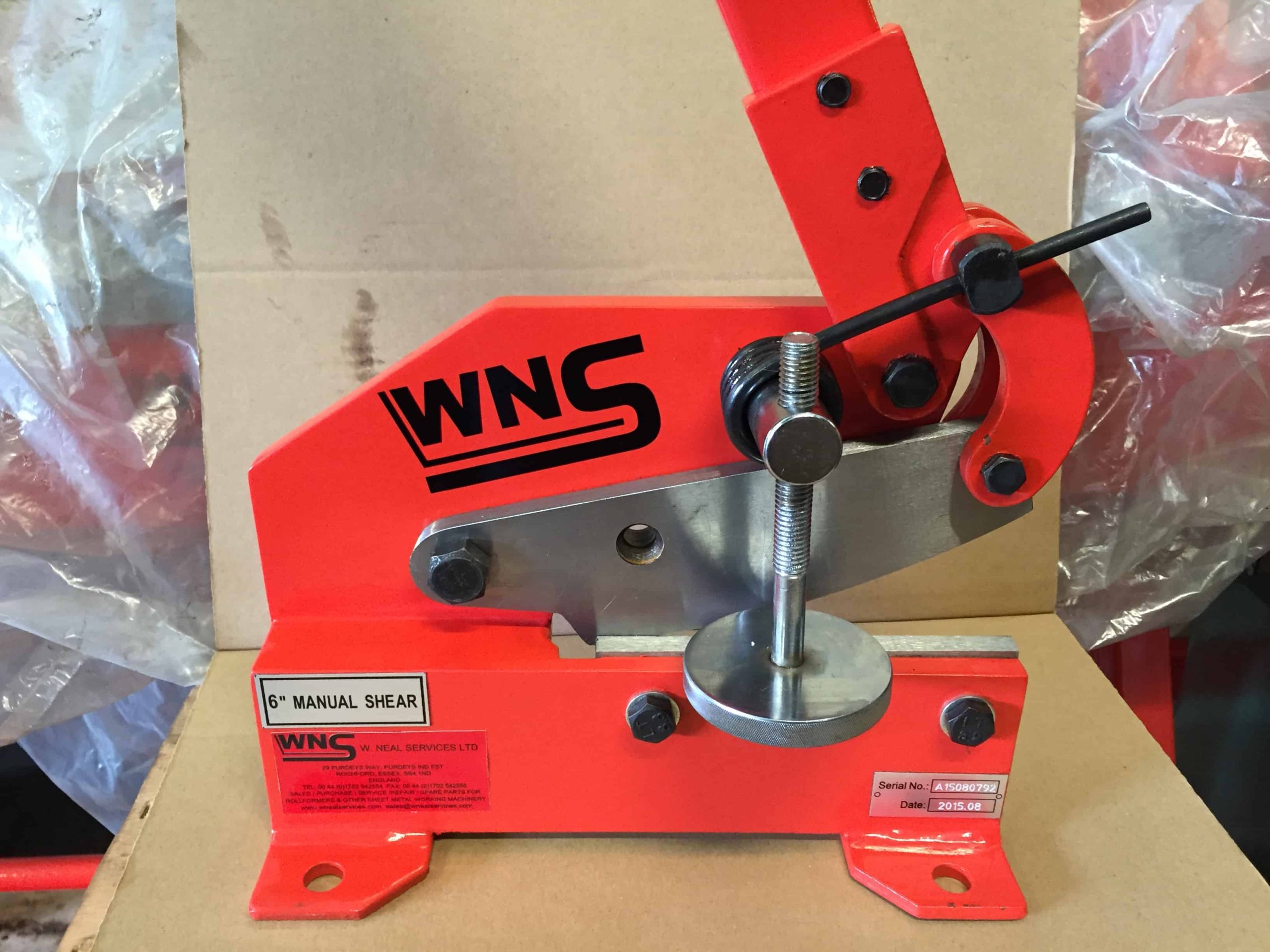

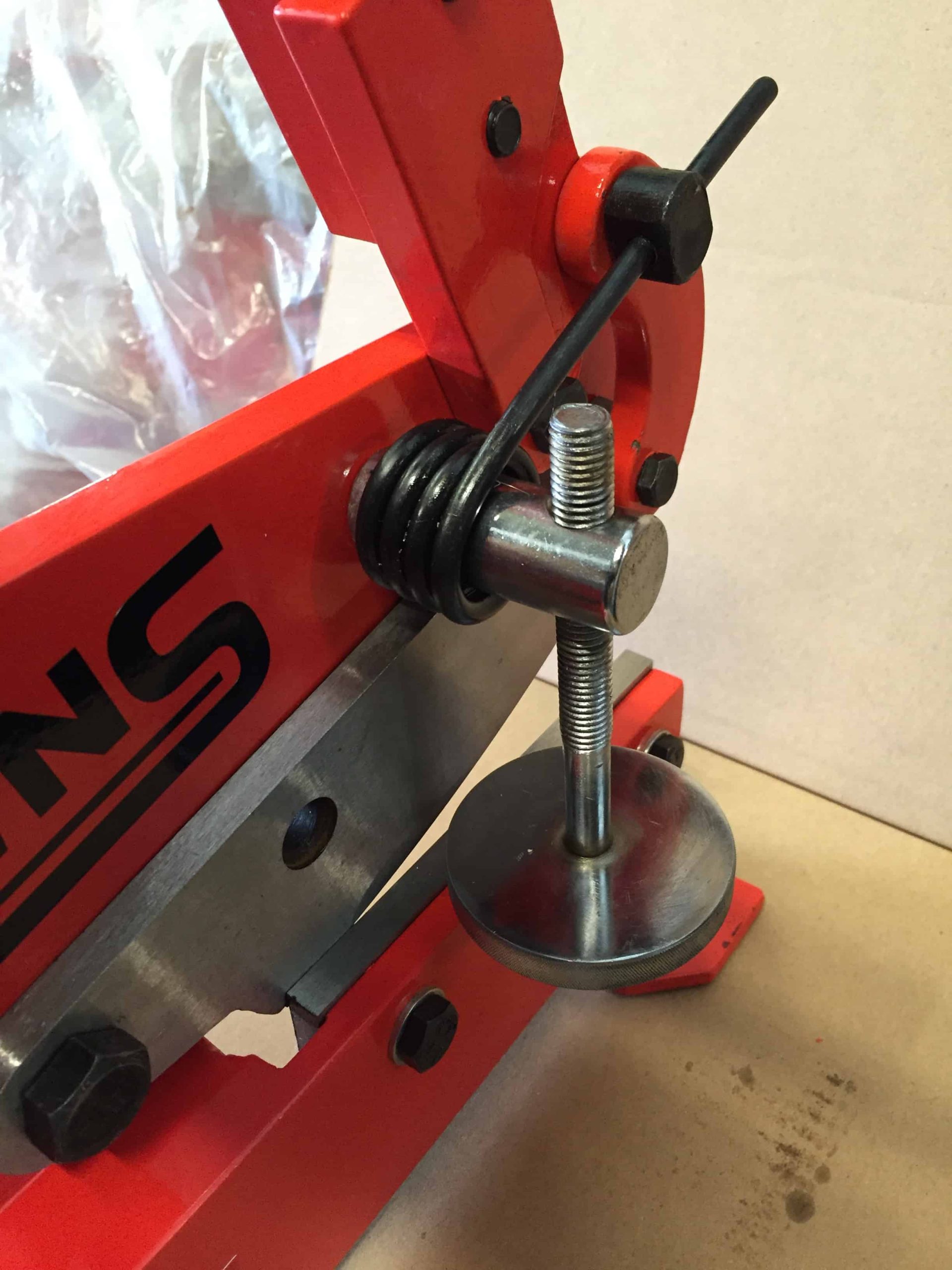

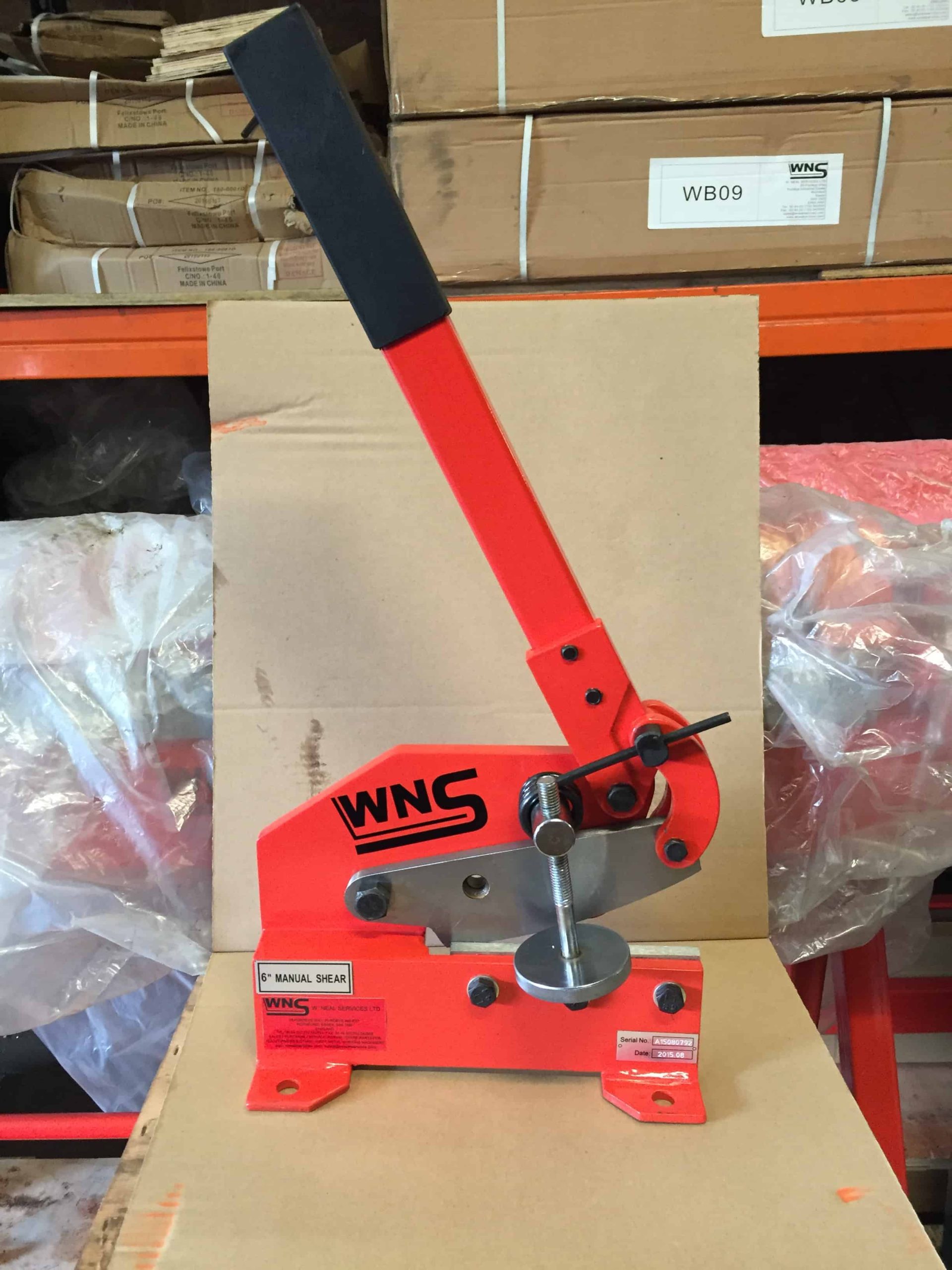

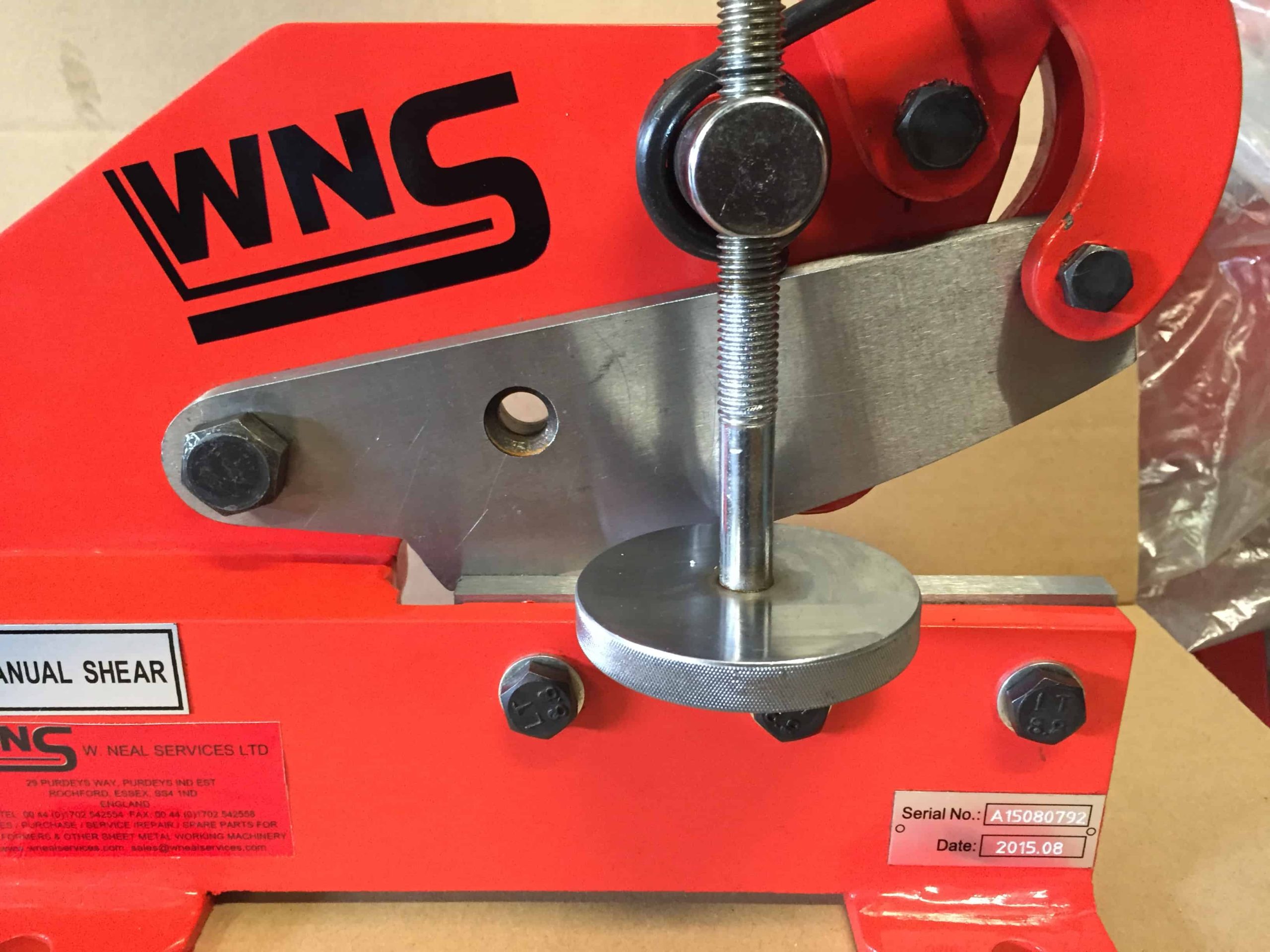

WNS LEVER CROPPER/SHEAR (LC150) are designed for cutting steel sheet and/or round bar. The LC150 can accommodate round bar up to 6.0mm – 8.0mm and flat bar up to 2.0mm. The Cropper can be bolted down for maxi-mum leverage, spare blades are available separately.
View Literature
SPECIFICATIONS |
Model: |
LC150 |
Blade Length: |
150mm |
Maximum Thickness: |
Flat: 2.0mm |
Round Bar: 6.0-8.0mm |
Dimensions – machine (apx): |
280mm x 120mm x 630mm (l x w x h) |
Dimensions – packing (apx): |
330mm x 160mm x 330mm (l x w x h) |
Weights – net/gross (apx): |
11Kg/13Kg |
All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. Please note products are not to scale. E&OE.
