W. NEAL SERVICES LTD – Manufacturing & Supplying Rollforming & Sheet Metal Working Machinery since 1981.

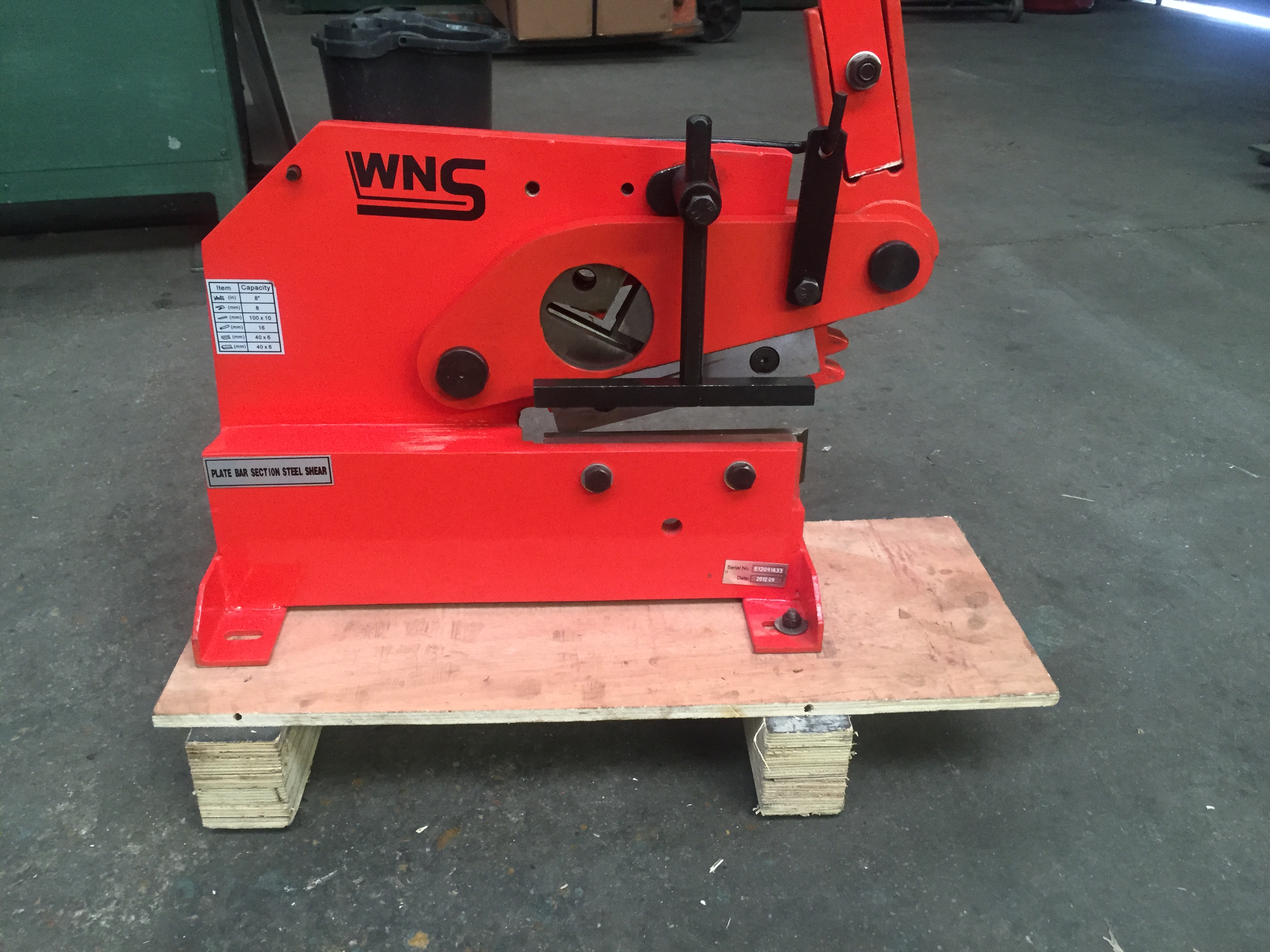

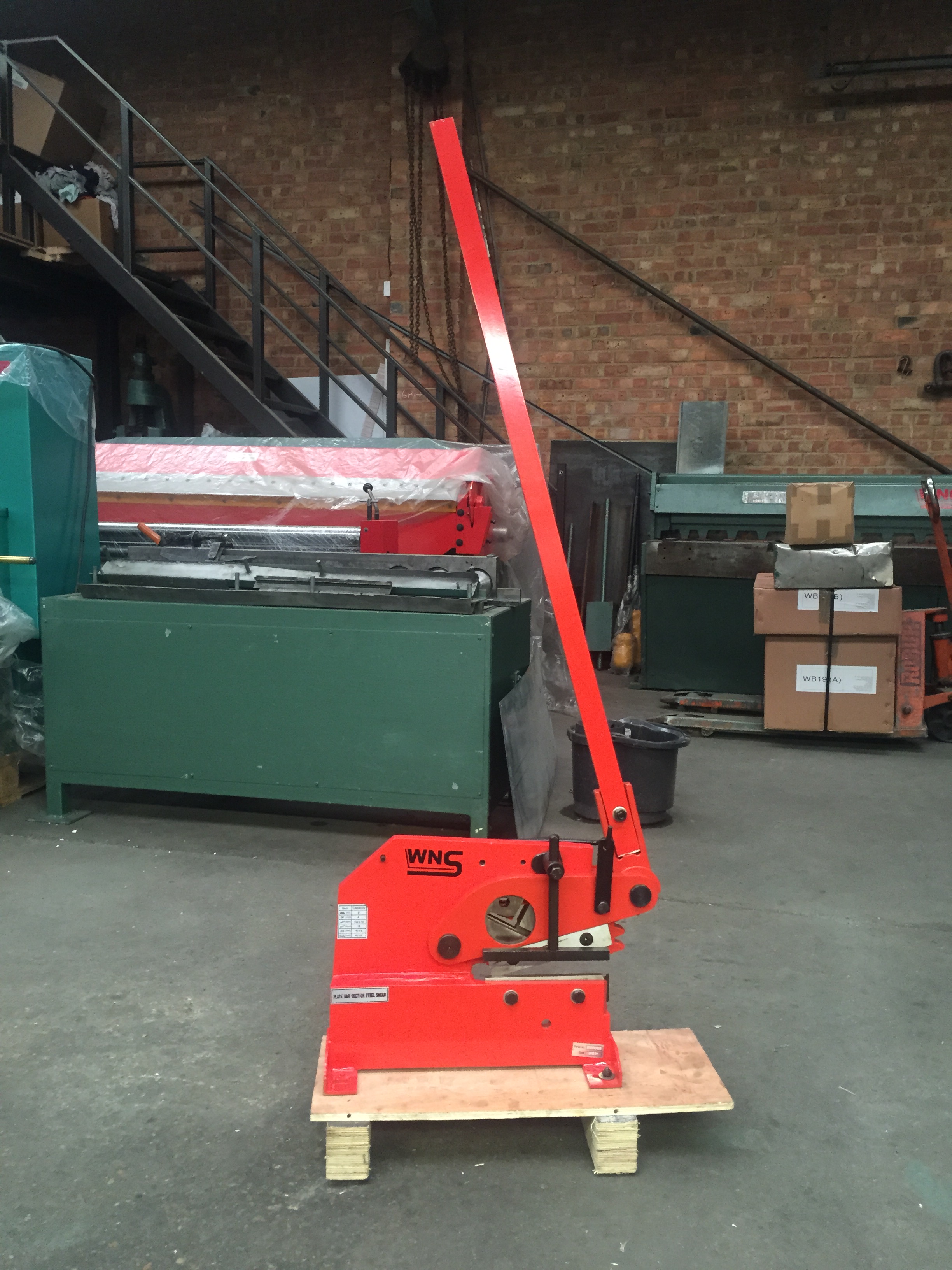

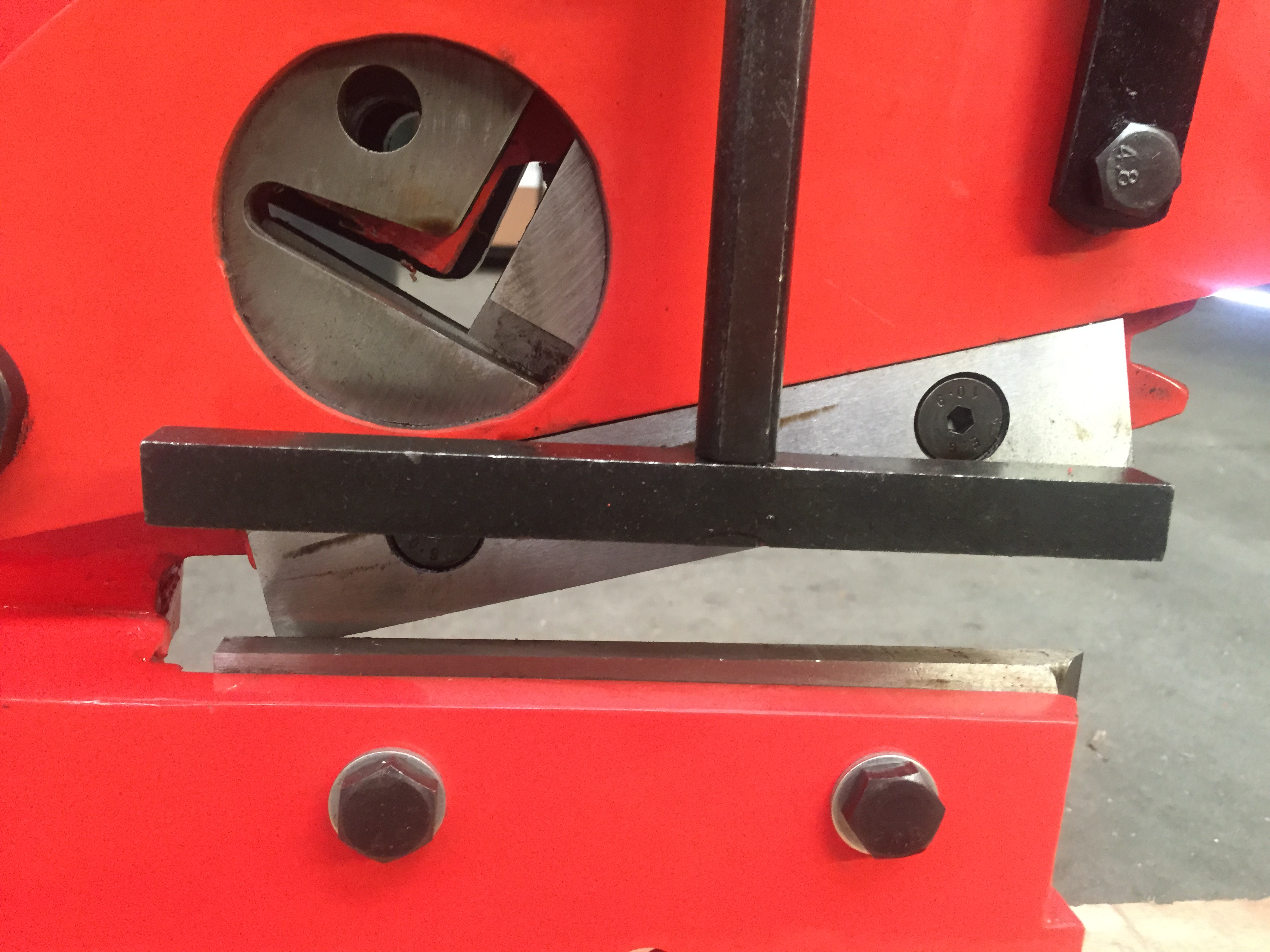

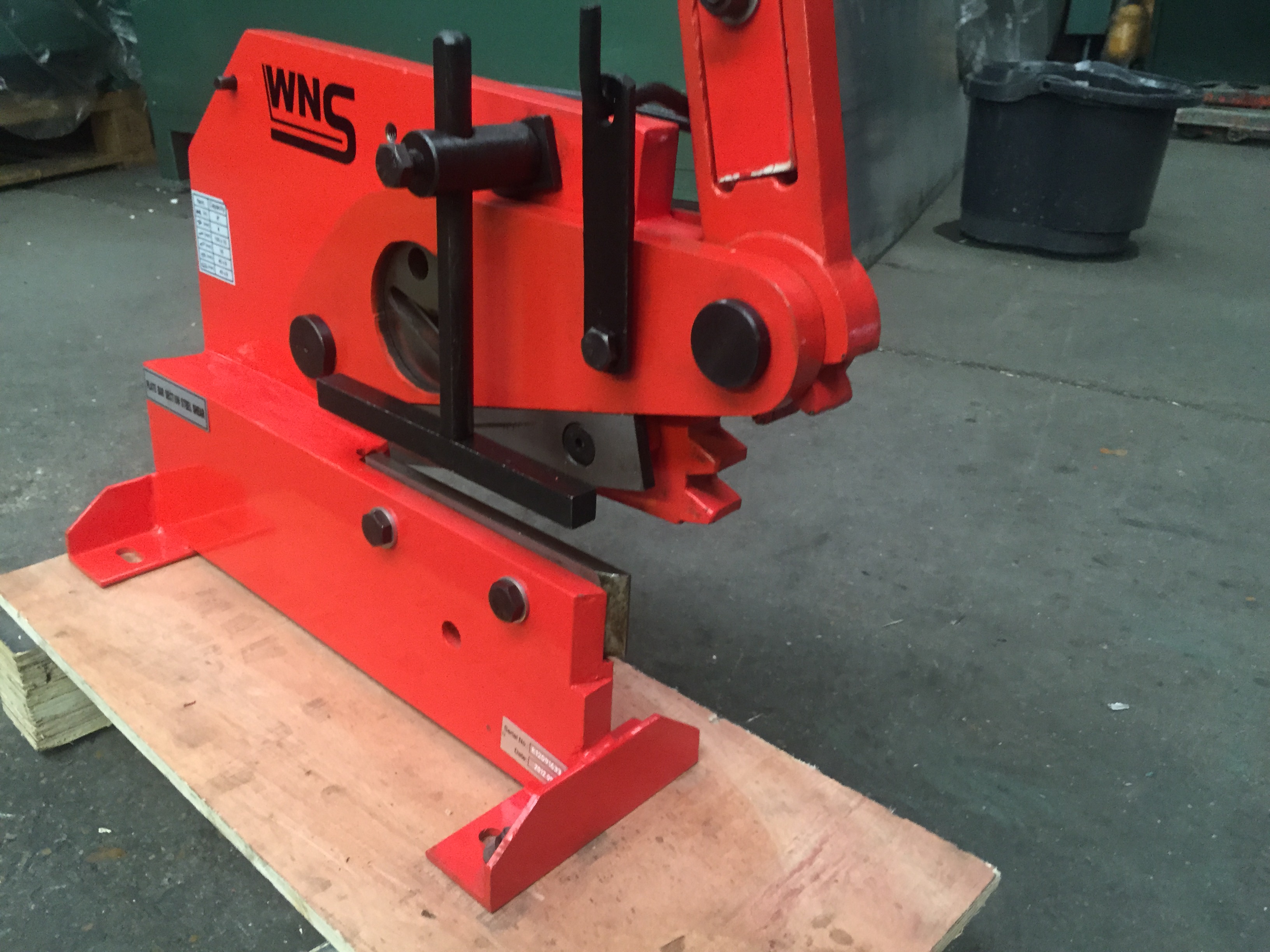

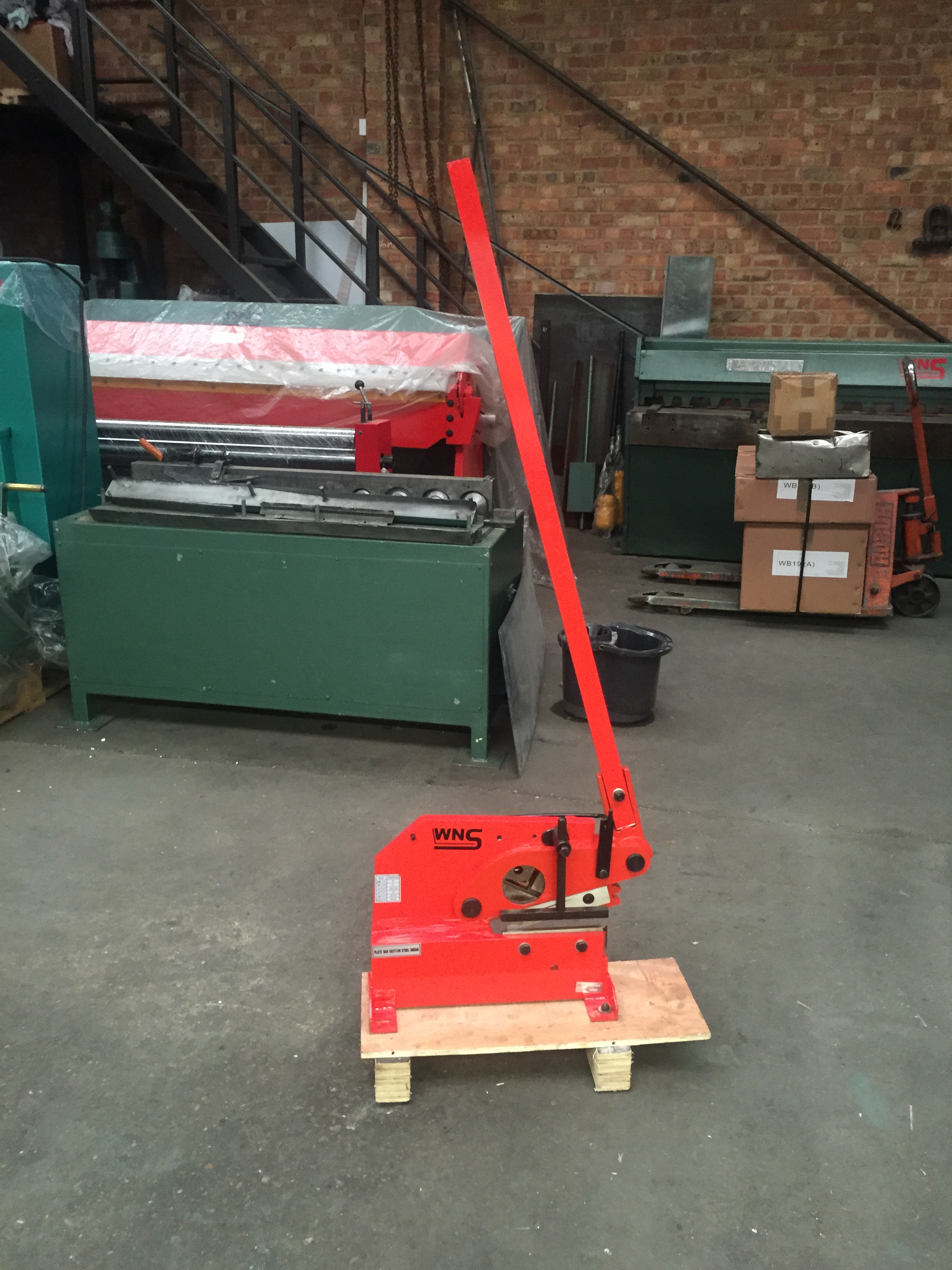

WNS MANUAL LEVER CROPPER/SHEAR STEELWORKER (LC10) is designed for cutting steel sheet including flat bar, round bar, square, bar, angular bar and t-beam. The LC10 is a heavy duty cropper ironworker and has a capacity up to 100mm. The cropper can be bolted down for maximum leverage. Spare and replacement blades are available separately.
To view all of our lever croppers, please click here.
To view all of our used/reconditioned machines please click here.
| Weight | 52 kg |
|---|
| SPECIFICATIONS | ||
| Model: | LC10 | |
| Blade Length: | 200mm | |
| Cutting Length: | 150mm | |
| Maximum Thickness: | Flat Bar/Steel: | 100mm Wide x 10mm Thick |
| Round Bar/Steel: | 16mm Diameter | |
| Square Bar/Steel: | 16mm² | |
| Angle Bar/Steel: | 40mm x 6.0mm | |
| T-Beam: | 40mm x 6.0mm | |
| Plate Bar/Steel: | 8.0mm Thick | |
| Dimensions – machine (apx): | 550mm x 150mm x 450mm (l x w x h) | |
| Dimensions – handle (apx) | 1220mm x 30mm x 20mm (l x w x h) | |
| Dimensions – packing (apx): | 680mm x 310mm x 560mm (l x w x h) + Handle | |
| Weights – net/gross (apx): | 45Kg/52Kg | |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
