⚠️END OF LINE CLEARANCE⚠️

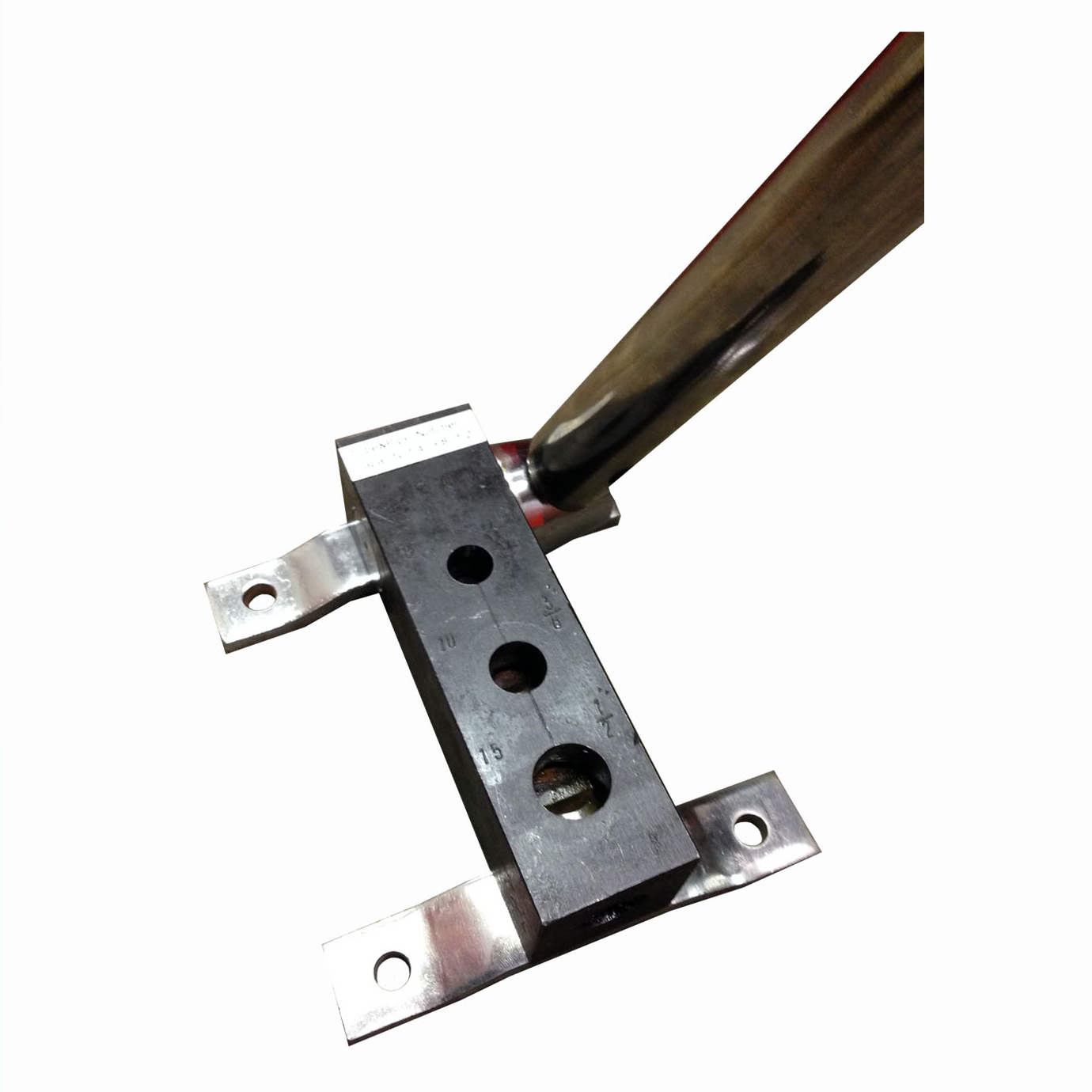

WNS Manual TUBE/PIPE NOTCHER (PN01) is used to notch round pipe and tube. This tube/pipe notcher notches tube at 90° with a maximum wall thickness of 3.0mm. It comes complete with a three piece handle attached to a cam system. This enables the user to easily apply the required leverage to notch quickly and with minimal, or no deformation.
To view all of our tube and pipe notchers, please click here.
To view all of our used/reconditioned machines please click here.
| Weight | 10 kg |
|---|
| SPECIFICATIONS | |
| Model: | PN01 |
| Tubing Capacities: | ¼”, ⅜” & ½” |
| Maximum Wall Thickness: | 3.0mm Mild Steel |
| Notching Angle: | 90˚ |
| Dimensions – handle (apx): | 980mm Long |
| Dimensions – machine (apx): | 180mm x 160mm x 70mm (l x w x h) |
| Dimensions – packing (apx): | 510mm x 190mm x 170mm (l x w x h) |
| Weights – net/gross (apx): | 6.5Kg/7.5Kg |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
