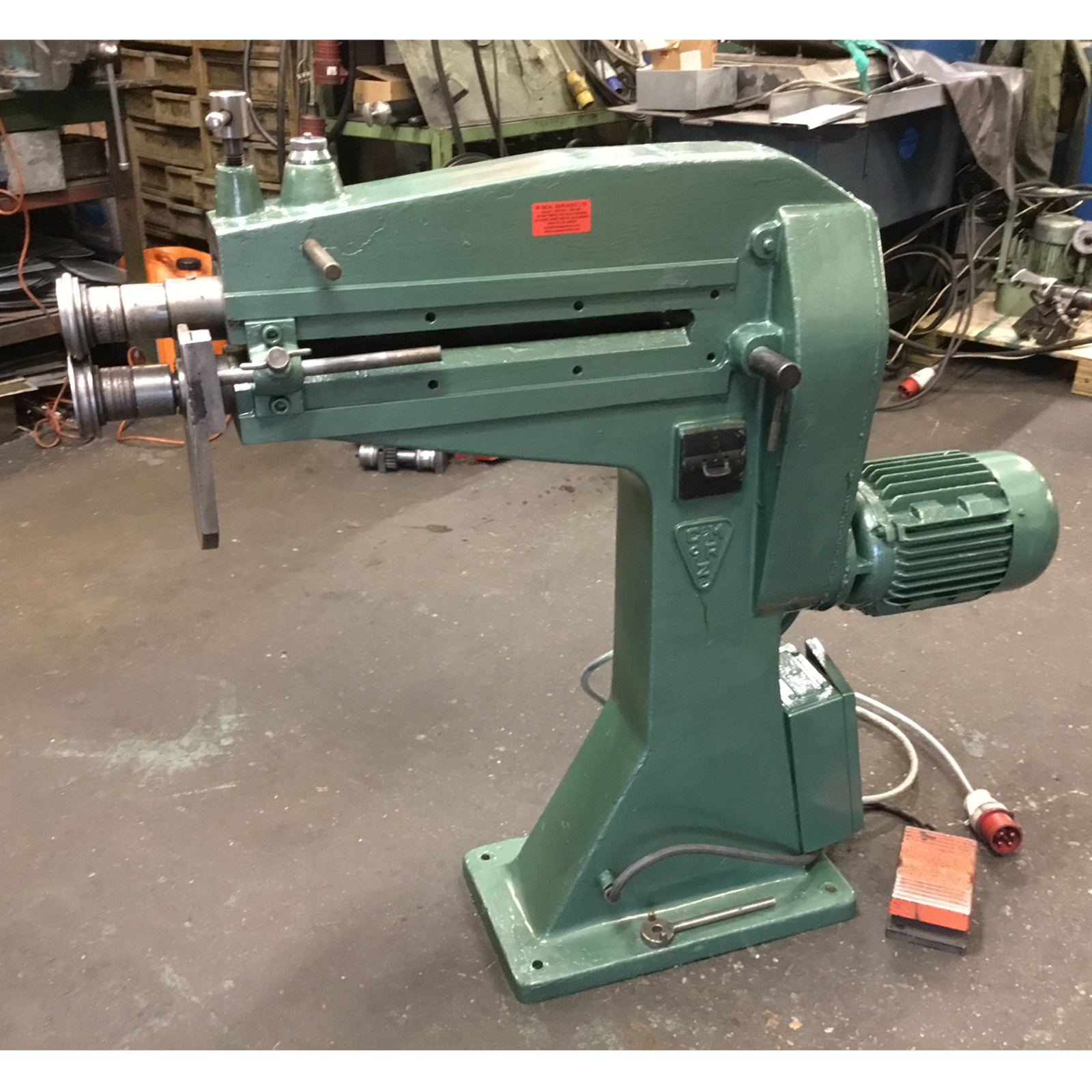

CMZ 9R POWER SWAGERS / SWAGING MACHINES (CMZS32) are principally used for swaging, beading, wiring, crimping, and forming of sheet metal. This power swager has a 600mm throat and can accommodate mild steel sheet up to 1.5mm thick*. This machine comes complete with 1 set of 9mm swage rolls, 1 set of jenny rolls, 1 set of crimping rolls, 1 set of flat/plain rolls & 1 spanner.
USED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
| SPECIFICATIONS | |
| Model: | CMZS32 |
| Throat Depth: | 600mm |
| Maximum Thickness: | 2.0mm Capacity Mild Steel* |
| Rolls Included (x 4): | 1 x Set of 9mm Swage Rolls |
| 1 x Set of Jenny Rolls | |
| 1 x Set of Crimping Rolls | |
| 1 x Set of Flat/Plain Rolls | |
| Roll – Inside Roll Diameter (apx): | 30mm |
| Roll – Outside Diameter (apx): | 80mm/85mm |
| Direction: | Forward & Reverse Foot Pedal |
| Speed: | Single – 21.5rpm |
| Motor Power: | 1HP, 0.75kW |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 1250mm x 350mm x 1100mm (l x w x h) |
| Weights – net/gross (apx): | 191Kg/210Kg |
*subject to rolls. **please see Terms & Conditions. ***fees apply.
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
