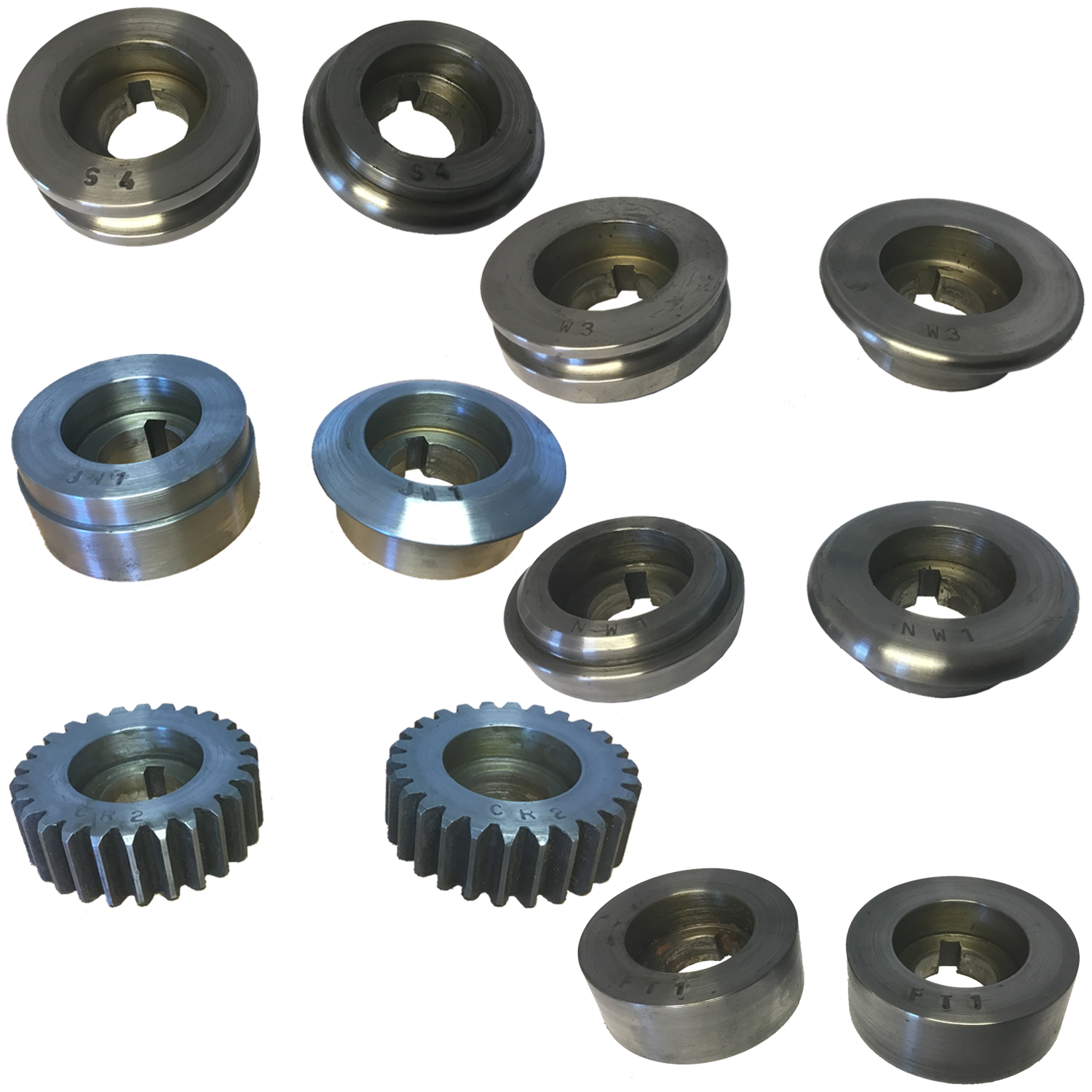

WNS Swager Rolls 20mm

Manufactured by W. NEAL SERVICES LTD
  • Outside Diameter 57mm
  • Shaft Size 20mm
  • Suitable for use with WNS Swagers PS215 & HS215
  • Compatible with CMZ 5 & CMZ 6
  • Swaging Rolls
  • Jenny Rolls
  • Wiring Rolls
  • Necking Rolls
  • Crimping Rolls
  • Screw In Rolls
  • Flat/Plain Rolls
  • Worldwide Delivery*

Description

Manufactured by W. NEAL SERVICES LTD

Additional roll sets suitable for use with WNS Swagers – PS215 and HS215.

Also compatible with CMZ5 & CMZ6 Swagers.

Additional rolls compatible with CMZ7 & CMZ9 also available.

Please do not hesitate to contact us if you need assistance in choosing the correct rolls on 01702 542554 or 01702 542558.

Photographs are as a guide only.



Additional information

Weight N/A

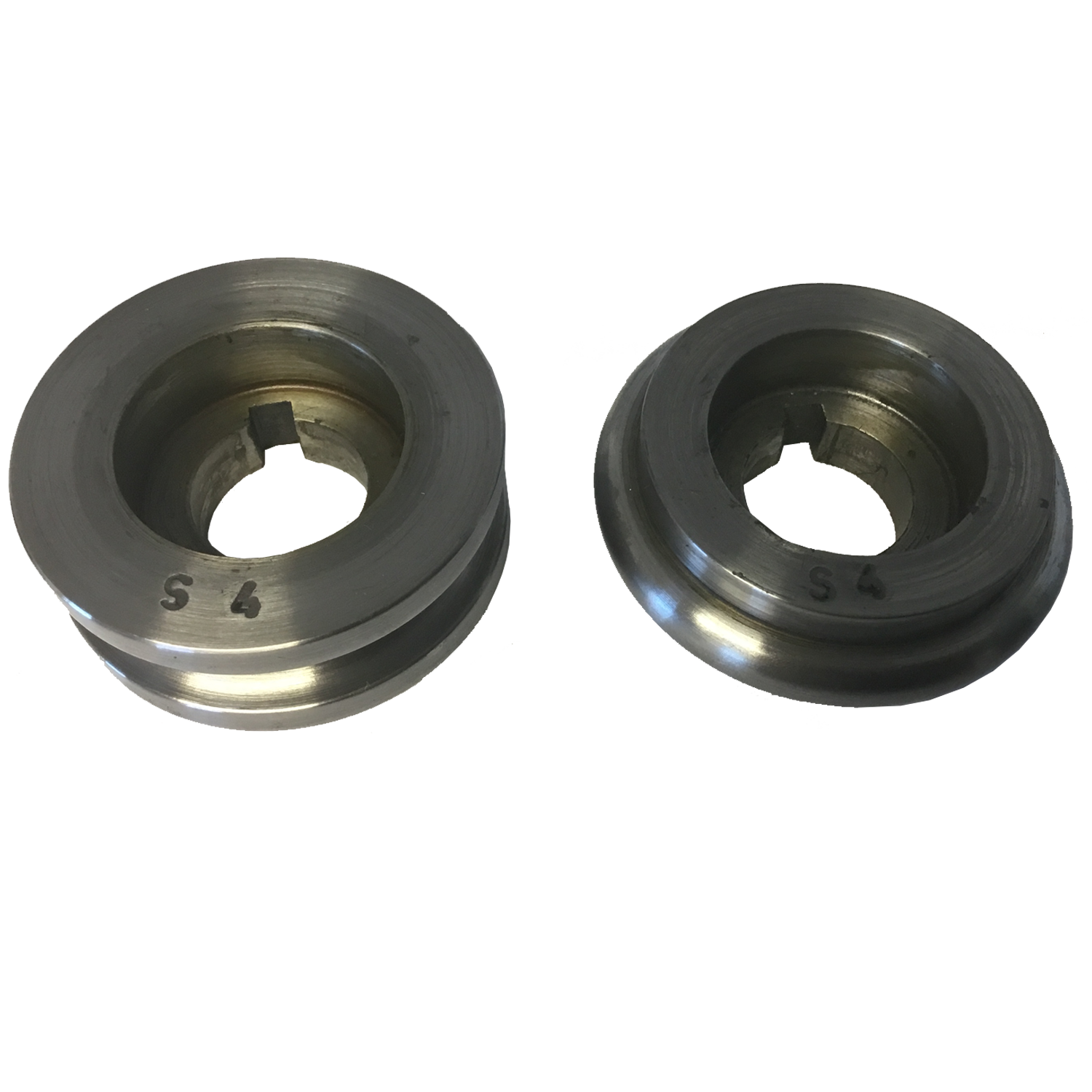

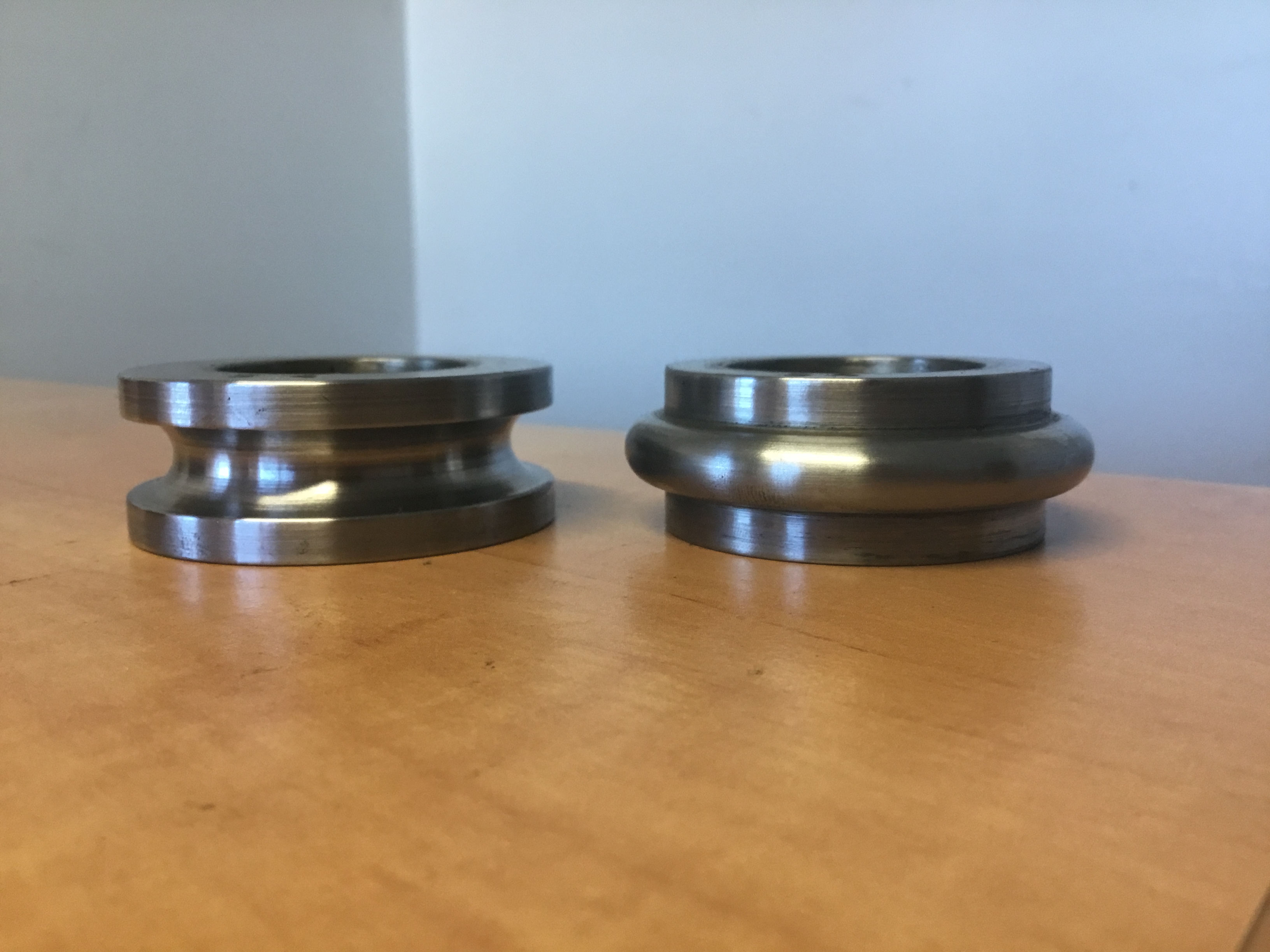

SWAGING ROLLS
SPECIFICATIONS
Roll: Model: Diameter:
Swaging – S1 PS/HS215-ROLLS-S1
3.0mm
Swaging – S2 PS/HS215-ROLLS-S2 5.0mm
Swaging – S3 PS/HS215-ROLLS-S3 6.0mm
Swaging – S4 PS/HS215-ROLLS-S4 8.0mm
Swaging – S5 PS/HS215-ROLLS-S5 10mm
Swaging – S6 PS/HS215-ROLLS-S6 12mm

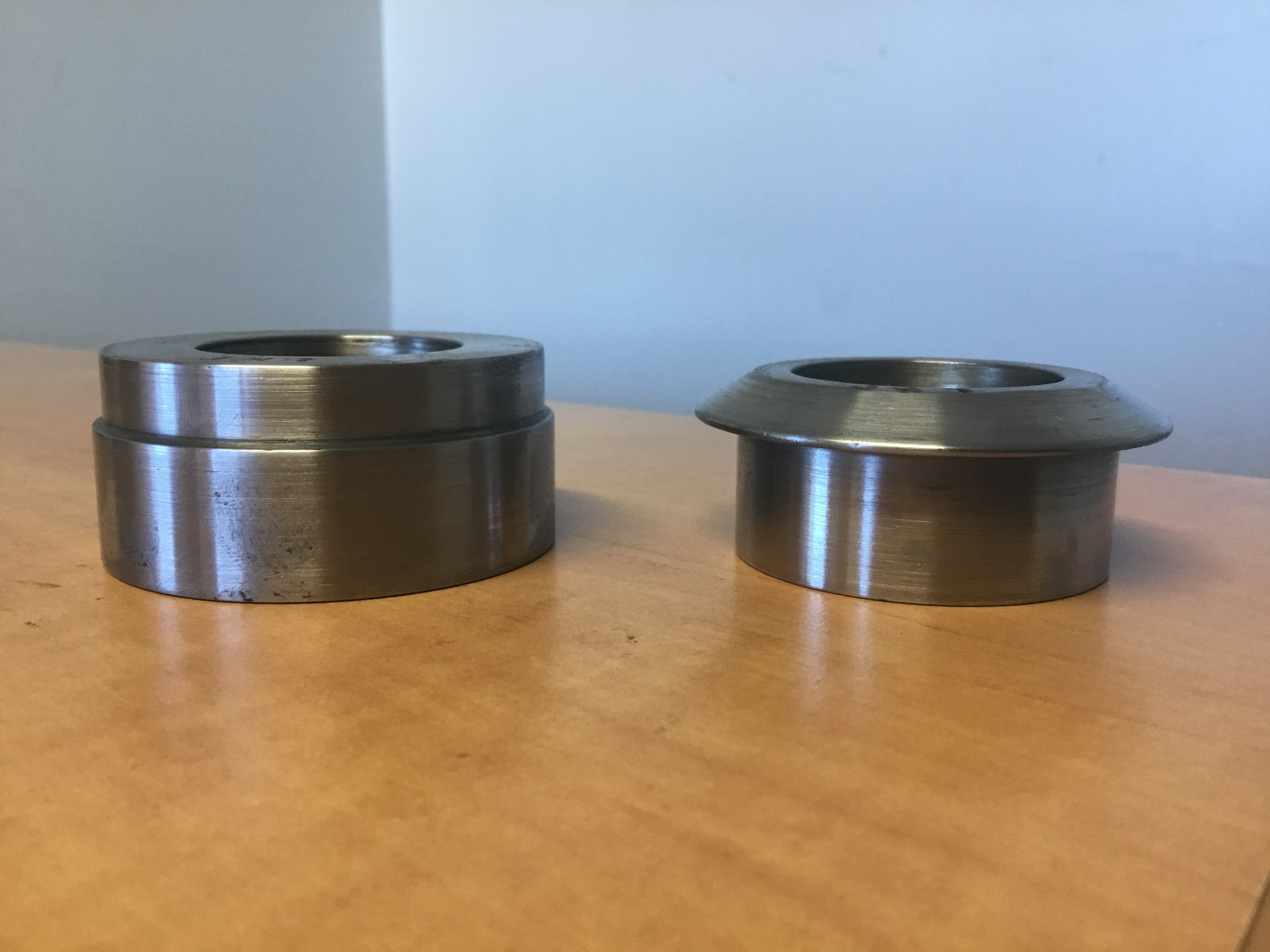

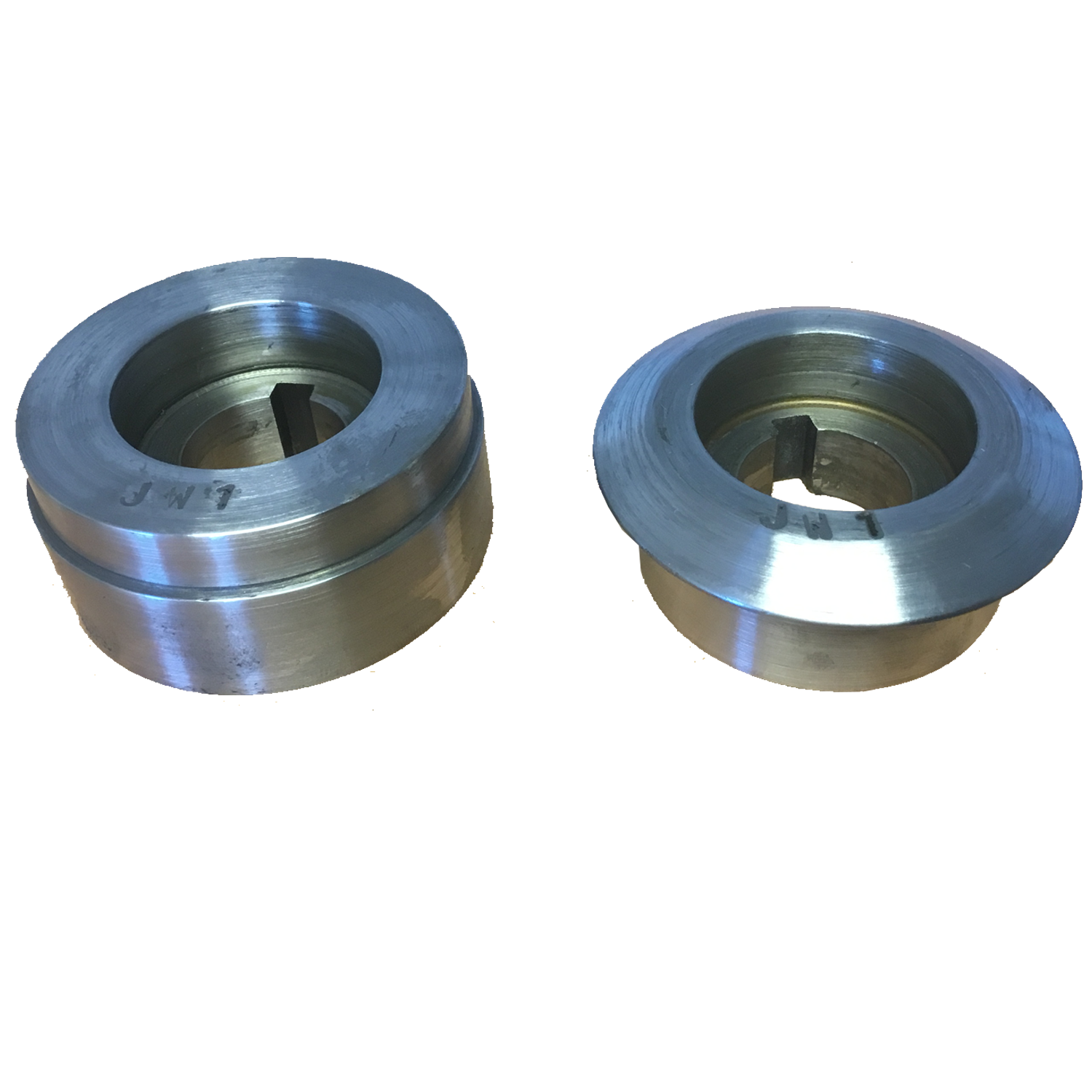

JENNY/FLANGING ROLLS
SPECIFICATIONS
Roll: Model: Step:
Jenny – J1 PS/HS215-ROLLS-J1
1.5mm

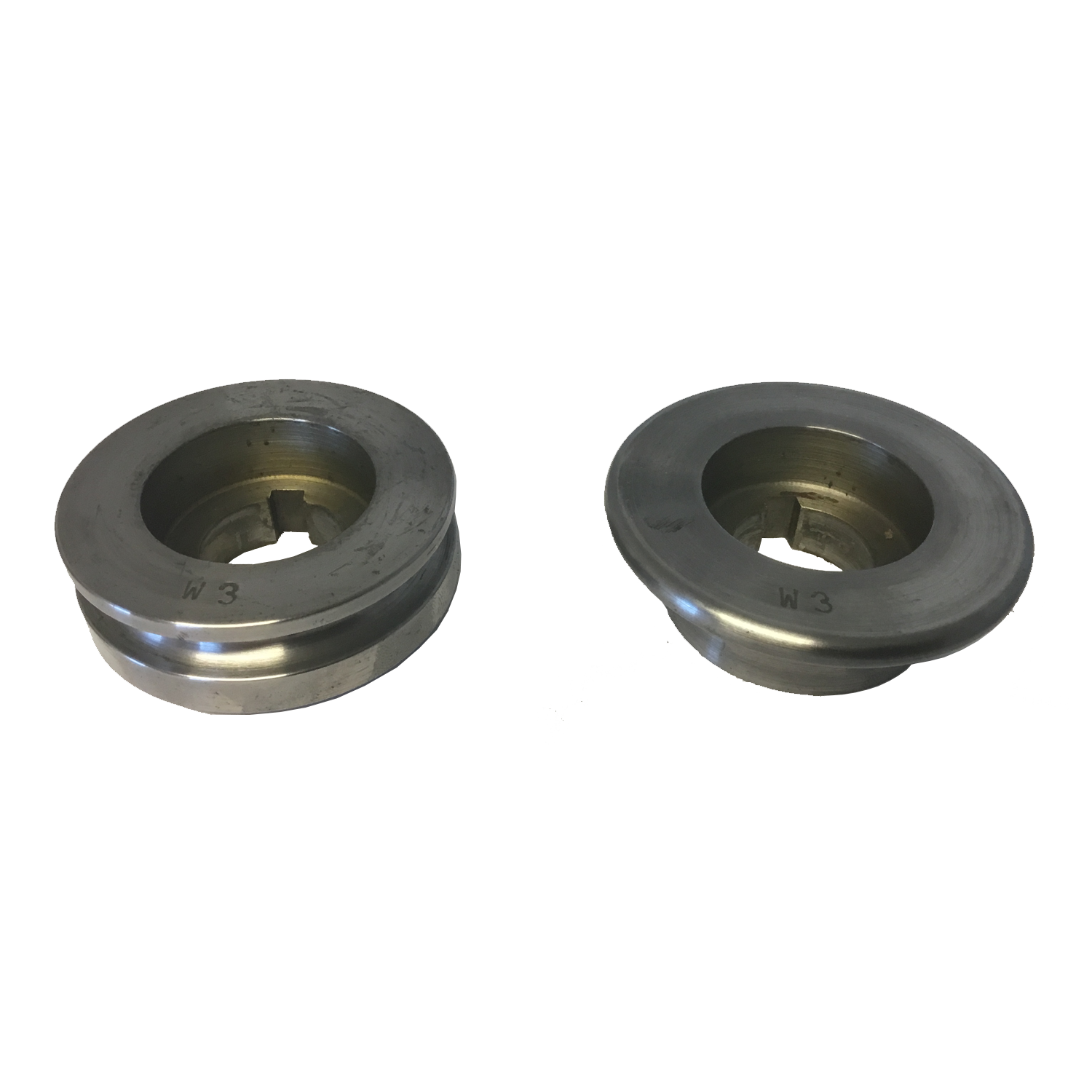

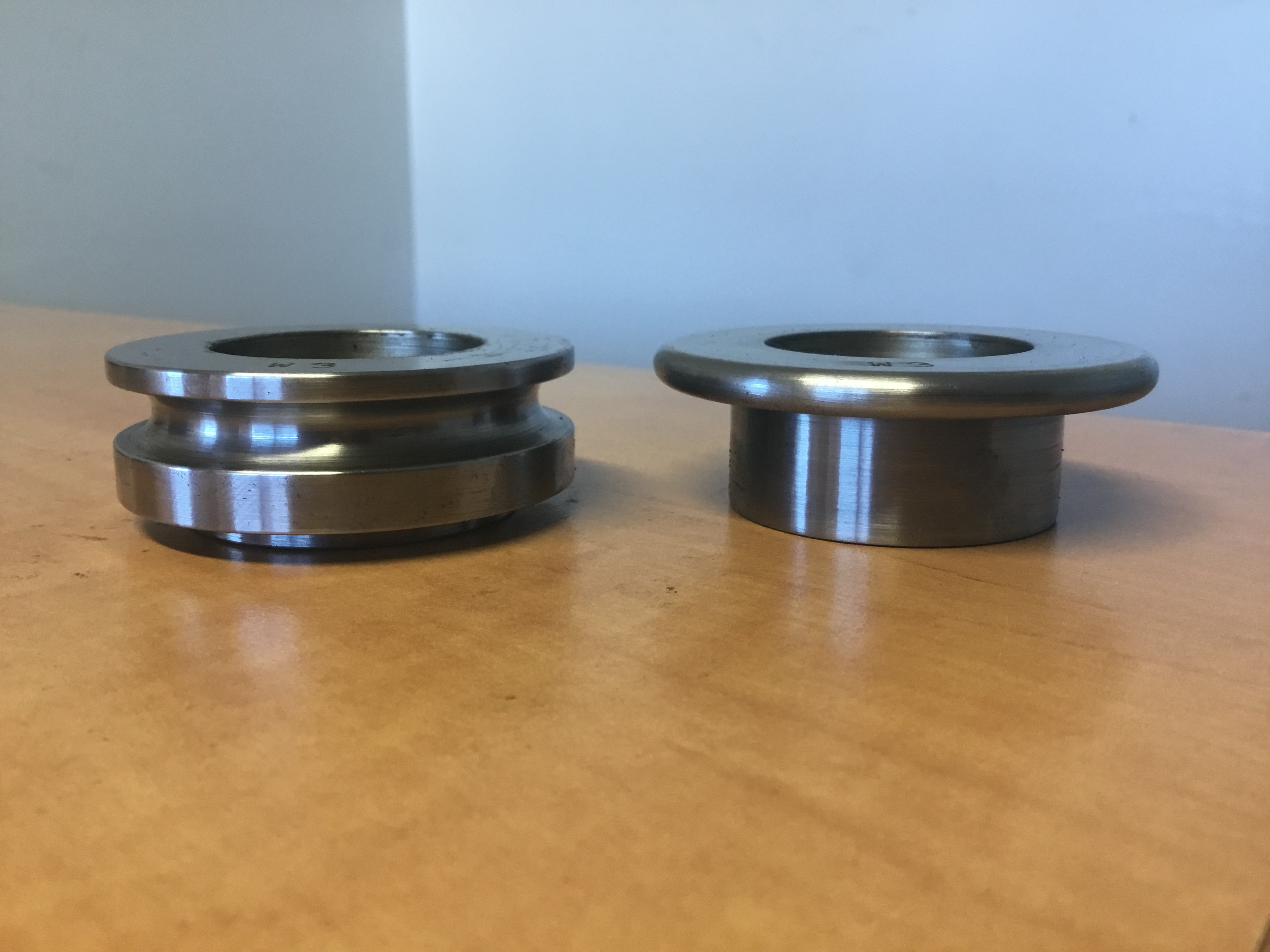

WIRING ROLLS
SPECIFICATIONS
Roll: Model: Diameter:
Wiring – W1 PS/HS215-ROLLS-W1
1.5mm
Wiring – W2 PS/HS215-ROLLS-W2 3.0mm
Wiring – W3 PS/HS215-ROLLS-W3 5.0mm
Wiring – W4 PS/HS215-ROLLS-W4 6.0mm
Wiring – W5 PS/HS215-ROLLS-W5 8.0mm
Wiring – W6 PS/HS215-ROLLS-W6 10mm

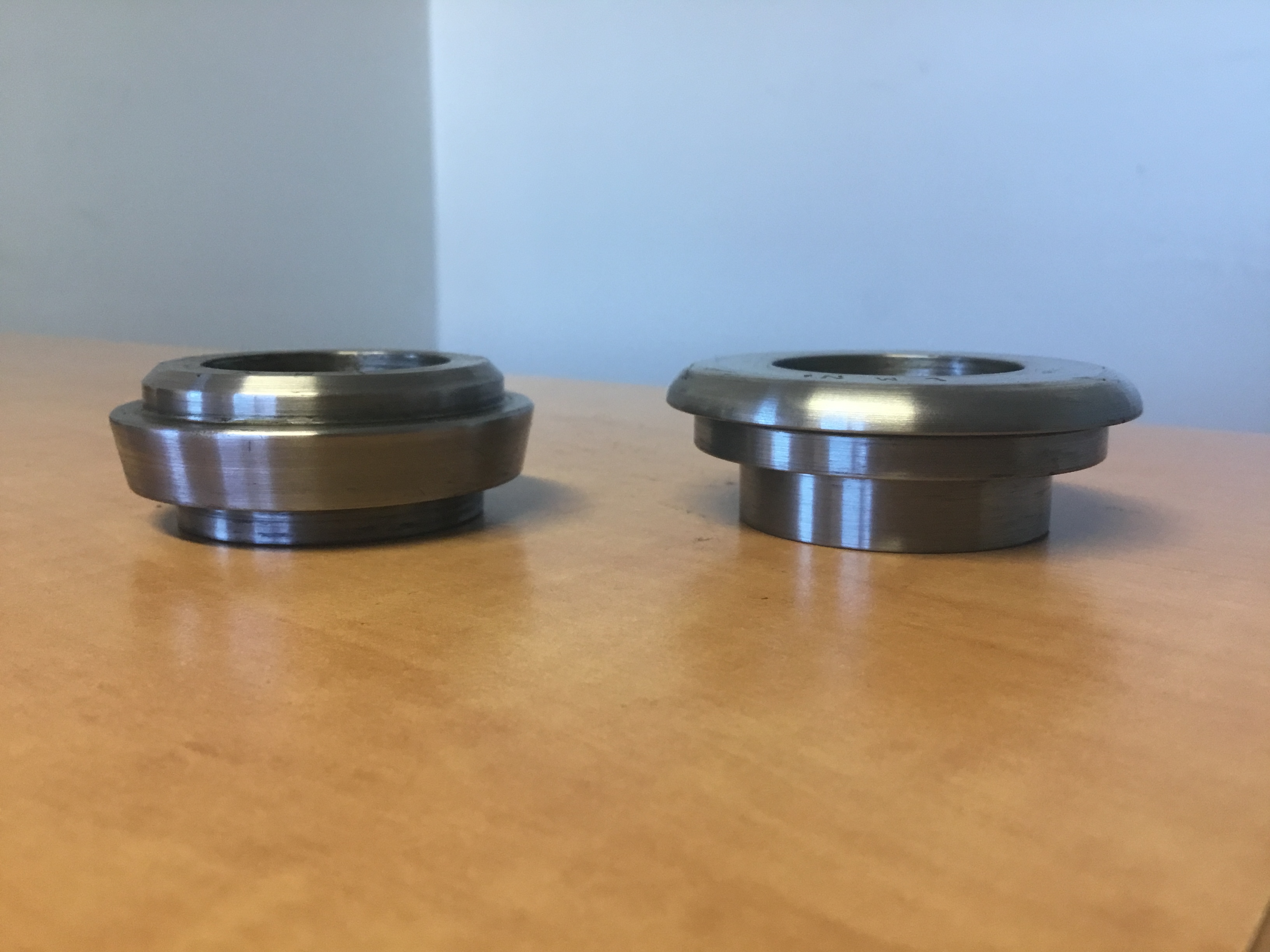

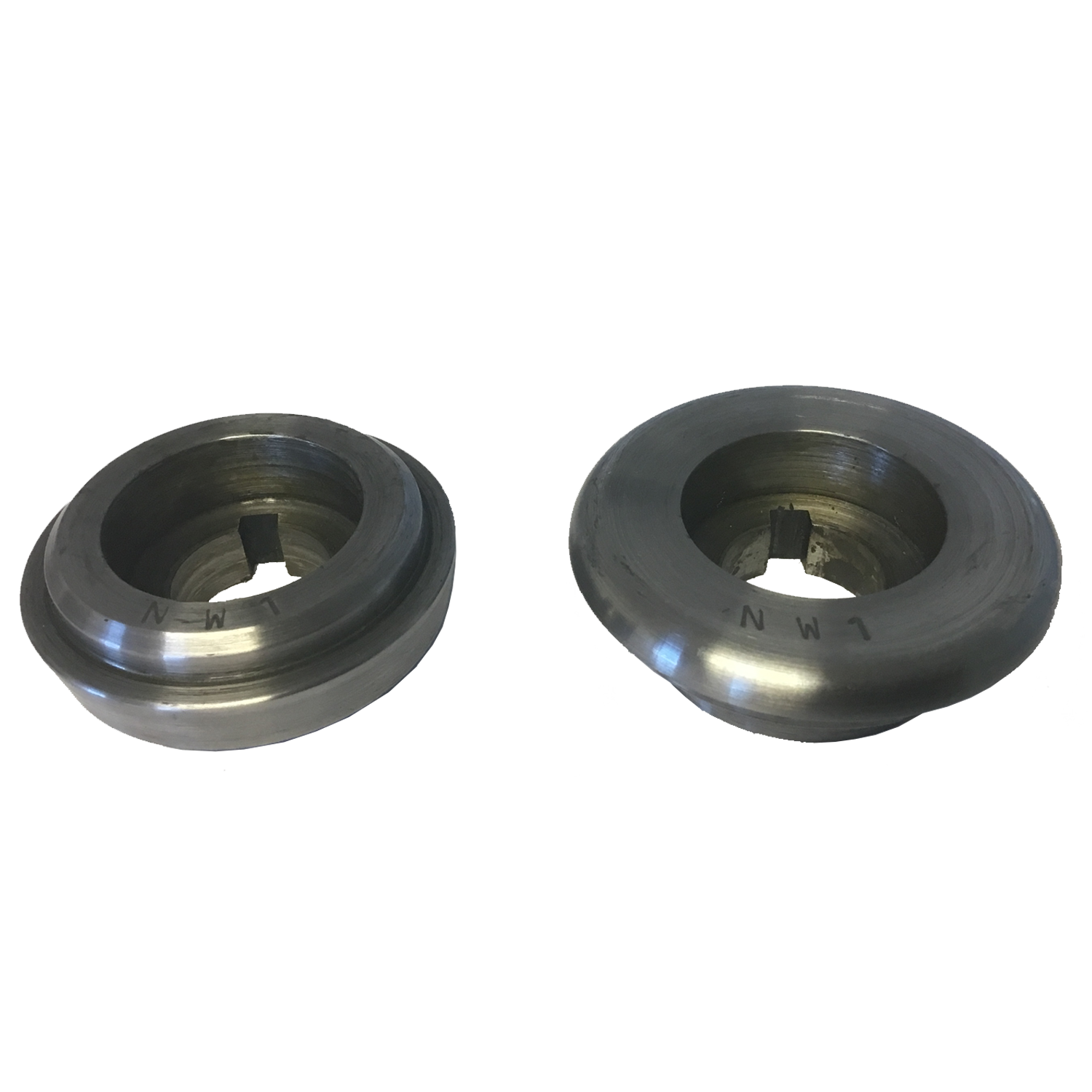

NECKING ROLLS
SPECIFICATIONS
Roll: Model: Step:
Necking – N1 PS/HS215-ROLLS-N1
3.5mm

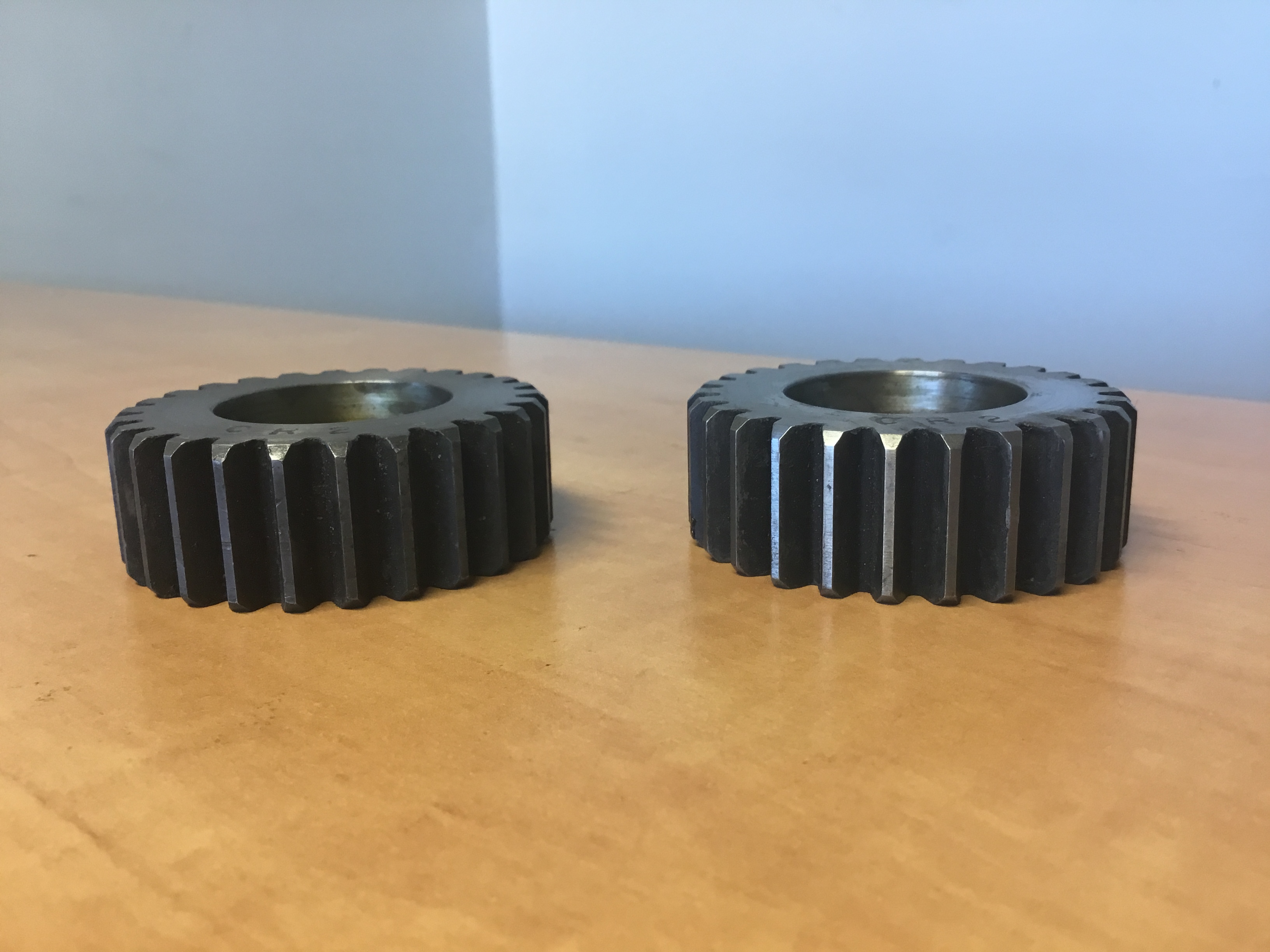

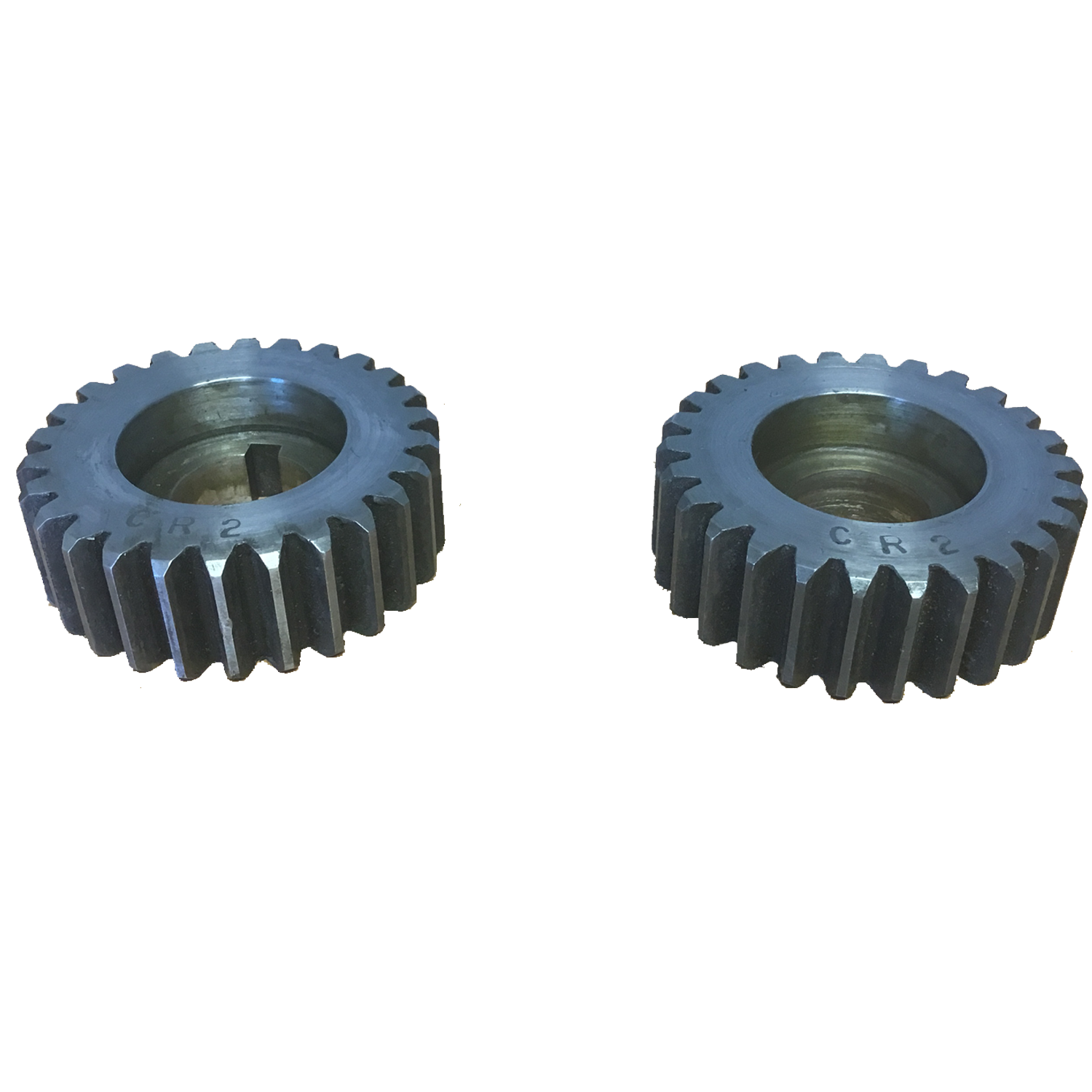

CRIMPING ROLLS
SPECIFICATIONS
Roll: Model: Width:
Crimping – C1 PS/HS215-ROLLS-C1 20mm



SCREW IN ROLLS
SPECIFICATIONS
Roll: Model: Diameter: Flange Height:
Screw In – SI1 PS/HS215-ROLLS-SI1 6.0mm 6.0mm

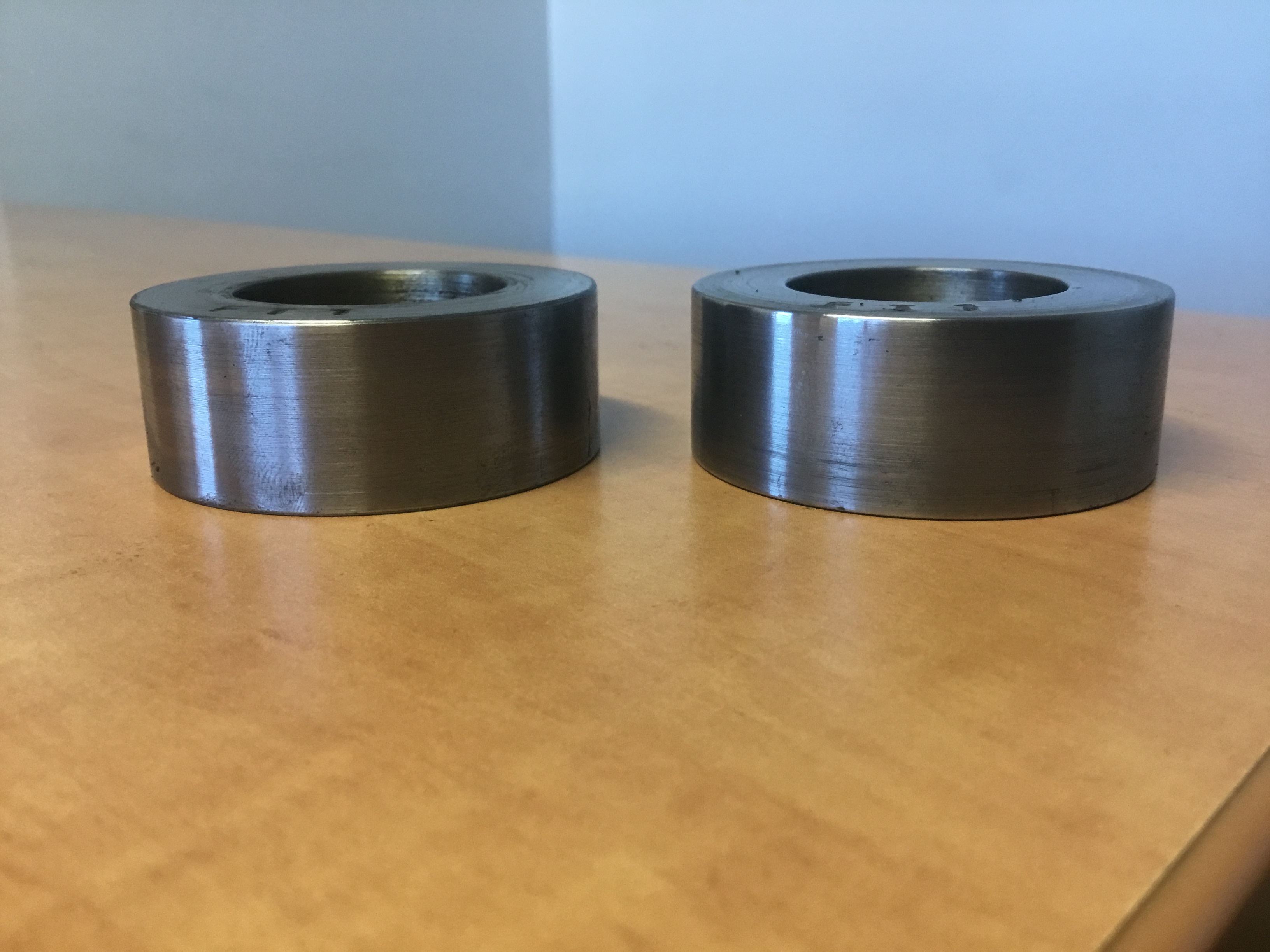

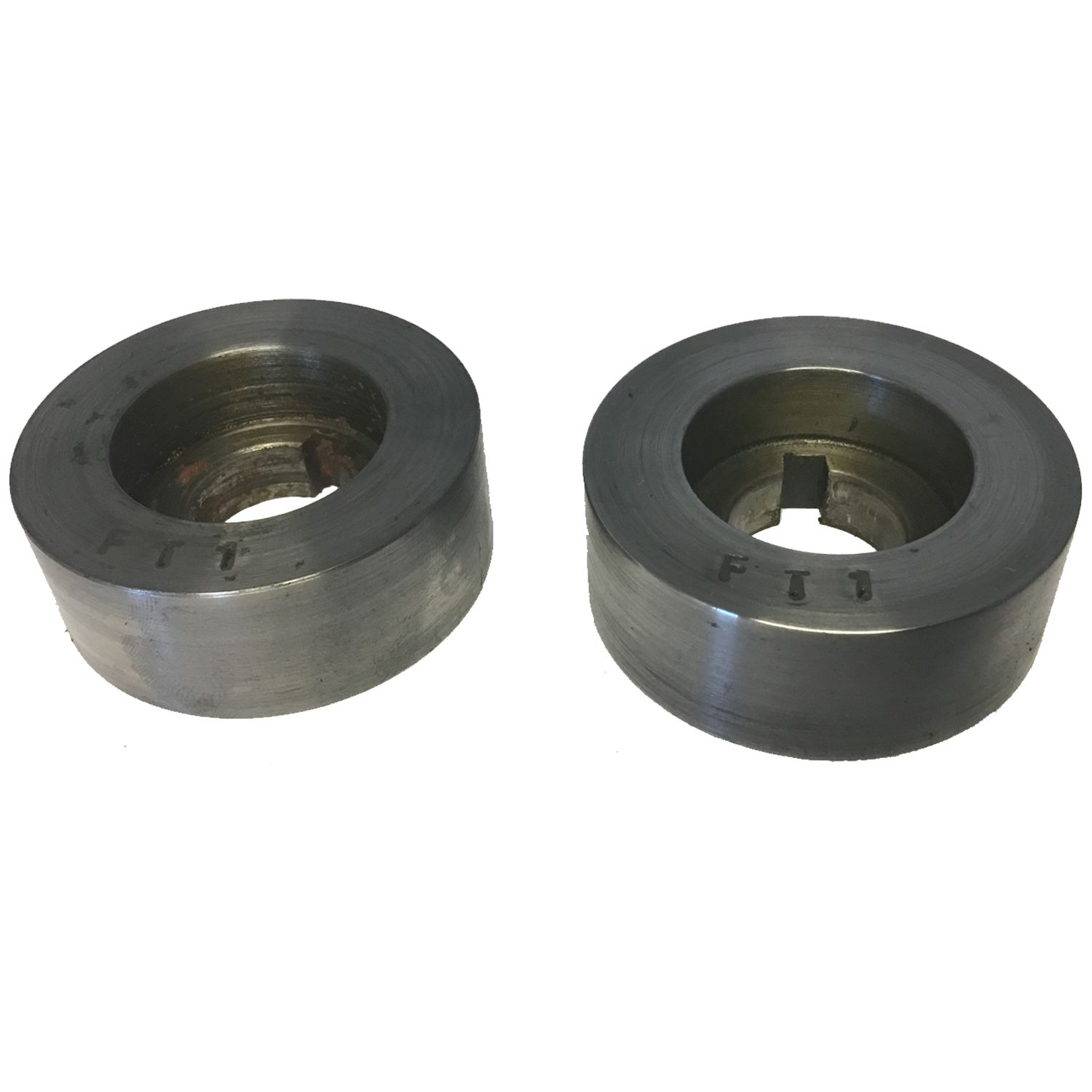

FLAT/PLAIN ROLLS
SPECIFICATIONS
Roll: Model: Diameter: Width:
Flat/Plain – PW1 PS/HS215-ROLLS-PW1 53mm  20mm

*fees apply.

All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
