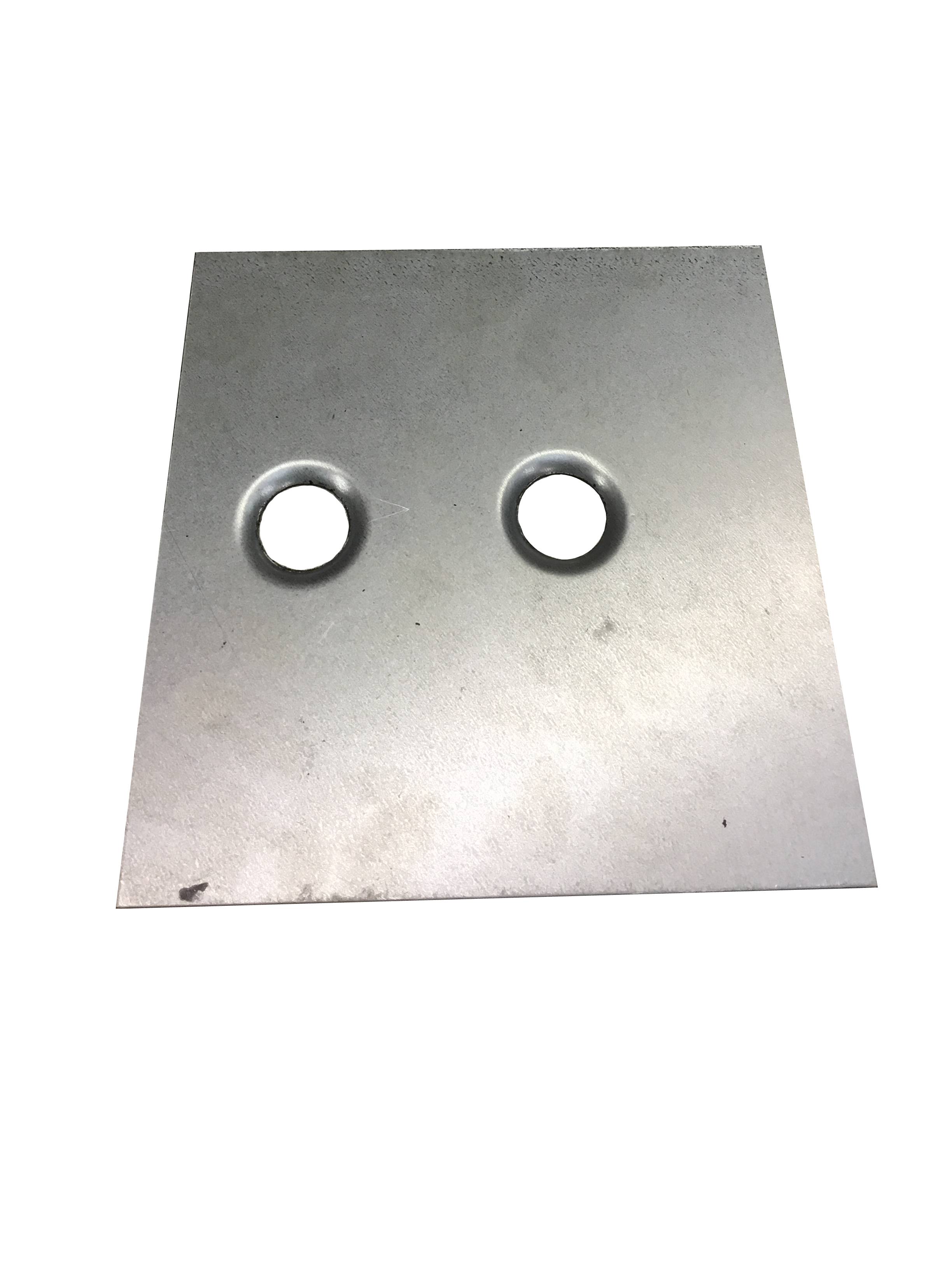

WNS DIMPLE DIES (DD09B) are CNC manufactured dies made of carbon steel that are designed to improve the strength and appearance of panels. Commonly used in sheet metal fabrication, they are popular in industries such as auto restoration and aircraft restoration. They are also great for aesthetic purposes, including creating decorative panels in sheet metal. Please note, centre holes must be measured and drilled before the dimple die can be used.

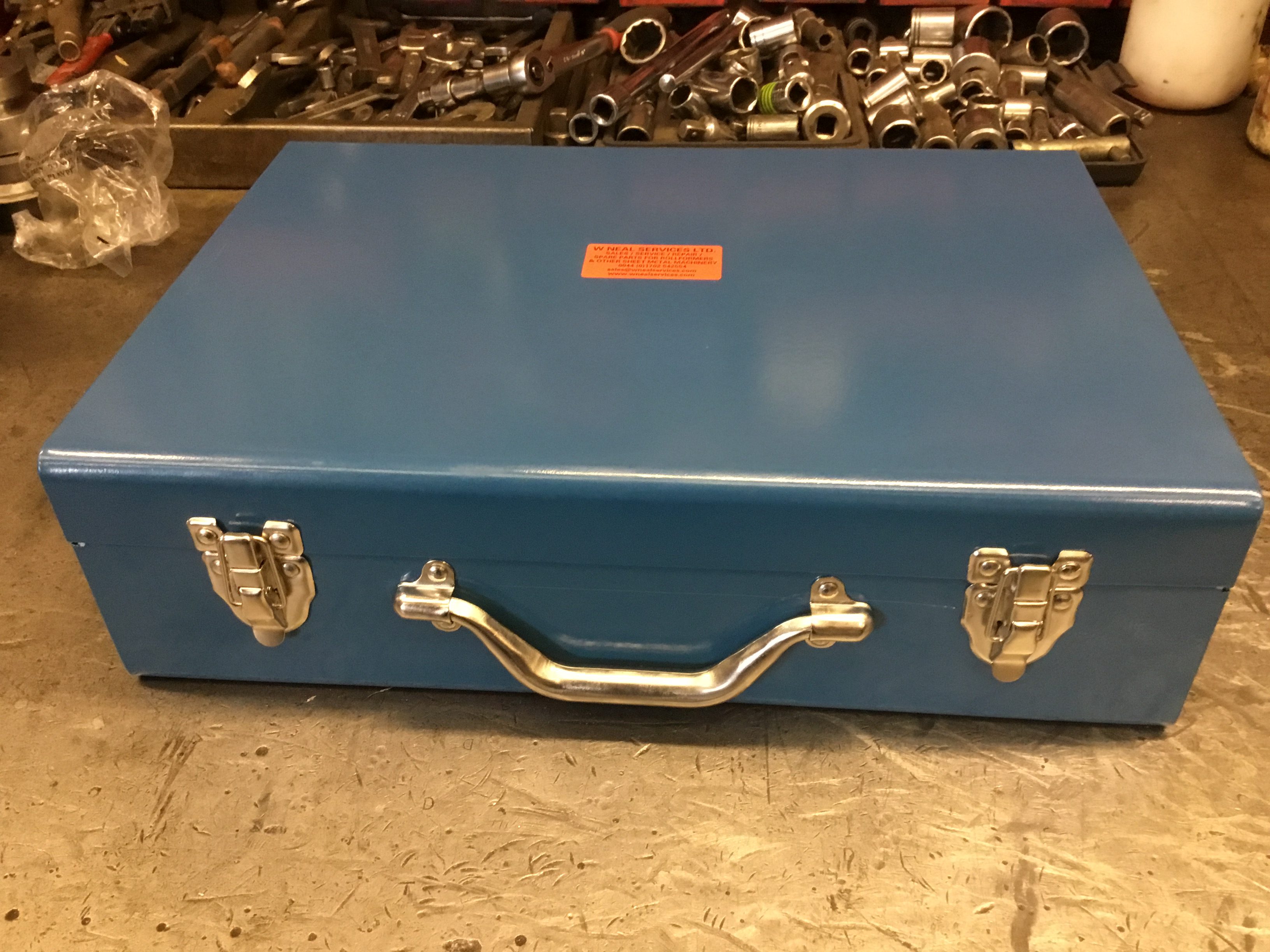

This set includes 9 die sizes and a metal case.
Please note, there are anomalies with the markings on two of the dies in these dimple dies sets, rest assured however, that the dies you will receive are correct.
The anomalies are as follows:
The die marked as 2 ¼” is 2 ½”
The die marked as 2 ¾” is 3”
To view all of our dimple & flare dies, please click here.
To view all of our used/reconditioned machines please click here
| Weight | 30 kg |
|---|
| SPECIFICATIONS | |||||||||
| Model: | DD09B | ||||||||
| Maximum Thickness: | 2.0mm Capacity Mild Steel | ||||||||
| Die Details: | Inside Diameter/Hole Size: | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | |||
| Outside Diameter of Dimple: | 7/8″ | 1 1/8″ | 1 3/8″ | 1 3/4″ | 2 1/8″ | ||||
| Inside Diameter/Hole Size: | 1 3/4″ | 2″ | 2 1/2″ | 3″ | |||||
| Outside Diameter of Dimple: | 2 3/8″ | 2 3/4″ | 3 1/2″ | 4″ | |||||
| Dimensions – packing (apx): | 470mm x 160mm x 360mm (l x w x h) | ||||||||
| Weights – net/gross (apx): | 26.5/28.5Kg | ||||||||
All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE
