  • 205mm Throat Depth
  • 1.2mm Capacity Mild Steel*
  • Hardened Wheels 45-50HRC
  • 1 x Top Wheel
  • 7 x Lower Wheels
  • Wheels rotate 90° for unlimited throat depth
  • 8.0mm Thick Steel Side Frames
  • 12 Month Warranty**
  • Worldwide Delivery***

Description

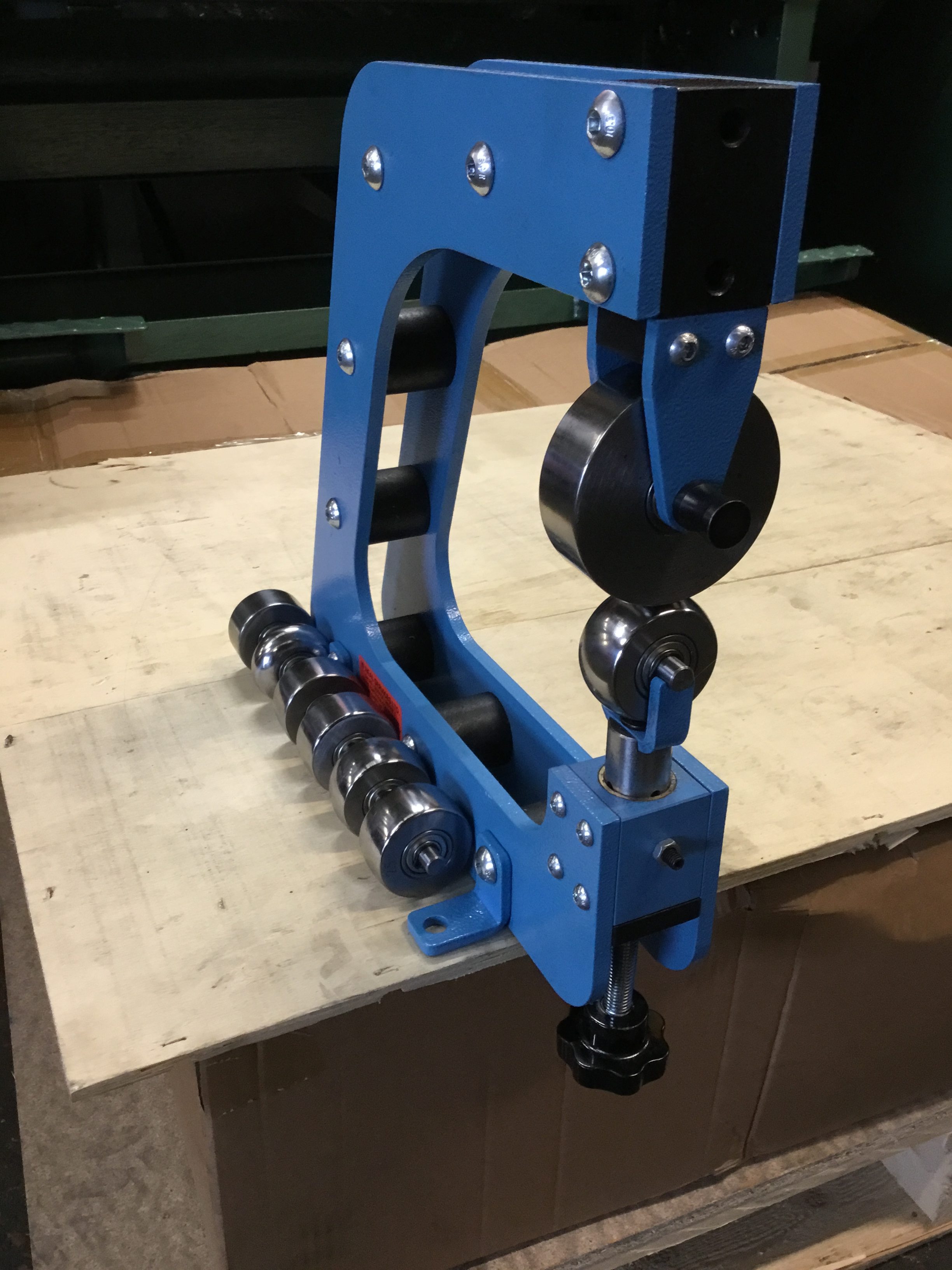

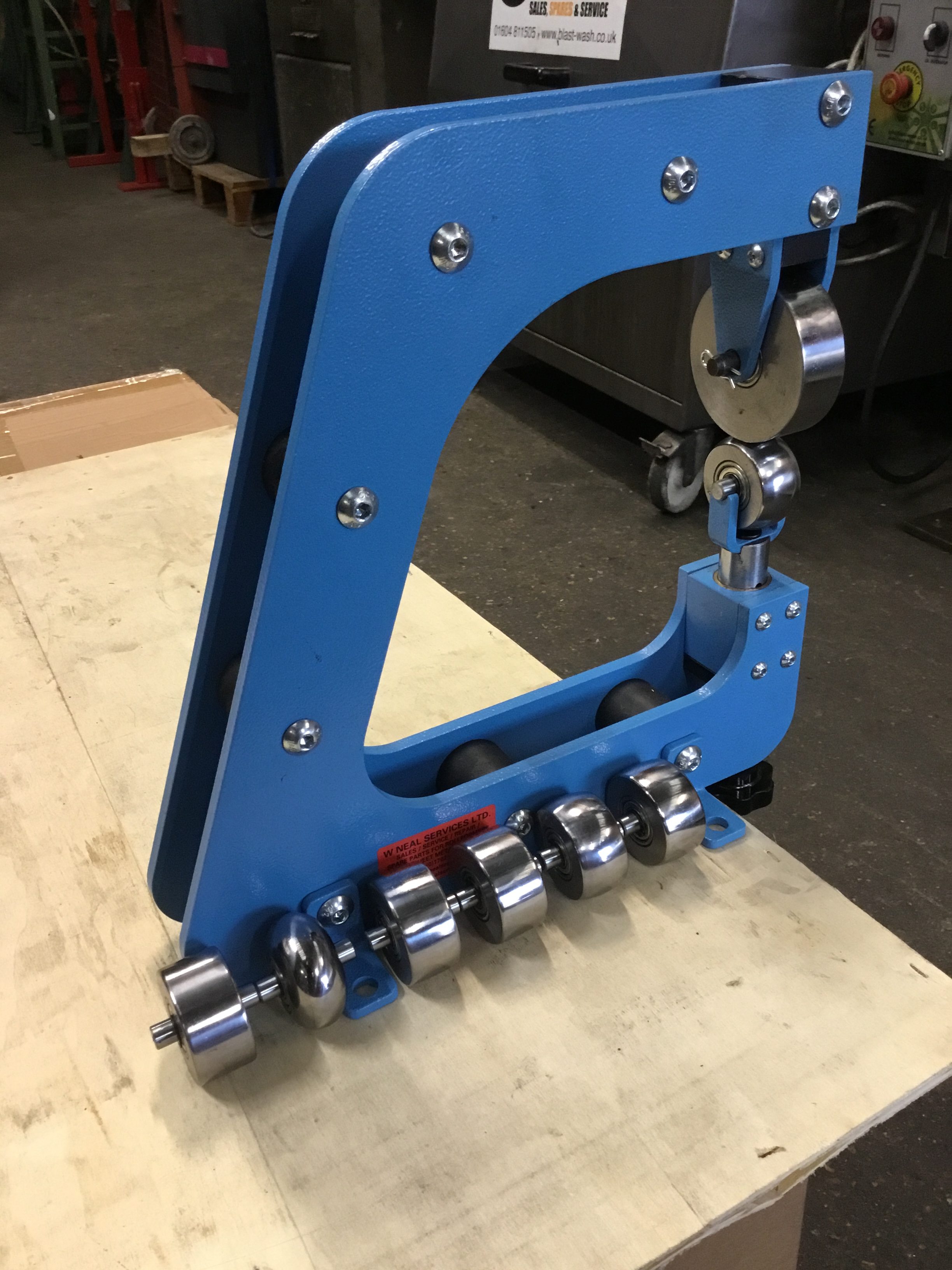

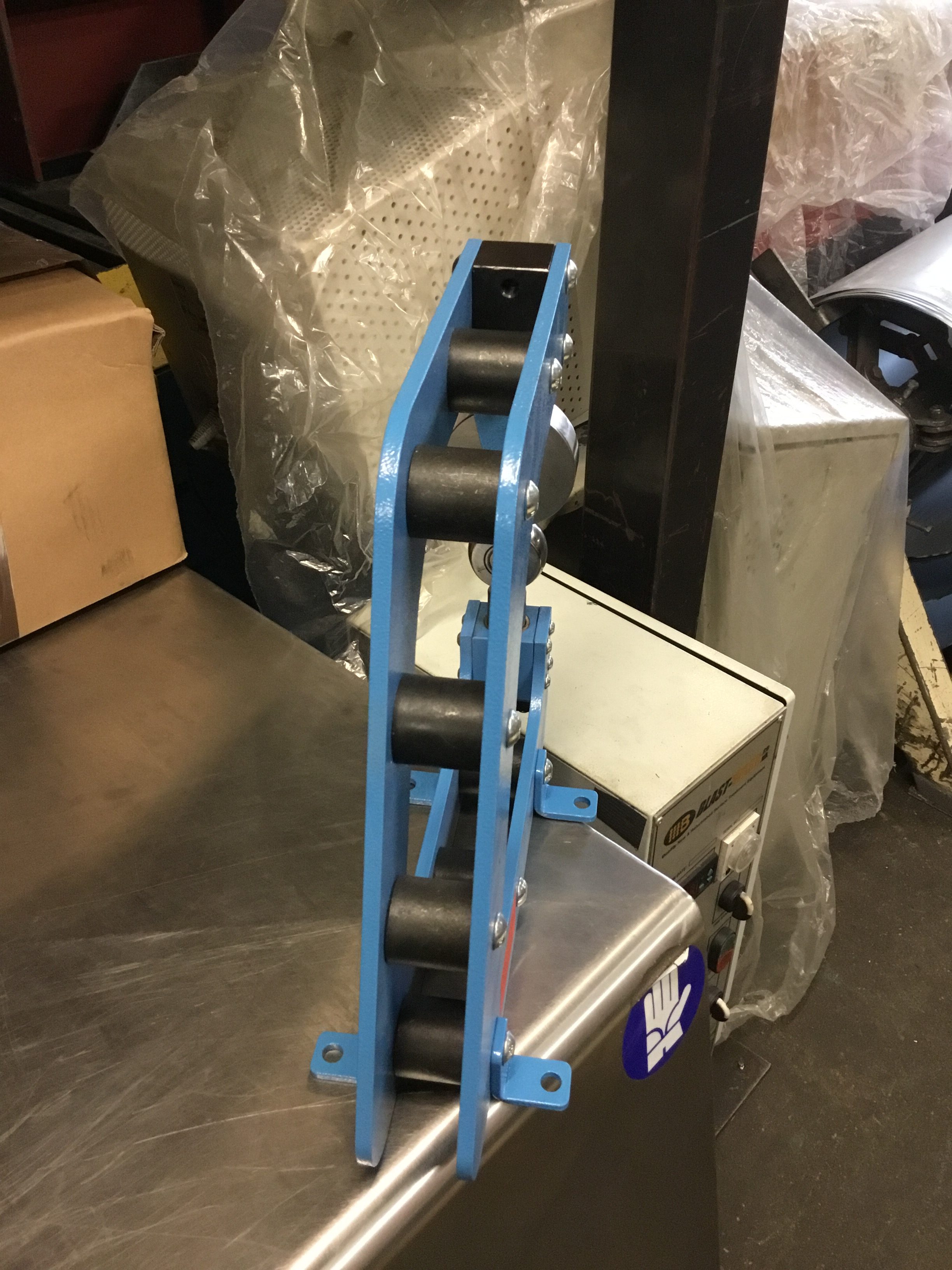

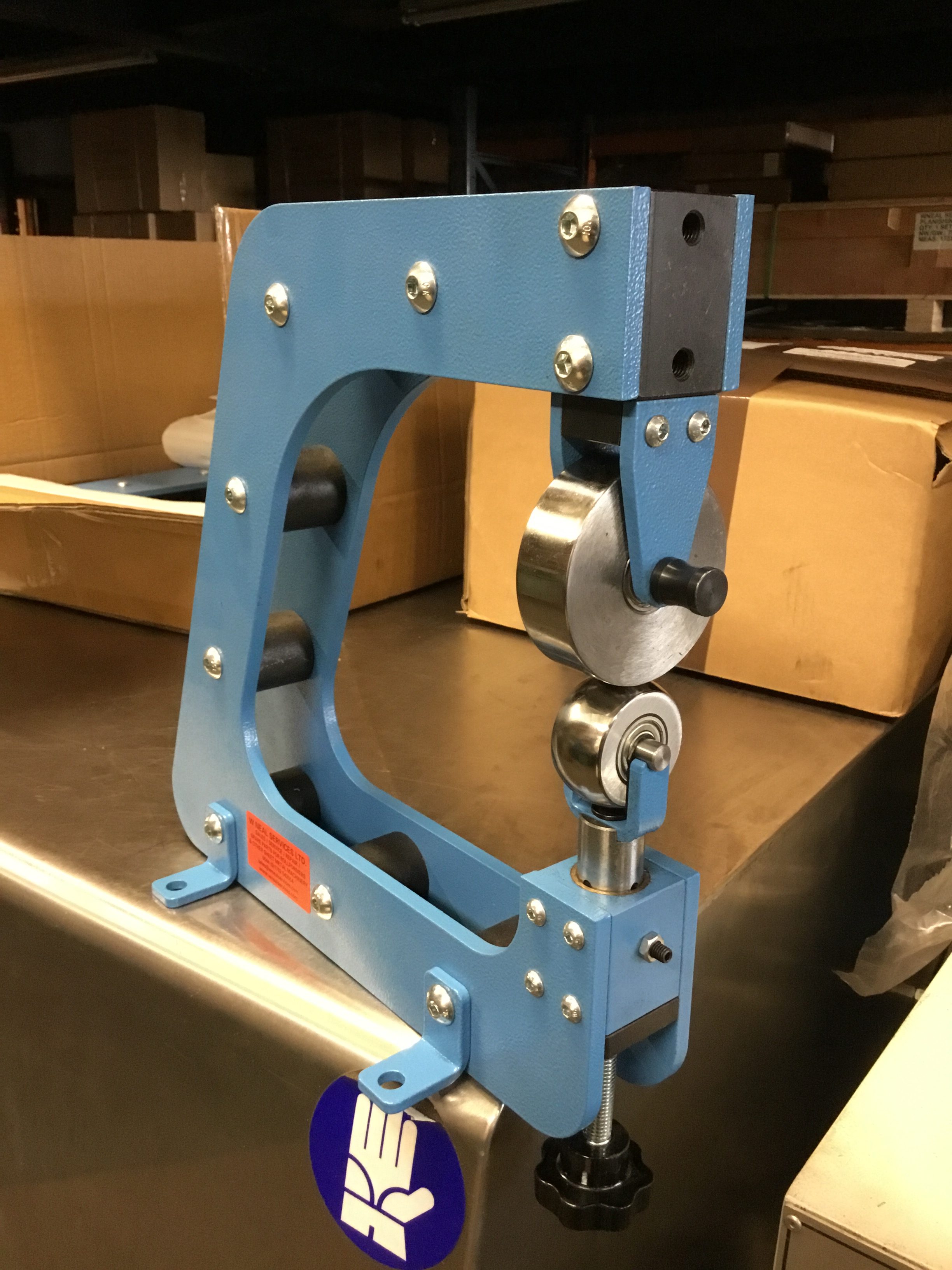

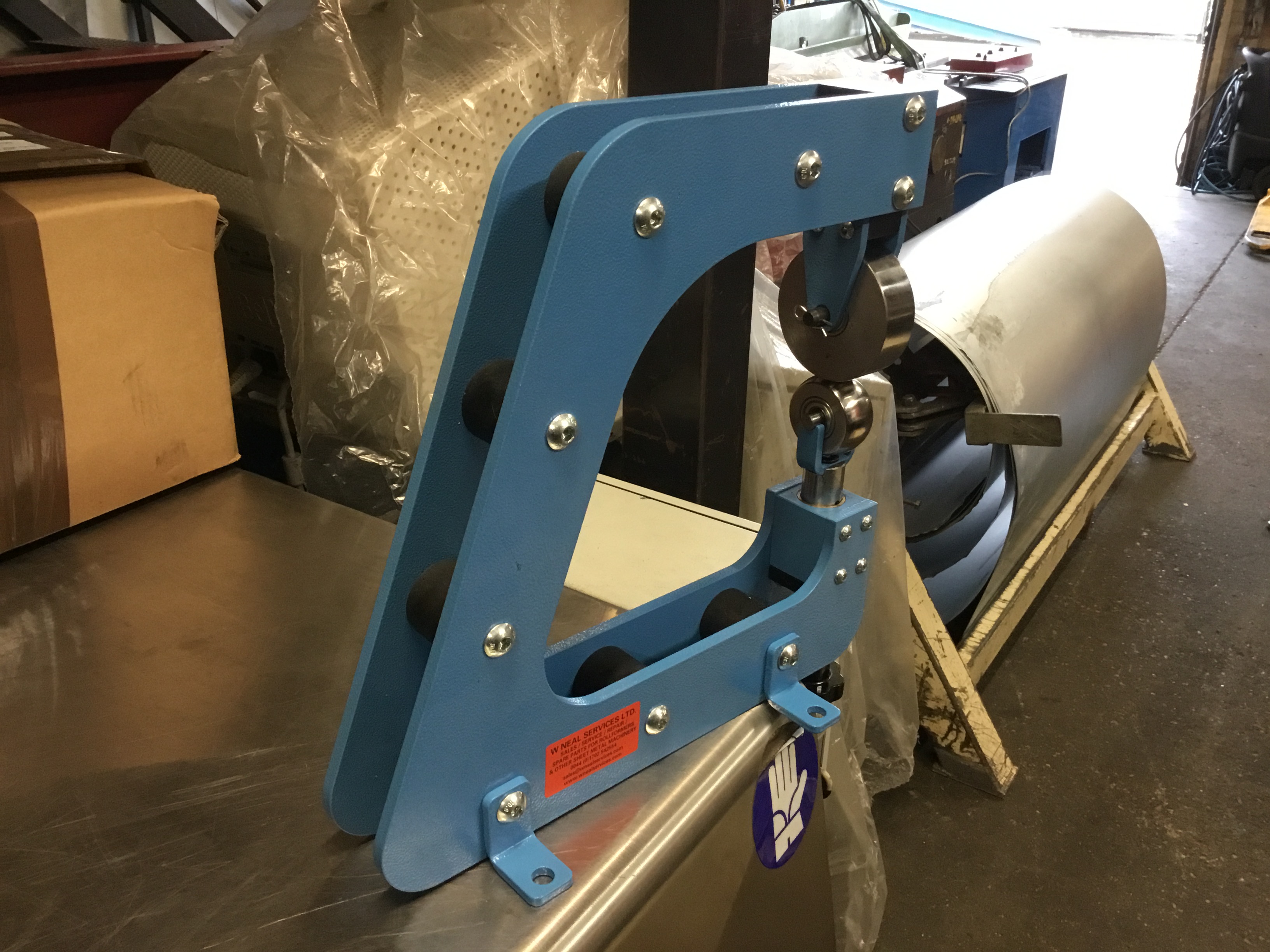

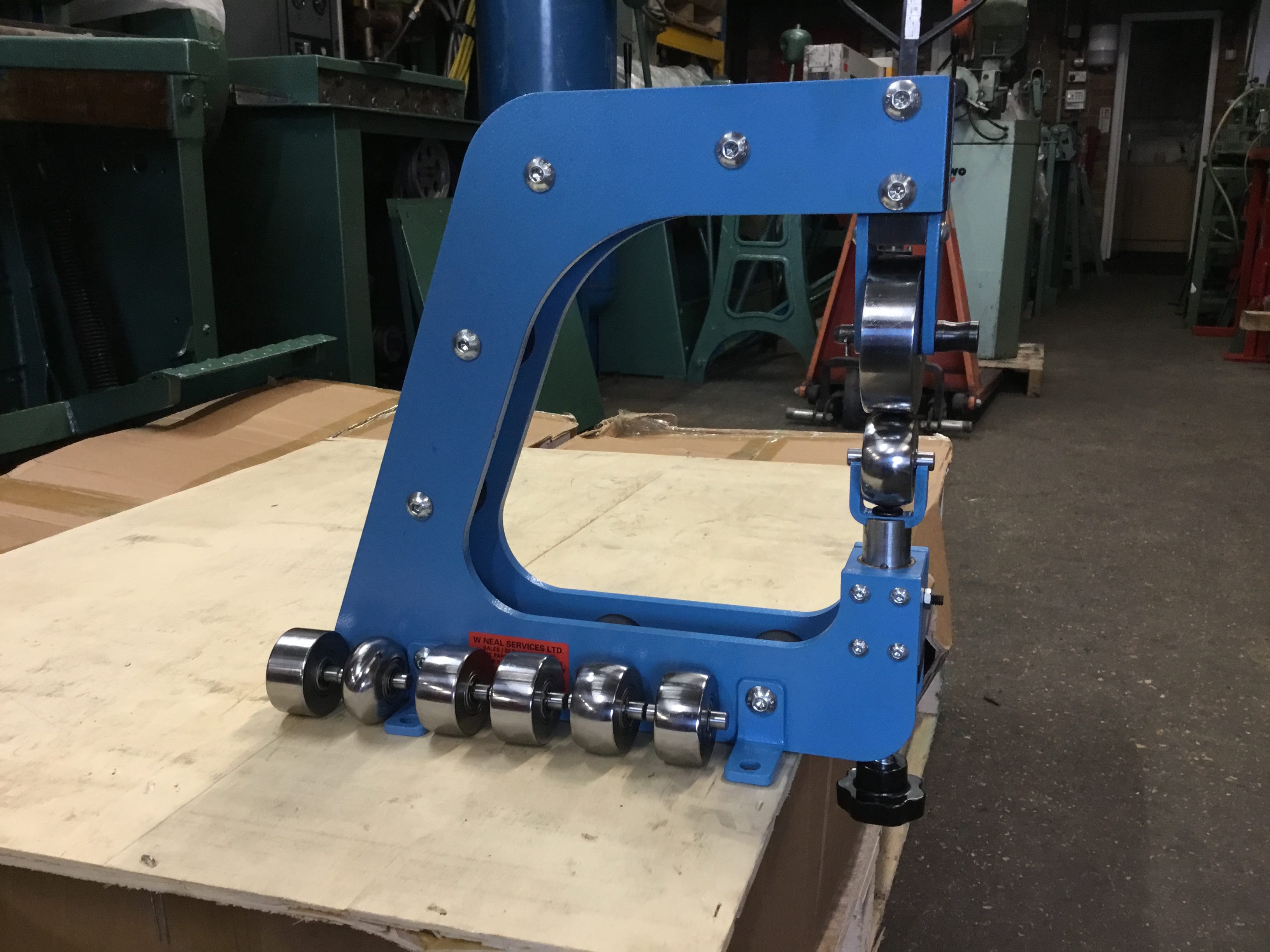

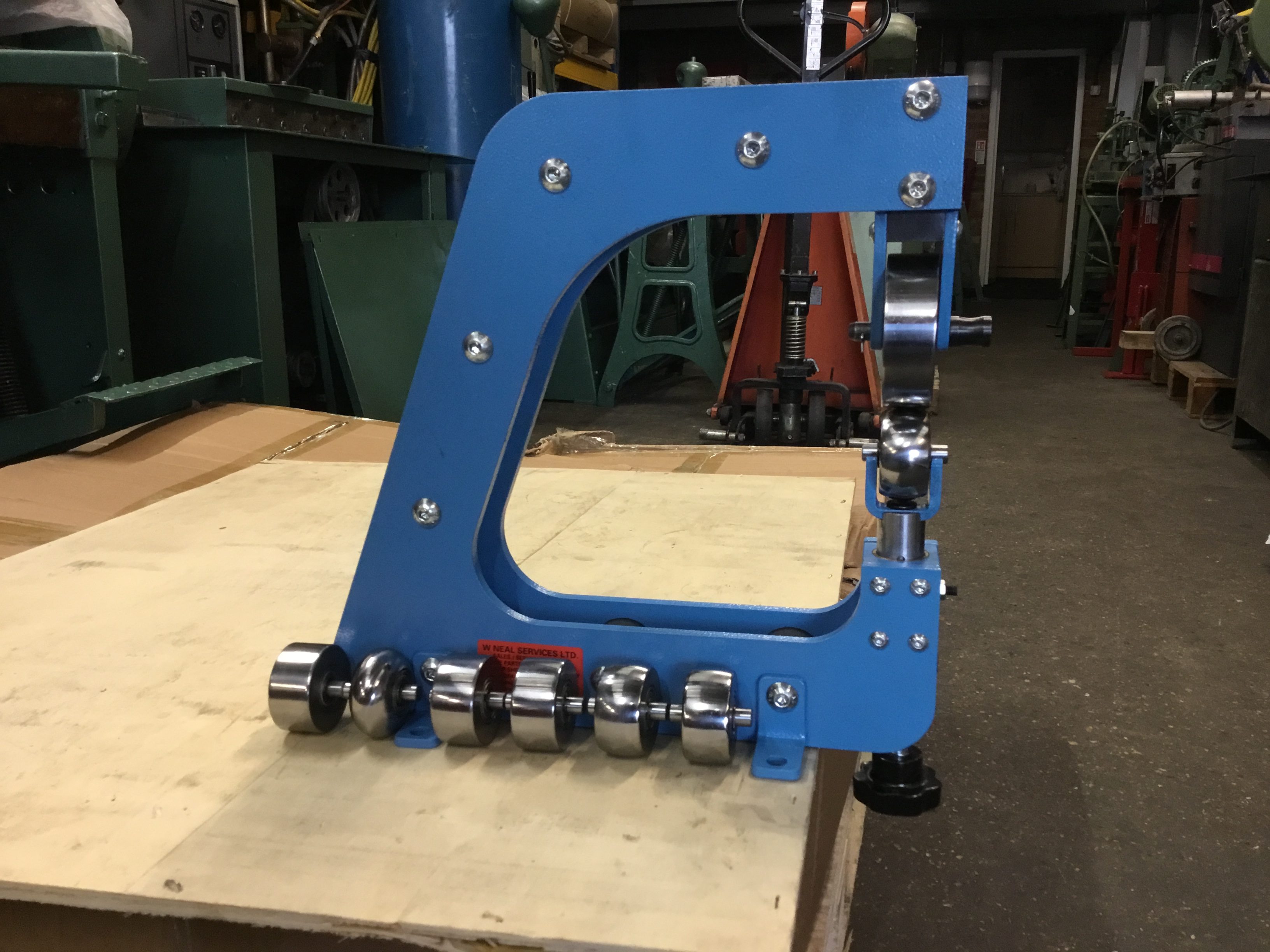

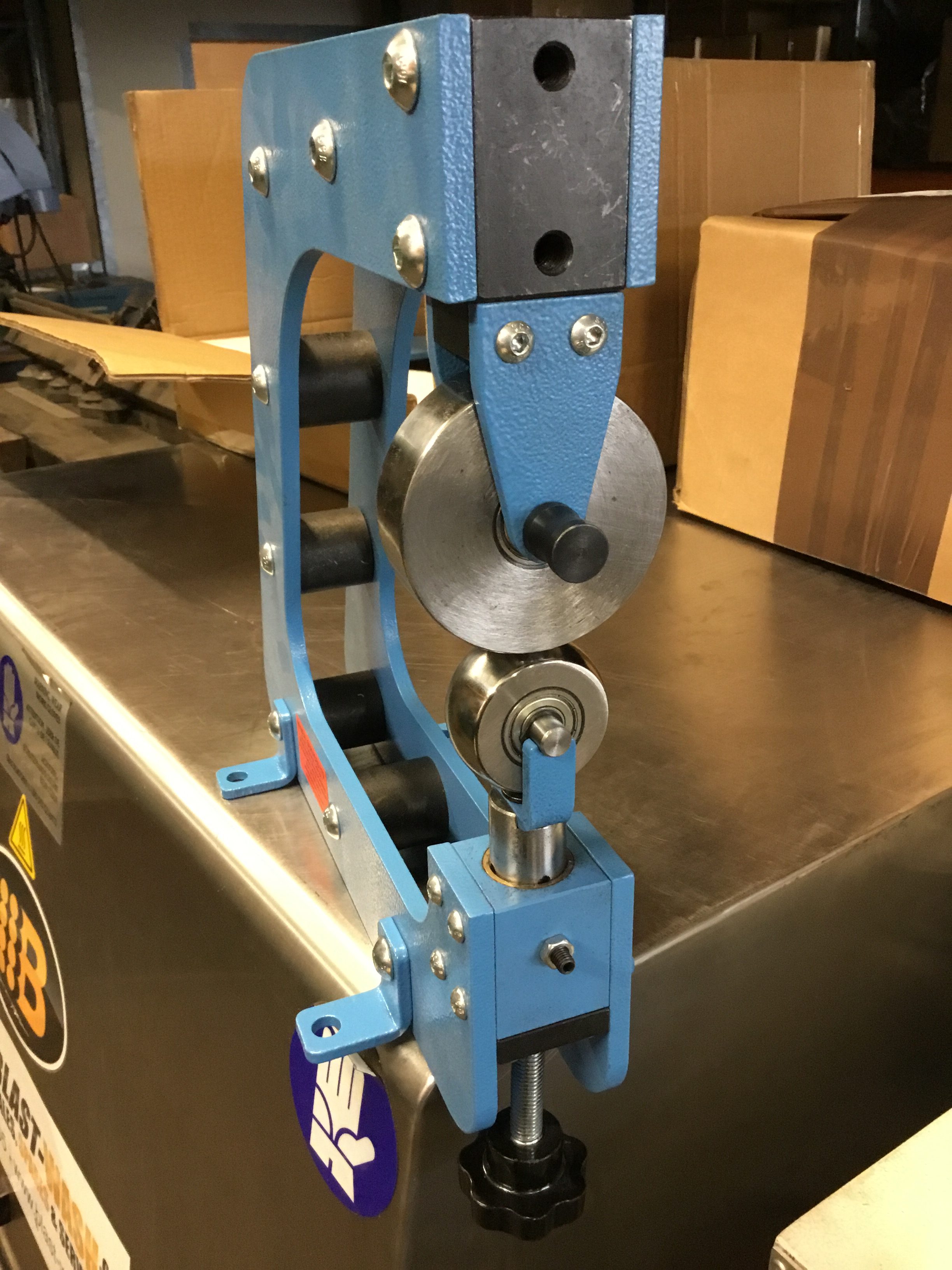

WNS FABRICATED ENGLISH WHEELING MACHINES (EW205B) are used predominantly for the restoration of bodywork on cars, planes and motorcycles, though can be used for many other purposes. This machine has a 205mm throat depth and can accommodate sheet material up to 1.2mm thick*. The EW205B comes complete with 1 top wheel & 7 lower wheels.

Additional information

Weight 16 kg
SPECIFICATIONS
Model: EW205B
Throat Depth: 205mm
Maximum Thickness: 1.2mm Capacity Mild Steel*

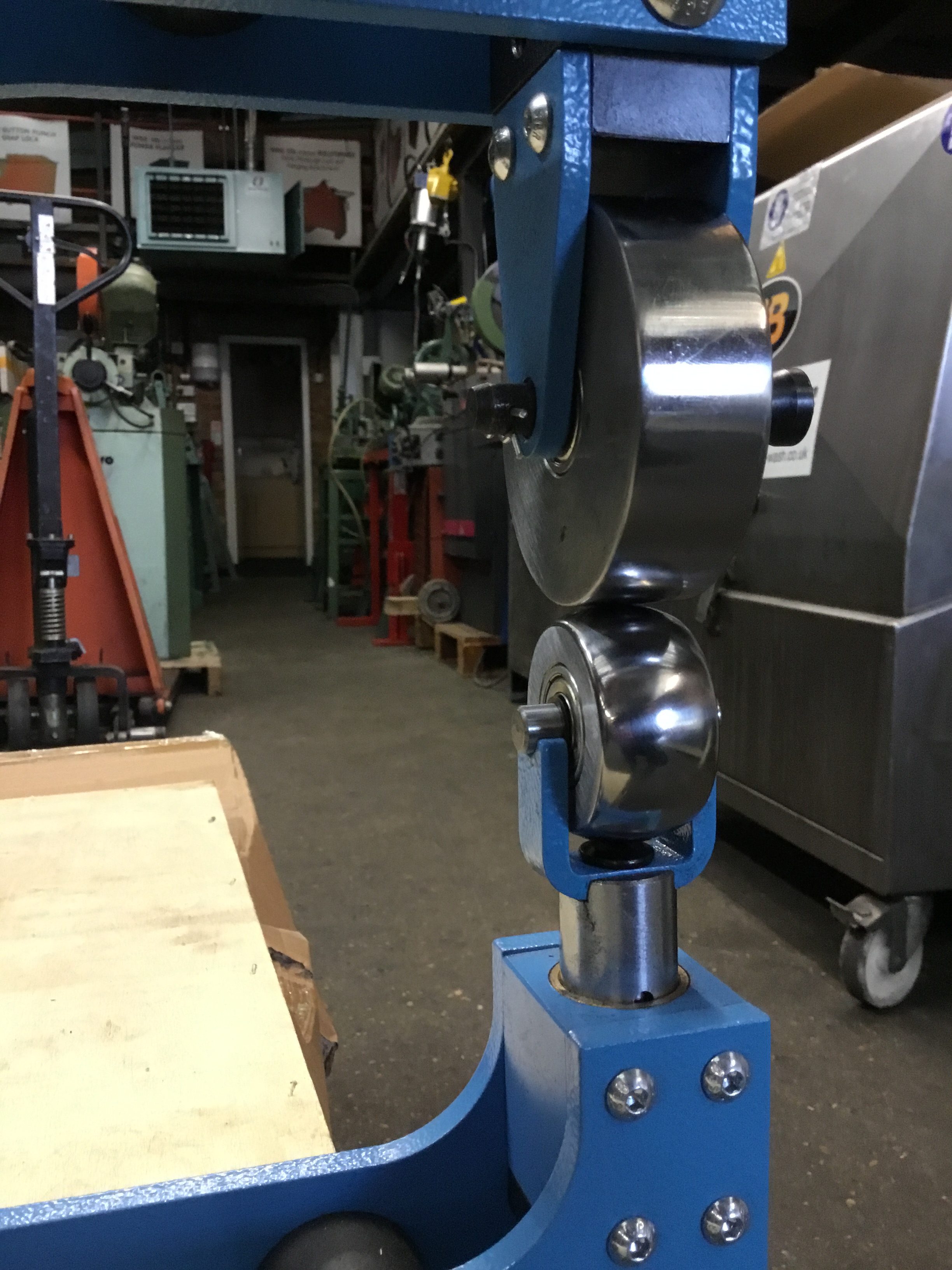

Top Wheels (x 1): 25mm Wide x 80.2mm Diameter

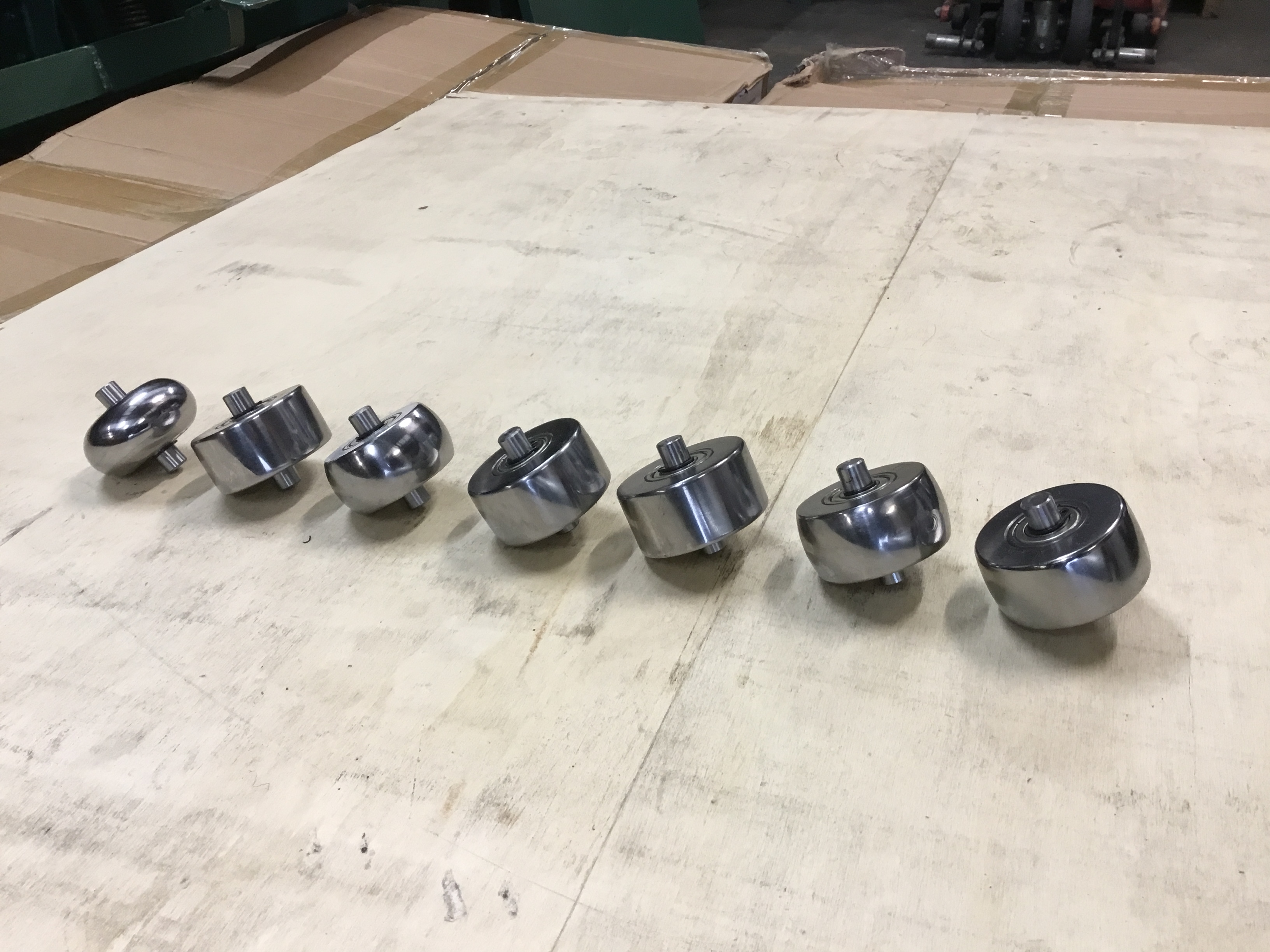

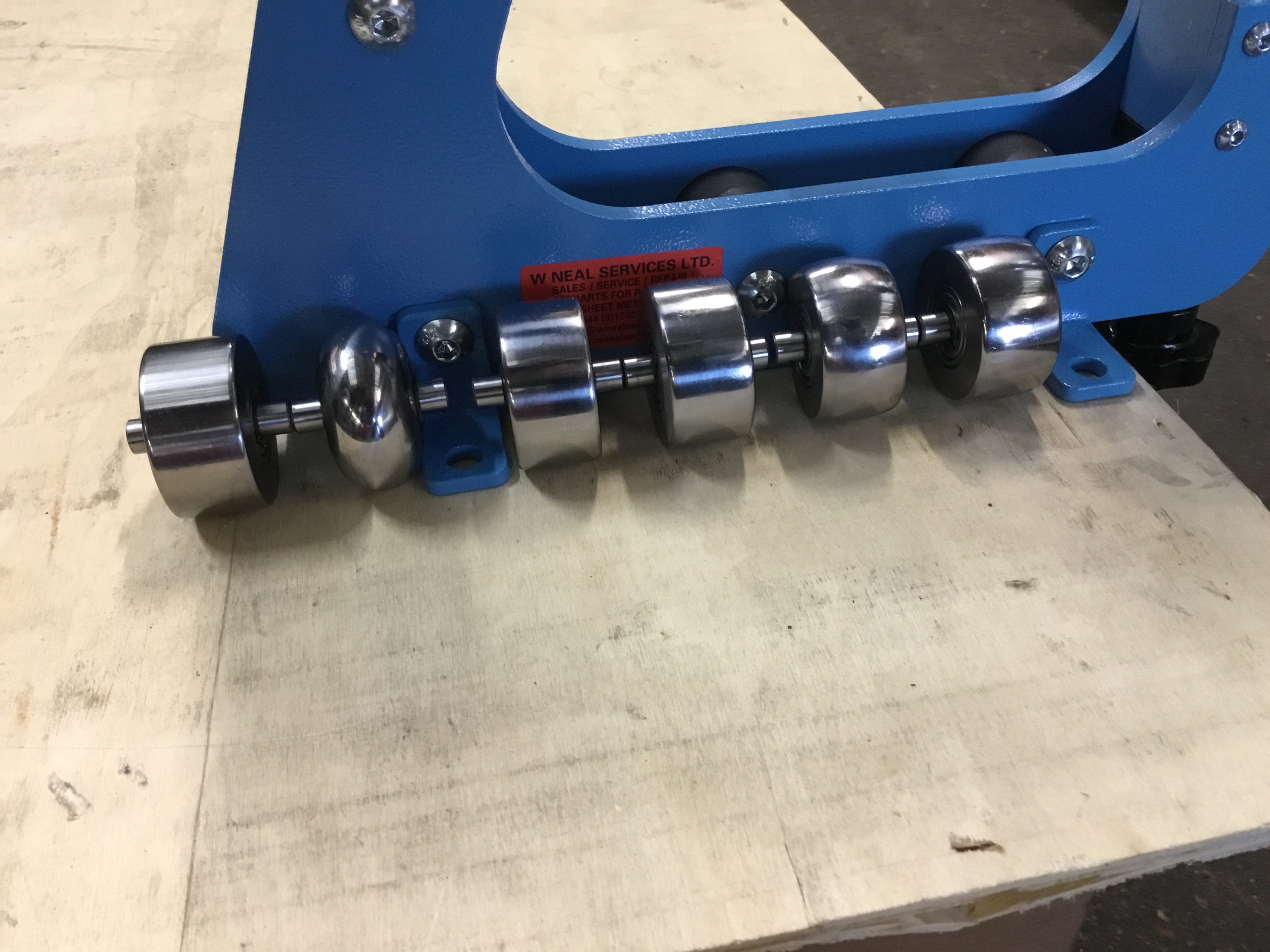

Lower Wheels (x 7):




25mm Wide x 50mm Diameter



x 12.7mm Radius
x 25.4mm Radius
x 38.1mm Radius
x 63.5mm Radius
x 127mm Radius
x 228.6mm Radius
x Flat
Frame: 8.0mm Thick Steel Side Frames
Dimensions – machine (apx): 350mm x 80mm x 350mm (l x w x h)
Dimensions – packing (apx): 360mm x 360mm x 90mm (l x w x h)
Weights – net/gross (apx): 15Kg/16Kg

*subject to material. **please see Terms & Conditions. ***fees apply.

All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
