ECKOLD Portable Clinching Pliers

ECKOLD Portable Clinching Pliers

ECKOLD Portable Clinching Pliers

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

  • 45mm Horizontal Throat
  • 2 x 45mm Vertical Throat
  • 3.5mm Capacity Mild Steel
  • Single Stroke
  • High Pressure Force
  • Manually Guided
  • 12 Month Warranty*
  • Worldwide Delivery

Description

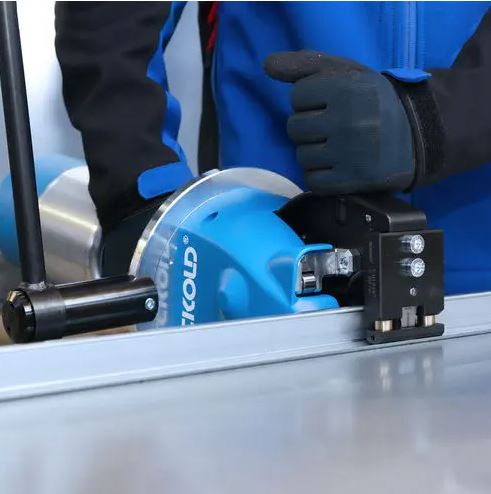

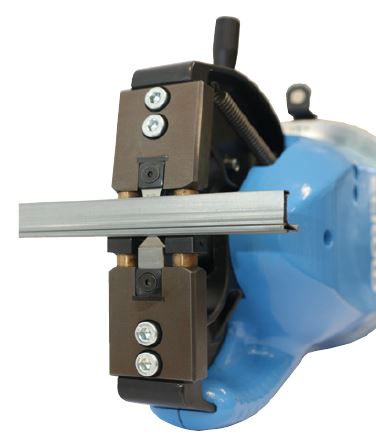

ECKOLD PORTABLE CLINCHING PLIERS (CLINCH_eckold) are pneumatically driven and have integrated adjustable stroke limitation for the application of individual clinching elements on various metal sheet combinations. The key features of this portable ECKOLD product are its lightweight design, large throat, and 360° swivelling suspension mechanism. Thanks to the large throat and the excellent reproduction accuracy of the pre-set, yet adjustable stroke, the pliers are particularly suitable for joining tasks in the HVAC sector. The clinching method allows for the connection of two or more overlapping pieces of sheet metal by means of local cold forming.

Other advantages of the device include the cheap tools, the sturdy overall design and low maintenance costs. Tools for this machine (punches and dies) vary, depending on the actual clinching task, and must be ordered in conjunction with the machine.



SPECIFICATIONS
Model: CLINCH_eckold
Horizontal Throat: 45mm
Vertical Throat: 2 x 45mm
Maximum Thickness: 3.5mm Capacity Mild Steel
Stroke Frequency: Single
Pneumatic Pressure: 5/6 Bar
Pressure Force: 35 kN at 6 Bar
Dimensions – machine (apx): 553mm x 200mm x 262mm (l x w x h)
Weight – net (apx): 9.6Kg



All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
