WNS 20swg (1.0mm) Pittsburgh Lock Former Rollformer

£3,200.00

(excl. VAT)

WNS 20swg (1.0mm) Pittsburgh Lock Former Rollformer

£3,200.00

(excl. VAT)

WNS 20swg (1.0mm) Pittsburgh Lock Former Rollformer

£3,200.00

(excl. VAT)

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

Manufacturing Rollforming Machinery since 1981.
  • 20swg (1.0mm) Capacity Mild Steel
  • Pittsburgh Lock Forming Without An Opening Roll
  • c/w Autoguide Flanging Attachment
  • 5 Stations
  • Industry Standard Sized Joints & Locks
  • Hardened Guides
  • DOL Starter & Isolator
  • Separate Emergency Stop
  • 415v, 3 Phase Electrics
  • Quality Design & Build
  • Manufactured Since 1981
  • Original & Traditional Pittsburgh Lock Lockformer Design
  • Industry Standard Sized Parts & Components
  • British Standard – CE Marked
  • Part Exchange Considered
  • Additional Auxiliary Rolls Stocked
  • Spare Parts Stocked
  • 110v & 240v Single Phase Models also Available
  • Pneumatic (Air) Operated Model Made to Order
  • 12 Month Warranty*
  • Worldwide Delivery**

Description

W. NEAL SERVICES LTD – Manufacturing Rollforming Machinery since 1981.

WNS 20swg (1.0mm) PITTSBURGH LOCK ROLLFORMERS (RF20-FA) are 5 station machines and are principally used in the HVAC industry for joining sheet metal at right angles on straight and curved duct sections. Pittsburgh lock rolls, auxiliary shafts and an autoguide flanging attachment are fitted as standard. The ‘lock’ is formed in one pass and a flange is inserted into the pocket. The edge is then hammered over either manually or with a WNS PITTSBURGH LOCK SEAM CLOSER / LOCKER (SC10), (SC12) or alternatively with a WNS 18swg (1.2mm) PITTSBURGH LOCK AIR CLOSING HAMMER (AH18). Additional forming rolls, such as double seam rolls, drive cleat rolls, etc. can be fitted onto the auxiliary shafts. The autoguide flanging attachment enables the forming of a right angle on curved, straight and irregular shapes.

WNS rollformers are manufactured with all steel side plates. The shafts, forming rolls, gears and guide fences are all hardened, and needle bearings are fitted throughout.

Additional Auxiliary Rolls Available:
Drive Cleat Rolls
Double Seam Rolls
Right Angle Flange Rolls





Additional information

Weight 1000 kg
Dimensions 112 × 56 × 130 cm

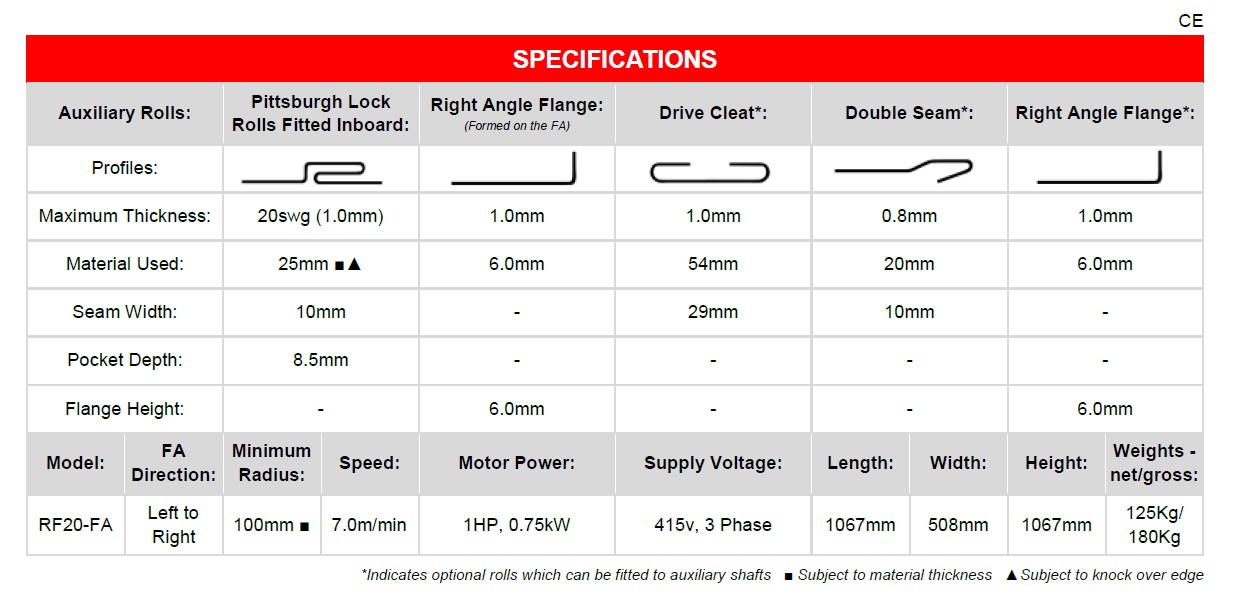

SPECIFICATIONS
Model: RF20-FA
Stations: 5 (with Auxiliary Shafts)
Maximum Thickness: 20swg (1.0mm) Mild Steel
Speed: 7.0m/min
Motor Power: 1HP, 0.75kW
Supply Voltage: 415v, 3 Phase Electrics
Dimensions – machine (apx): 1067mm x 508mm x 1067mm (l x w x h)
Dimensions – packing (apx): 1120mm x 560mm x 1300mm (l x w x h)
Weights – net/gross (apx):
125Kg/180Kg



PITTSBURGH LOCK ROLLS (FITTED AS STANDARD)
SPECIFICATIONS
Material Thickness: 26swg – 20wg (0.5mm – 1.0mm) Mild Steel
Approximate Material Used: 25mm (subject to knock over edge)
Seam Width: 10mm
Pocket Depth: 8.5mm



AUTOGUIDE FLANGING ATTACHMENT (FITTED AS STANDARD)
SPECIFICATIONS

Maximum Thickness: 20swg (1.0mm) Mild Steel
Minimum Radius: 100mm
Flanging Attachment Direction: Left to Right



DRIVE CLEAT (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS

Maximum Thickness:  20swg (1.0mm) Mild Steel
Approximate Material Used:  54mm
Seam Width:  29mm



DOUBLE SEAM (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS

Maximum Thickness:  22swg (0.8mm) Mild Steel
Approximate Material Used:  20mm
Seam Width:  10mm



RIGHT ANGLE FLANGE (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS

Maximum Thickness:  20swg (1.0mm) Mild Steel
Approximate Material Used:  6.0mm
Flange Height:  6.0mm

*please see Terms & Conditions. **fees apply.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
