Esprit Arrow CNC Plasma Cutting Machine

  • Heavy Duty Fully Welded Construction
  • Compact Design
  • 3000mm x 1500mm Cutting Area
  • Integral Dust & Fume Collector
  • Compatible with a Decoiler
  • Dual Side Drive in X Axis

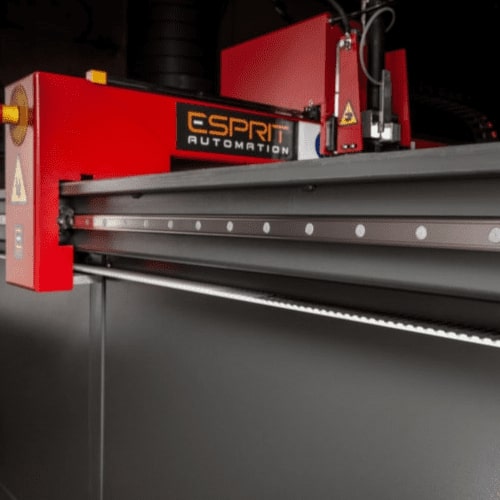

  • Linear Bearings in all Axes

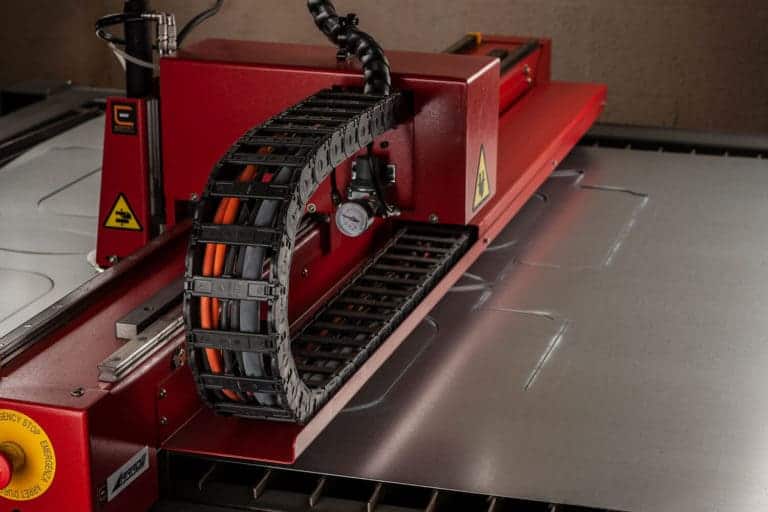

  • Integral Cable Chain Handling
  • High Speed Plate Rider
  • Height Control

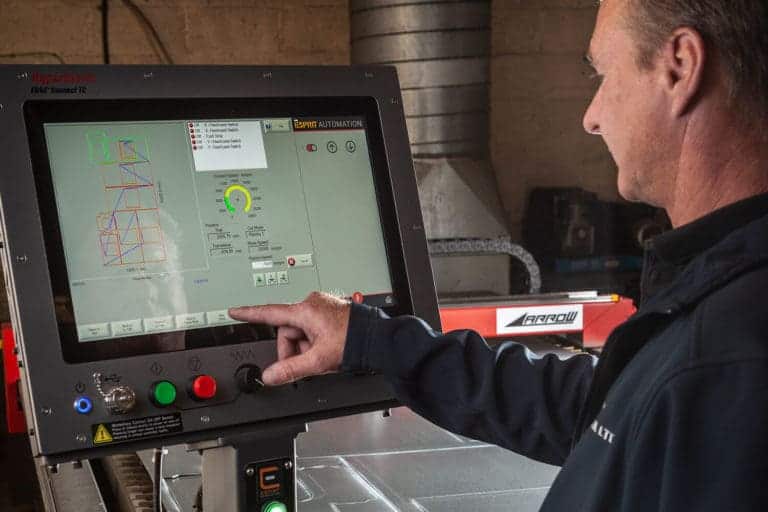

  • 15” Colour Touch Screen Display

Description

ESPRIT ARROW PLASMA CUTTER (EPC-ARROW) combines the latest in machine and plasma cutting technology in a compact package and offers the best price/performance ratio in its class. The latest inverter controlled Hypertherm Powermax45 plasma cutting systems give superb cutting performance along with low running costs.

SPECIFICATIONS
Model: EPC-ARROW
Bed Size/Cutting Area: 3000mm x 1500mm
Loading Capacity: 3.0mm Mild Steel Plate
Maximum Traversing Speed: 28m/min
Extraction Outlet Size: 233mm Diameter x 60mm
Supply Voltage: 230v, Single Phase
Dimensions – machine (apx): 4500mm x 2240mm x 1707mm (l x w x h)
Weight: 1150Kg

All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
