£2,400.00 – £2,895.00
If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

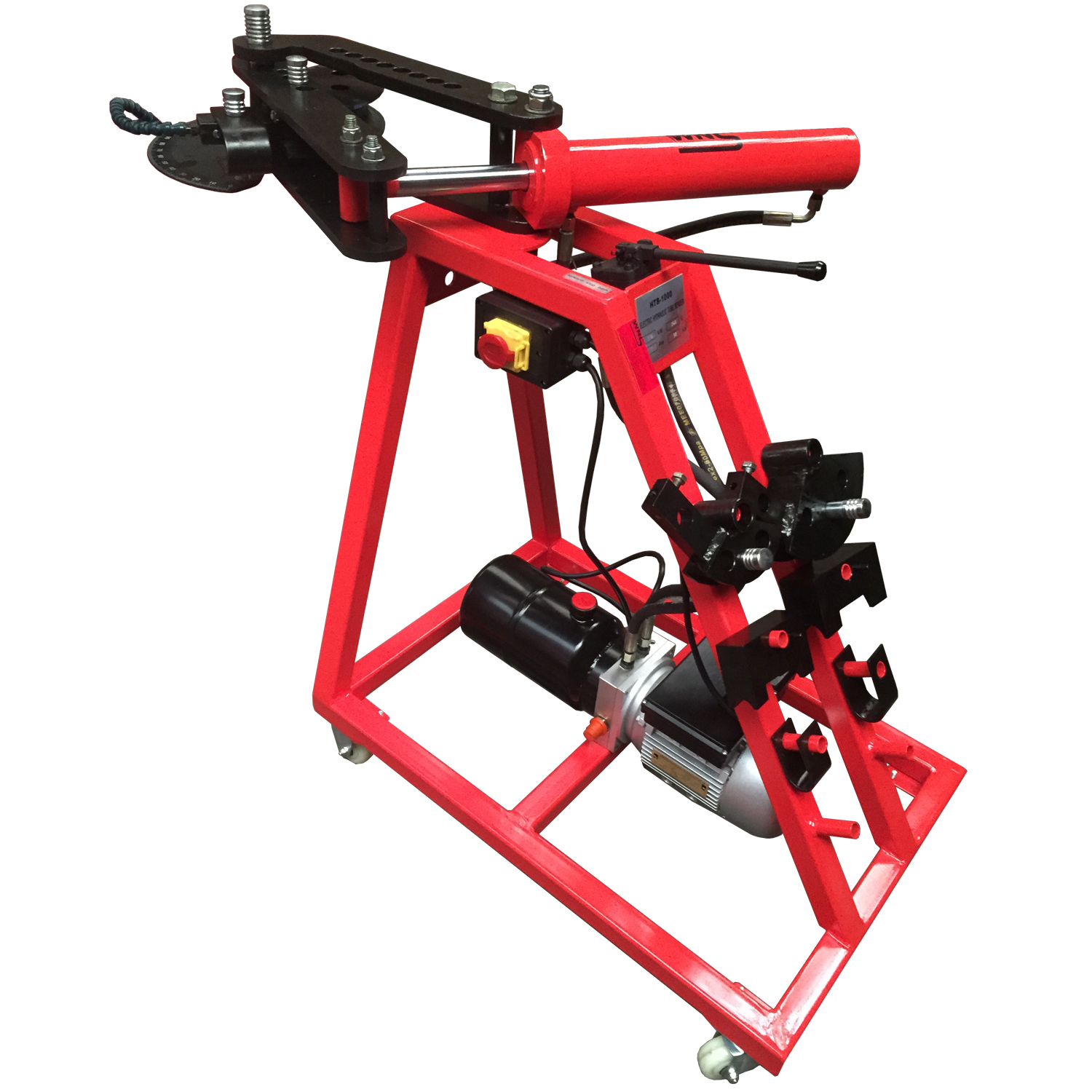

WNS HYDRAULIC TUBE/PIPE BENDERS (HTB3 / HTB3sp / HTB4 / HTB4sp) are ideal for building race car roll cages, custom motorcycle frames and much more. This machine has a maximum capacity of 2″ (50.8mm) subject to the die fitted to the machine. Includes bender, caster stand with die rack, degree ring combination.
The HTB3 Hydraulic Tube/Pipe Bender is c/w 3 dies & 415v, 3 phase electrics.
The HTB3sp Hydraulic Tube/Pipe Bender is c/w 3 dies & 240v, single phase electrics.
The HTB4 Hydraulic Tube/Pipe Bender is c/w 4 dies & 415v, 3 phase electrics.
The HTB4sp Hydraulic Tube/Pipe Bender is c/w 4 dies & 240v, single phase electrics.
3x Dies Included (HTB3 / HTB3sp):
1″ (25.4mm) x 3″ Radius x 120°
1½” (38.1mm) x 5″ Radius x 120°
1¾” (44.5mm) x 6″ Radius x 120°
4x Dies Included (HTB4 / HTB4sp):
1″ (25.4mm) x 3″ Radius x 120°
1½” (38.1mm) x 5″ Radius x 120°
1¾” (44.5mm) x 6″ Radius x 120°
2″ (50.8mm) x 6″ Radius x 120°
PLEASE NOTE
All specifications are provided as a guide only and this machine is mechanically capable of bending tube sizes as indicated. It is the user’s responsibility to ensure the tube size, quality, type and wall thickness will withstand both the forming process and the radius of the die supplied/selected.
| Weight | 1250 kg |
|---|---|
| Model | 3 Phase – c/w 3x Dies (HTB3), Single Phase – c/w 3x Dies (HTB3sp), 3 Phase – c/w 4x Dies (HTB4), Single Phase – c/w 4x Dies (HTB4sp) |
| SPECIFICATIONS | |
| Model: | HTB3 |
| Maximum Machine Capacity: | 2” (50.8mm) Capacity Mild Steel* |
| Dies Included (x 3): | 1” (25.4mm) x 3” Radius x 120˚ |
| 1 ½” (38.1mm) x 5” Radius x 120˚ | |
| 1 ¾” (44.5mm) x 6” Radius x 120˚ | |
| Die Centre Hole: | 25mm Diameter |
| Pin Holes: | 22mm Diameter |
| Maximum Bending Angle: | 240° |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 1250mm x 560mm x 1020mm (l x w x h) |
| Dimensions – packing (apx): | 1400mm x 660mm x 1150mm (l x w x h) |
| Weights – net/gross (apx): | 102Kg/160Kg |
| SPECIFICATIONS | |
| Model: | HTB3sp |
| Maximum Machine Capacity: | 2” (50.8mm) Capacity Mild Steel* |
| Dies Included (x 3): | 1” (25.4mm) x 3” Radius x 120˚ |
| 1 ½” (38.1mm) x 5” Radius x 120˚ | |
| 1 ¾” (44.5mm) x 6” Radius x 120˚ | |
| Die Centre Hole: | 25mm Diameter |
| Pin Holes: | 22mm Diameter |
| Maximum Bending Angle: | 240° |
| Supply Voltage: | 240v, Single Phase Electrics |
| Dimensions – machine (apx): | 1250mm x 560mm x 1020mm (l x w x h) |
| Dimensions – packing (apx): | 1400mm x 660mm x 1150mm (l x w x h) |
| Weights – net/gross (apx): | 117Kg/175Kg |
| SPECIFICATIONS | |
| Model: | HTB4 |
| Maximum Machine Capacity: | 2” (50.8mm) Capacity Mild Steel* |
| Dies Included (x 4): | 1” (25.4mm) x 3” Radius x 120˚ |
| 1 ½” (38.1mm) x 5” Radius x 120˚ | |
| 1 ¾” (44.5mm) x 6” Radius x 120˚ | |
| 2” (50.8mm) Diameter x 6” Radius x 120° | |
| Die Centre Hole: | 25mm Diameter |
| Pin Holes: | 22mm Diameter |
| Maximum Bending Angle: | 240° |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 1250mm x 560mm x 1020mm (l x w x h) |
| Dimensions – packing (apx): | 1400mm x 660mm x 1150mm (l x w x h) |
| Weights – net/gross (apx): | 102Kg/160Kg |
| SPECIFICATIONS | |
| Model: | HTB4sp |
| Maximum Machine Capacity: | 2” (50.8mm) Capacity Mild Steel* |
| Dies Included (x 4): | 1” (25.4mm) x 3” Radius x 120˚ |
| 1 ½” (38.1mm) x 5” Radius x 120˚ | |
| 1 ¾” (44.5mm) x 6” Radius x 120˚ | |
| 2” (50.8mm) Diameter x 6” Radius x 120° | |
| Die Centre Hole: | 25mm Diameter |
| Pin Holes: | 22mm Diameter |
| Maximum Bending Angle: | 240° |
| Supply Voltage: | 240v, Single Phase Electrics |
| Dimensions – machine (apx): | 1250mm x 560mm x 1020mm (l x w x h) |
| Dimensions – packing (apx): | 1400mm x 660mm x 1150mm (l x w x h) |
| Weights – net/gross (apx): | 117Kg/175Kg |
*Subject to Dies. **please see Terms & Conditions. ***Fees apply.
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
