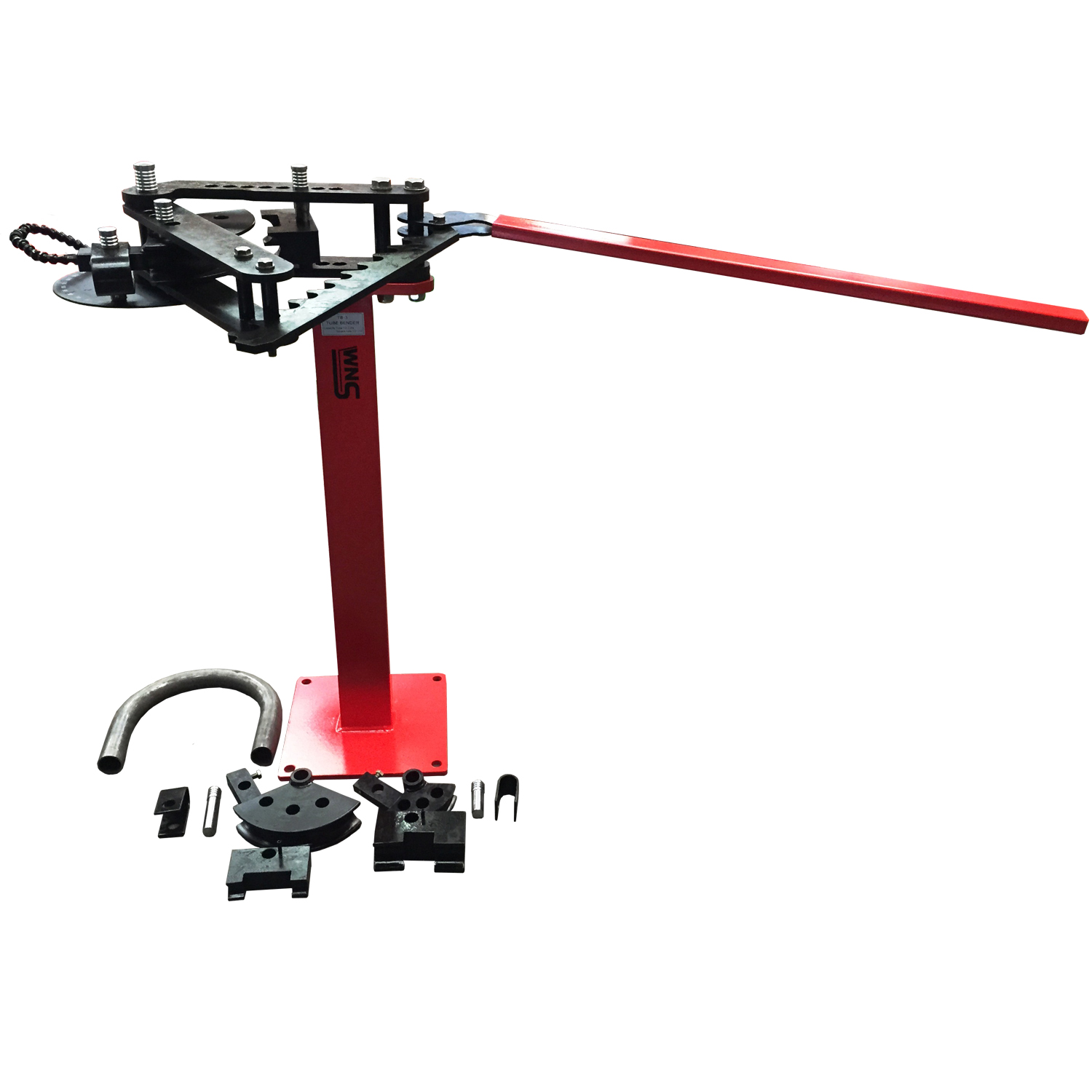

WNS Tube Bender c/w 3 or 4 Dies

  • c/w 3 Sets of Dies (TB3)
  • c/w 4 Sets of Dies (TB4)
  • c/w Handle
  • c/w Bender Stop
  • Stand Included
  • Degree Ring Combination
  • 2″ / 50.8mm Capacity
  • 25mm Die Hole Centre
  • 22mm Diameter Pin Hole

Description

WNS TUBE/PIPE BENDERS (TB3/TB4) are ideal for building race car roll cages, custom motorcycle frames and much more. Comes complete with 3 or 4 dies. This machine has a maximum capacity of 2″ (50.8mm) subject to the dies. Includes Bender, Stand, Stop, Degree Ring Combination and Handle.

PLEASE NOTE
All specifications are provided as a guide only. Whilst this machine is mechanically capable of bending tube sizes as indicated, it is the users responsibility to ensure the tube size, quality, type and wall thickness will withstand the forming process and the radius of the mandrel supplied/selected.

Dies Included – Set of 3:
1″ (25.4mm) x 3″ Radius x 120°
1½” (38.1mm) x 5″ Radius x 120°
1¾” (44.5mm) x 6″ Radius x 120°
(TB3)

Dies Included – Set of 4:
1″ (25.4mm) x 3″ Radius x 120°
1½” (38.1mm) x 5″ Radius x 120°
1¾” (44.5mm) x 6″ Radius x 120°
2″ (50.8mm) x 6″ Radius x 120°
(TB4)

Additional information

Weight 90 kg
Tube Benders

c/w 3 Dies (TB3), c/w 4 Dies (TB4)

SPECIFICATIONS
Model: TB3
Maximum Capacity: 2” (50.8mm) (Outside Diameter of Tube) – Subject to die
Standard Dies (x 3): 1” (25.4mm) Diameter x  3” Radius x 120˚
1½” (38.1mm) Diameter x 5” Radius x 120˚
1¾” (44.5mm) Diameter x  6” Radius x 120˚
Die Hole Centre: 25mm Diameter
Pin Holes: 22mm Diameter
Handle Length: 900mm
Dimensions – machine (apx): 1000mm x 600mm x 1080mm (l x w x h)
Dimensions – packaging (apx): 1200mm x 500mm x 520mm (l x w x h)
Weights – net/gross (apx): 64Kg/67Kg



SPECIFICATIONS
Model: TB4
Maximum Capacity: 2” (50.8mm) (Outside Diameter of Tube) – Subject to die
Standard Dies (x 3):
1” (25.4mm) Diameter x  3” Radius x 120˚
1½” (38.1mm) Diameter x 5” Radius x 120˚
1¾” (44.5mm) Diameter x  6” Radius x 120˚
2″ (50.8mm) Diameter x 7″ Radius x 120°
Die Hole Centre: 25mm Diameter
Pin Holes: 22mm Diameter
Handle Length: 900mm
Dimensions – machine (apx): 1000mm x 600mm x 1080mm (l x w x h)
Dimensions – packaging (apx): 1200mm x 500mm x 520mm (l x w x h)
Weights – net/gross (apx): 79Kg/82Kg
