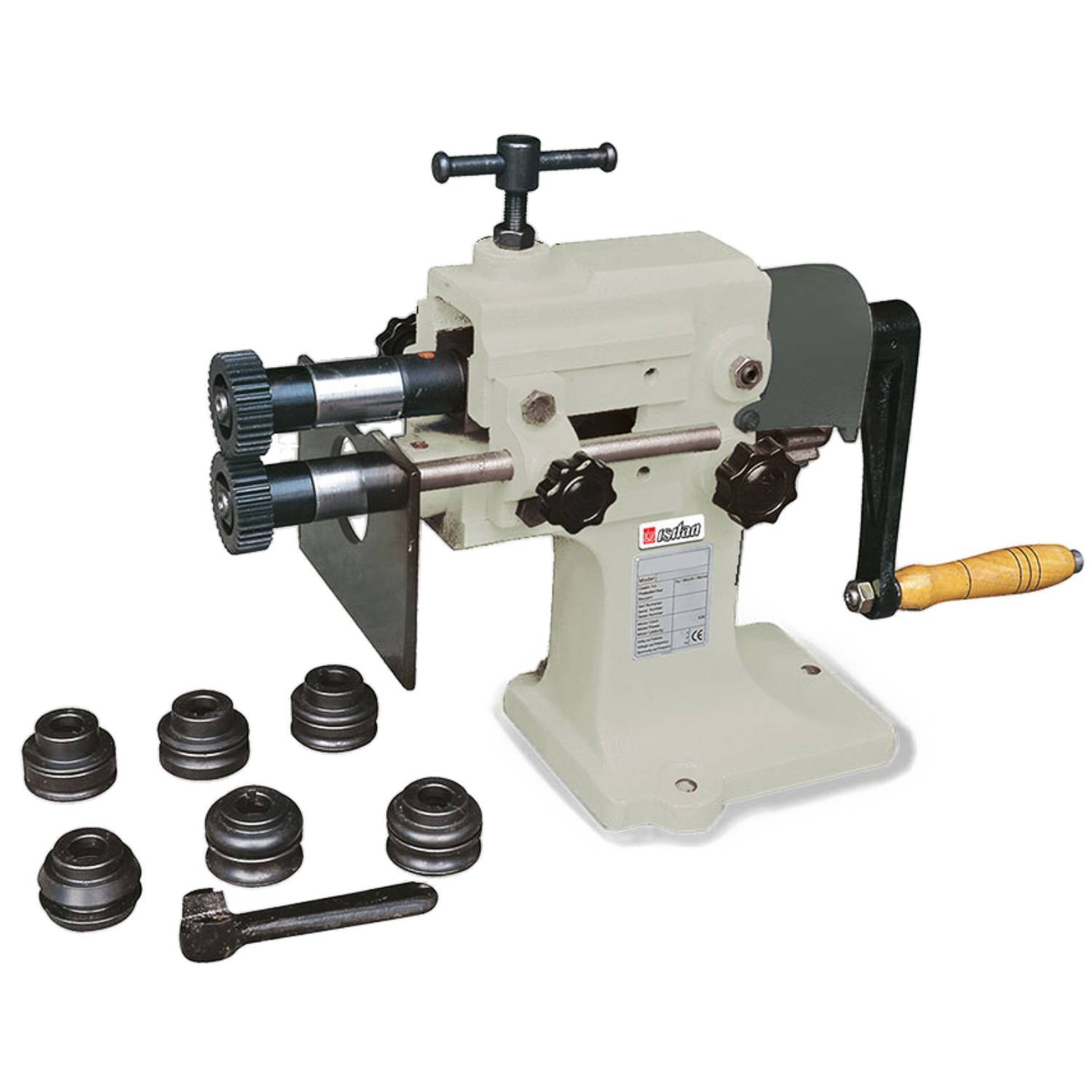

ISITAN HAND SWAGERS / SWAGING MACHINES (HS80I) are principally used for swaging, beading, wiring, crimping and forming of sheet metal. This hand swager has a 80mm throat and can accommodate mild steel sheet up to 0.8mm thick. This machine comes complete with 7 sets of rolls and a roll spanner key.
Please note images shown are stock images.
To view all of our swagers, please click here.
To view all of our used/reconditioned machines please click here.
| Weight | 57 kg |
|---|
| SPECIFICATIONS | |
| Model: | HS80I |
| Throat Depth: | 80mm |
| Shaft Length: | 110mm |
| Maximum Thickness: | 0.8mm Capacity Mild Steel* |

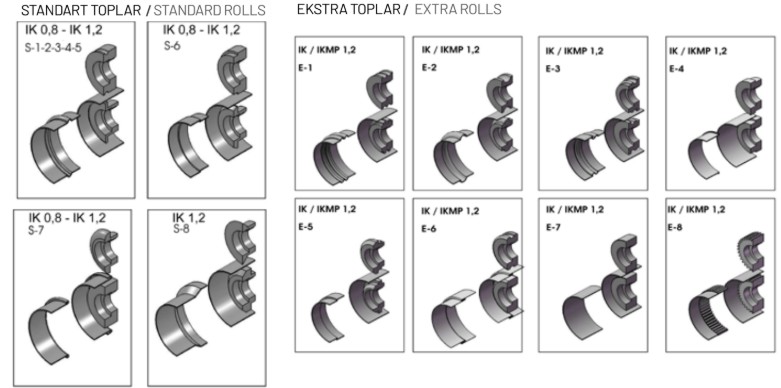

| Rolls Included: | 7 x Sets Of Rolls |
| Roll – Outside Diameter (apx): | 56mm |
| Dimensions – machine (apx): | 380mm x 180mm x 380mm (l x w x h) |
| Weight – net (apx): | 30Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
