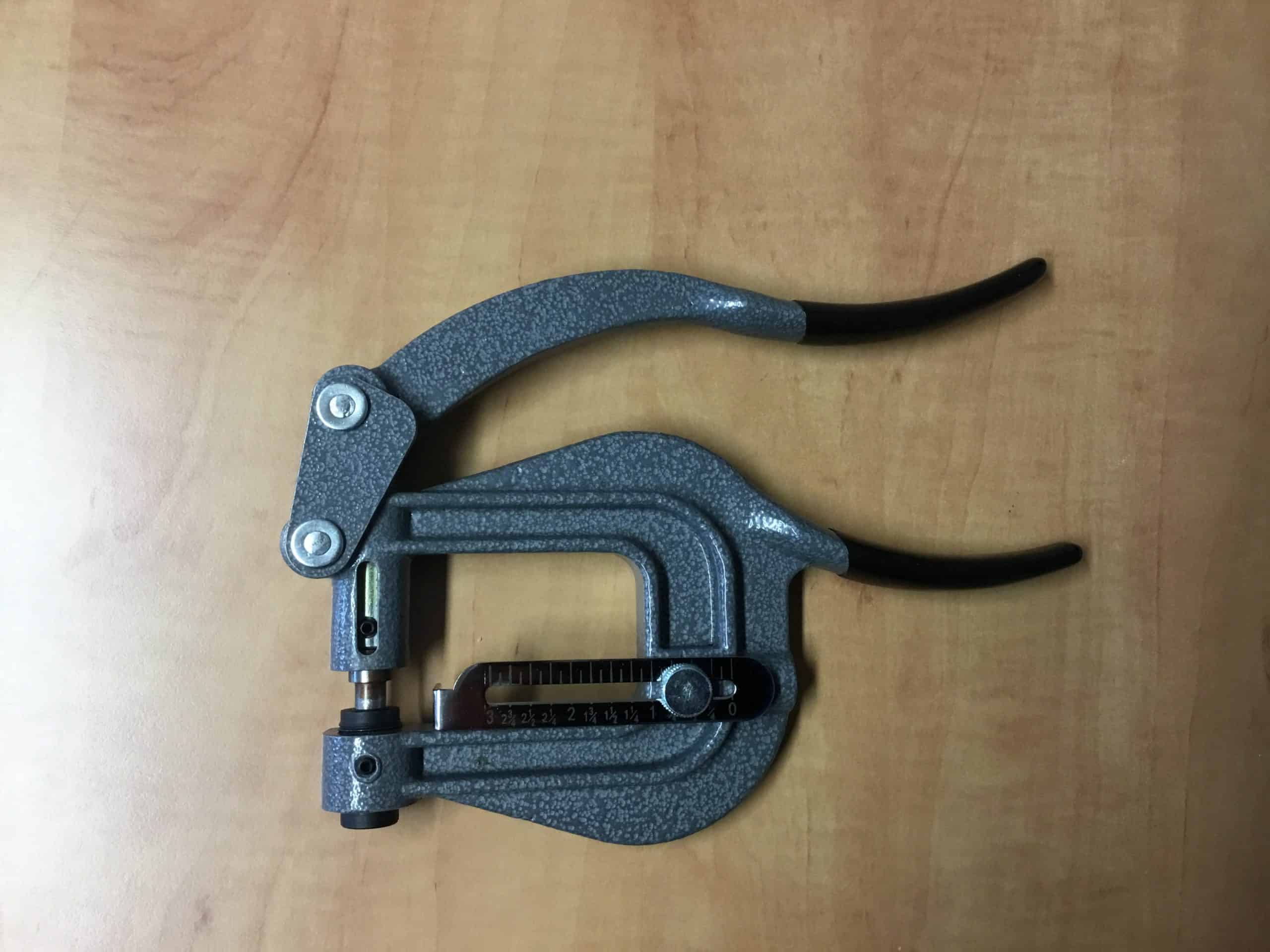

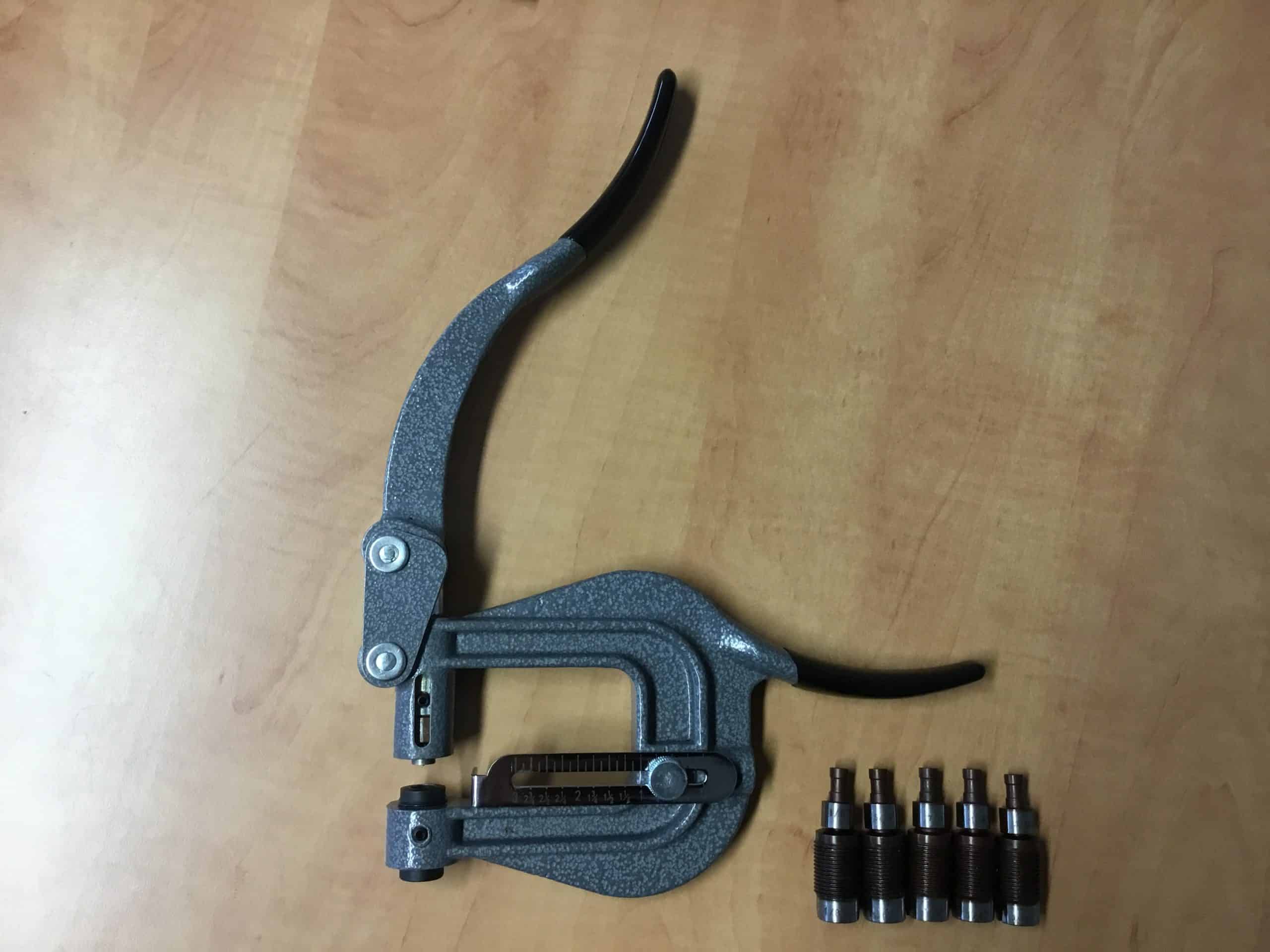

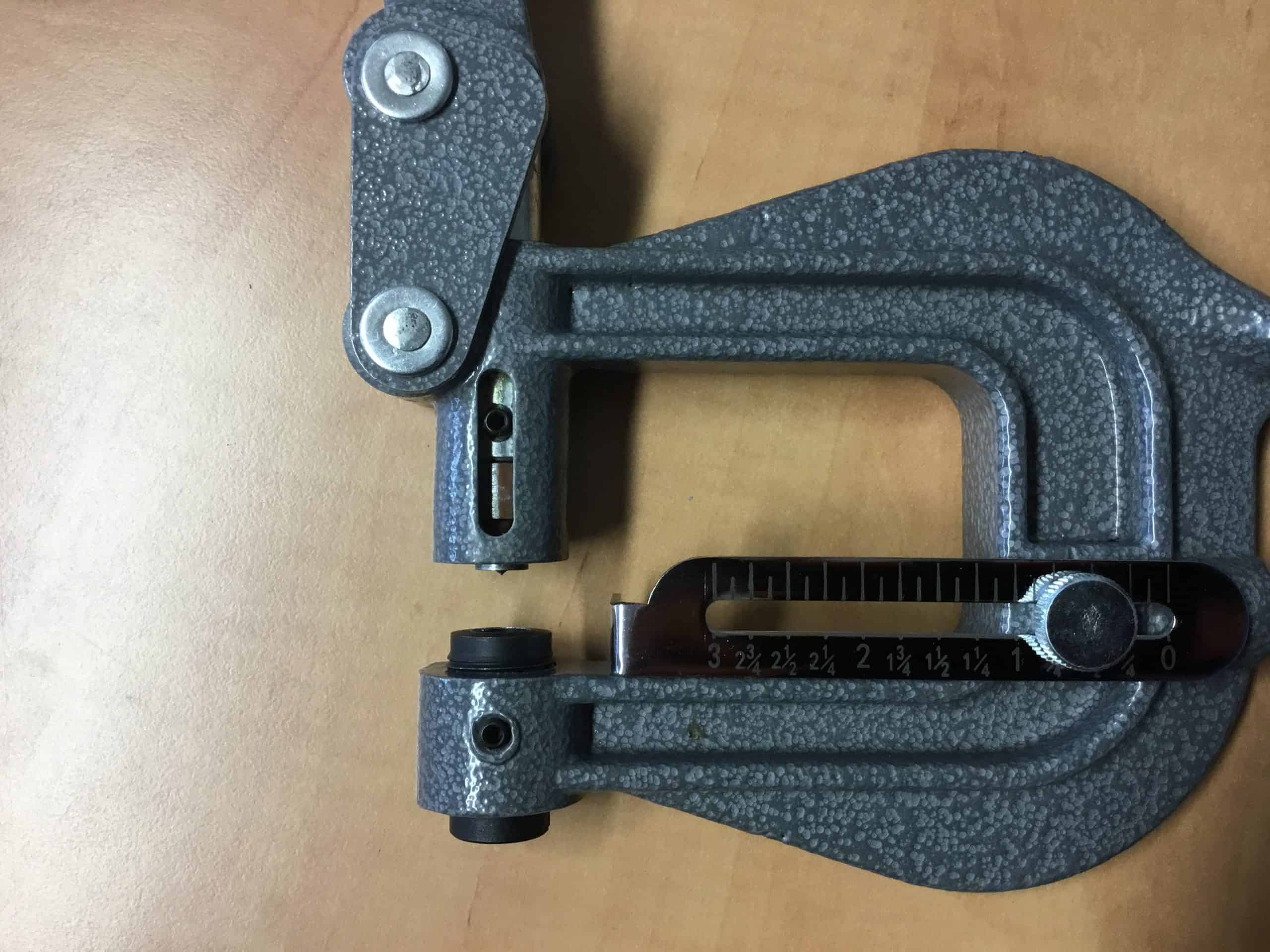

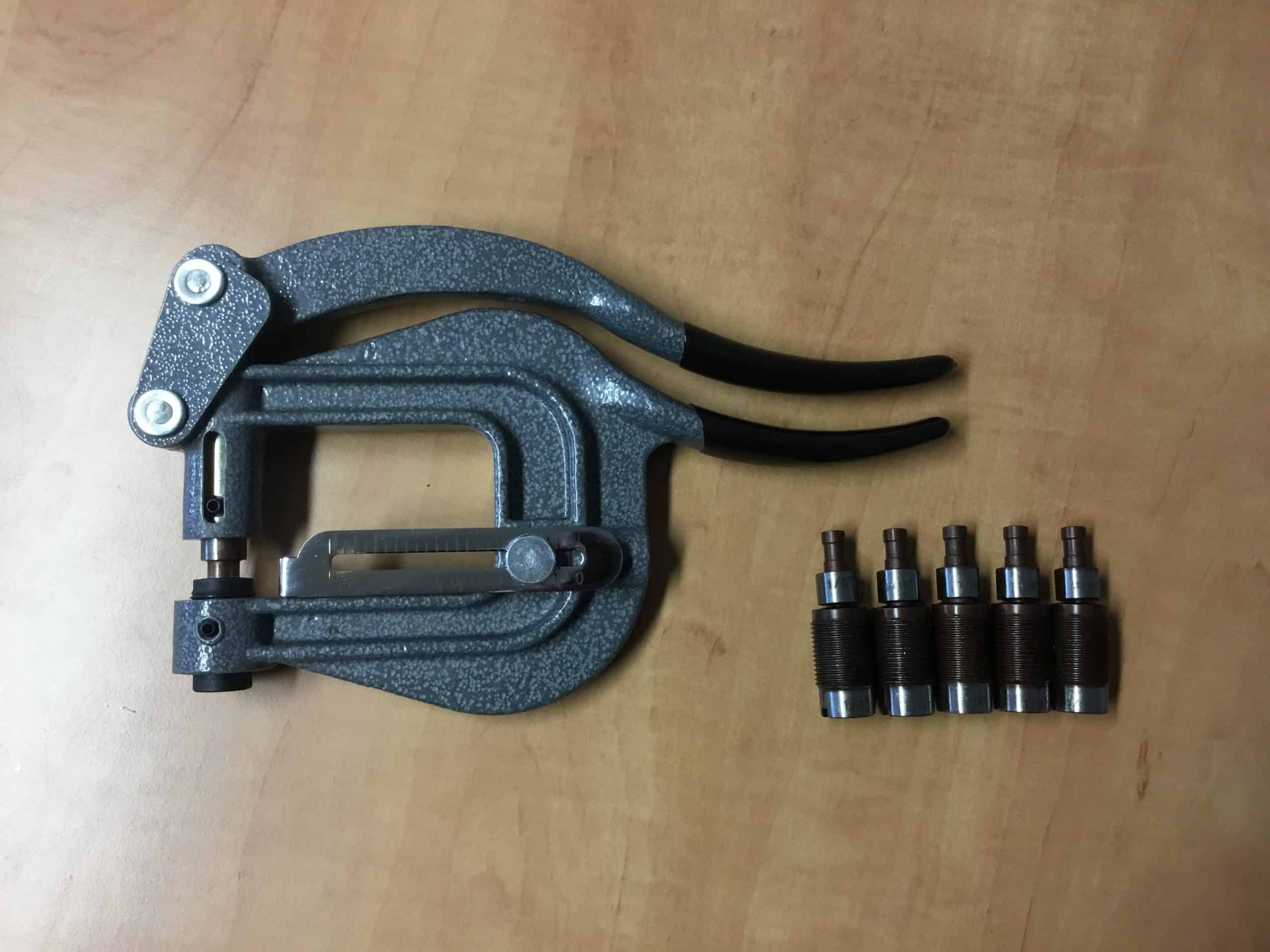

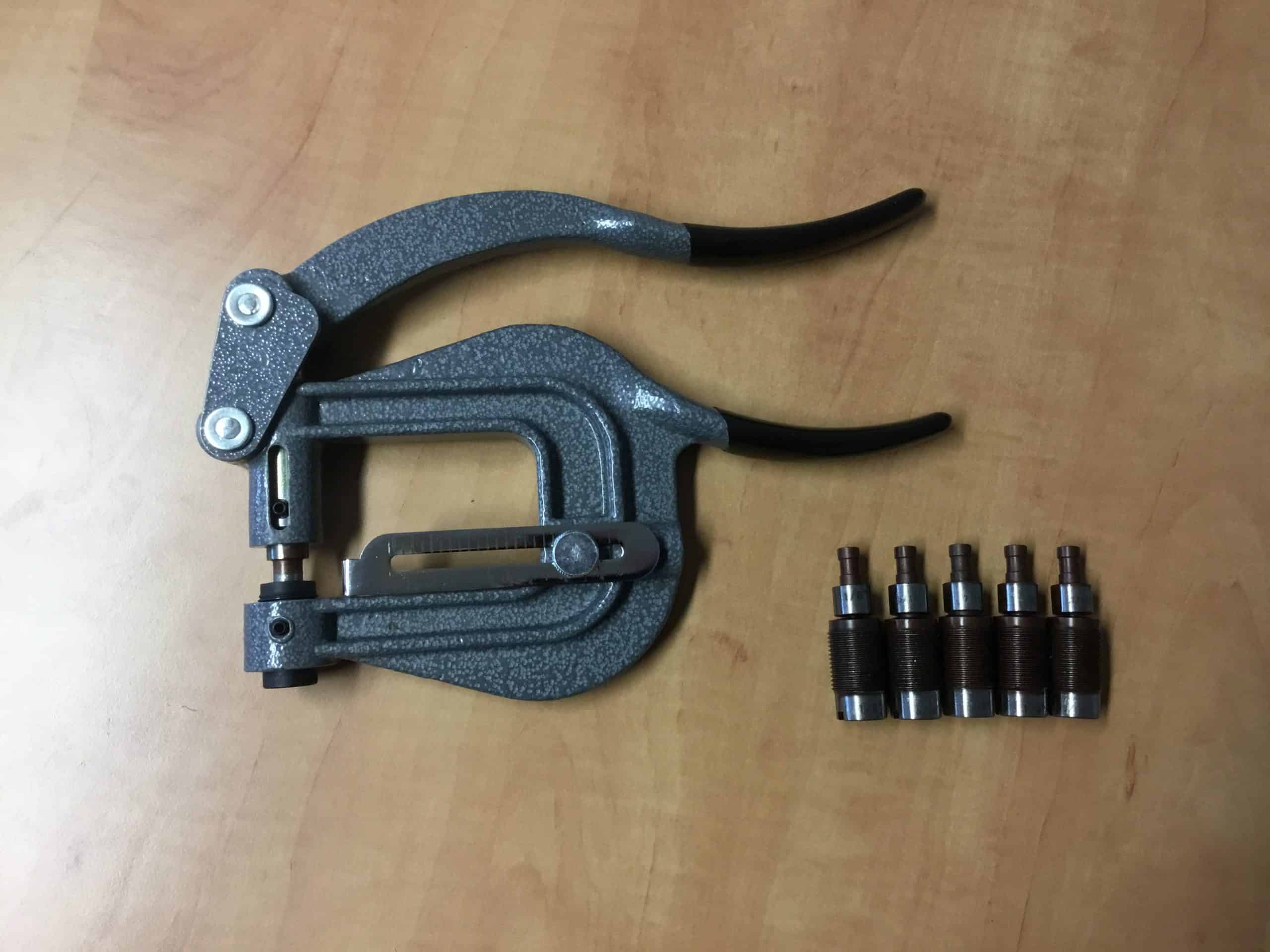

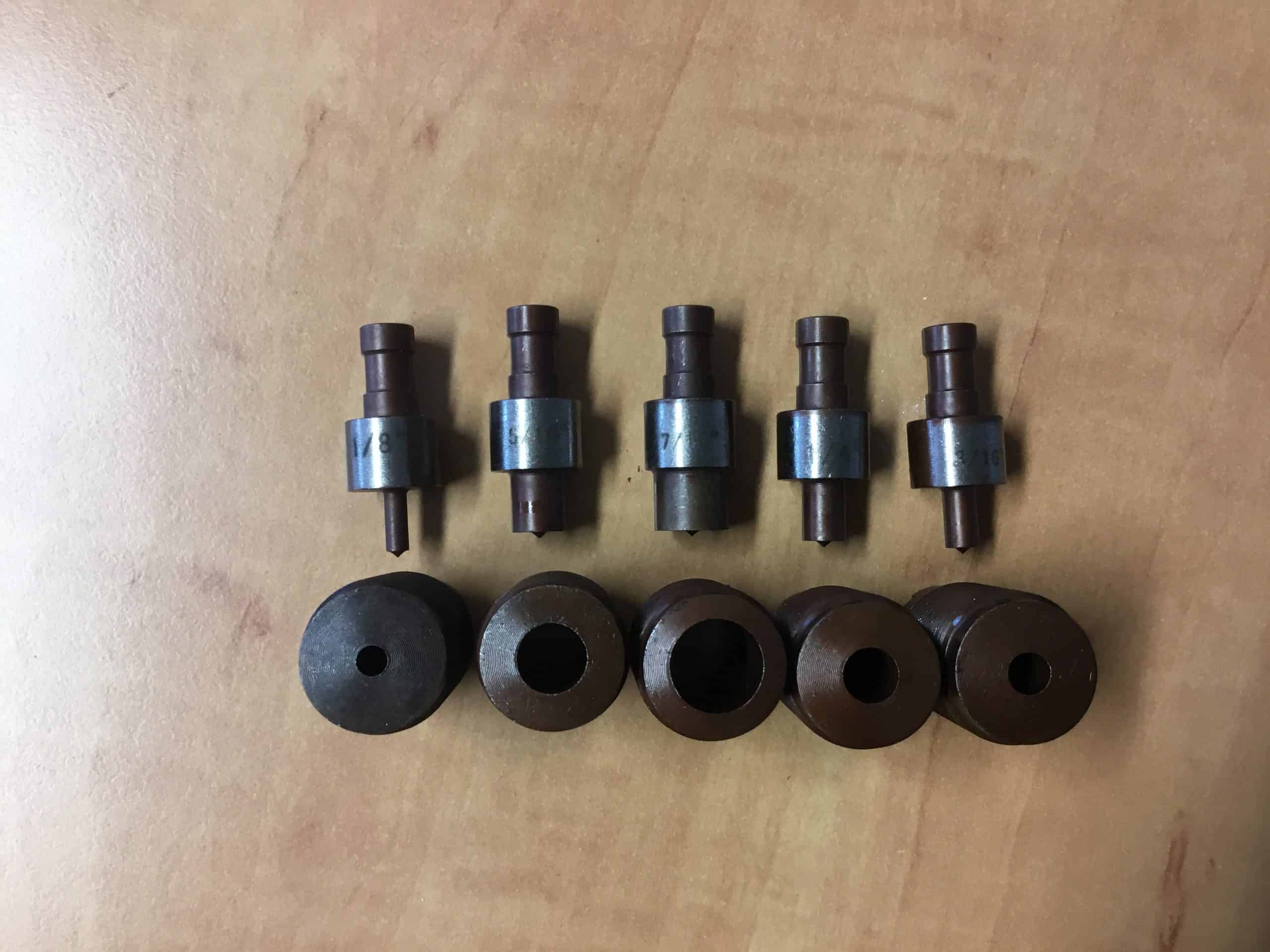

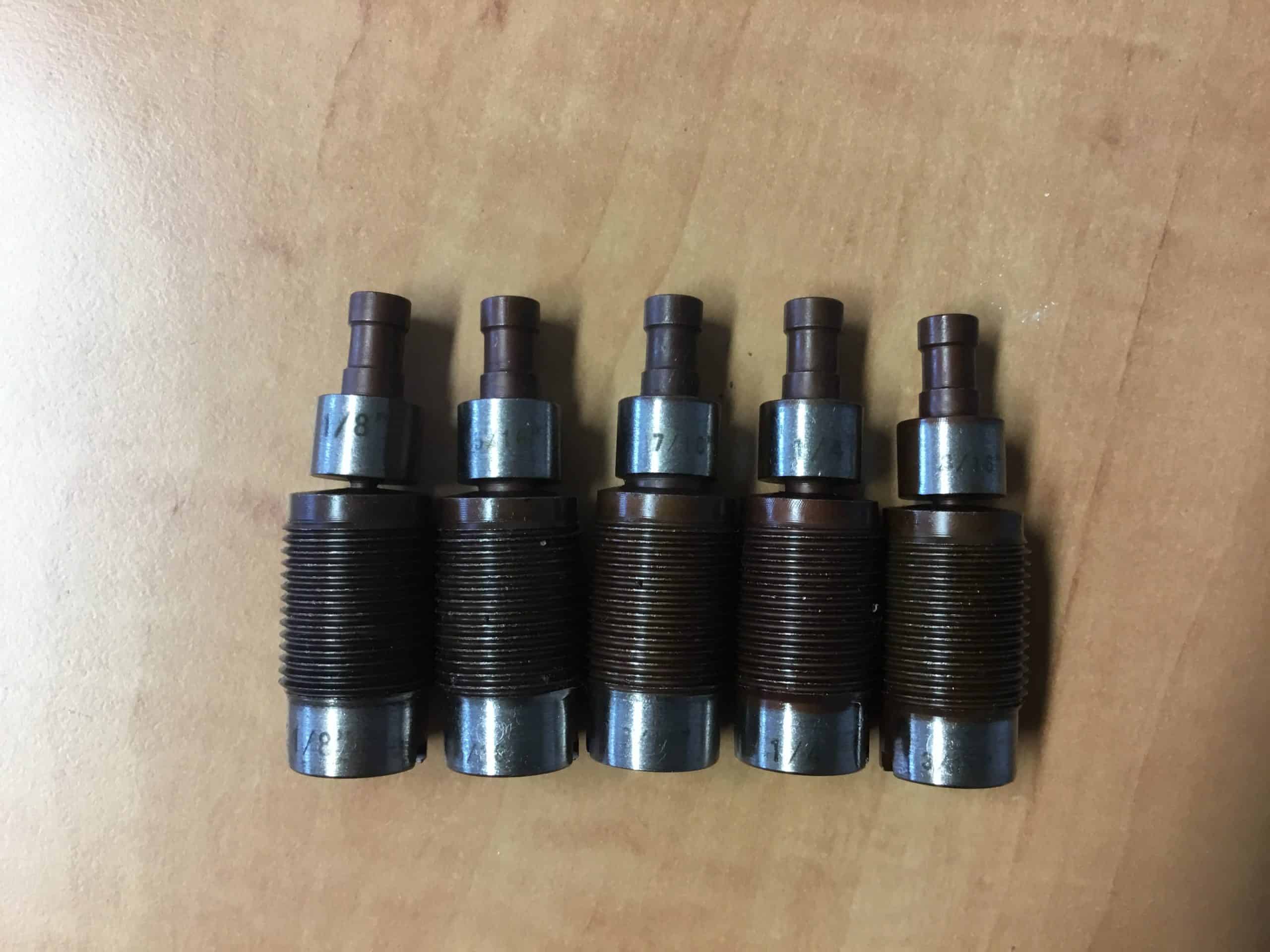

WNS METAL HAND HOLE PUNCH (WP82) is the perfect handheld tool for auto body work, aviation and general shop use. Built for precision and durability it has an adjustable depth gauge, ensuring accurate clean hole placement every time. This punch is complete with 6 interchangeable dies, giving you the flexibility to create multiple hole sizes with a single tool.
Please note this tool is inspired by Roper Whitney, however is not the original.
Dies are also available to purchase upon request.
| Weight | 5 kg |
|---|
| SPECIFICATIONS | |||||
| Model: | WP82 | ||||
| Throat Depth: | 82mm | ||||
| Die Sizes and Capacity: | Die Size: | 1/8″ | 3/16″ | 1/4″ | |
| Die Capacity: | 2.8mm* | 2.0mm* | 1.6mm* | ||
| Die Size: | 5/16″ | 3/8″ | 7/16″ | ||
| Die Capacity: | 1.2mm* | 1.0mm* | 1.0mm* | ||
| Dimensions – packing (apx): | 480mm x 350mm x 19mm (l x w x h) | ||||
| Weights – net/gross (apx): | 10Kg/11Kg | ||||
*subject to material
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
