WNS English Wheeling Machine 400mm

WNS English Wheeling Machine 400mm

WNS English Wheeling Machine 400mm

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

  • 400mm Throat
  • 1.5mm Capacity*
  • 1 x Top Wheel
  • 7 x Lower Wheels

Description

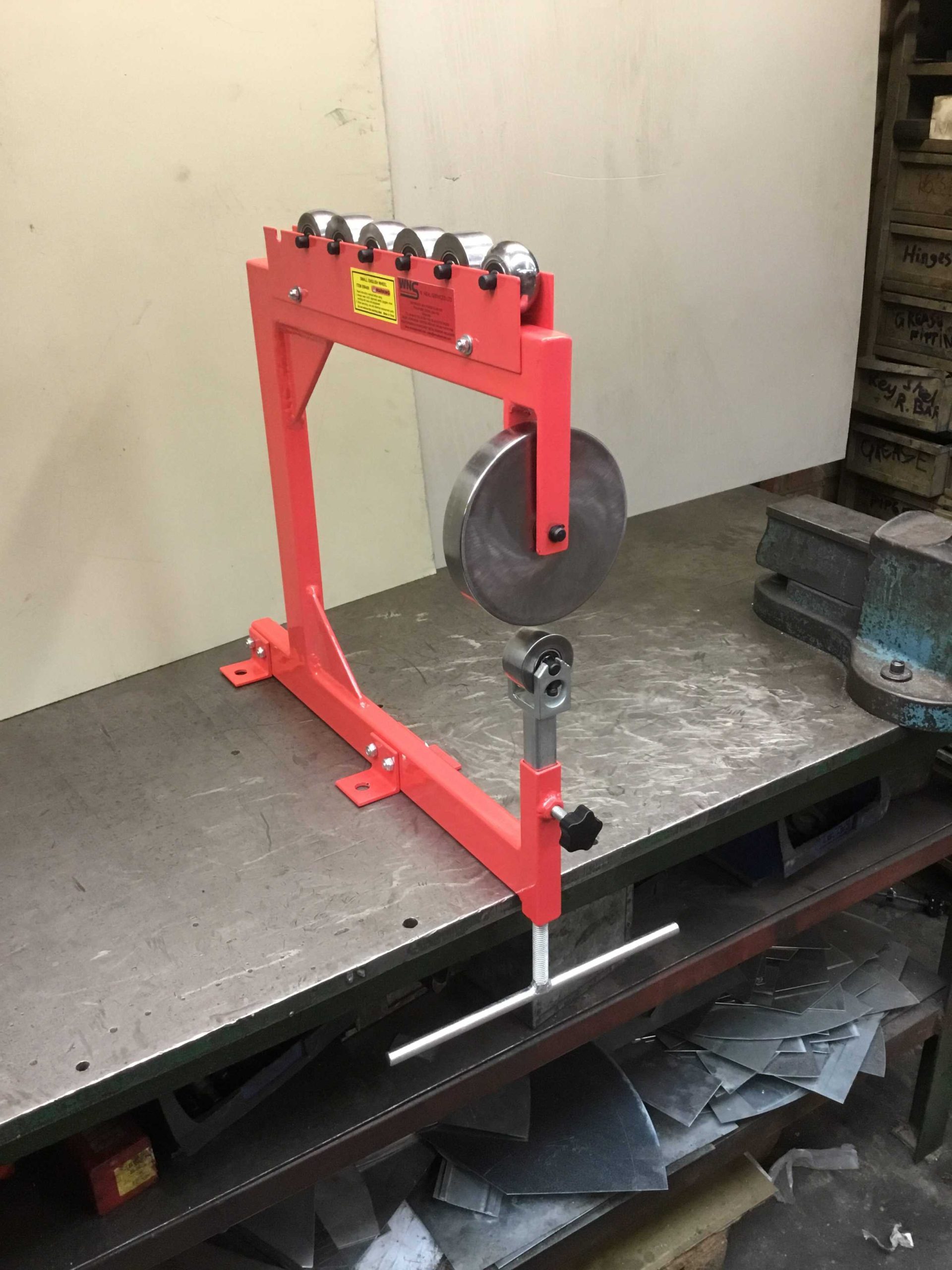

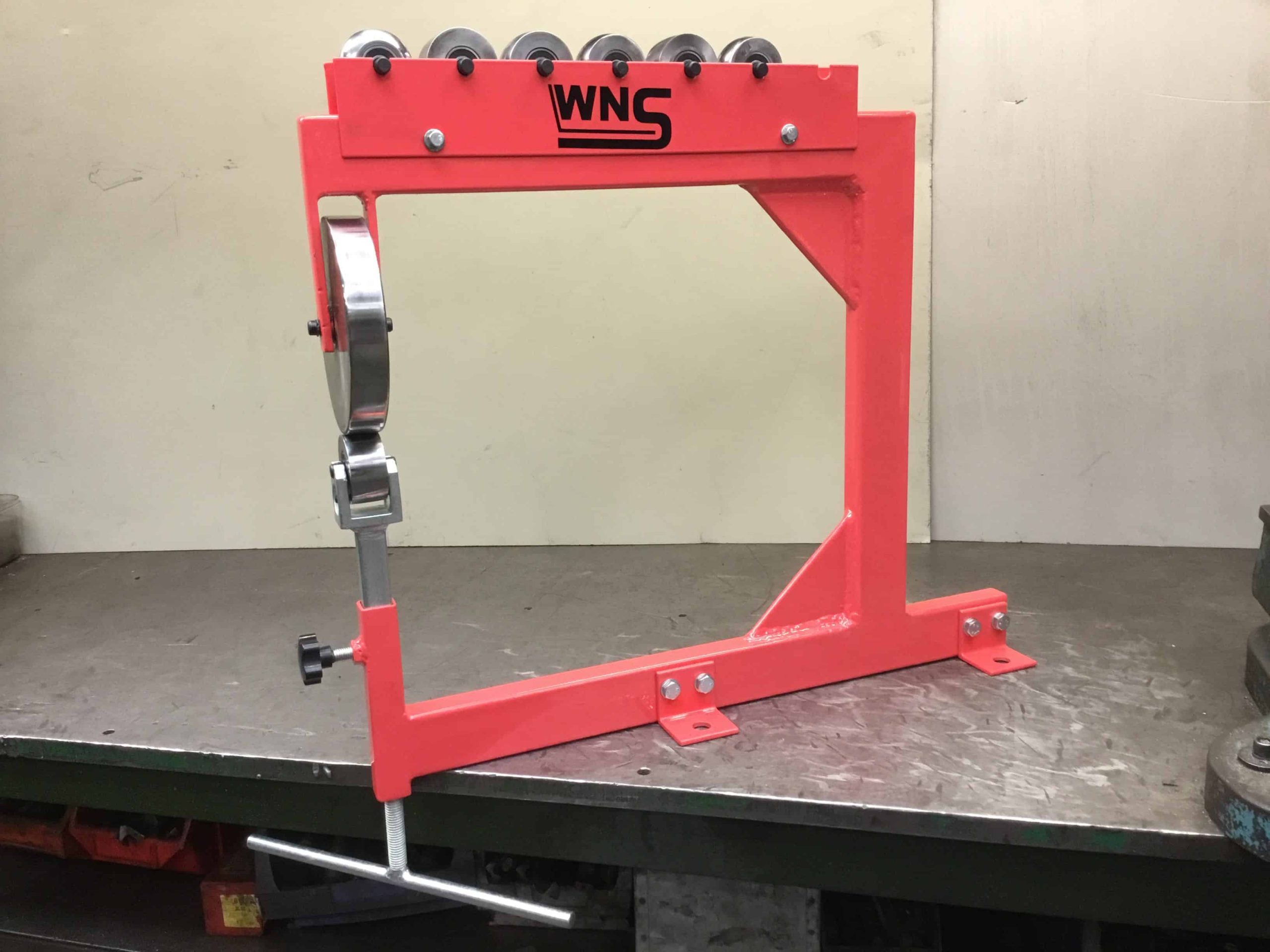

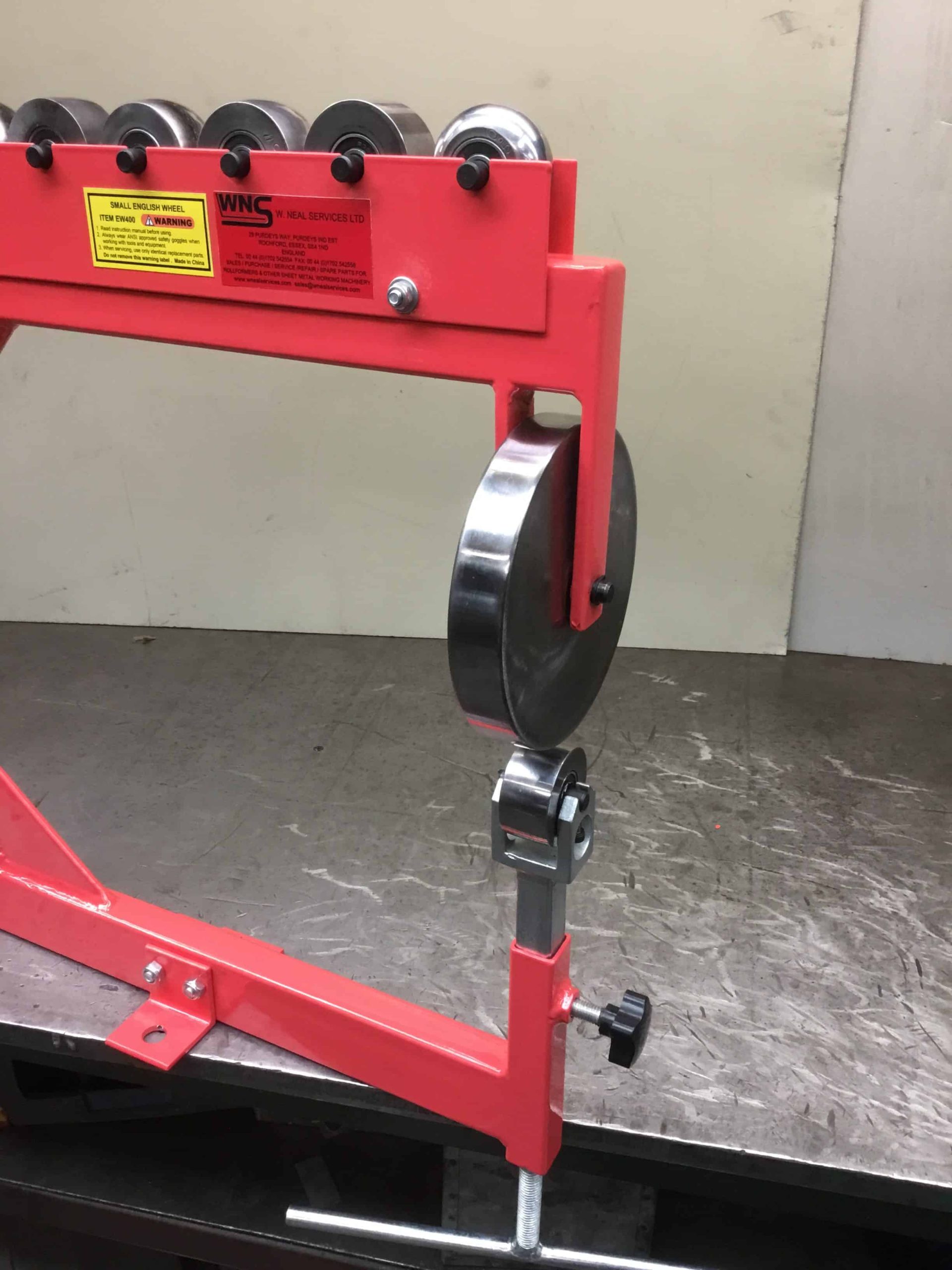

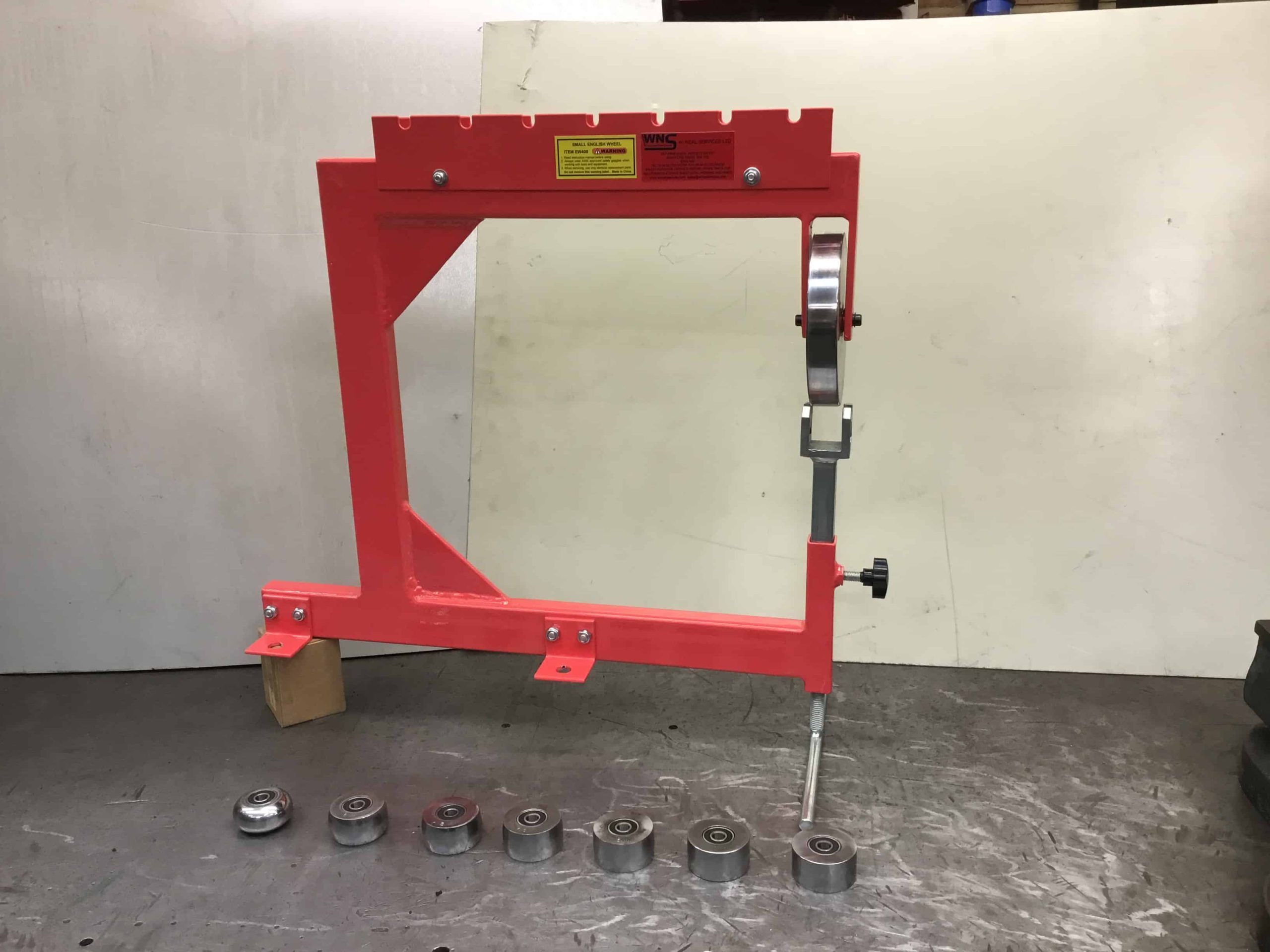

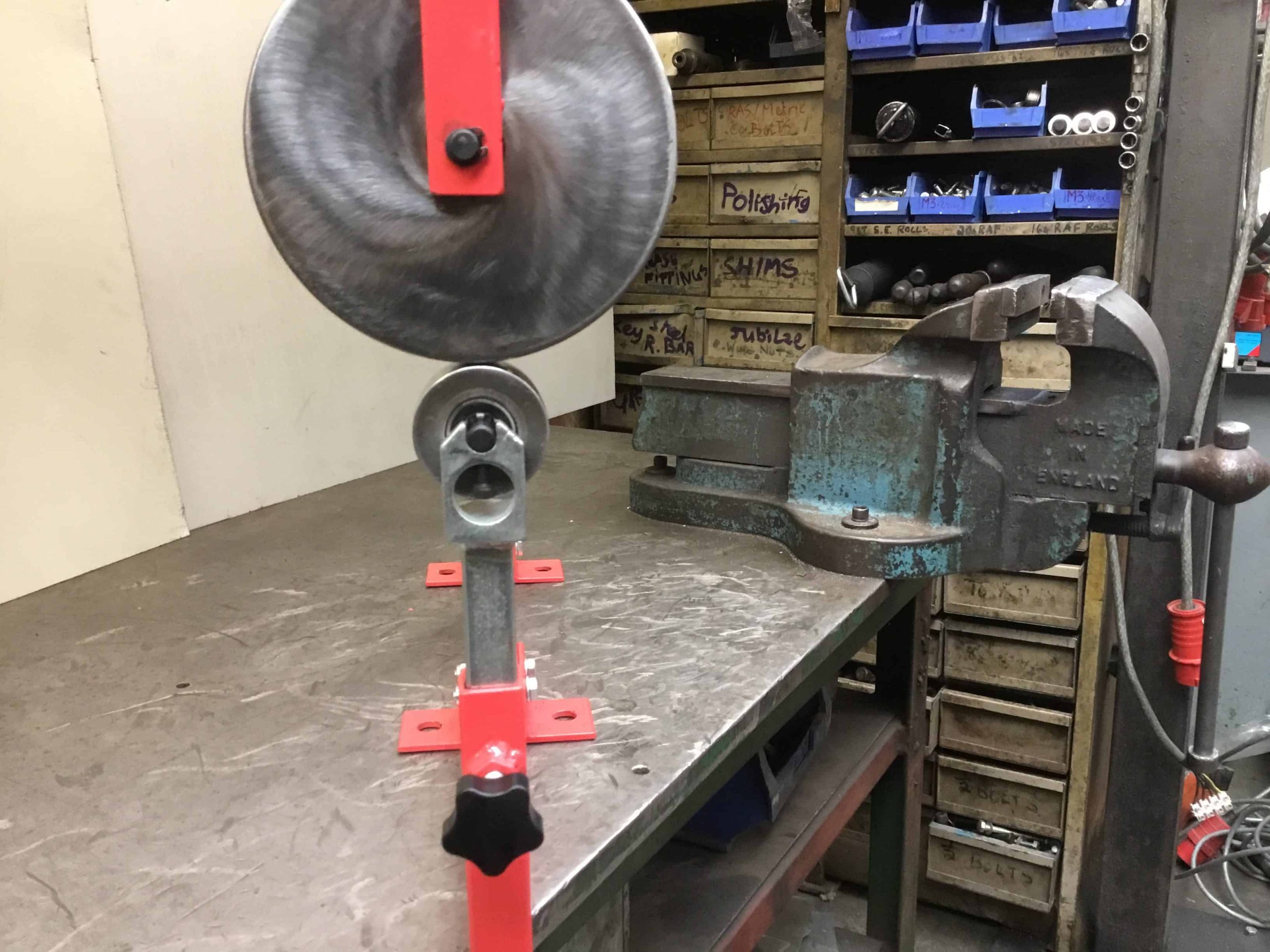

WNS ENGLISH WHEELING MACHINE (EW400) is used predominantly for the restoration of bodywork on cars, planes and motorcycles, though can be used for many other purposes. This machine has a 400mm Throat and can accommodate sheet material up to 1.5mm thick*. The EW400 comes complete with 1 Top Wheel & 7 Lower Wheels.

Additional information

Weight 15 kg
SPECIFICATIONS
Model: EW400
Throat Depth: 400mm
Maximum Thickness: 1.5mm*
Top Wheels (x 1): 25mm Wide x 150mm Diameter

Lower Wheels (x 7):




25mm Wide x 50mm Diameter



x 12.7mm Radius
x 25.4mm Radius
x 38.1mm Radius
x 63.5mm Radius
x 127mm Radius
x 228.6mm Radius
Flat
Frame: Steel
Dimensions – machine (apx): 620mm x 150mm x 640mm (l x w x h)
Dimensions – packing (apx): 620mm x 520mm x 600mm (l x w x h)
Weights – net/gross (apx): 13Kg/15Kg



All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
