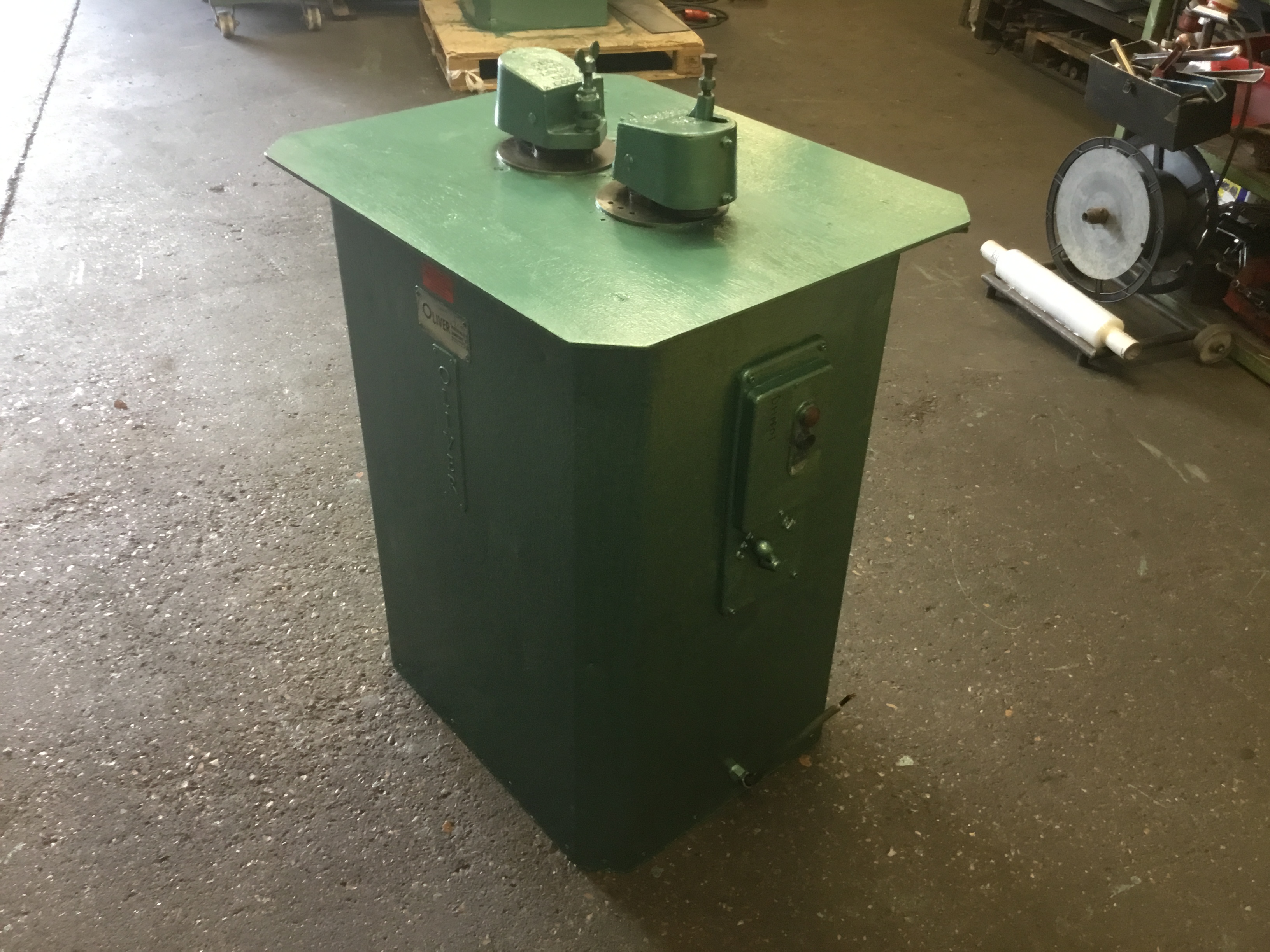

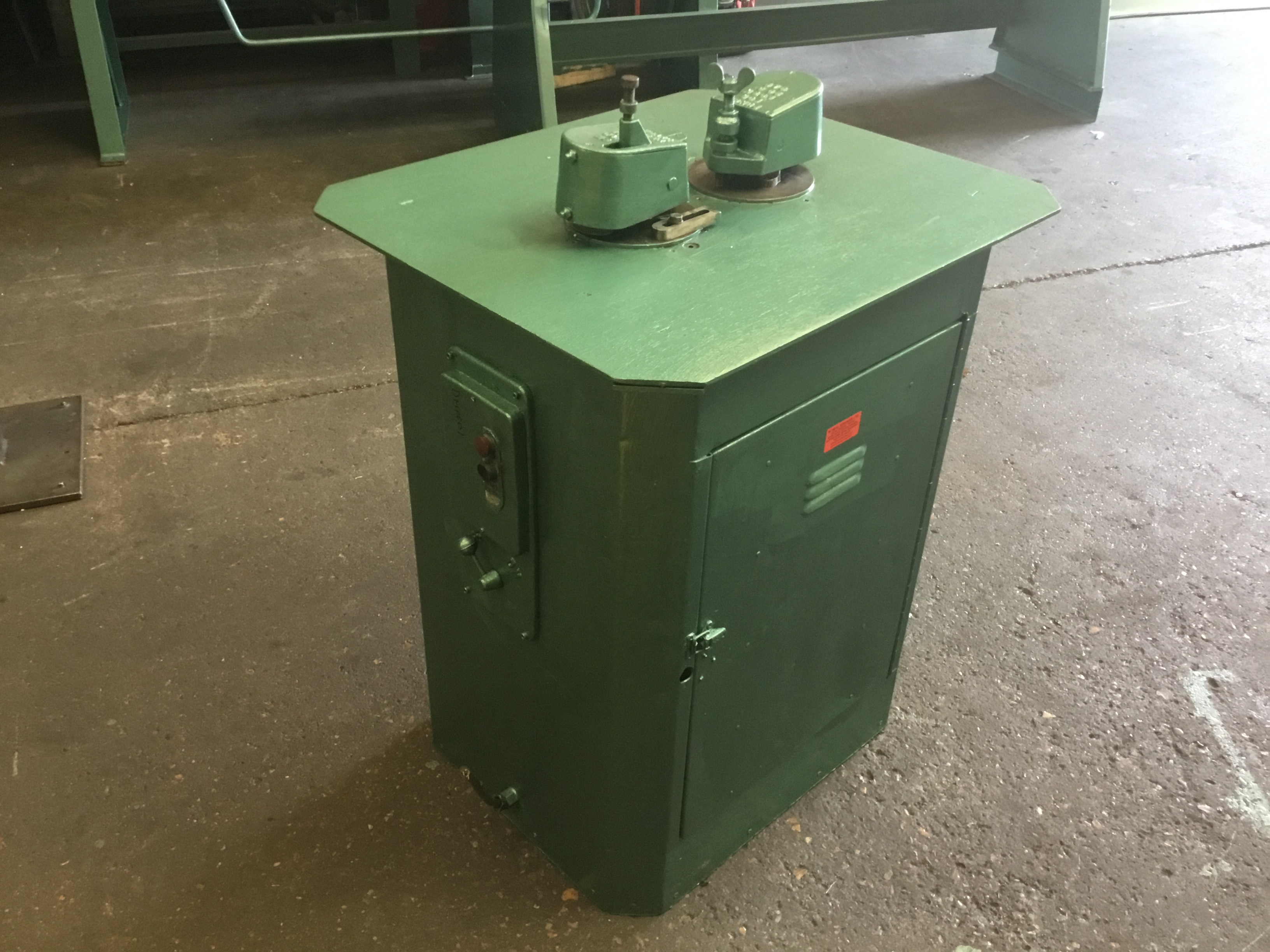

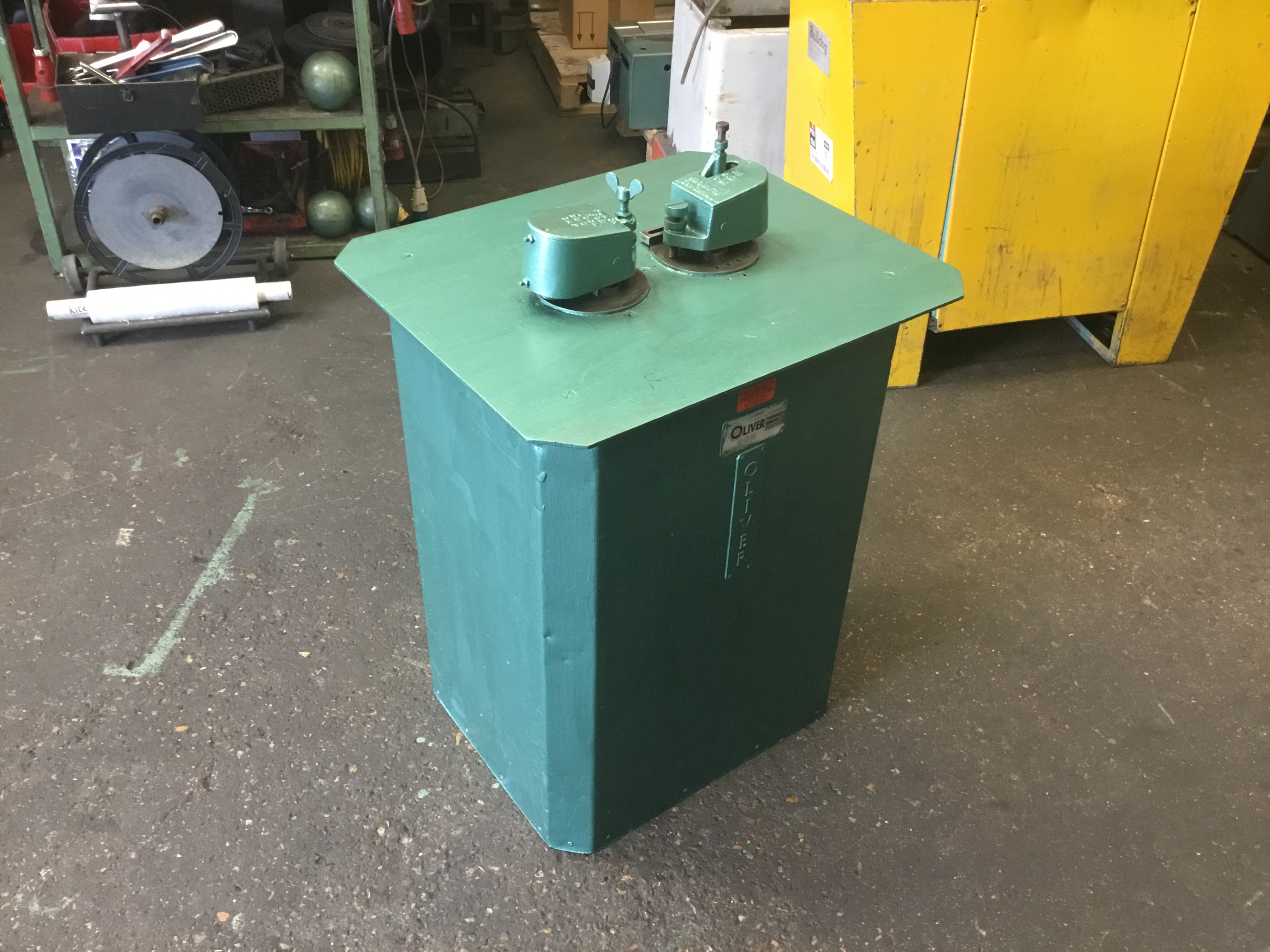

OLIVER 20SWG (1.0mm) BPSL BUTTON PUNCH SNAP LOCK DOUBLE HEADED POWER FLANGERS (DHPF01) are principally used for forming a flange on curved, straight and irregular shapes. Once the flange is formed on one head, it can be passed through the second to punch the louvers. These machines are fitted with tilting heads to enable complete circles to be formed. This snaplock machine has 415v, 3 phase electrics.
USED
This is a used machine and is in full working order.
Machine is ‘Sold as Seen’.
No returns on this item – sorry!
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our available Power Flangers, please click here.
To view all of our Used/Reconditioned machines please click here.
| SPECIFICATIONS | |
| Model: | DHPF01 |
| Maximum Thickness: | 20swg (1.0mm) Capacity Mild Steel |
| Approximate Material Used: | 6.0mm – 12mm |
| Minimum Radius: | 200mm (subject to material) |
| Flange Height: | 7.0mm – 12mm (subject to material) |
| Flanging Direction: | Right to Left |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 710mm x 600mm x 1030mm (l x w x h) |
| Weight – net (apx): | 110kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
