Manufactured by W. NEAL SERVICES LTD
  • 18swg (1.2mm) Capacity Mild Steel
  • Closes Pittsburgh Lock
  • Pneumatic Operation
  • Hammer Speed: 3500 BPM
  • 12 Month Warranty*
  • Worldwide Delivery**

Description

Manufactured by W. NEAL SERVICES LTD

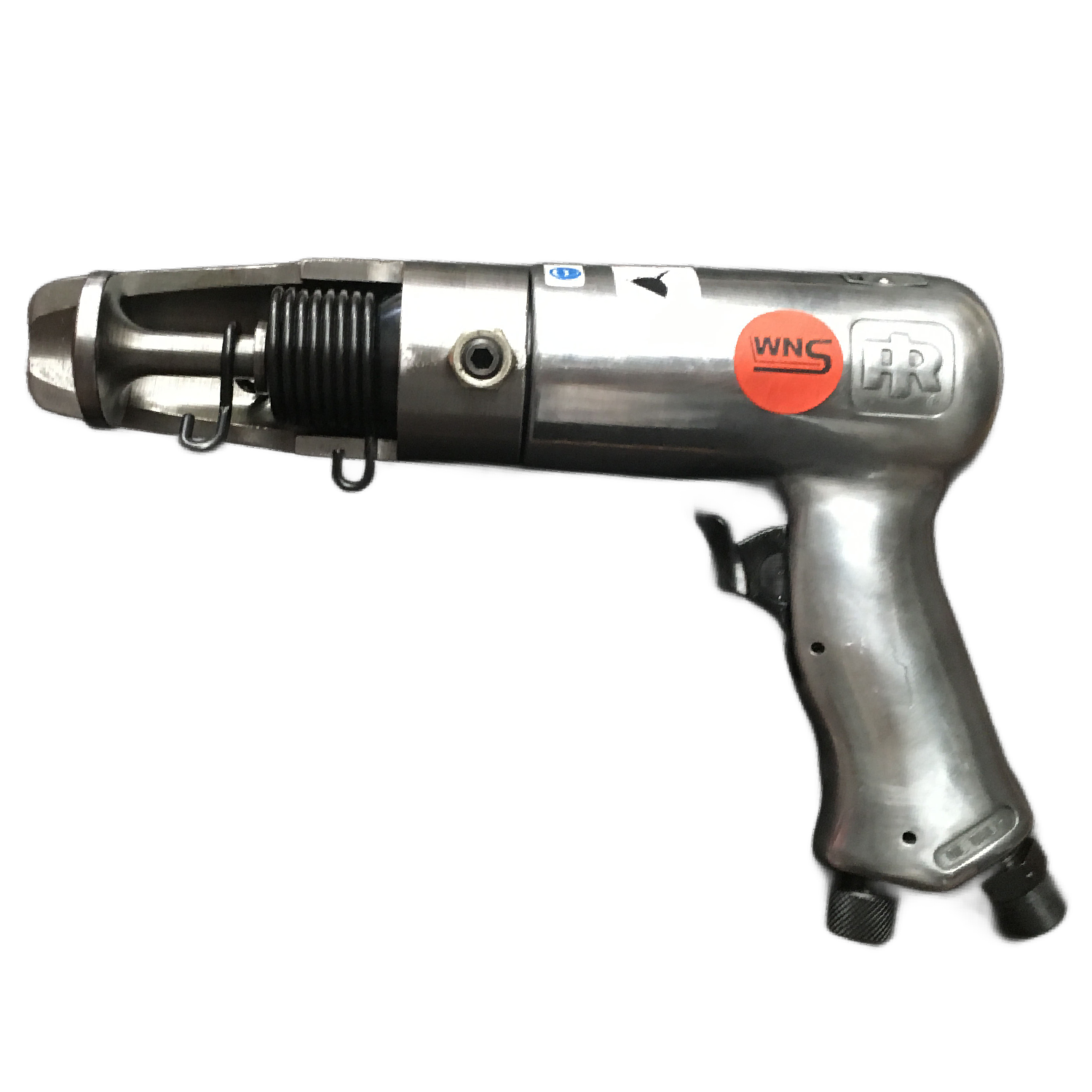

WNS/INGERSOLL RAND 18swg (1.2mm) PITTSBURGH LOCK AIR CLOSING HAMMERS (AH18) are used for closing 18swg Pittsburgh Lock and lighter material. The force and speed of the hammer blows can be regulated by the depression of the trigger. Light pressure on the trigger starts the hammer blows at a slow rate, whereas full power is reached when the trigger is fully depressed, speed can also be adjusted by the regulator on the bottom of the handle.

Please note:  Air Hammer Springs and Hammer Heads are consumable parts.  The Hammer must only be operated when in contact with material and the pressure must be adjusted in accordance to the material being used.



Additional information

Weight 5 kg



SPECIFICATIONS
Model: AH18
Maximum Thickness: 18swg (1.2mm) Capacity Mild Steel
Hammer Head: 40mm Diameter
Hammer Speed: 3500 BPM
Air Pressure: 90 PSI
Air Supply: 3.0 CFM
Air Inlet: 1/4” NPT
Hose: 3/8” Diameter
Sound Pressure: 104.6dBA
Sound Power: 117.4dBA
Vibration: 4.8 m/s2
Dimensions – machine (apx): 250mm x 170mm x 50mm (l x w x h)
Dimensions – packing (apx): 370mm x 270mm x 500mm (l x w x h)
Weight (apx): 2.5Kg

MAINTENANCE/LUBRICATION:
IMPORTANT – FAILURE TO FOLLOW THE BELOW WILL INVALIDATE ANY WARRANTY ON THIS PRODUCT.

The air supply in this machine must be oiled regularly to ensure the valve and piston remains suitably lubricated.

To maintain optimal use of the machine the air supply must remain free from moisture; therefore the use of an inline filter/oiler is recommended. If an inline oiler is not being used, it is essential that the user removes the airline daily/on each day of use and adds 1 to 2 drops of oil. Failure to do so may result in operational issues and will void any warranty.

A build up of moisture and lack of lubrication in the hammer and air supply may result in intermittent hammering and the internal valve to malfunction.

*please see Terms & Conditions. **fees apply.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
