WNS Power Swager 215mm – Ex Demo

WNS Power Swager 215mm – Ex Demo

WNS Power Swager 215mm – Ex Demo

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

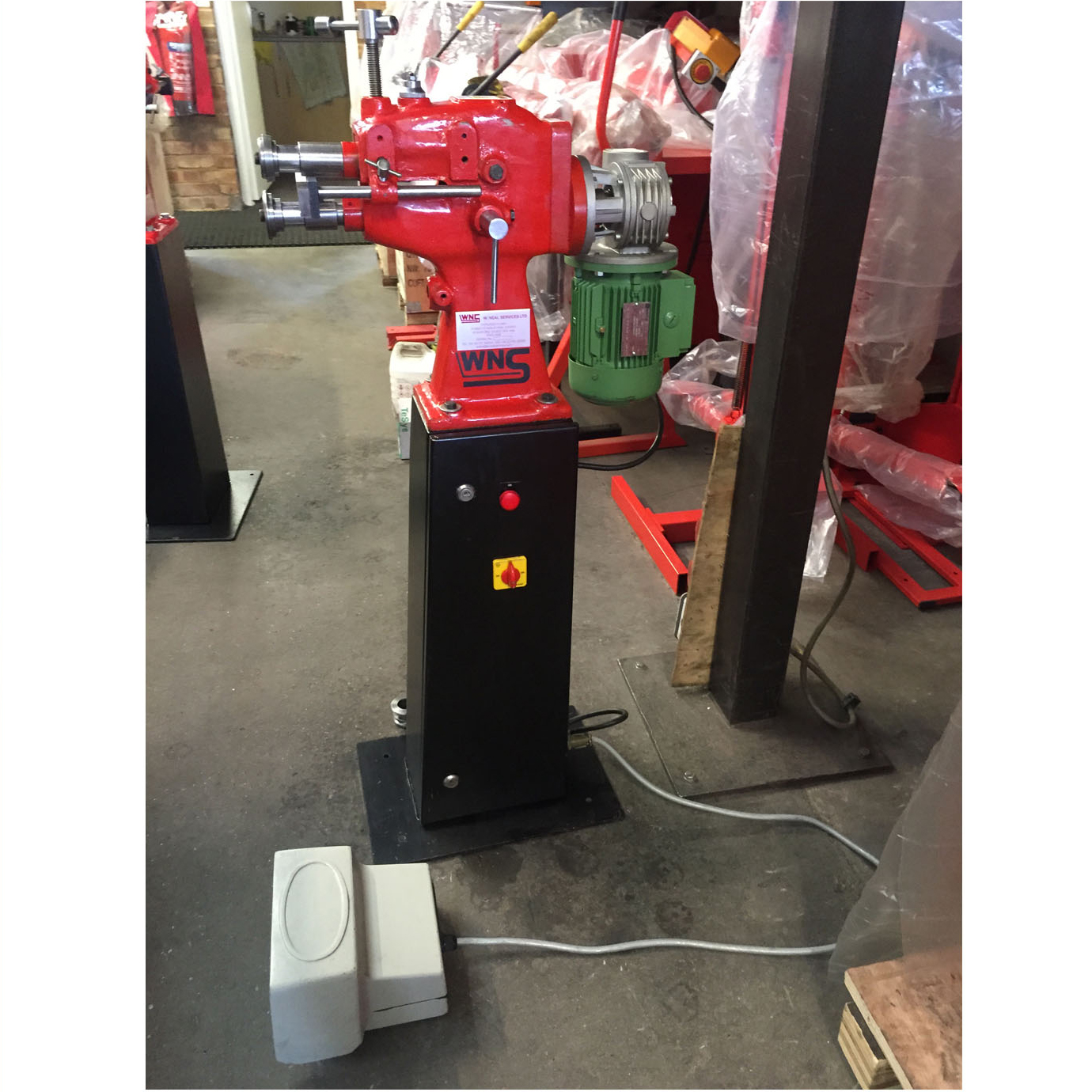

WNS Power Swager 215mm – Ex Demo

Manufactured by W. NEAL SERVICES LTD
  • Ex Demo
  • 215mm Throat
  • 1.2mm Capacity Mild Steel
  • c/w 6 Sets of Rolls
  • Rolls Compatible with CMZ 5, CMZ 5R, CMZ 6 & CMZ 6R
  • Forward & Reverse Foot Pedal
  • Single Speed
  • 240v, Single Phase
  • Quality Design & Build
  • 12 Month Warranty*
  • Manual Models Available
  • Additional Rolls Available

Description

Manufactured by W. NEAL SERVICES LTD

Ex Demo
WNS POWER SWAGERS (PS215sp) are principally used for swaging, beading, wiring, crimping, and forming of sheet metal. The Power Swager has a 215mm throat and can accommodate mild steel sheet up to 1.2mm thick. This machine comes complete with 6 sets of rolls & a forward and reverse foot pedal.

Rolls compatible with CMZ5, CMZ5R, CMZ6 & CMZ6R Swagers.

Alternative rolls for CMZ7, CMZ7R, CMZ9 & CMZ9R Swagers also available.

Also available in 415v 3 Phase, Single or Variable Speed or 240v Variable Speed



Additional information

Weight 1000 kg
Voltage

415v, 3 Phase, 240v, Single Phase

Speed

Single Speed, Variable Speed

SPECIFICATIONS – 240V, SINGLE PHASE – SINGLE SPEED
Model: PS215sp
Throat: 215mm
Maximum Thickness: 1.2mm Mild Steel – Subject to Rolls
Outside Roll Diameter (apx): 50mm/55mm
Inside Roll Diameter (apx): 20mm
Direction: Forward & Reverse Foot Pedal
Speed – Single: 35 rpm
Motor Power: 0.375kW
Supply Voltage: 240v, Single Phase
Dimensions – machine (apx): 600mm x 310mm x 1200mm (l x w x h)
Dimensions – packing (apx): 800mm x 400mm x 1400mm (l  x w x h)
Weights – net/gross (apx): 100Kg/120Kg



.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
