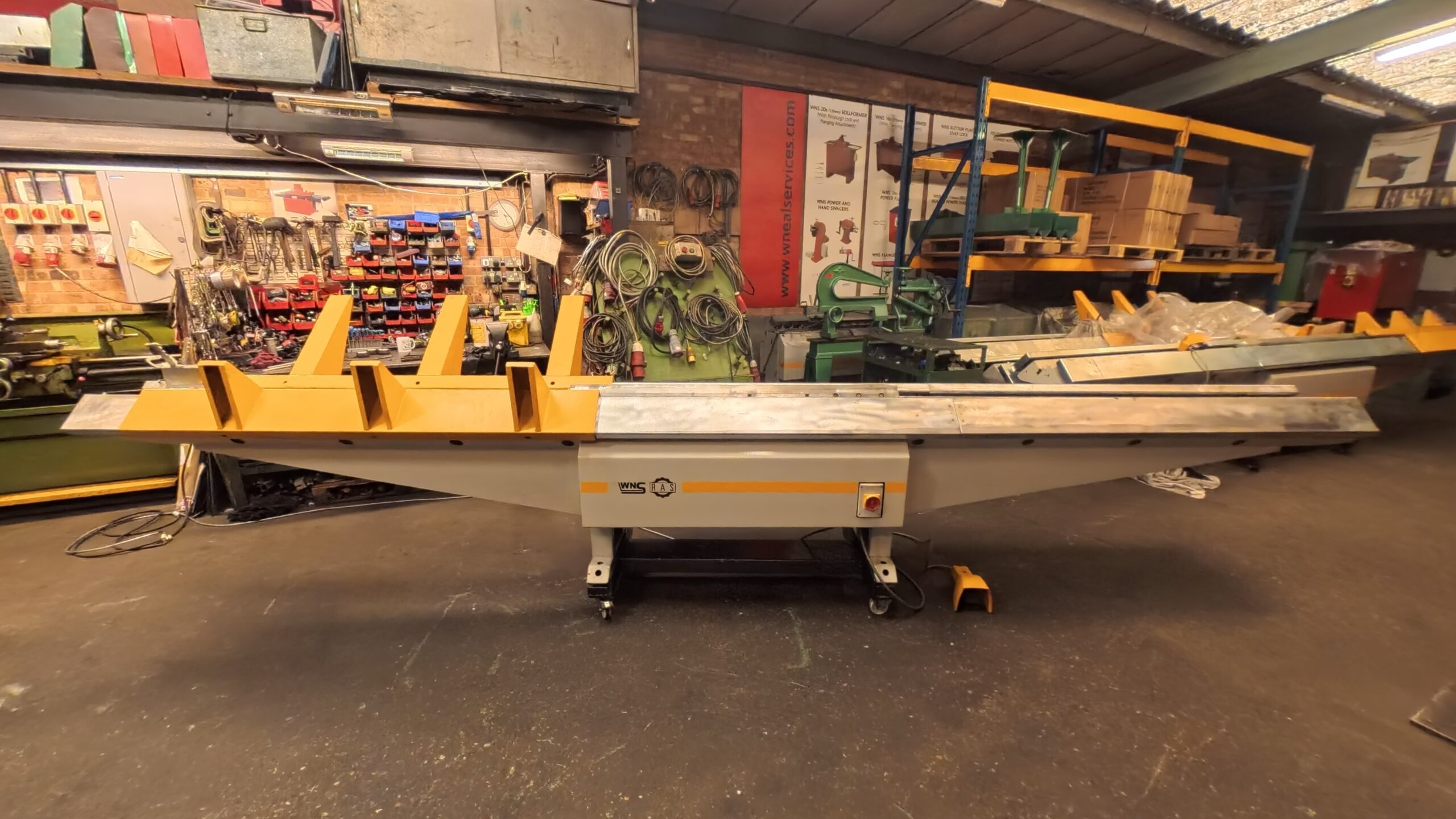

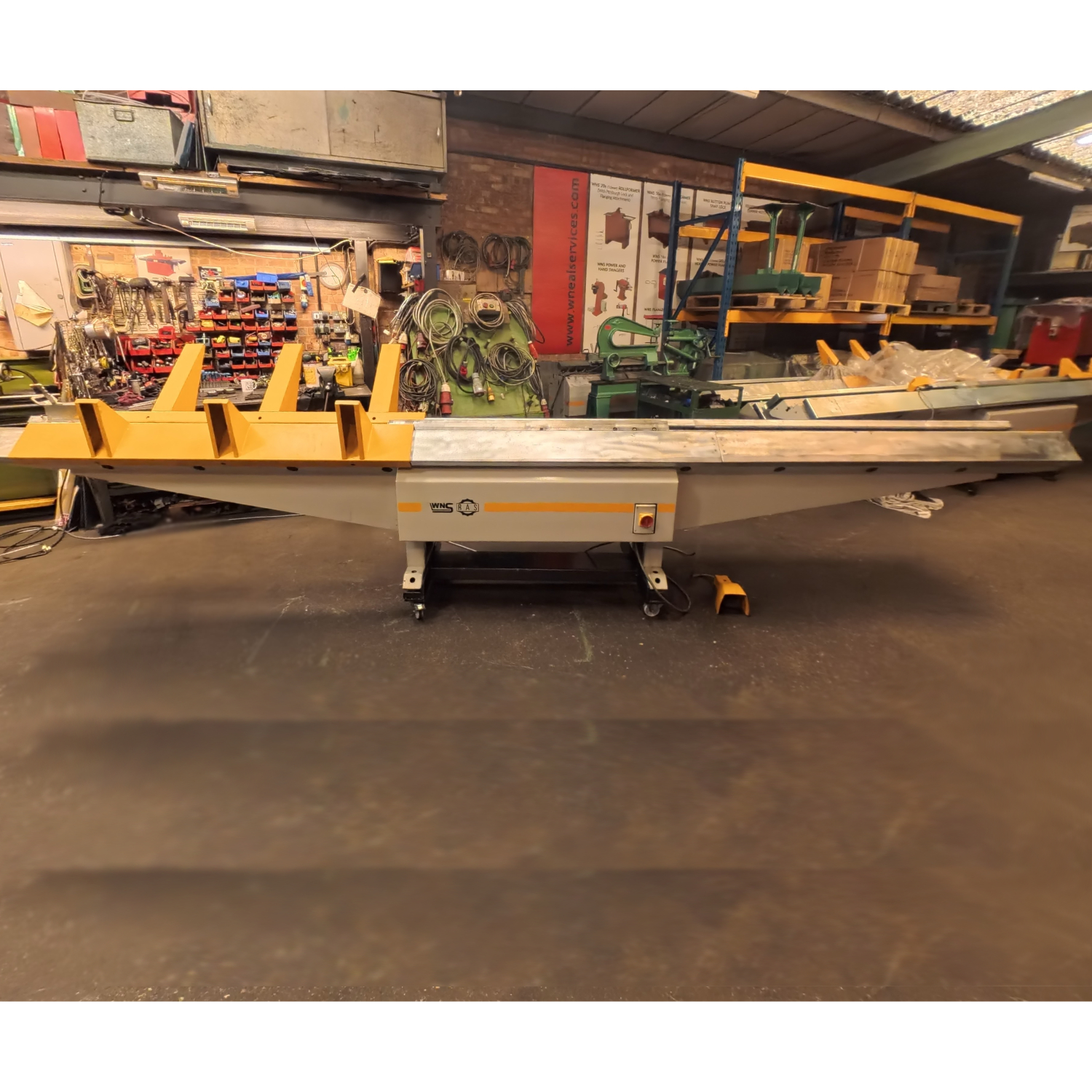

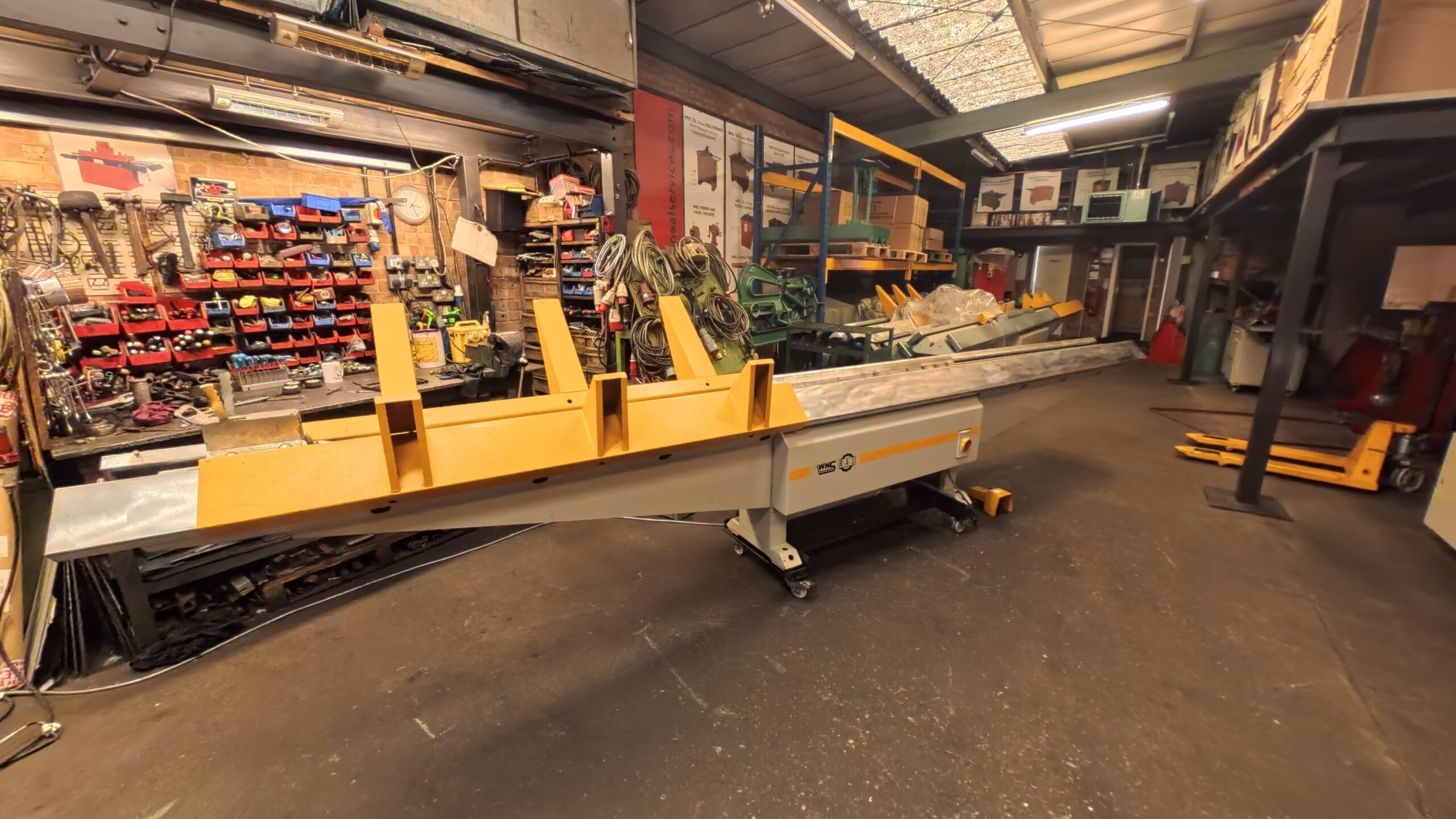

RAS DUCTZIPPERS V-FORM 20.10 (REF: 074) produce longitudinal seams along the edges of square or rectangular cross-section ducts. These duct seaming machines have 15 roller shafts equipped with seaming rollers and 9 further intermediate rollers located in an overhead seaming bar. The RAS 20.10 is a very simple and reliable machine that can be easily operated by one person. This machine has 415v, 3 phase electrics.
USED/RECONDITIONED
This is a used/reconditioned machine in working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our RAS ductzippers & ductseamers, please click here.
To view all of our used/reconditioned machines please click here.
| SPECIFICATIONS | |
| Model: | REF: 074 |
| Maximum Thickness: | 20swg (1.0mm) Capacity Mild Steel |
| Minimum Duct Dimensions: | 100mm x 100mm |
| Speed: | 15 m/min |
| Support Height: | Up to 700mm |
| Working Height: | 800mm |
| Machine Length: | 5750mm |
| Machine Width (w/arms): | 1000mm |
| Supply Voltage: | 415v, 3 Phase Electrics, 3.0kW, 50/60hz, 7Amps |
| Weight (apx): | 700Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
