WNS 16swg & 20swg Opening Roll Splitter Wheel

Lock Formers / Rollformers


Description

W. NEAL SERVICES LTD – Manufacturing Rollforming Machinery for over 30 years.

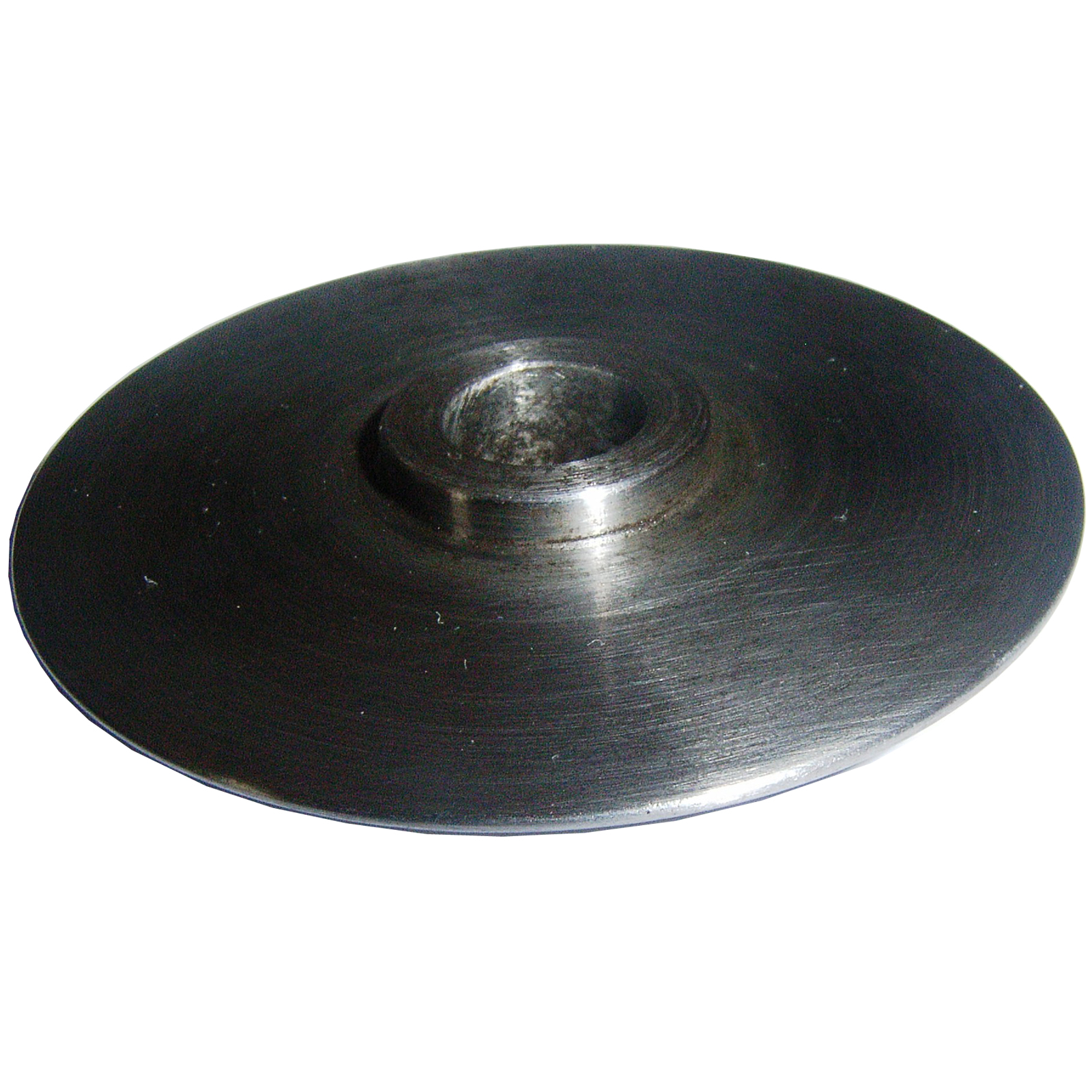

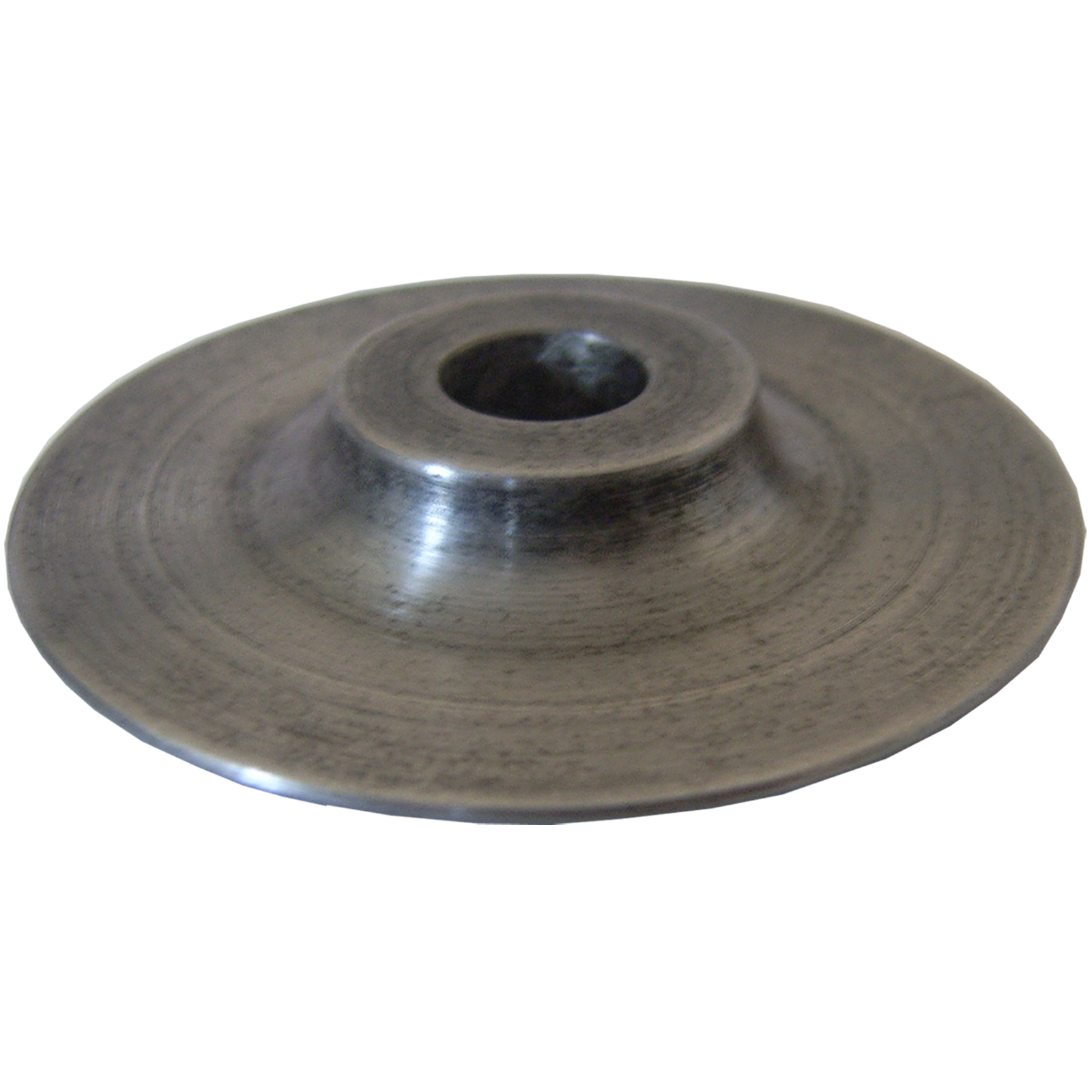

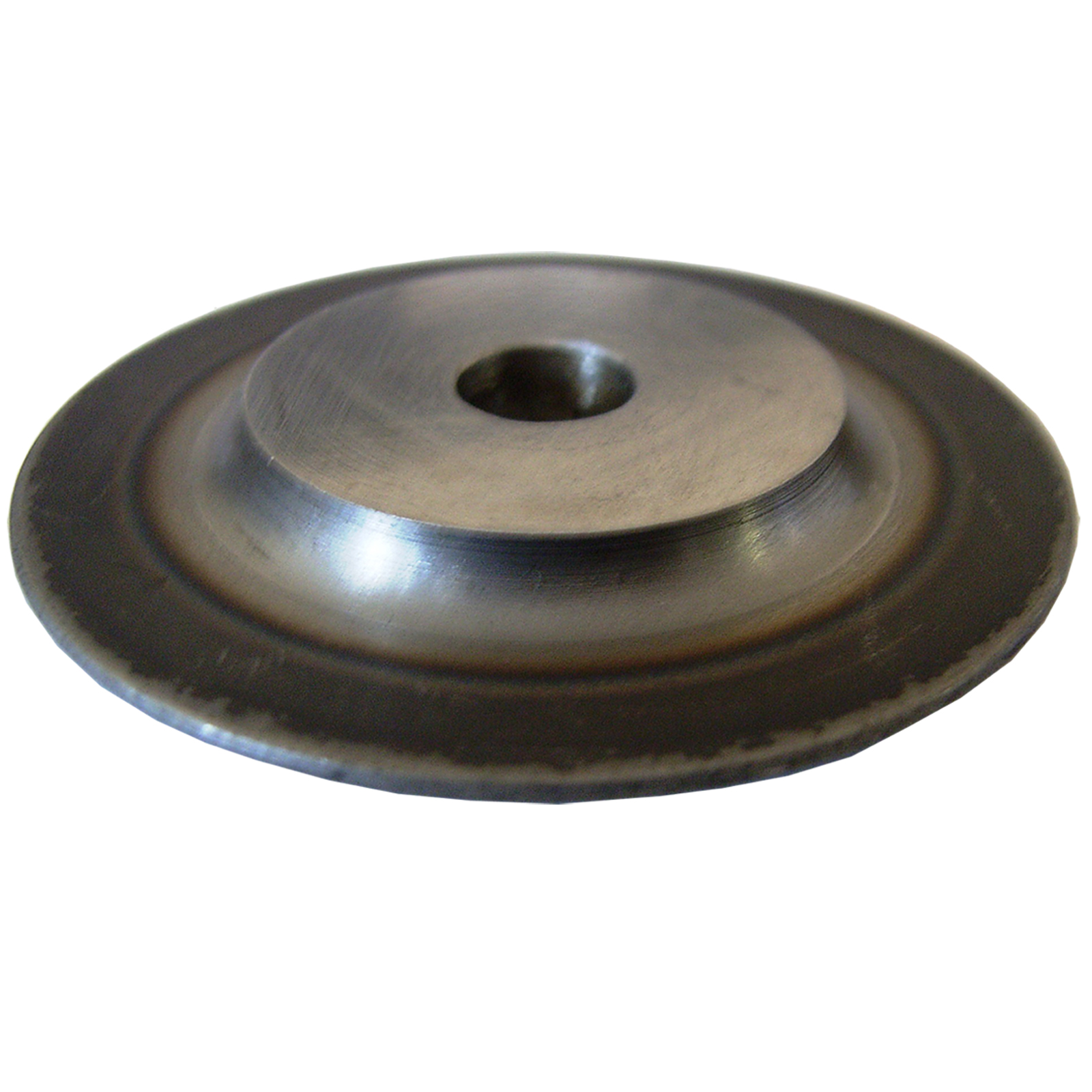

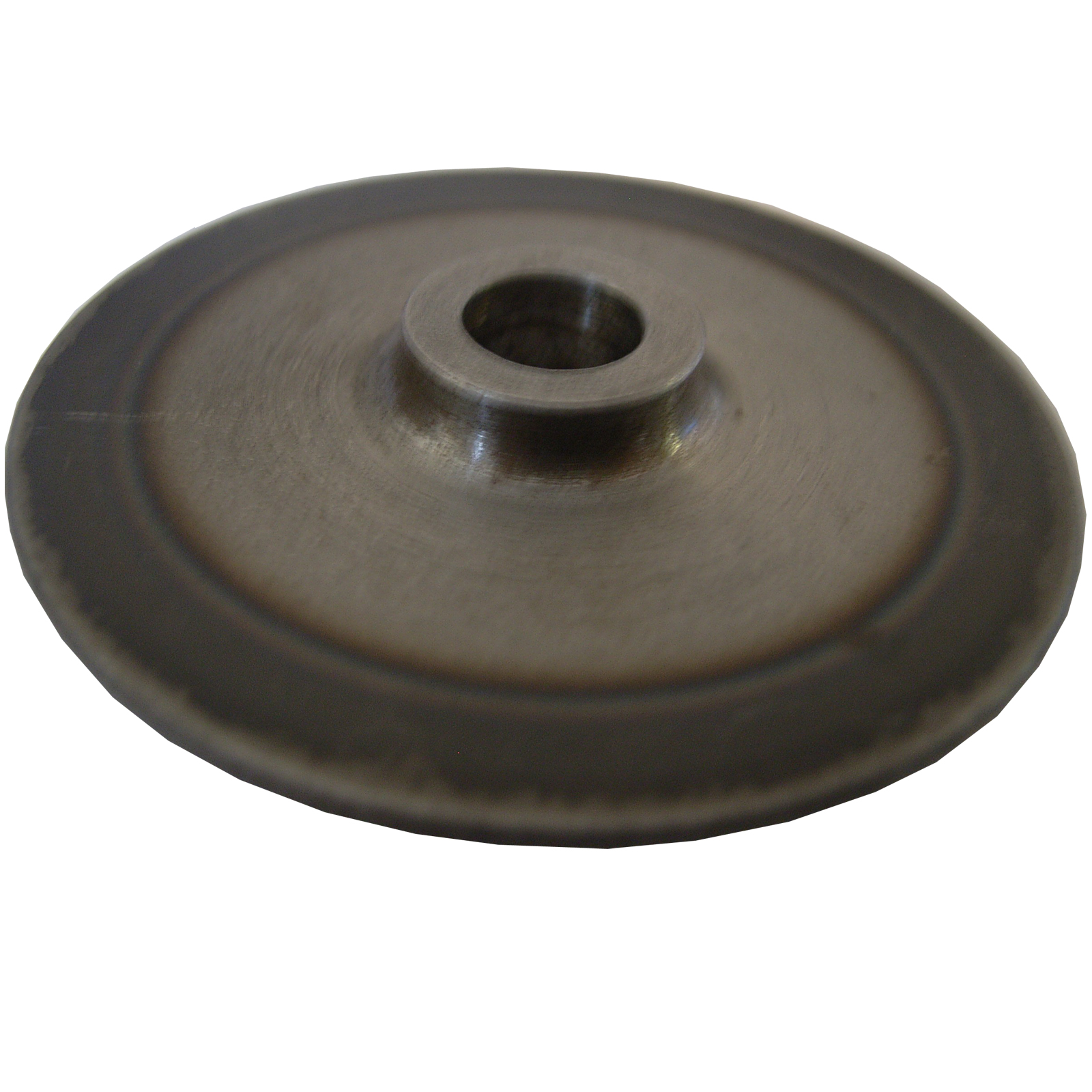

WNS OPENING ROLLS* keep the Pittsburgh Lock form open to accept the right angle flange. Our rolls are made of quality steel and are heat treated/hardened for longer life. The rolls will fit most brands of 7 station, 16swg (1.6mm) or 5 station, 20swg (1.0mm) Pittsburgh Lock Rollformers / Lockformers; including Lockformer, Oliver, Shorte, SMC, E & E, Emitec, etc. Please check the size of your roll PRIOR to purchase.

Should you have an alternative make of Rollformer / Lockformer, please contact us as your Opening Roll may need to be made to order.

Please note:
*The price shown is for ONE Opening Roll.
Opening Rolls are consumable parts.


View Literature



Additional information

Weight 1 kg
Dimensions 07 x 05 x 04 cm
SPECIFICATIONS
Model: OR16
Roll Diameter (Outside): 2¼”
Bore/Internal Diameter: ⅜”
Dimensions – part (apx): 55mm x 10mm x 55mm (l x w x h)
Dimensions – packing (apx): 70mm x 50mm x 40mm (l x w x h)
Weight – net/gross (apx): 42g/45g
SPECIFICATIONS
Model: OR20
Roll Diameter (Outside): 2″
Bore/Internal Diameter: ⅜”
Dimensions – part (apx): 60mm x 15mm x 40mm (l x w x h)
Dimensions – packing (apx): 70mm x 50mm x 40mm (l x w x h)
Weights – net/gross (apx): 42g/45g

All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. *For warranty terms please see our full Terms & Conditions. E&OE.

1 review for WNS 16swg & 20swg Opening Roll Splitter Wheel

  1. Rated 5 out of 5

    Gary

    Hi Marisa,

    Thank you very much for the confirmation etc, very efficient again.

    cheers,

    Gary

Add a review

Your email address will not be published. Required fields are marked *

SKU: OR16/20

WNS 16swg & 20swg Opening Roll Splitter Wheel

Clear

12 Month Warranty

Manufactured by W. NEAL SERVICES LTD for over 30 years.

  • Hardened Quality Steel
  • 16swg (1.6mm) Capacity
  • Outside Diameter 2¼”
  • Bore/Internal Diameter ⅜”
  • 20swg (1.0mm) Capacity
  • Outside Diameter 2”
  • Bore/Internal Diameter ⅜”
