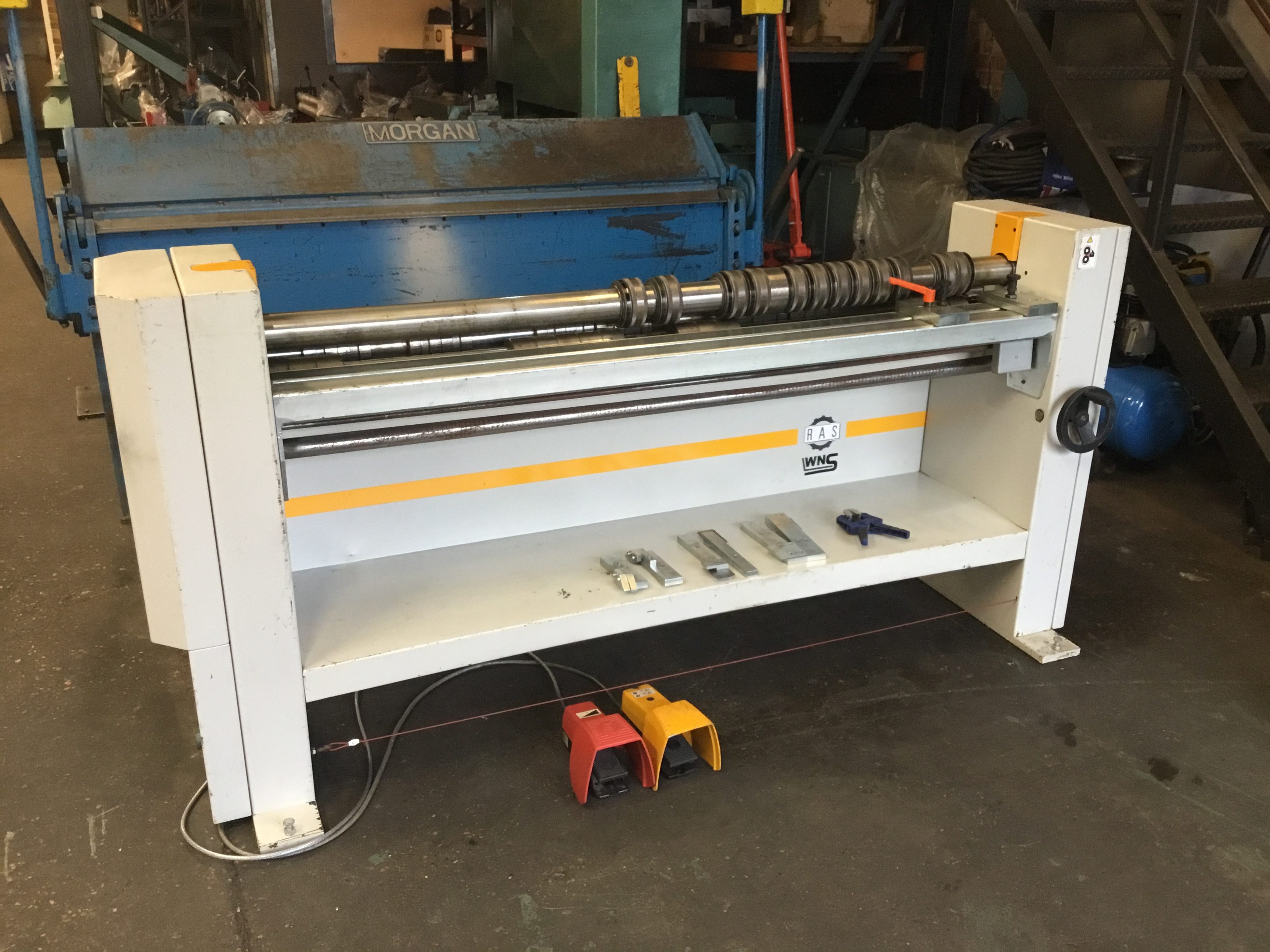

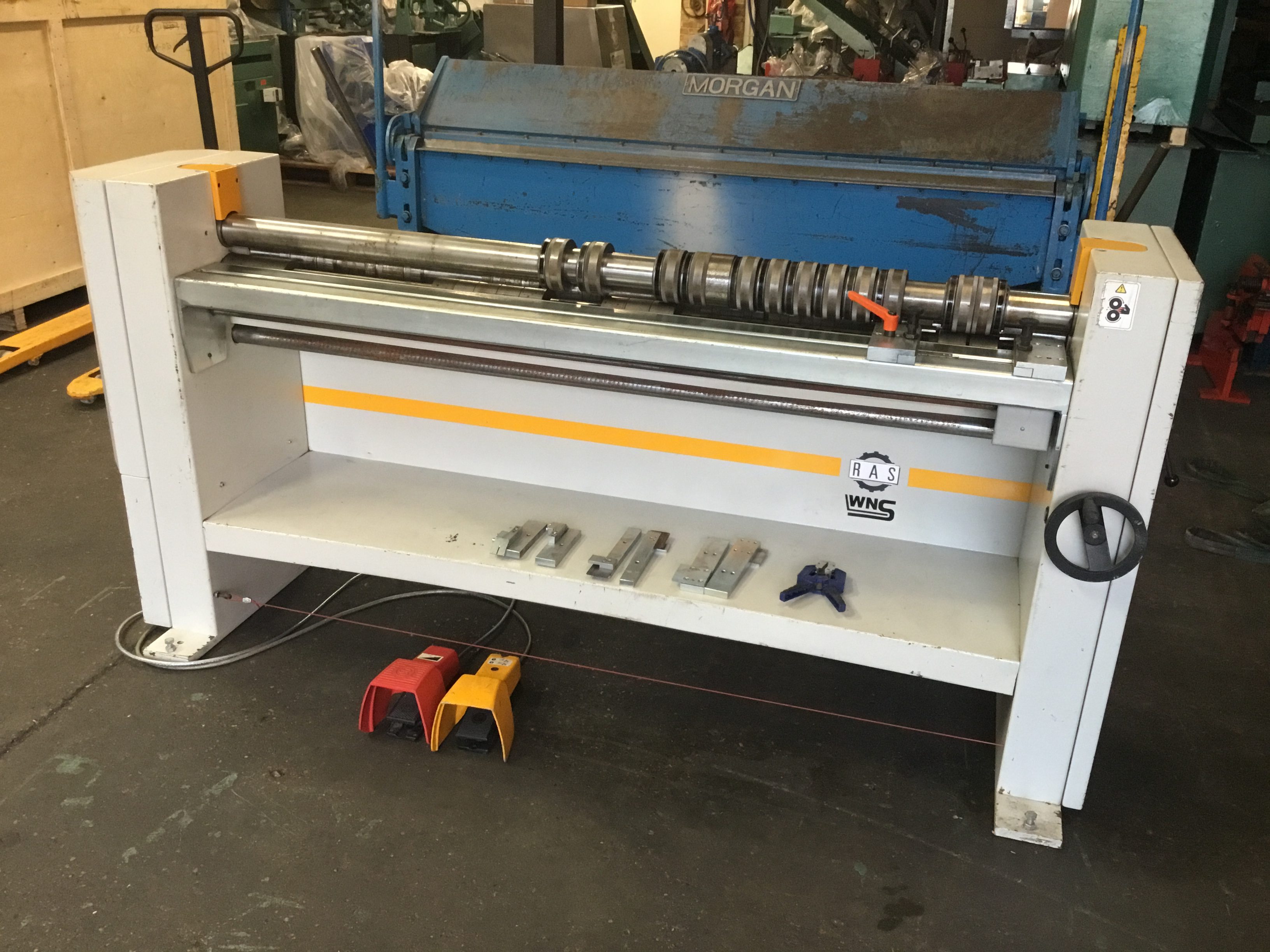

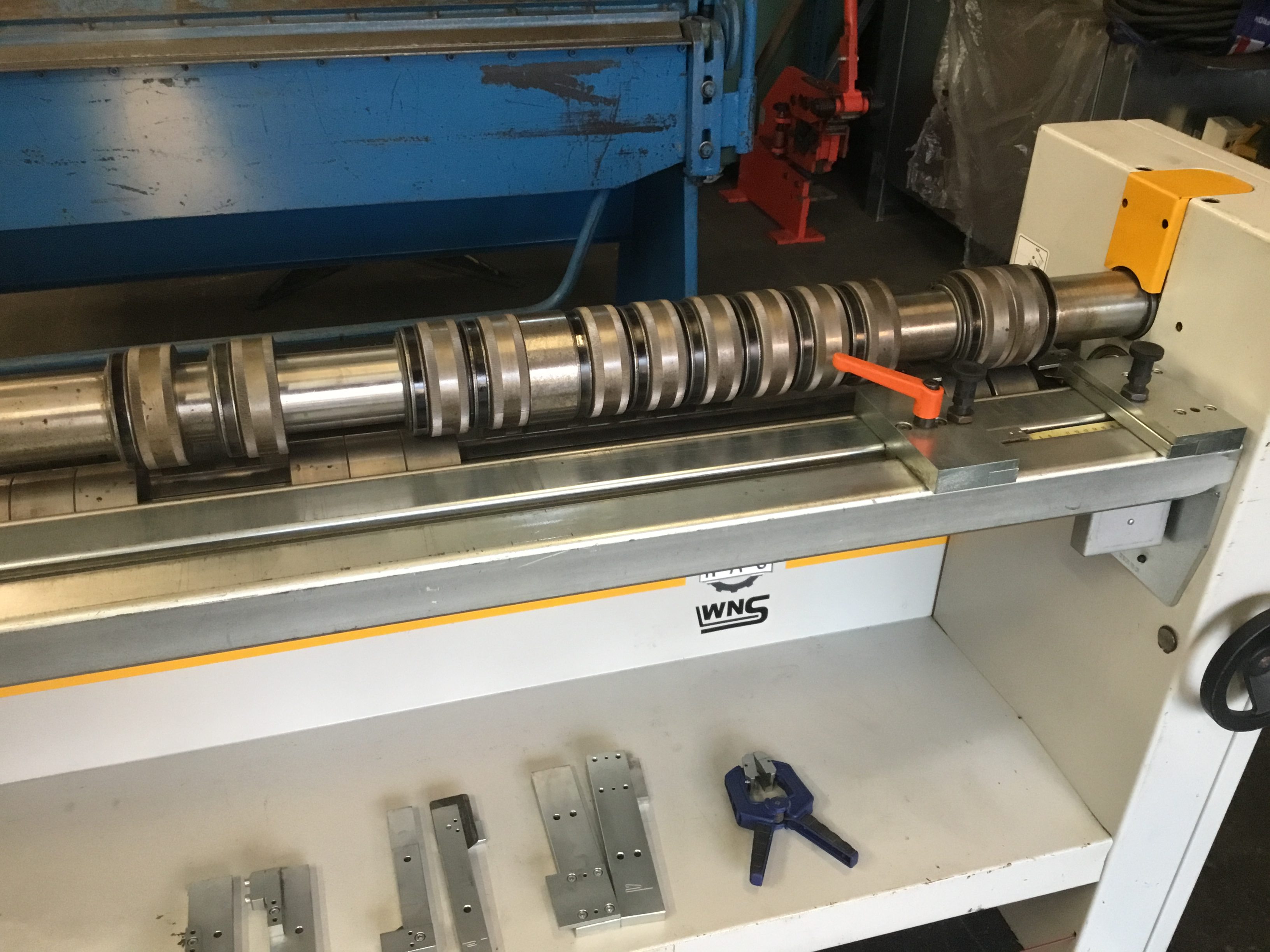

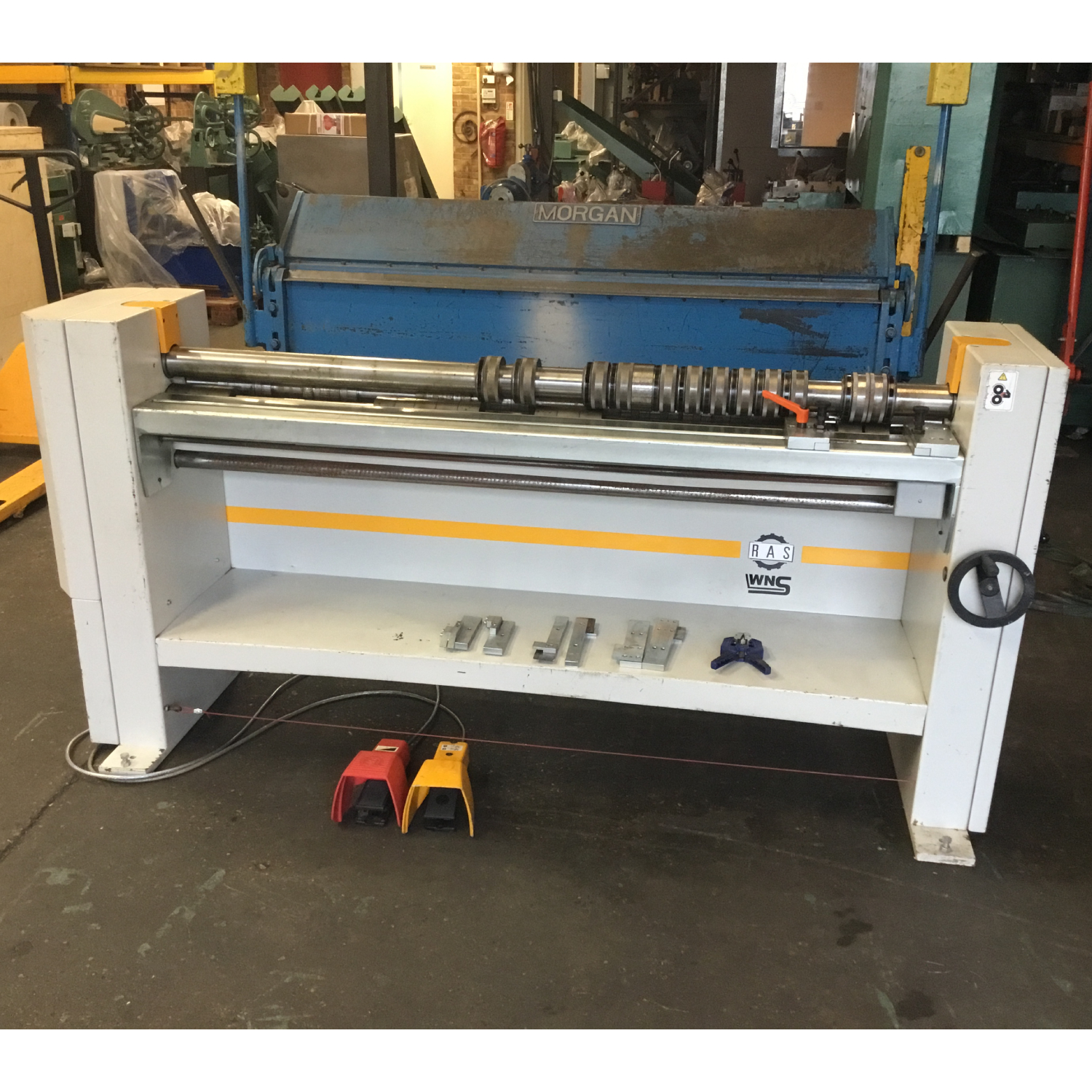

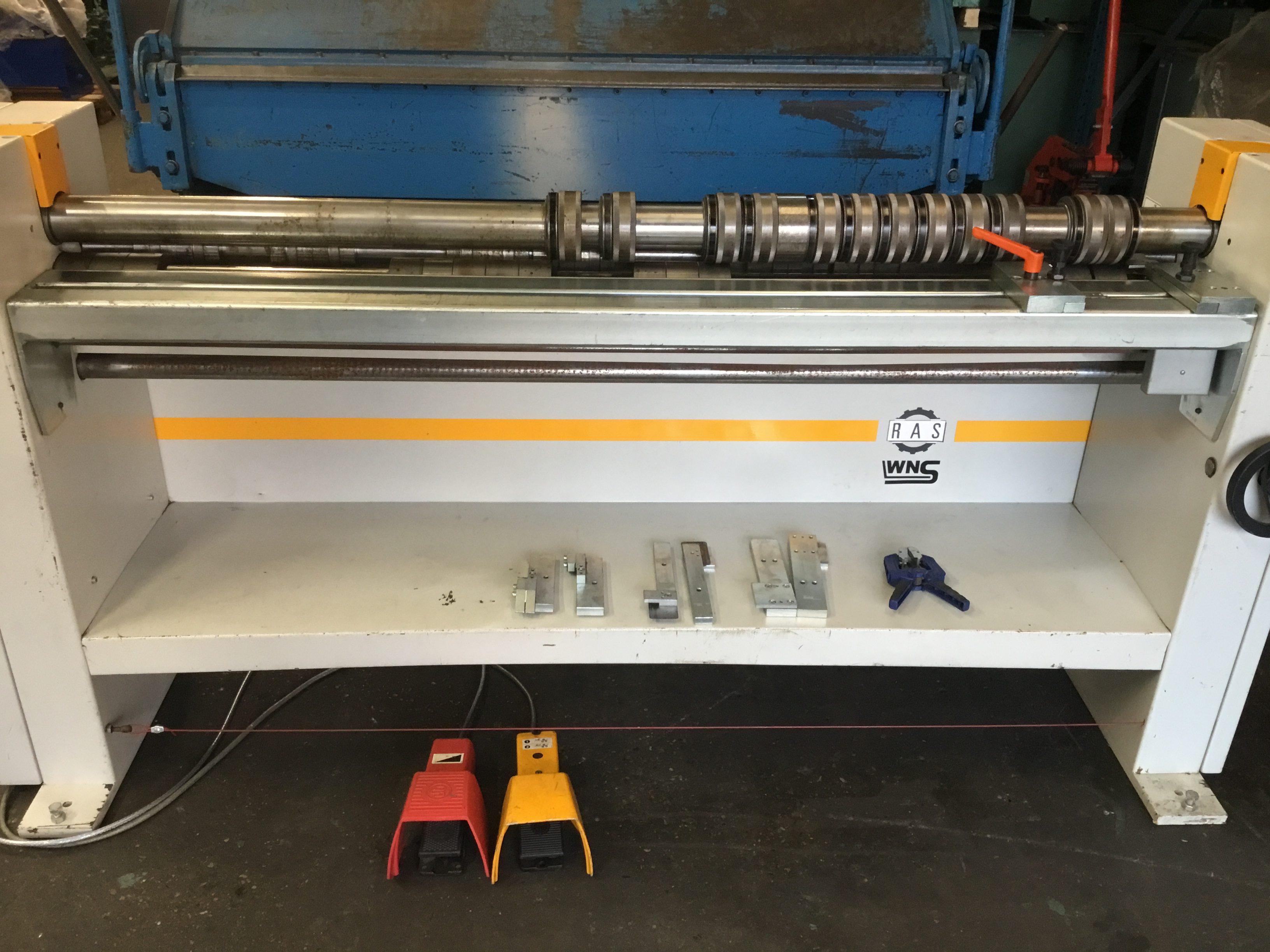

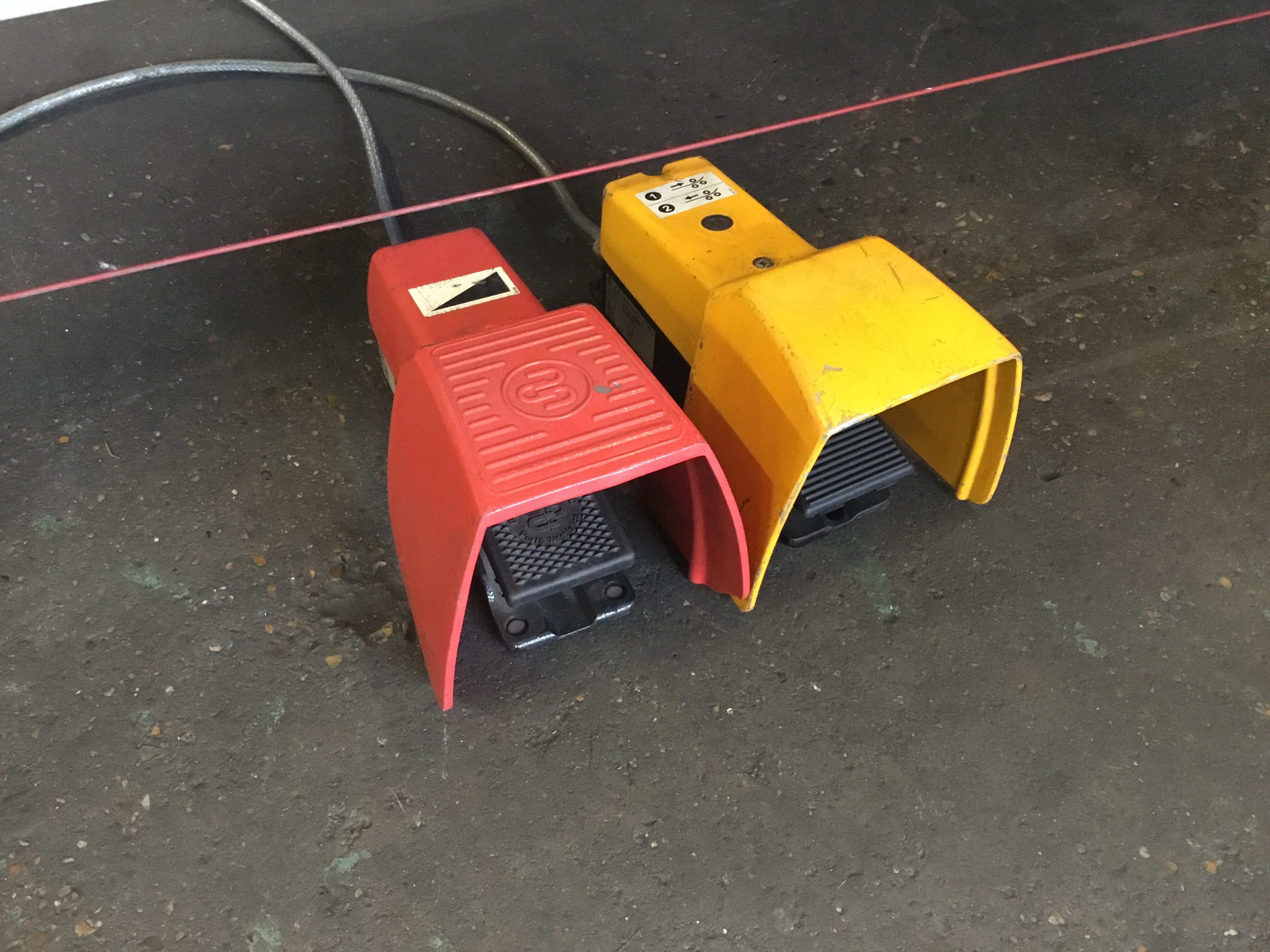

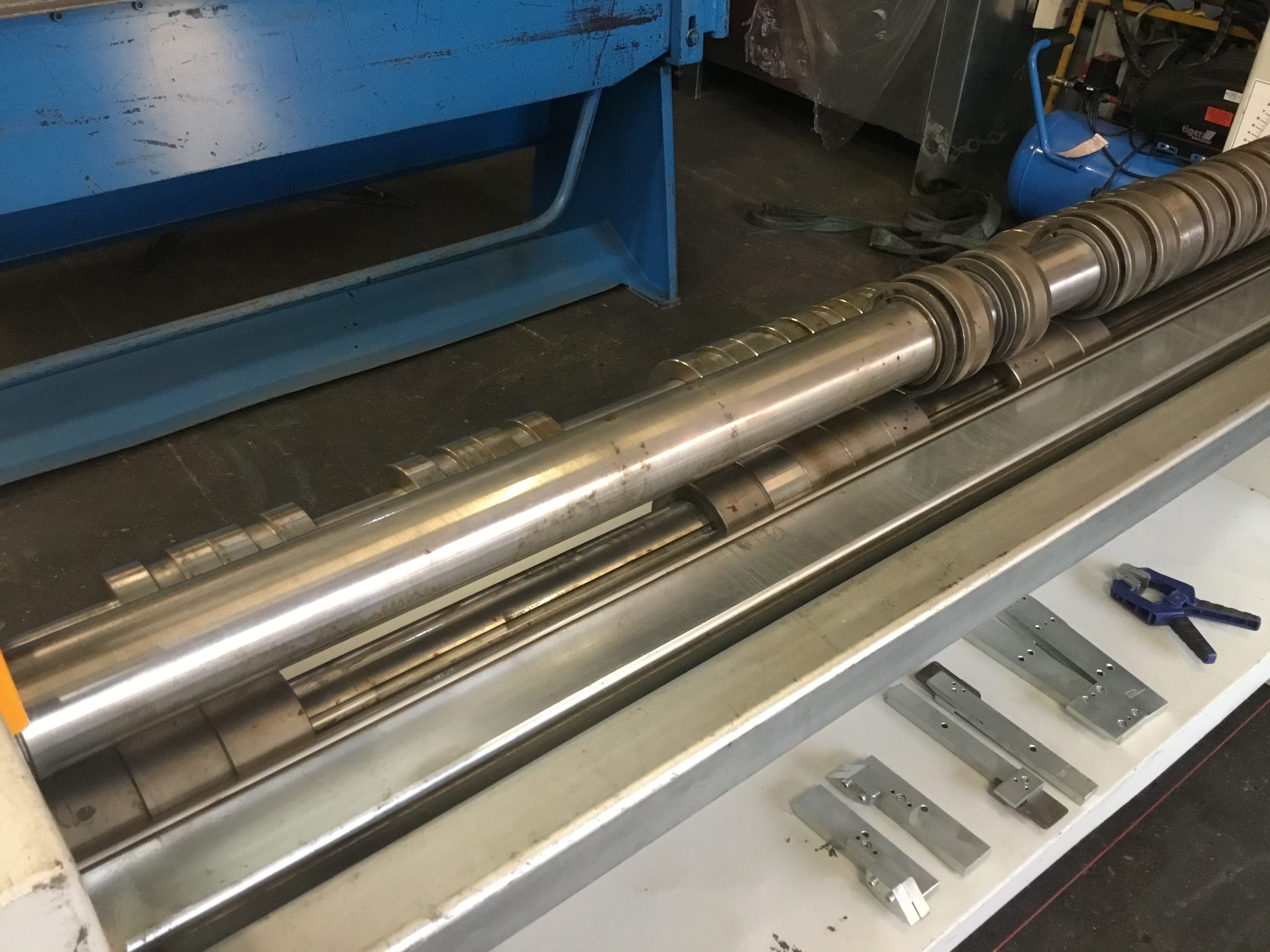

RAS VENTIRounder 40.91 (RVR01) is principally used for rounding the cheeks of air-duct elbows that have pre-formed seams of Snaplock, Pittsburgh or standing seams. The forming rolls are segmented and slidable, which means they can round the duct without crushing or damaging the seams. These rolls have a maximum working length of 1500mm and a minimum working length of 120mm and can accommodate mild steel sheets up to 1.2mm thick. This machine also has dual foot pedal control; 1 pedal to control the speed and the other to control direction change.
USED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our available bending rolls, please click here.
To view all of our Used/Reconditioned machines please click here.

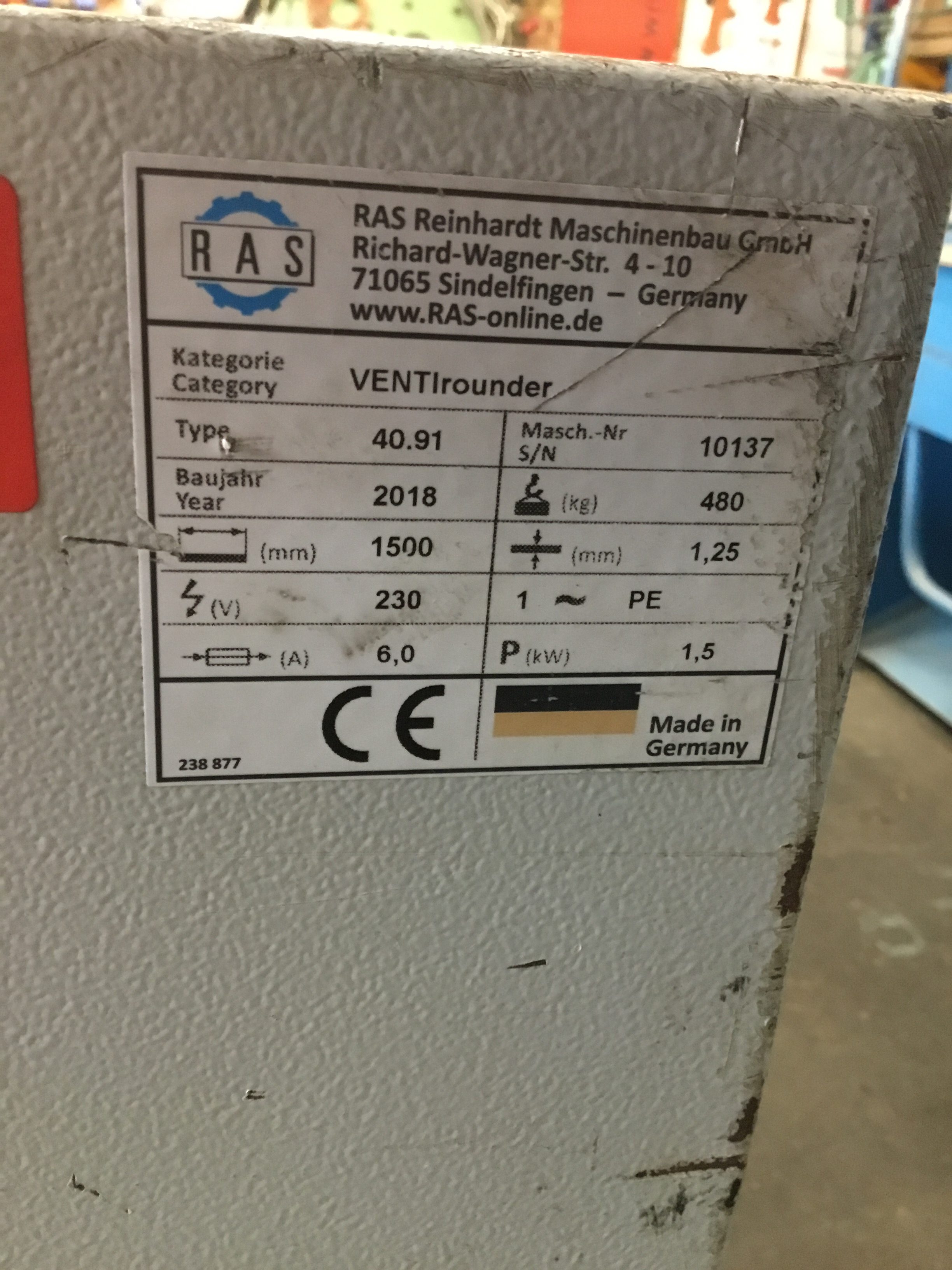

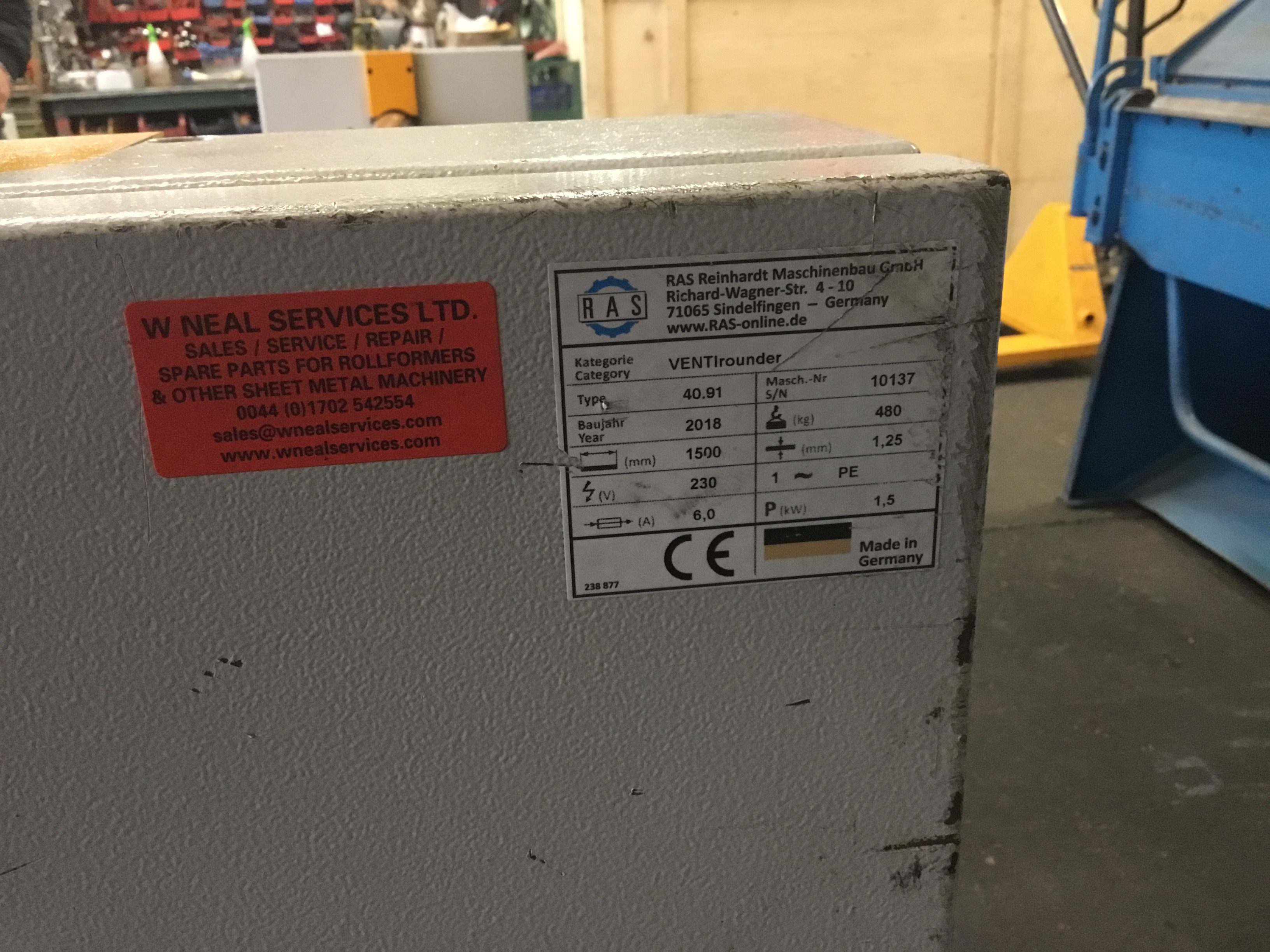

| SPECIFICATIONS | |
| SKU: | RVR01 |
| Model: | 40.91 |
| Maximum Thickness: | 1.2mm Capacity Mild Steel |
| Maximum Working Length: | 1500mm |
| Minimum Working Length: | 120mm |
| Speed: | 10 m/min |
| Supply Voltage: | 240v, Single Phase Electrics, 1.5kW |
| Year Of Manufacture: | 2018 |
| Dimensions – machine (apx): | 2000mm x 700mm x 1050mm (l x w x h) |
| Weight – net (apx): | 480Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
