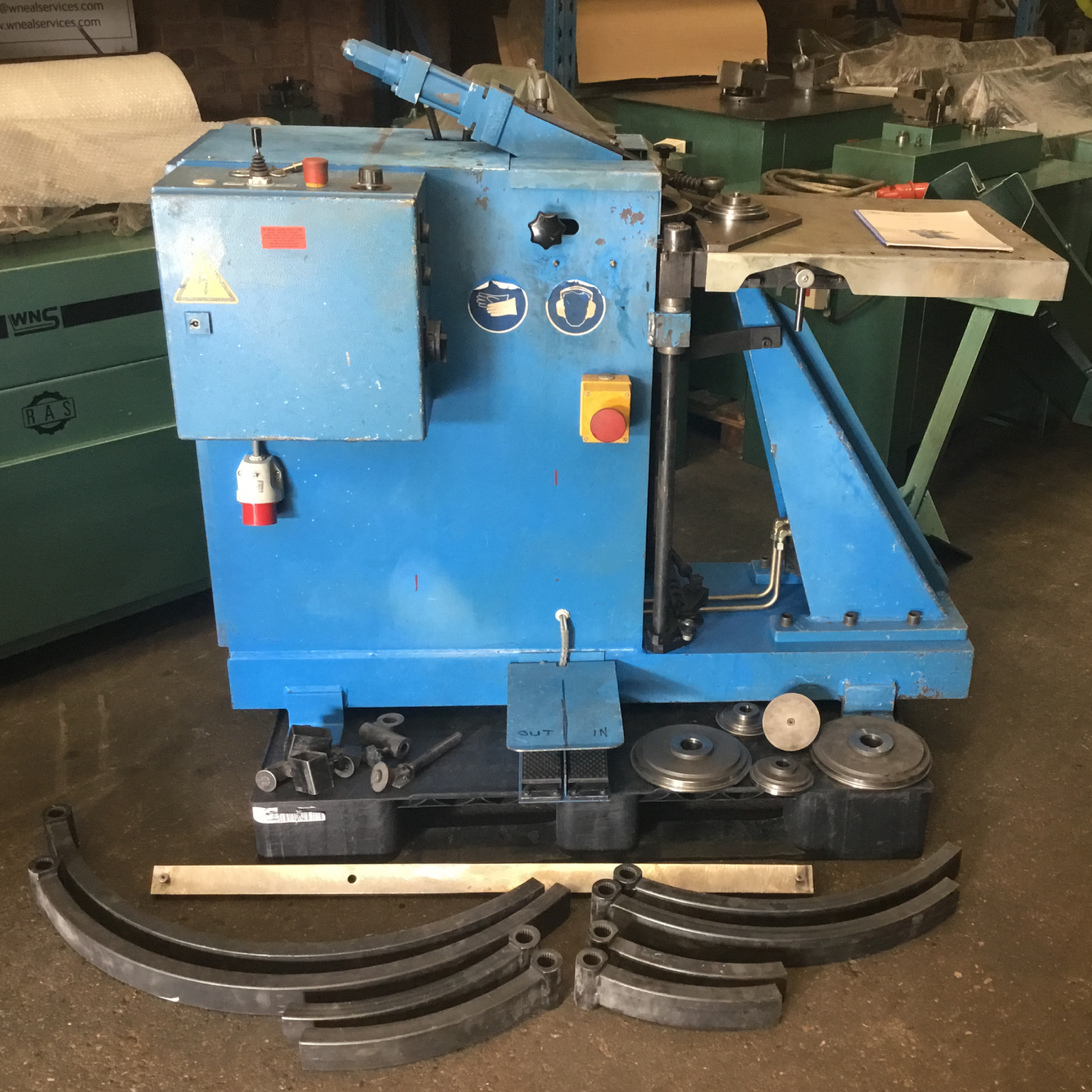

SPIRO SA BETA 3 HYDRAULIC GORELOCKER ELBOW MACHINES (SGL01) are principally used for producing standing lockseam elbows, reducers, segment bends, end caps and offsets from mild steel sheet metal up to 1.25mm thick. The high flexibility is achieved by means of 2 separate workstations: a flanging station and seam closing station, meaning the machine is always ready for operation without time-consuming conversion. The standing seam reduces welding to just one longitudinal seam and improves rigidity. This machine comes complete with 3 sets of forming rolls, closing roll, 4 sets of support arms, forming bar, guides & instruction manual.
USED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
| Weight | 700 kg |
|---|
| SPECIFICATIONS | |
| Model: | SGL01 |
| Maximum Thickness: | 0.4mm – 1.25mm Capacity Mild/Galvanized Steel |
| 0.4mm – 0.8mm Capacity Stainless Steel | |
| 0.4mm – 1.25mm Capacity Aluminium | |
| Diameter Range: | 125mm – 1000mm |
| Forming Speed: | 0-40m/Min |
| Flange Sizes: | 5mm / 7mm / 10mm |
| Maximum Gore Angle: | 30 degrees |
| Year Of Manufacture: | 2001 |
| Supply Voltage: | 415v, 3 Phase Electrics, 50Hz, 5kVA |
| Dimensions – machine (apx): | 1500mm x 950mm x 1200mm (l x w x h) |
| Dimensions – packaging (apx): | 1500mm x 1000mm x 1500mm (l x w x h) |
| Weight – (apx): | 700Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
