WNS Pneumatic Planishing Hammer 610mm

£1,450.00

(excl. VAT)

WNS Pneumatic Planishing Hammer 610mm

£1,450.00

(excl. VAT)

WNS Pneumatic Planishing Hammer 610mm

£1,450.00

(excl. VAT)

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

  • 610mm Throat
  • 1.5mm Capacity Mild Steel
  • Heavy Duty
  • 1 x Top Die
  • 4 x Lower Dies

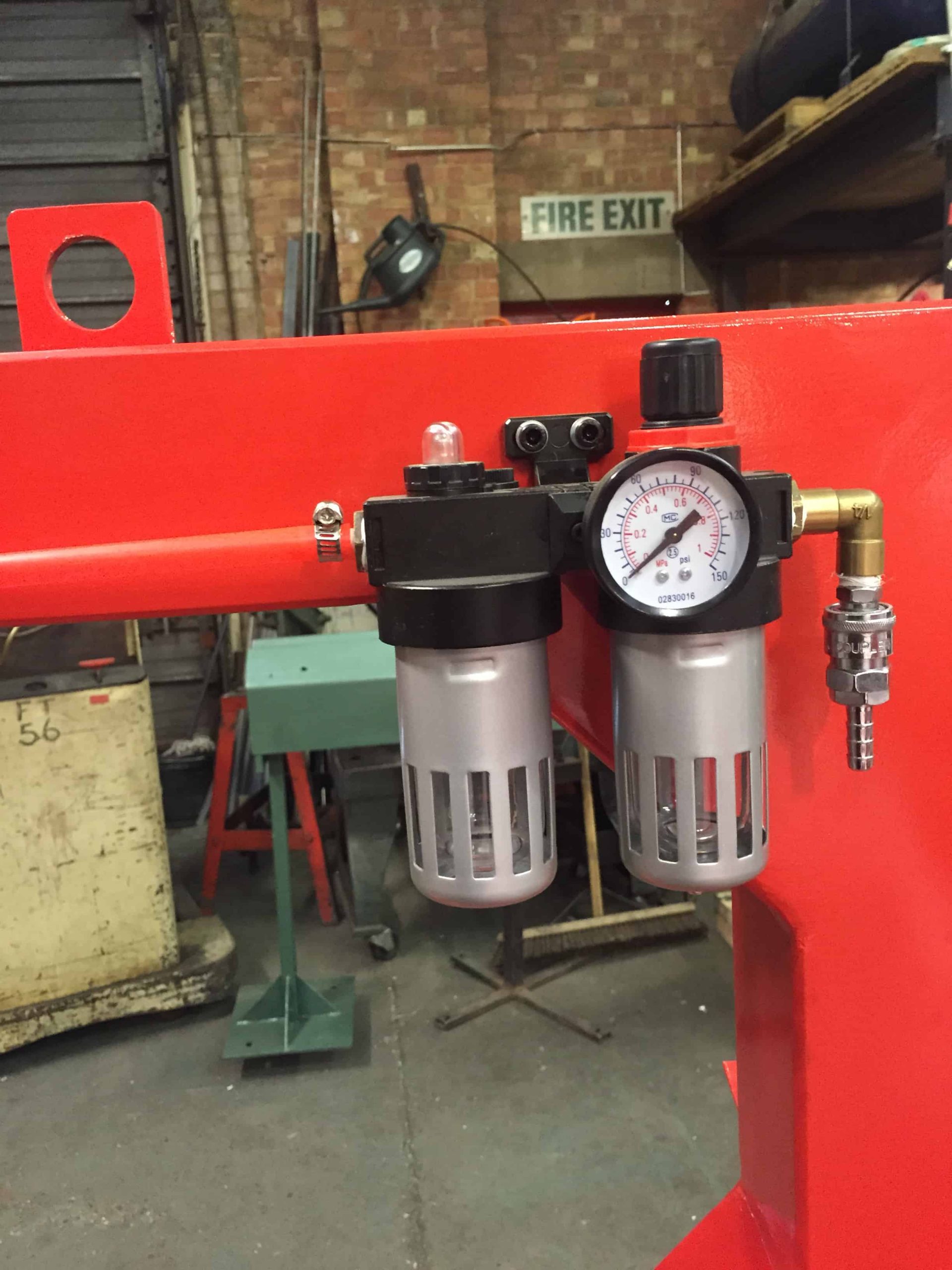

  • Lubricator
  • Filter / Regulator

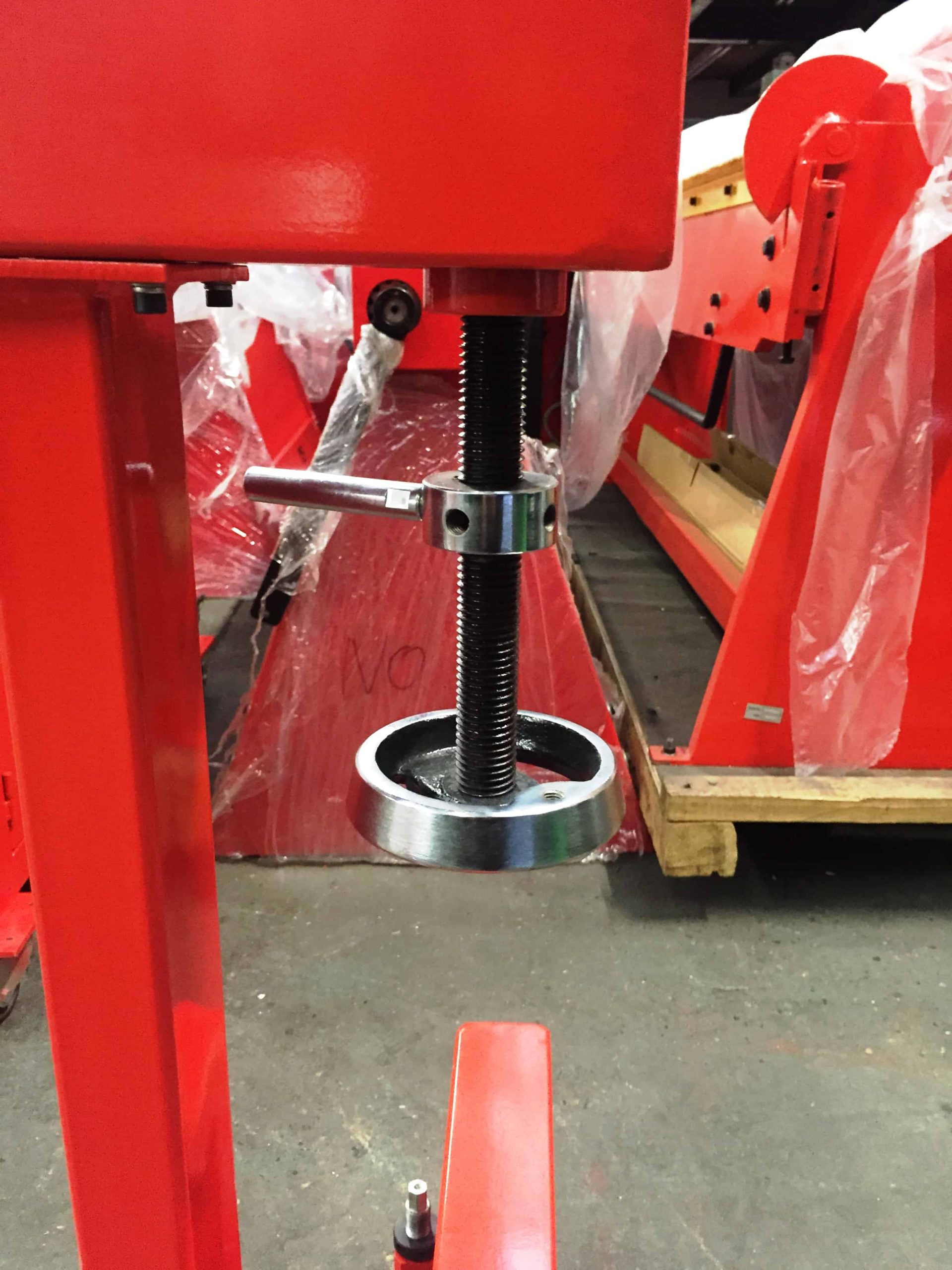

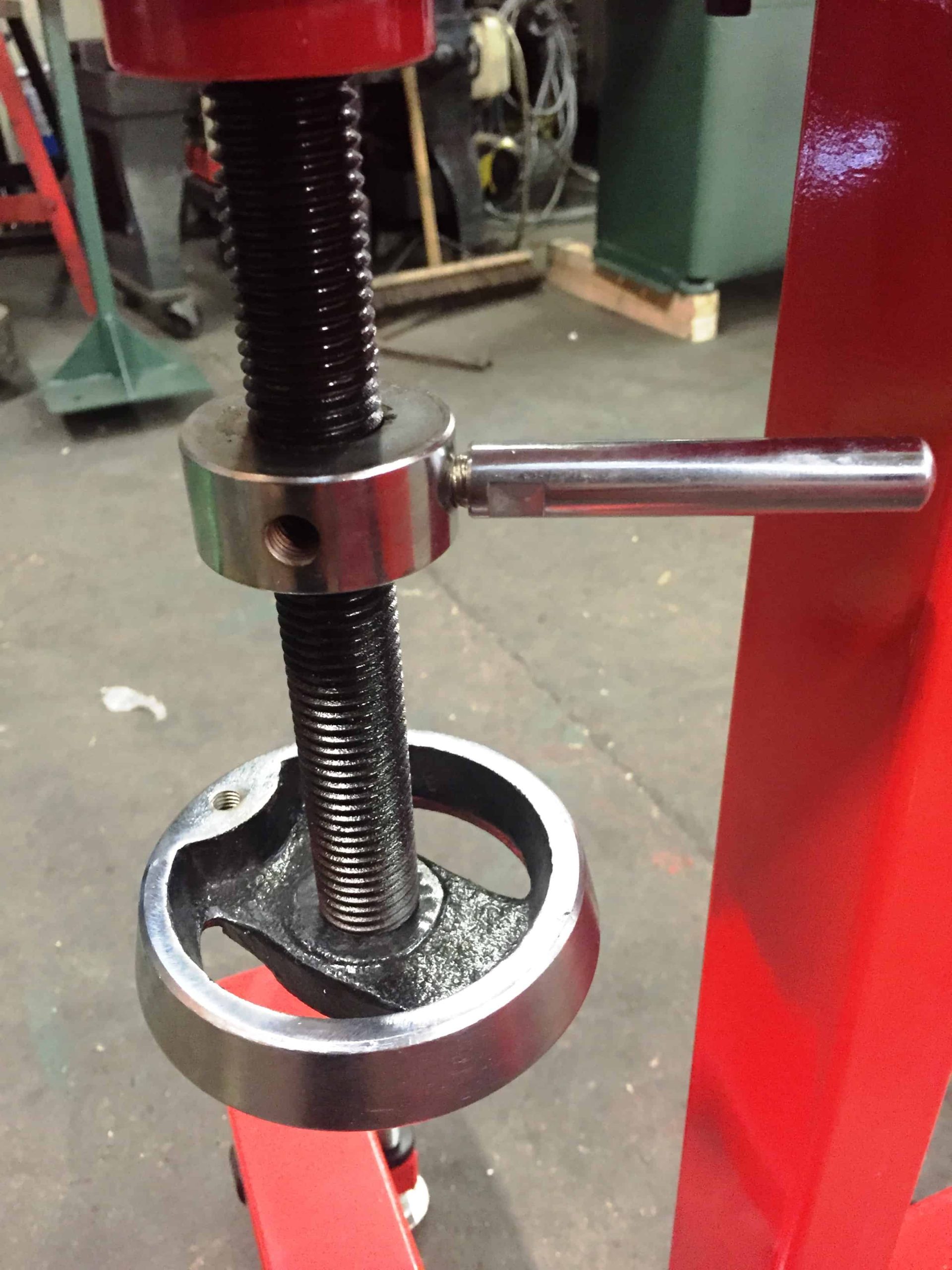

  • Hand Wheel
  • Foot Pedal
  • Stainless Steel Main Shaft

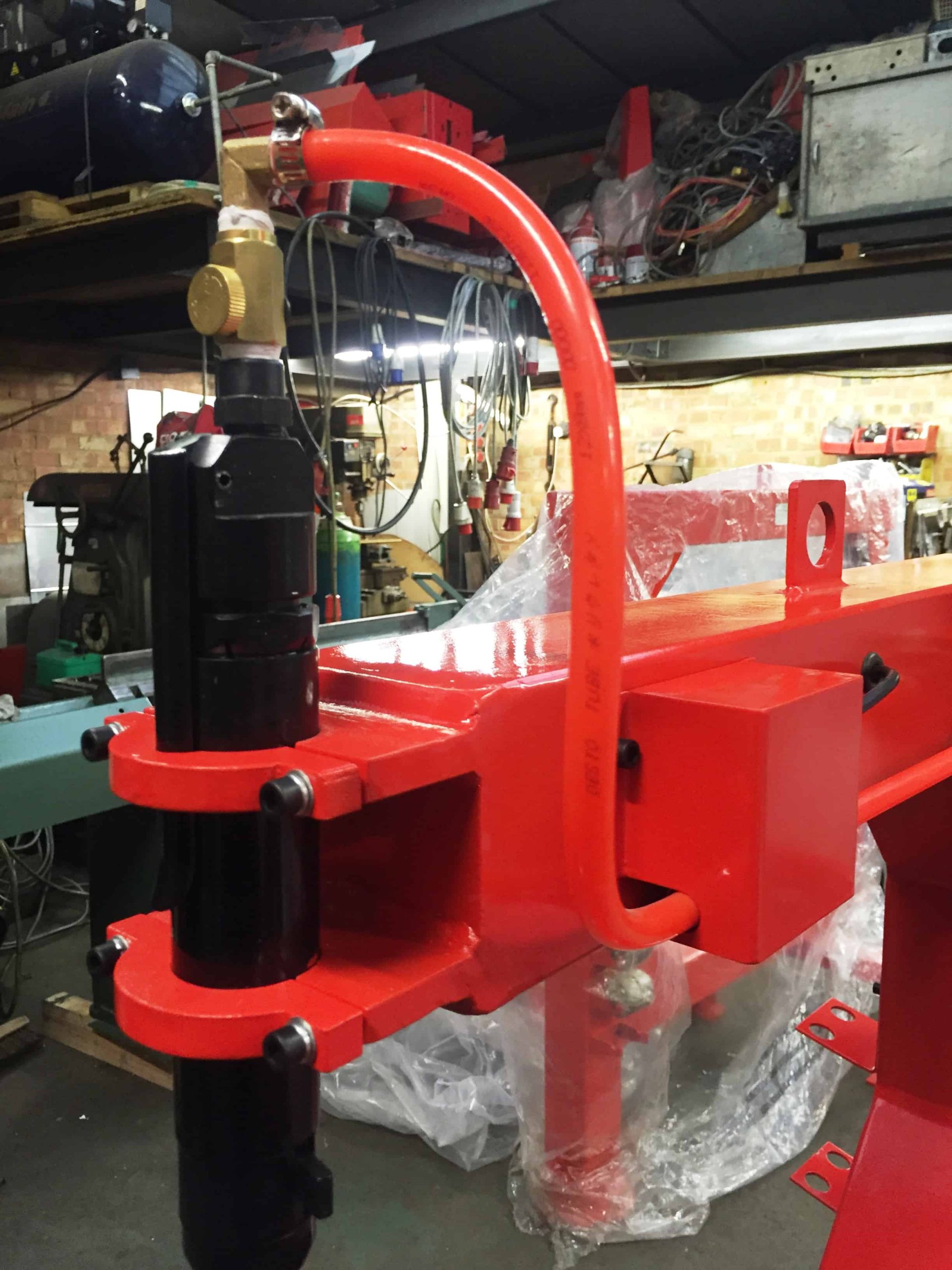

  • Hardened Steel Hammer Head
  • 12 Month Warranty
  • Worldwide Delivery

Description

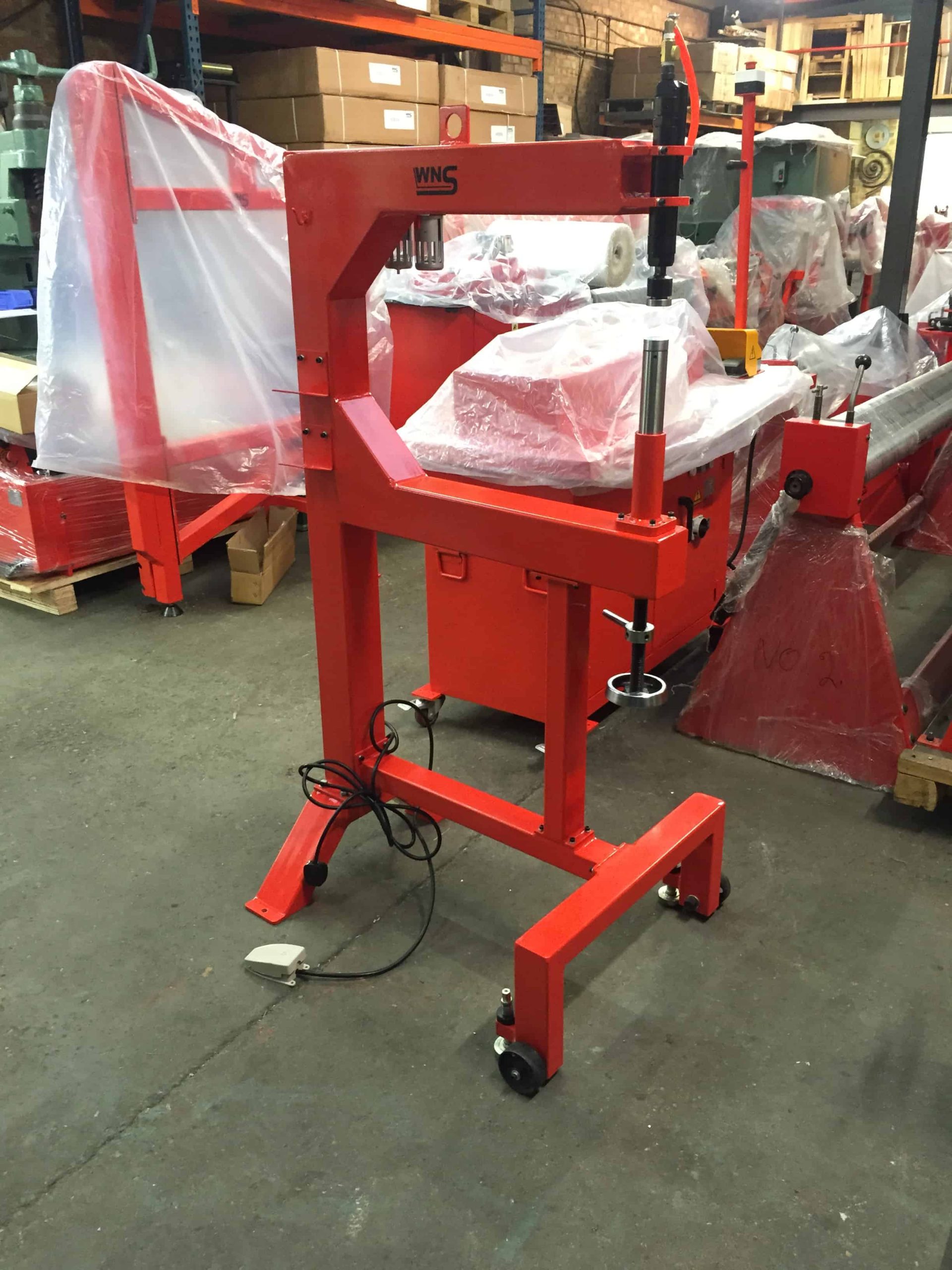

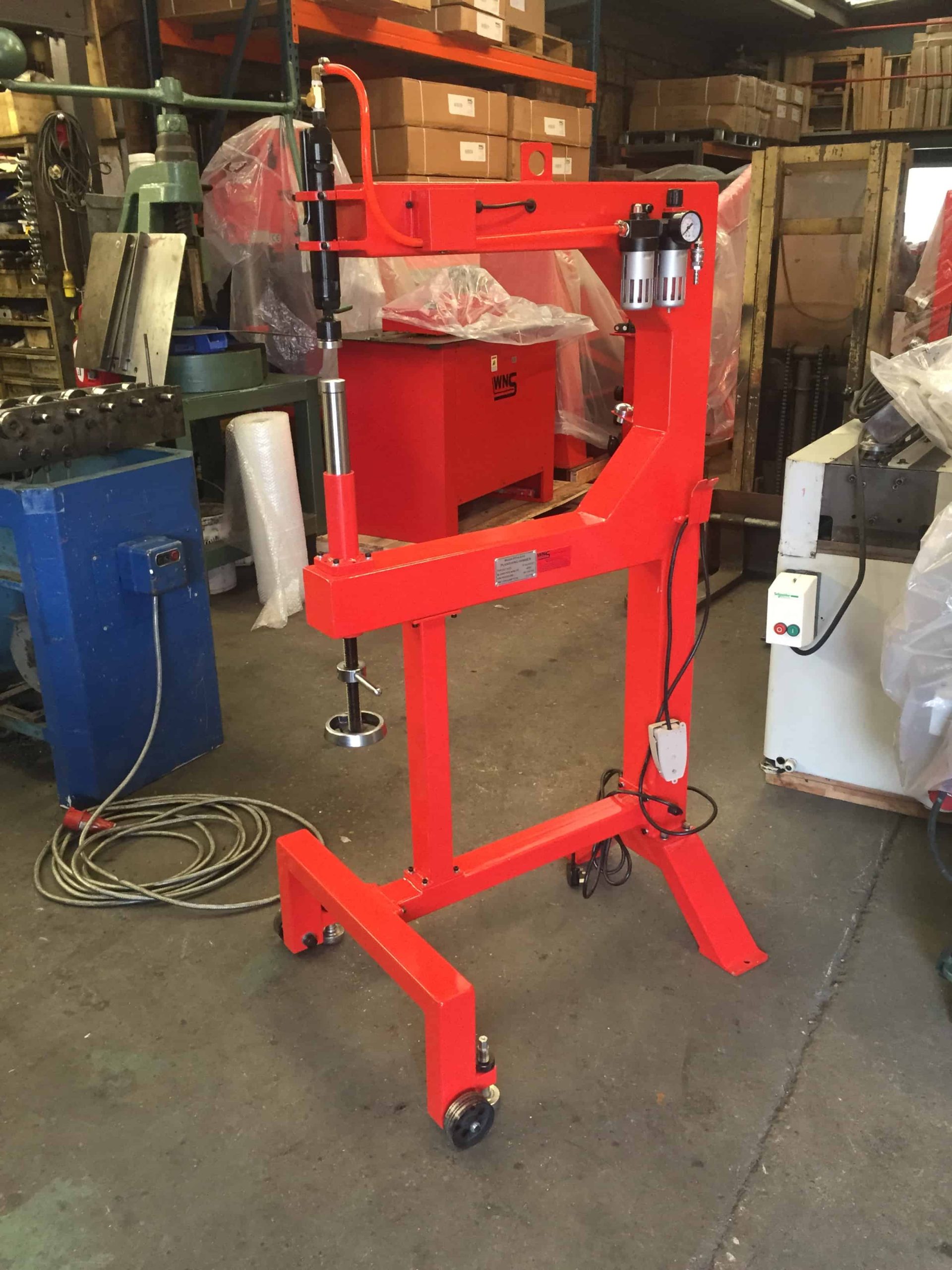

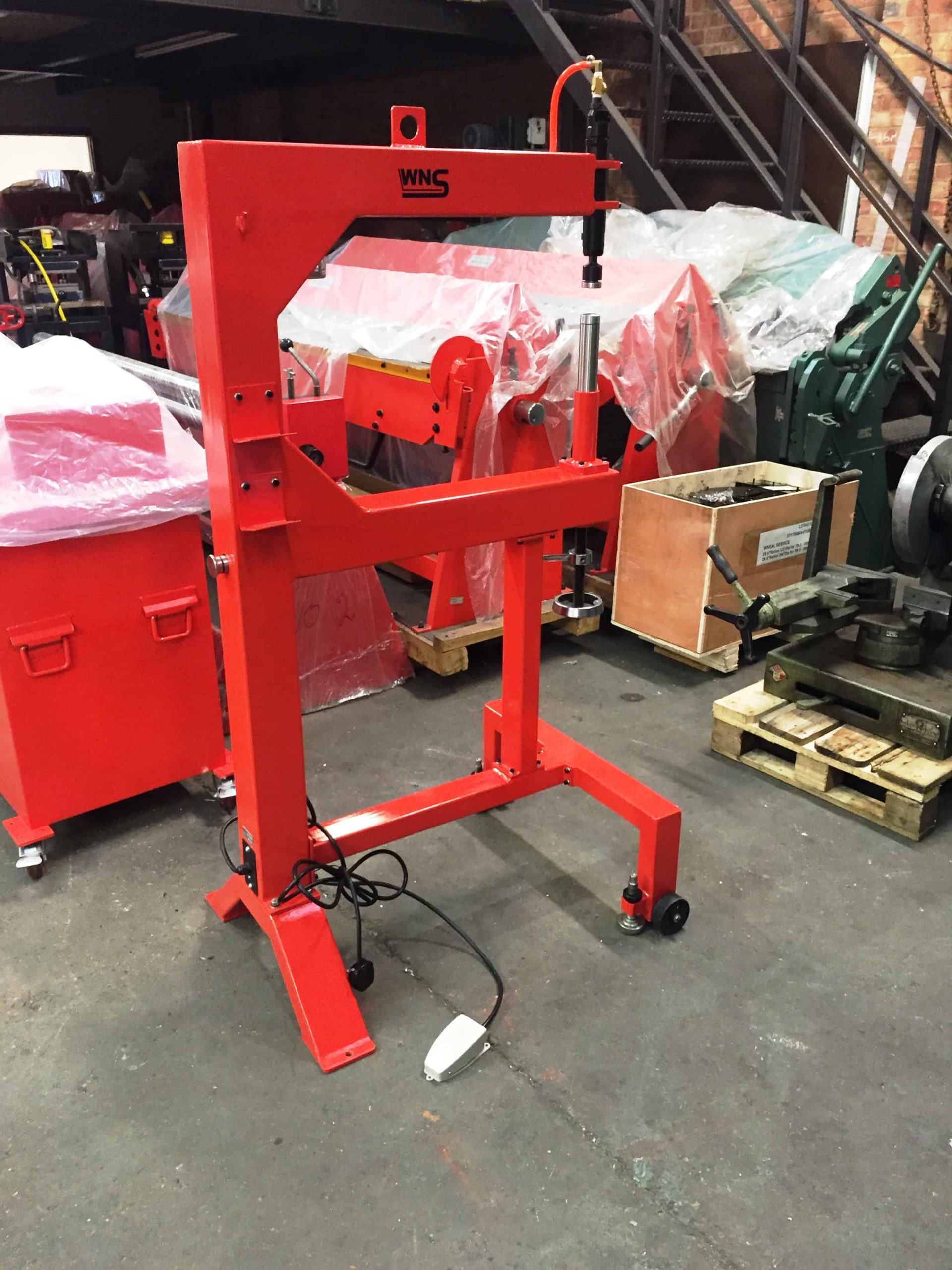

WNS PNEUMATIC PLANISHING HAMMER (PH610) is used for shaping sheet metal by hammering against a shaped surface. Pneumatic Hammers vastly speed up the process by striking thousands of blows per minute. Planishing is a process used in auto body repair and sheet metal craft work such as medieval armour production. The hammers has a Hardened Steel Hammer Head and Stainless Steel Main Shaft and comes complete with 1 top & 4 lower dies, a lubricator, filter/regulator, hand wheel and foot pedal.





Additional information

Weight 1250 kg
SPECIFICATIONS
Model: PH610
Throat Depth: 610mm
Maximum Thickness: 1.5mm Mild Steel
Top Die (x 1): 38mm Diameter

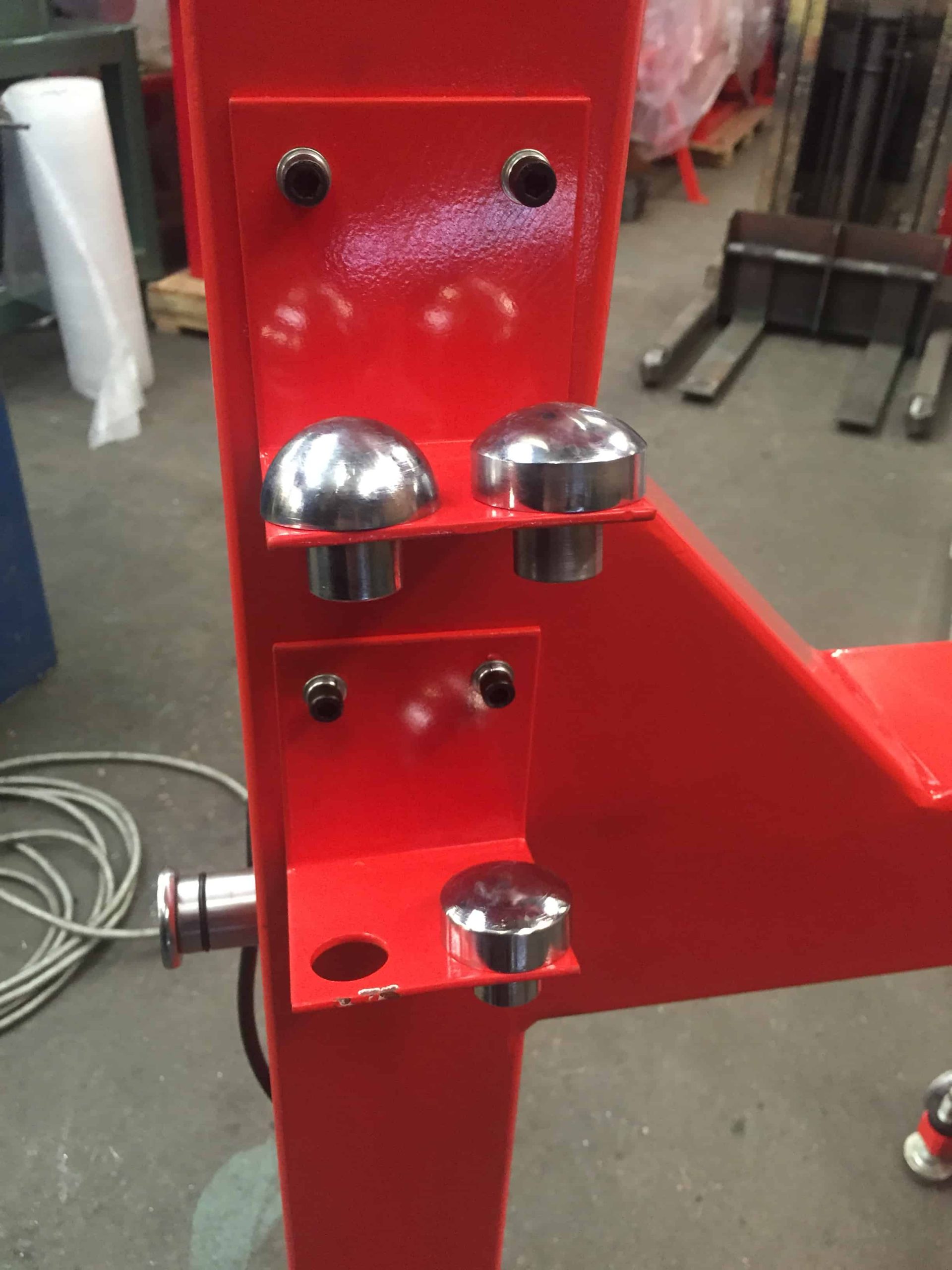

Lower Dies (x 4):
38mm Diameter x 19mm Radius
38mm Diameter x 25mm Radius
38mm Diameter x 30mm Radius
38mm Diameter x 68mm Radius
Hammer Speed: 1800 – 4600
Air Pressure: 90 – 120 PSI
Air Supply: 8.8 CFM
Construction: Steel Box Section
Dimensions – machine (apx): 800mm x 700mm x 1640mm (l x w x h)
Dimensions – packing (apx): 1730mm x 940mm x 400mm (l x w x h)
Weights – net/gross (apx): 90Kg/145Kg



All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
