Pneumatic Planishing Hammer 498mm

Pneumatic Planishing Hammers


Description

WNS PNEUMATIC PLANISHING HAMMER (PH498) is used for shaping sheet metal by hammering against a shaped surface. Pneumatic Hammers vastly speed up the process by striking thousands of blows per minute. Planishing is a process used in auto body repair and sheet metal craft work such as medieval armour production. This hammer has a hardened steel hammer head, stainless steel main shaft and comes complete with a filter/regulator and foot pedal.


View Literature



Additional information

Weight 30 kg
SPECIFICATIONS
Model: PH498
Throat Depth: 498mm
Maximum Thickness: 1.2mm Mild Steel
Top Die (x 1): 36mm Diameter
Lower Dies (x 3): 32mm Diameter x 1” Radius
2” Radius
3” Radius
Hammer Speed: 875 – 1350 BPM
Air Pressure: 50-100 PSI
Air Supply: 12 CFM
Head Opening: 100mm
C-Section: 580mm x 140mm x 610mm
Frame Tube: 60mm x 35mm
Construction: Steel Box Section
Dimensions – machine (apx): 710mm x 400mm x 1200mm (l x w x h)
Dimensions – packing (apx): 740mm x 720mm x 220mm (l x w x h)
Weights – net/gross (apx): 23Kg/26Kg

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. Please note photographs/drawings may not be to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. *For warranty terms please see our full  Terms & Conditions.  E&OE.

Reviews

There are no reviews yet.

Be the first to review “Pneumatic Planishing Hammer 498mm”

Your email address will not be published. Required fields are marked *

SKU: PH498

Pneumatic Planishing Hammer 498mm

£215.00 excluding VAT

5 in stock

  • 498mm Throat
  • 1.2mm Capacity Mild Steel
  • Complete with:
  • 1 x Top Die
  • 3 x Lower Dies
  • Foot Pedal
  • Stainless Steel Main Shaft
  • Hardened Steel Hammer Head
  • 12 Month Warranty*
  • Worldwide Delivery

Find out more or call us 01702 542 554

Worldwide shipping available.

Opening hours 08:30 to 17:30 Monday to Friday.

Related Products...

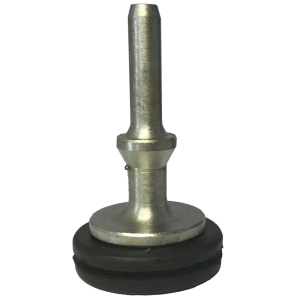

  • Pneumatic Planishing Hammer Heads
