  • Hand Operated Box and Pan
  • 2540mm Folding Length
  • 2.0mm Capacity Mild Steel
  • c/w 23 x Fingers
  • c/w 2 x Counterbalance Weights
  • 12 Month Warranty*
  • Worldwide Delivery

Description

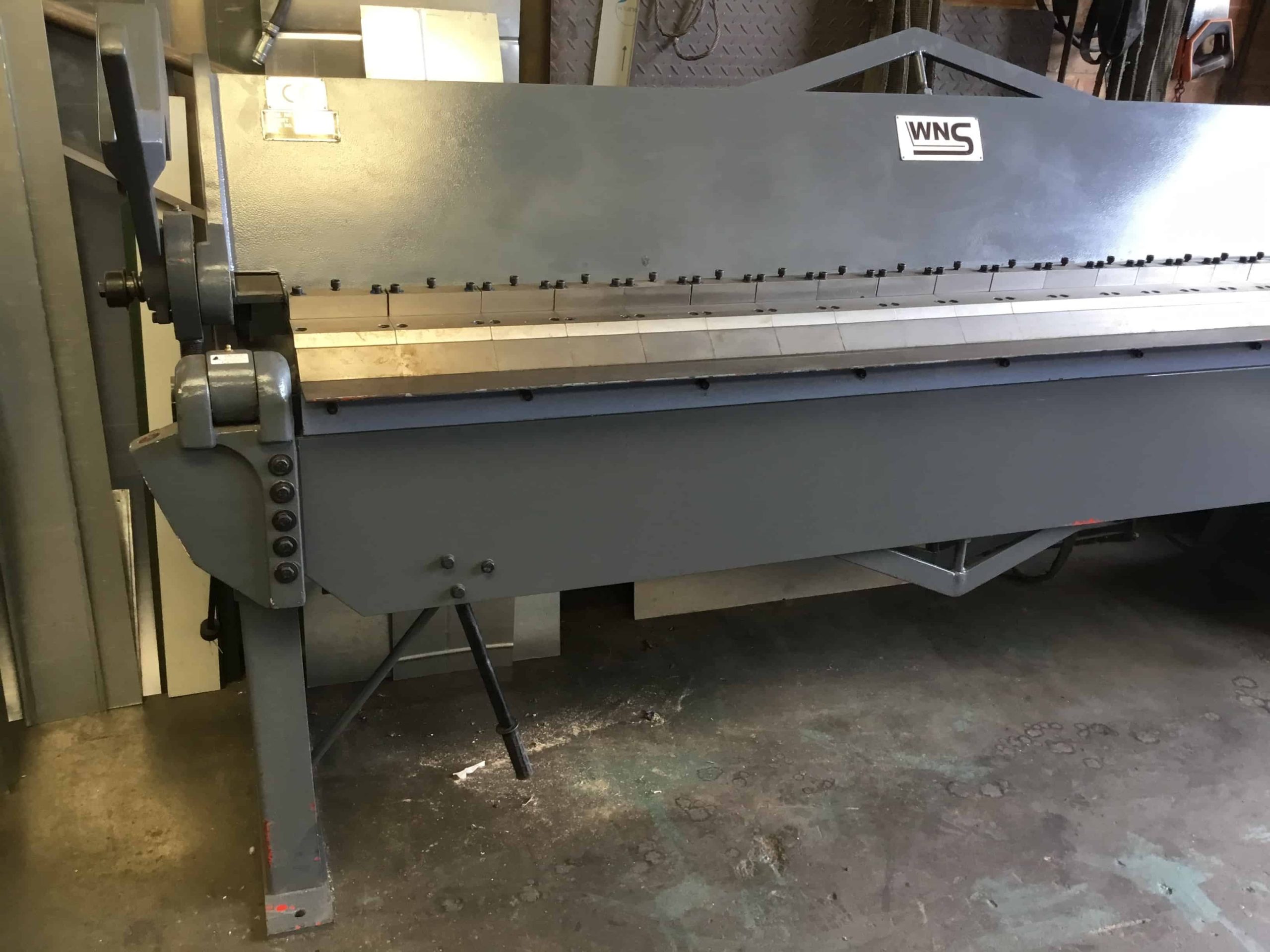

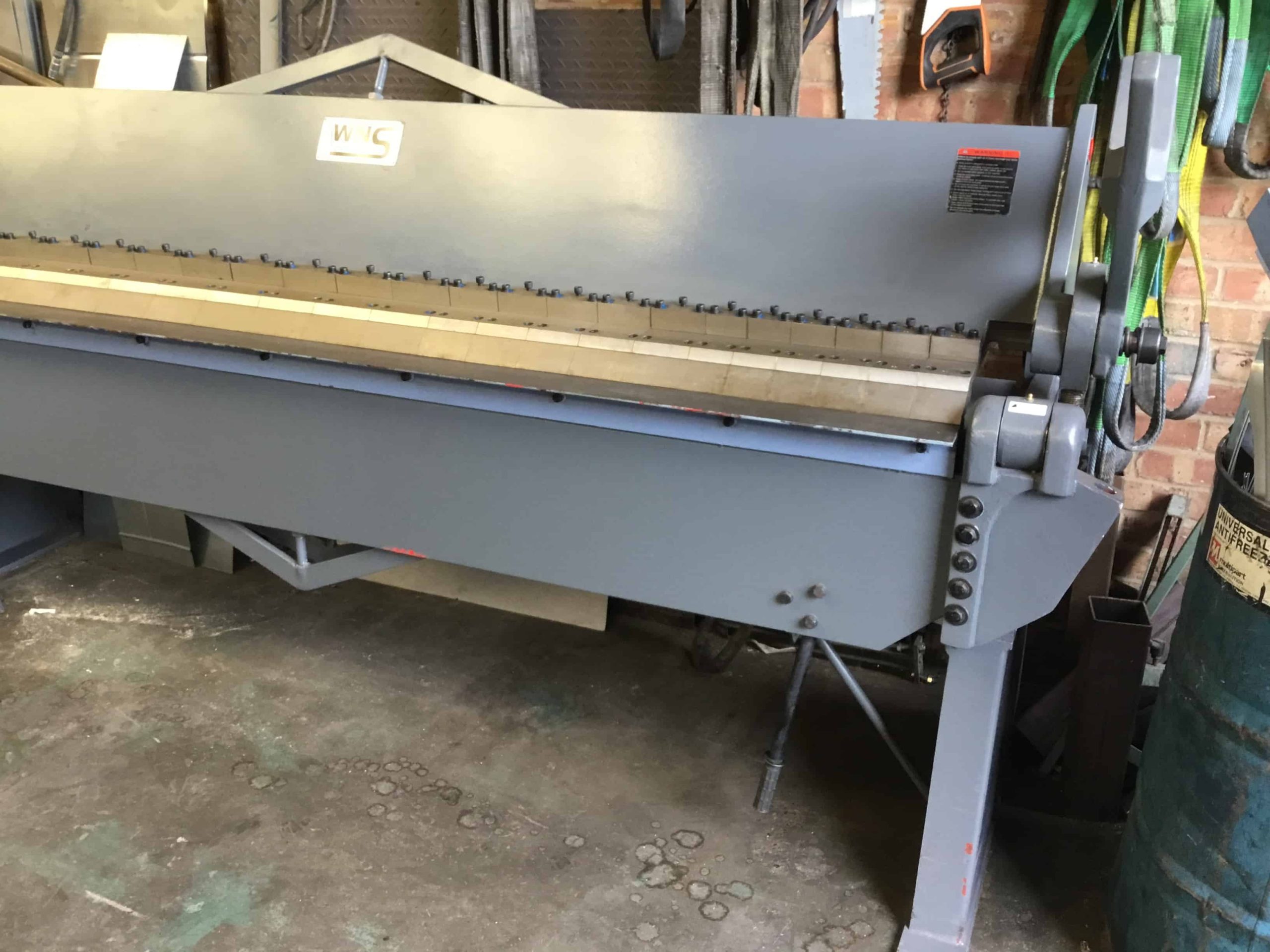

WNS BOX & PAN FOLDER HEAVY DUTY (BPF2540J) has a folding length of 2540mm and can accommodate mild steel sheets up to 2.0mm thick. The BPF2540J has a maximum lift of 50mm, a bed height of 900mm and a folding angle between 0-135°. It also comes complete with 23 x fingers and 2 x counterbalance weights for assisted operation.



Additional information

Weight 2000 kg
SPECIFICATIONS
Model: BPF2540J
Folding Length: 2540mm
Maximum Thickness: 2.0mm Mild steel
Folding Angle: 0 – 135˚
Maximum Lift (apx): 50mm
Bed Height (apx): 900mm

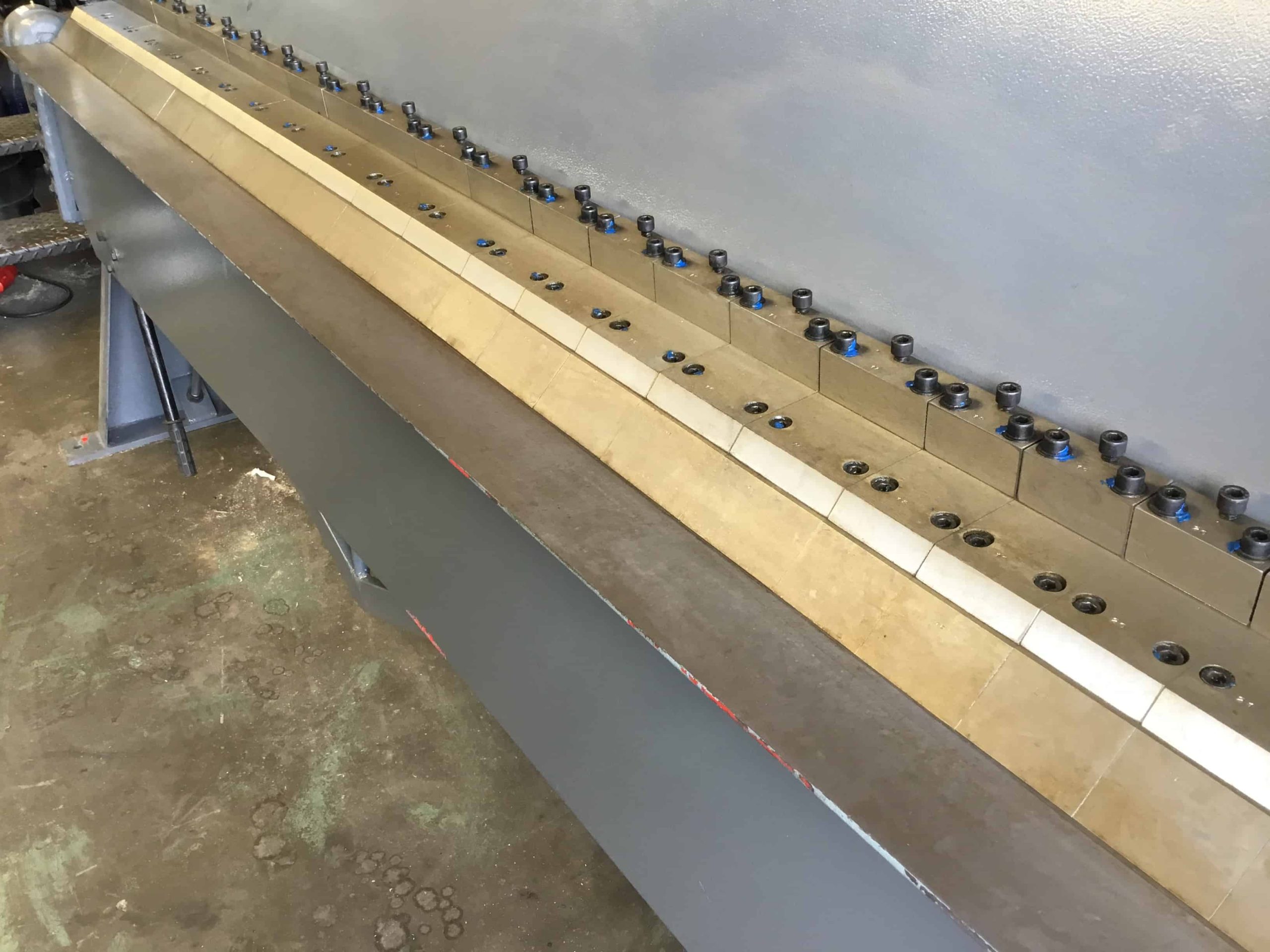

Finger Sizes (x 23): 76.2mm (x 6)
 101.6mm (x 5)
127mm (x 10) 152.4mm (x 2)
Dimensions – machine w/ weights (apx): 3920mm x 1780mm x 1560mm (l x w x h)
Dimensions – packing (apx): 3260mm x 760mm x 1140mm  (l x w x h)
Weights – net/gross (apx): 1150Kg/1200Kg



All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. *For warranty terms please see our full Terms & Conditions. E&OE.
