20swg Edge Notcher

Edge Notcher


Description

WNS EDGE NOTCHERS (EN20) are the ideal machines for air conditioning and ductwork applications.  They are principally used for punching slots into the edge of sheet metal to produce collars for ductwork, ductwork fittings and end caps. The material is driven through the punching head by two powered rolls, progressively notching the edge of the metal with precision and accuracy.


View Literature



SPECIFICATIONS
Model: EN20
Capacity: 20swg (1.0mm) Mild Steel
Depth of Notch: 0 – 3/4″
Width of Notch (Slot): 3/16″
Notch Spacing: 3/4″ to 1 7/16″
Speed: Variable – 18f/min
Supply Voltage: 415v, 3 Phase
Dimensions – machine (apx): 610mm x 570mm x 560mm (l x w x h)
Weights – net/gross (apx): 140Kg /280Kg

All capacities are based on the use of Rollforming quality Mild Steel unless otherwise stated. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. *For warranty terms please see our full Terms & Conditions. E&OE.

Reviews

There are no reviews yet.

Be the first to review “20swg Edge Notcher”

Your email address will not be published. Required fields are marked *

SKU: EN20

20swg Edge Notcher

  • 20swg (1.0mm) Capacity Mild Steel
  • 0 – 3/4″ Notch Depth
  • 3/16″ Slot Notch Width
  • 3/4″ to 1 7/16″ Spacing
  • Variable Speed – 18f/min
  • 415v, 3 Phase Electrics
  • 12 Month Warranty*

Find out more or call us 01702 542 554

Worldwide shipping available.

Opening hours 08:30 to 17:30 Monday to Friday.

Related Products...

  • Foot Notcher 80mm x 80mm x 1.5mm Foot Notcher 80mm x 80mm x 1.5mm

    £700.00 excluding VAT

    Foot Notcher 80mm x 80mm x 1.5mm

    Find Out More
    SKU: FN80
  • Heavy Duty Corner Notcher 100mm x 100mm x 3.0mm Heavy Duty Corner Notcher 100mm x 100mm x 3.0mm

    £890.00 excluding VAT

    Heavy Duty Corner Notcher 100mm x 100mm x 3.0mm

    Find Out More
    SKU: CN100

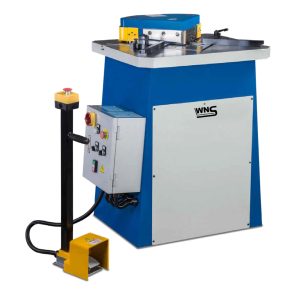

  • Hydraulic Corner Notcher 200mm x 4.0mm
