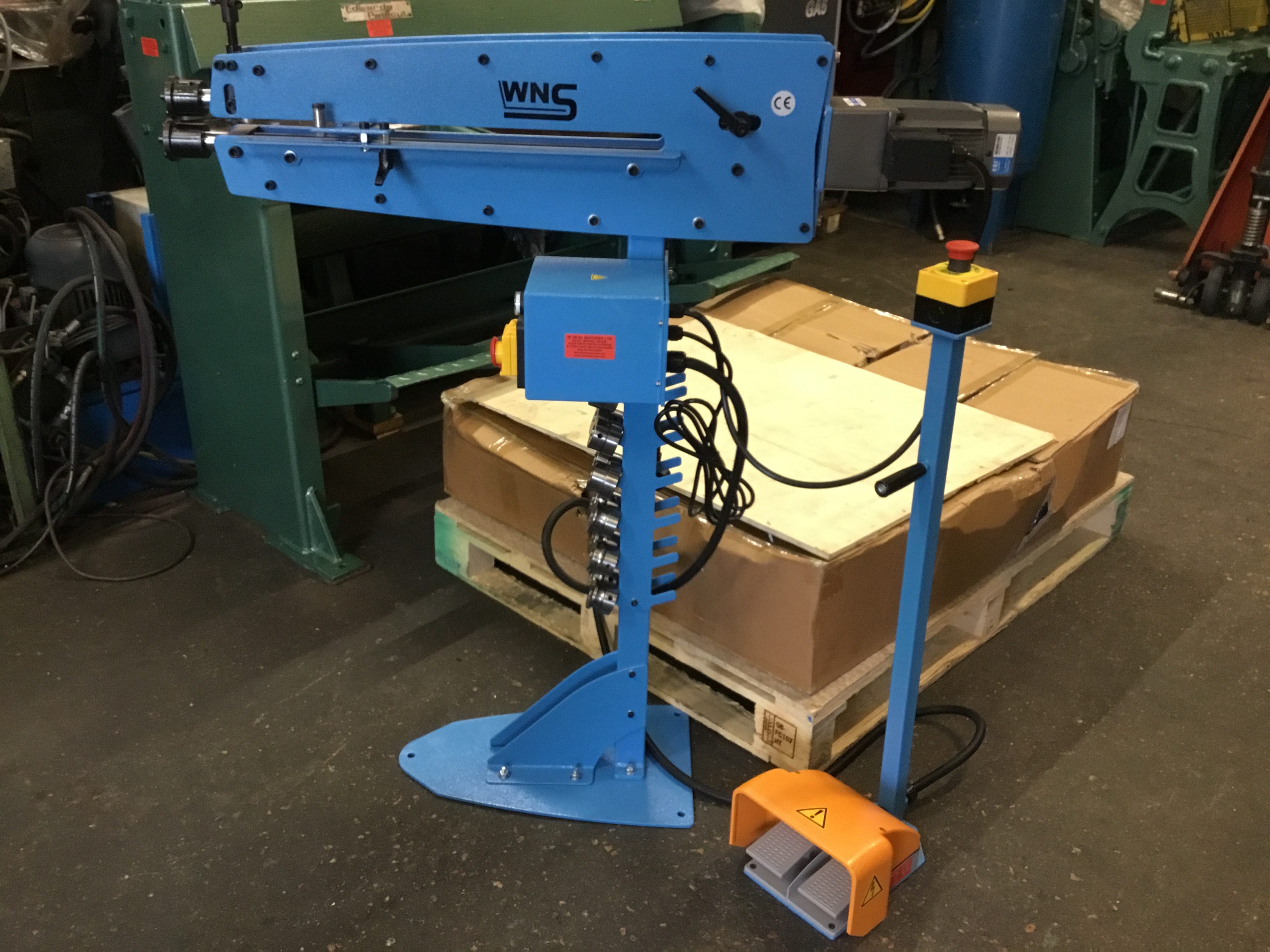

WNS Fabricated Power Bead Roller 610mm

WNS Fabricated Power Bead Roller 610mm

WNS Fabricated Power Bead Roller 610mm

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

  • Power Operated
  • 610mm (24”) Throat
  • 1.2mm Capacity Mild Steel*
  • c/w 7 Sets of Rolls
  • c/w Stand
  • Forward & Reverse Foot Pedal

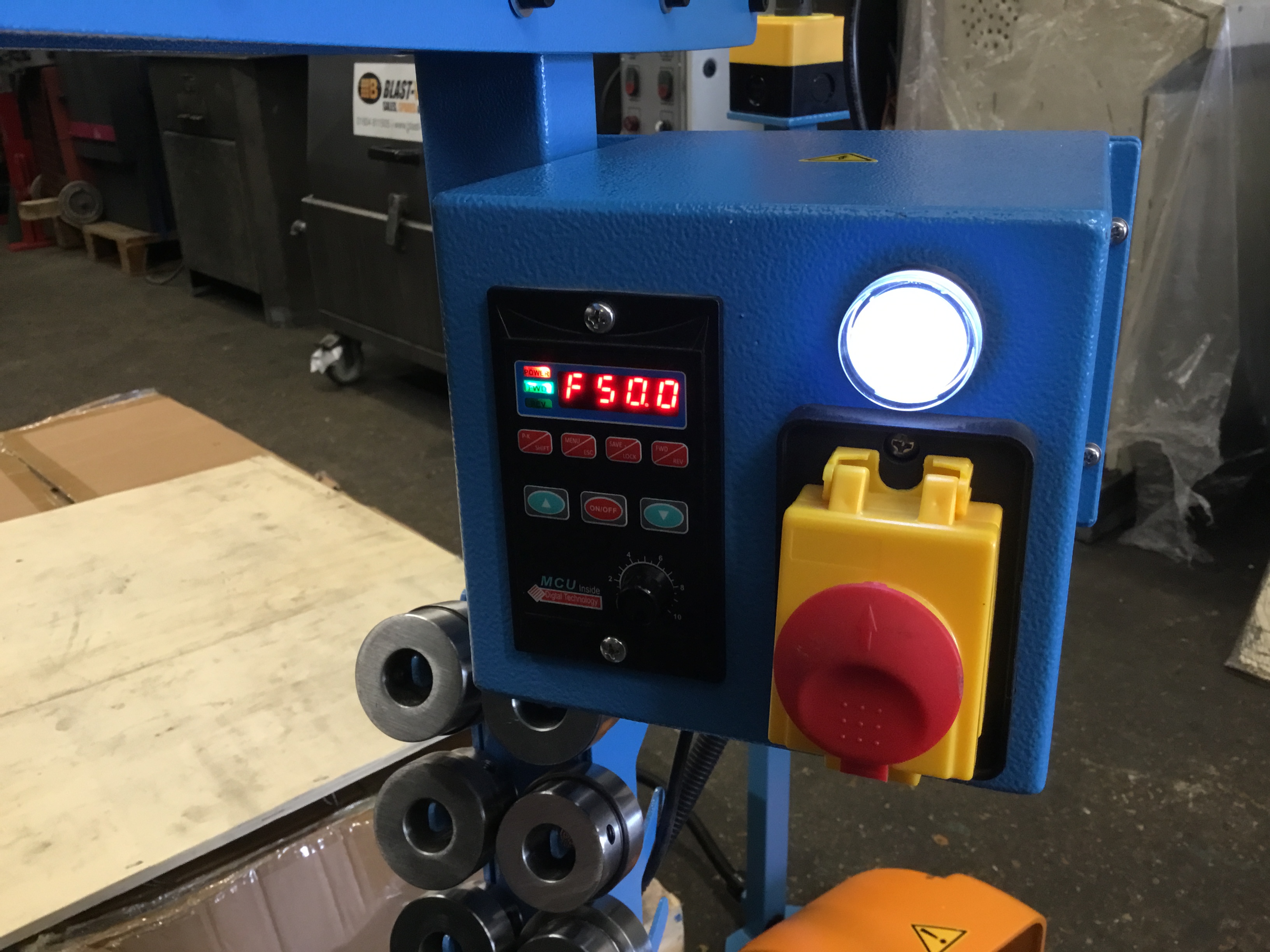

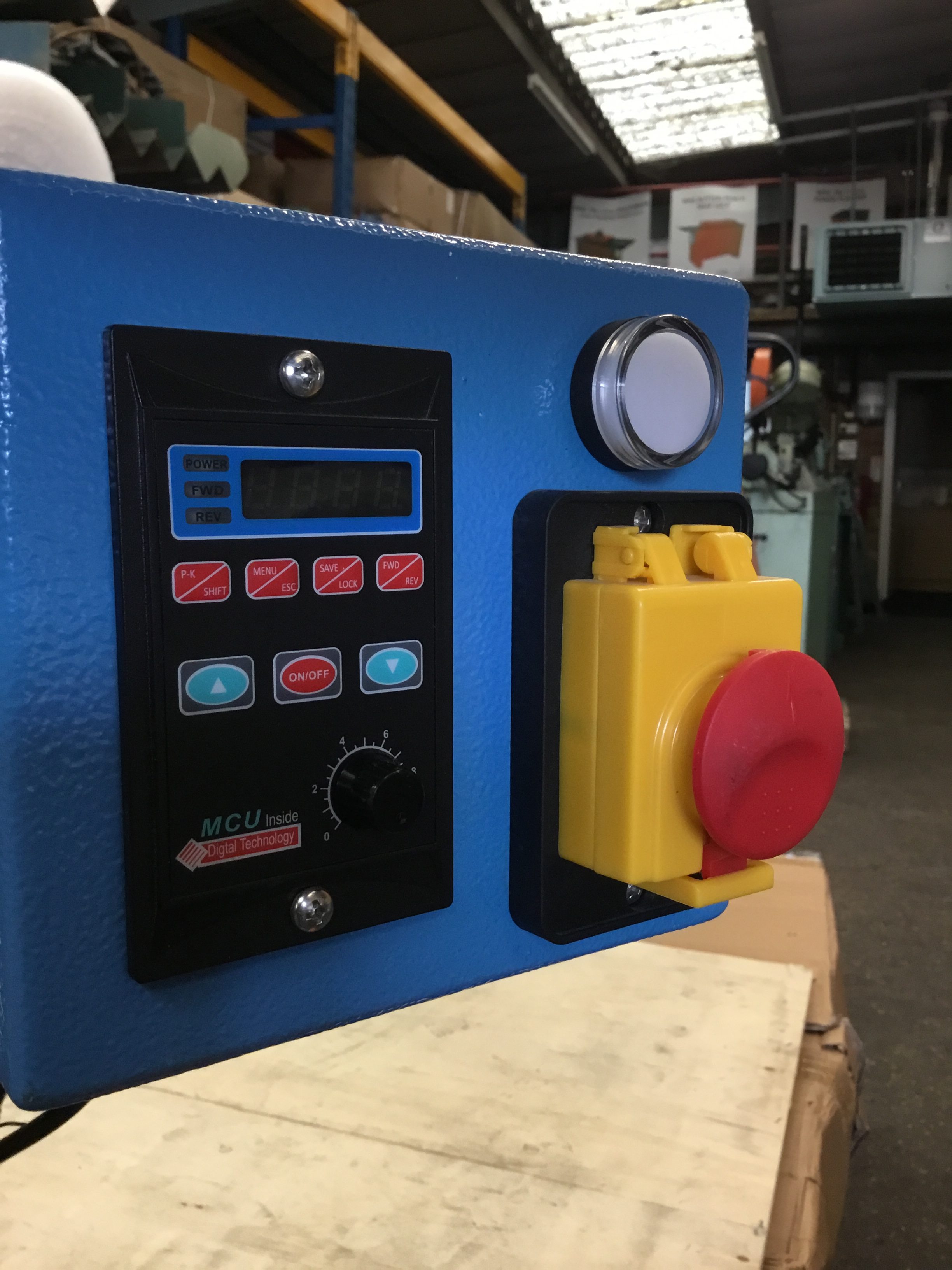

  • Variable Speed Switch 0-17rpm
  • 240v, Single Phase, 50Hz
  • 12 Month Warranty**
  • Worldwide Delivery***
  • Additional Rolls Available

Description

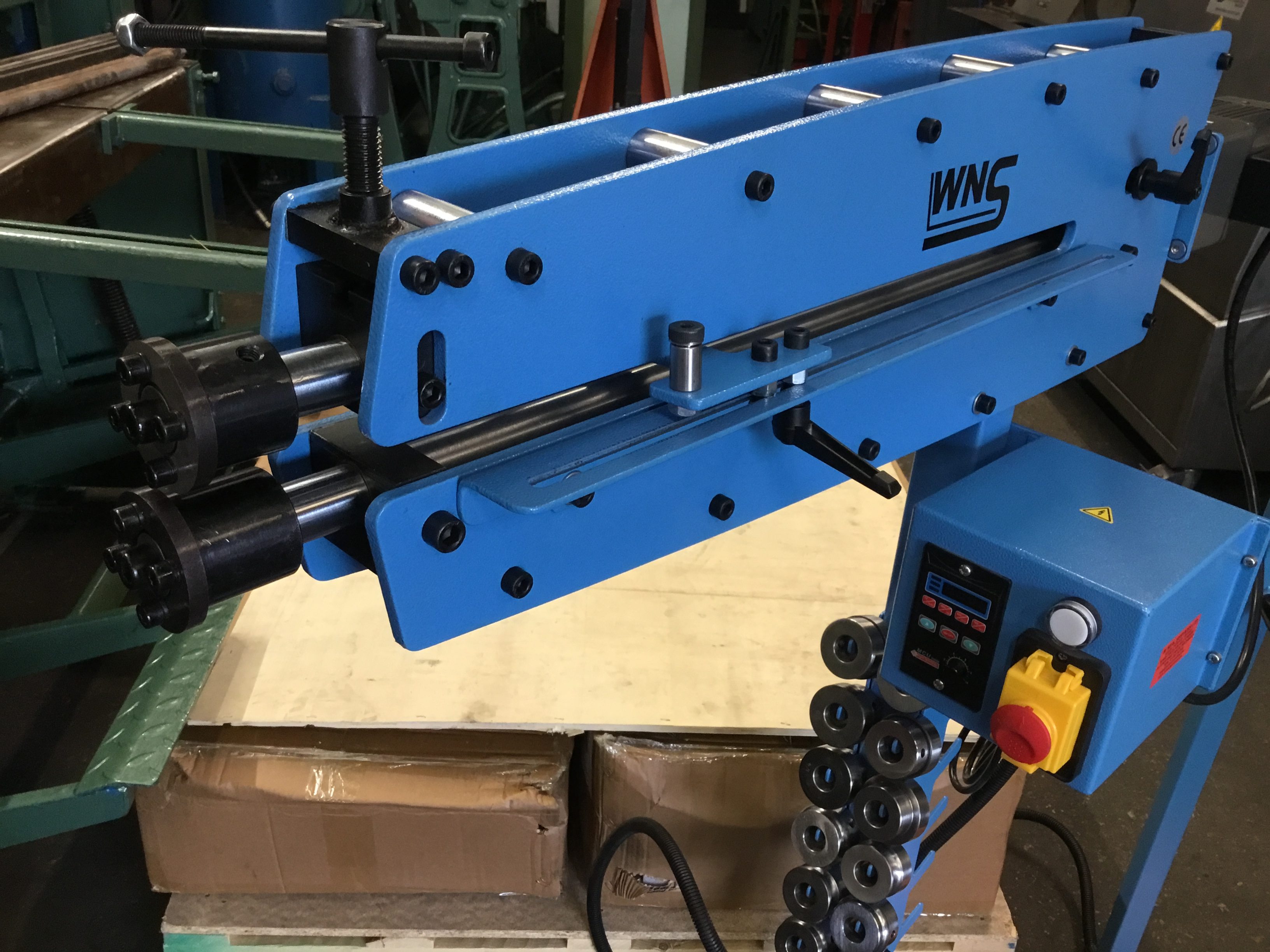

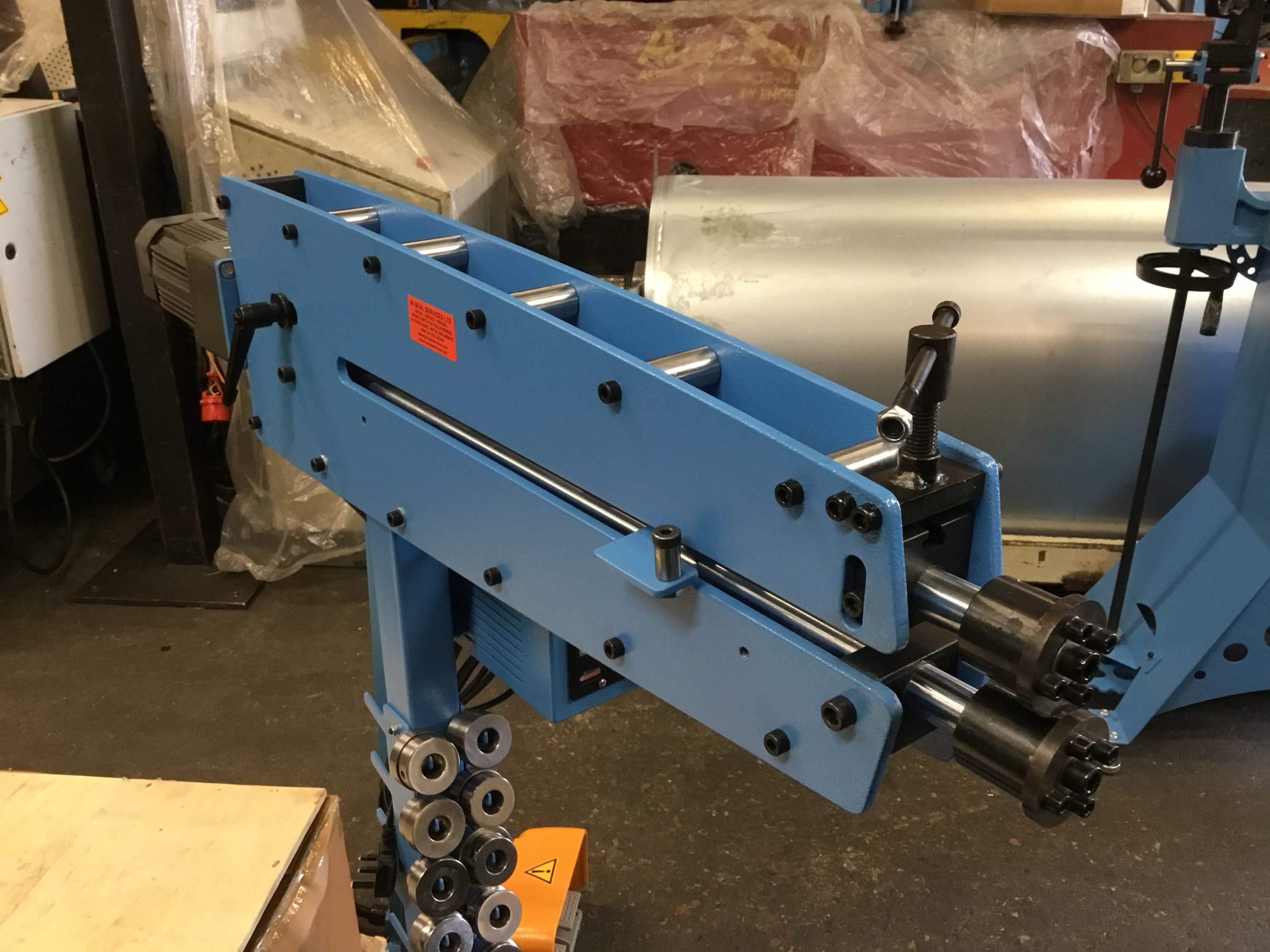

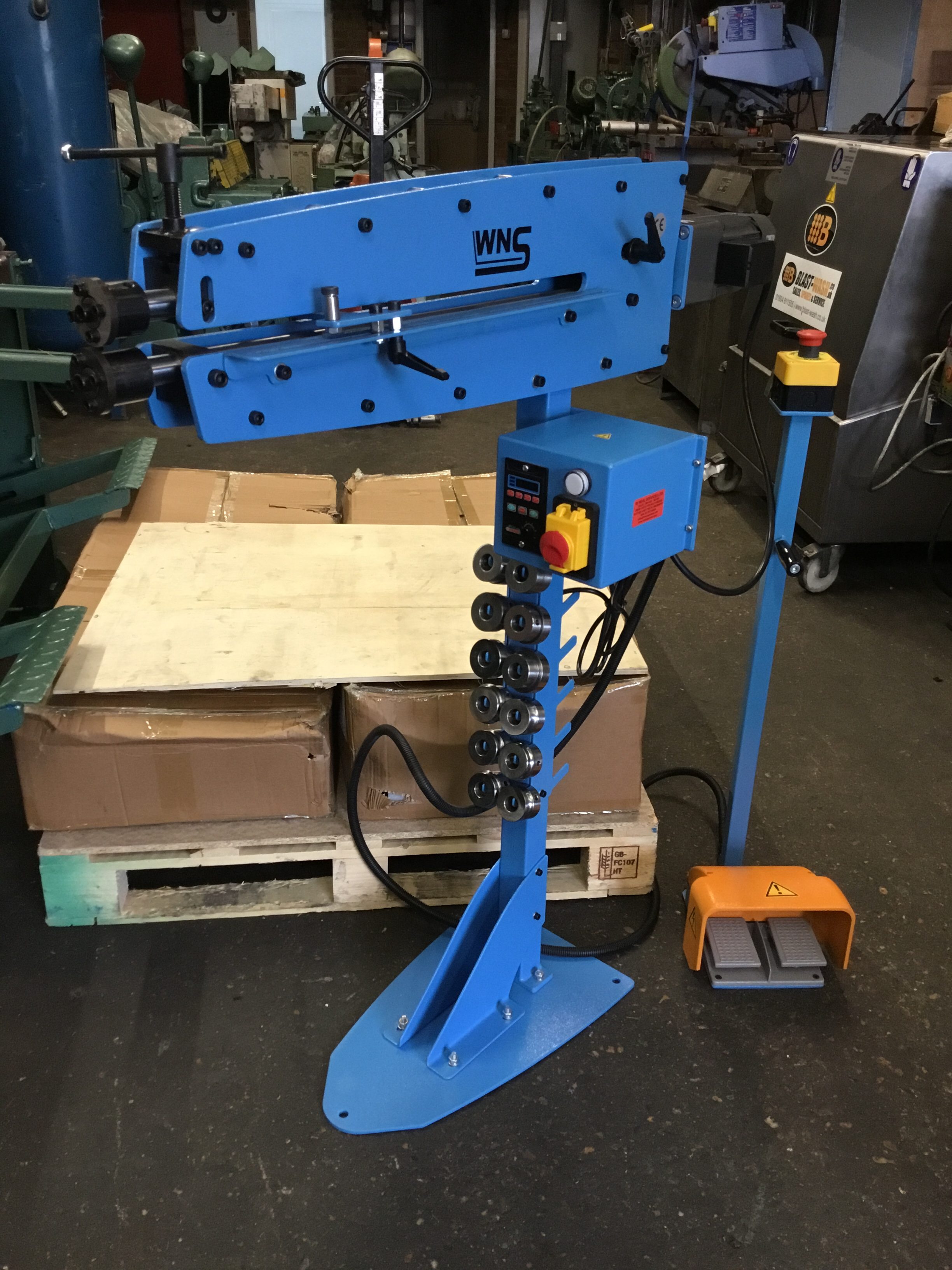

WNS FABRICATED POWER BEAD ROLLERS (PBR610B) are principally used for swaging, beading and forming of sheet metal. The PBR610B has a 610mm (24″) throat and can accommodate mild steel up to 1.2mm thick*. This machine comes complete with 7 sets of rolls, a stand, a forward & reverse food pedal, and a variable speed switch up to 17rpm.

Additional rolls are available separately.









Additional information

Weight 130 kg
SPECIFICATIONS
Model: PBR610B
Throat Depth: 610mm (24″)
Maximum Thickness: 1.2mm Capacity Mild Steel*

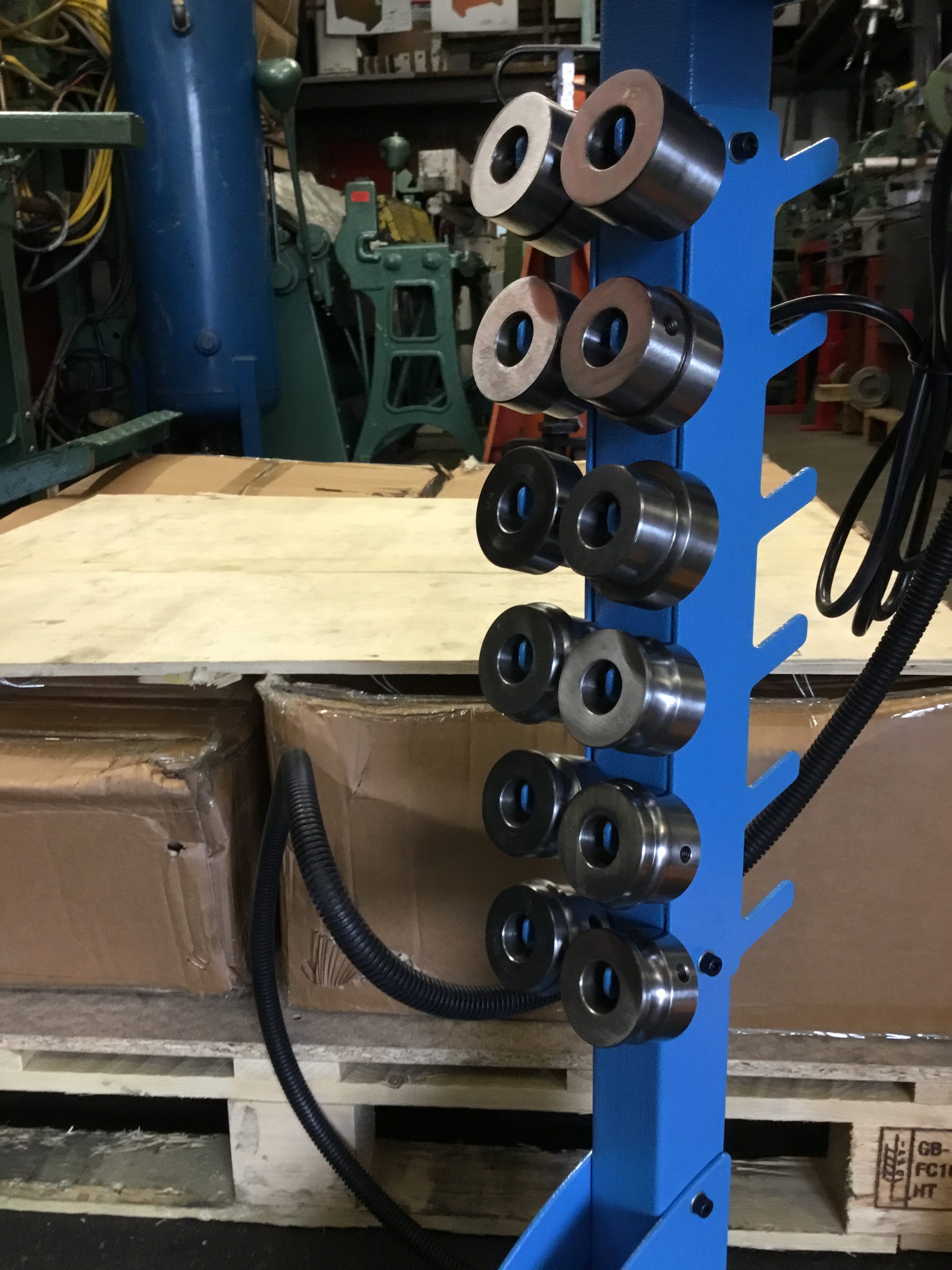

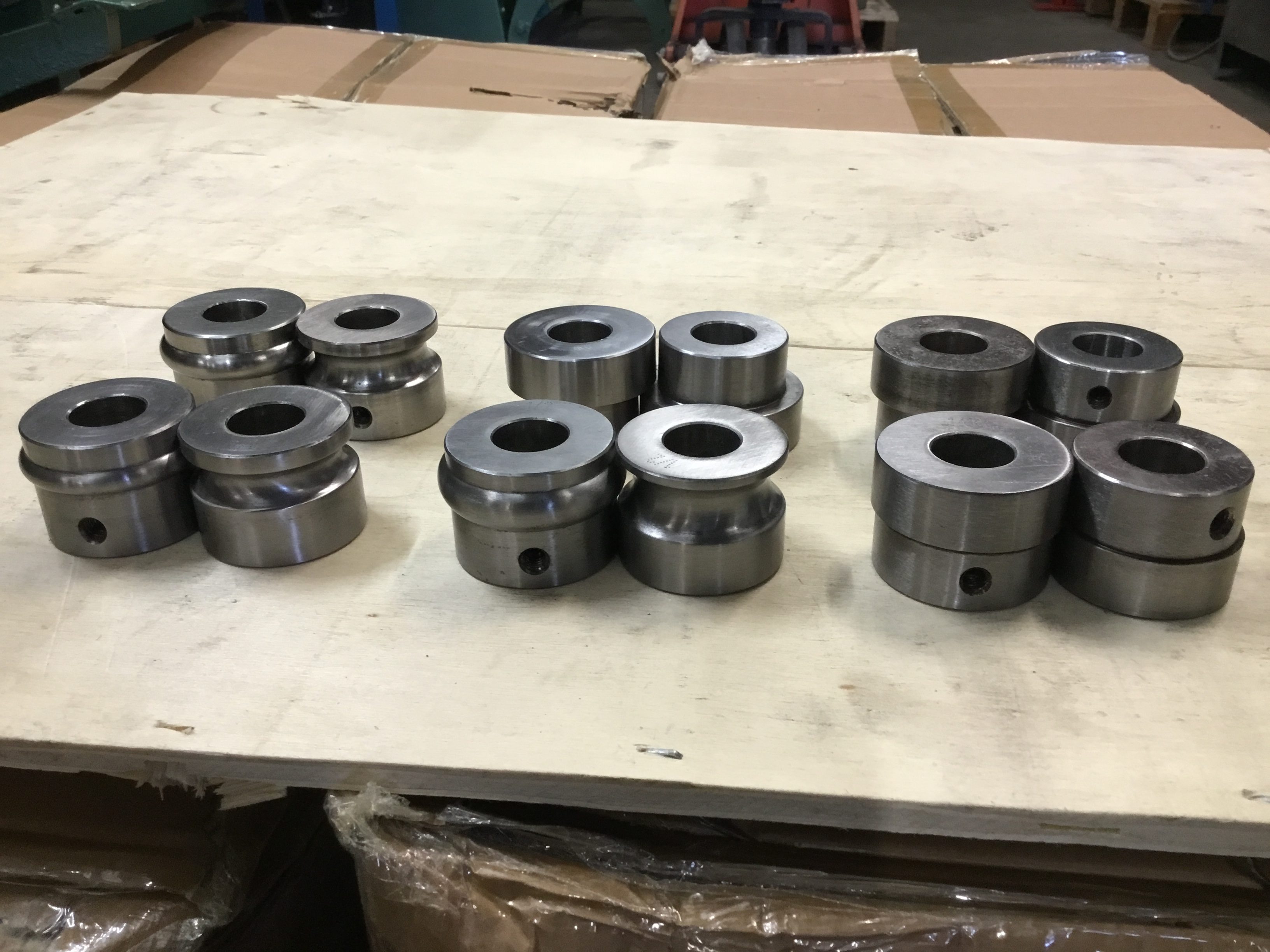

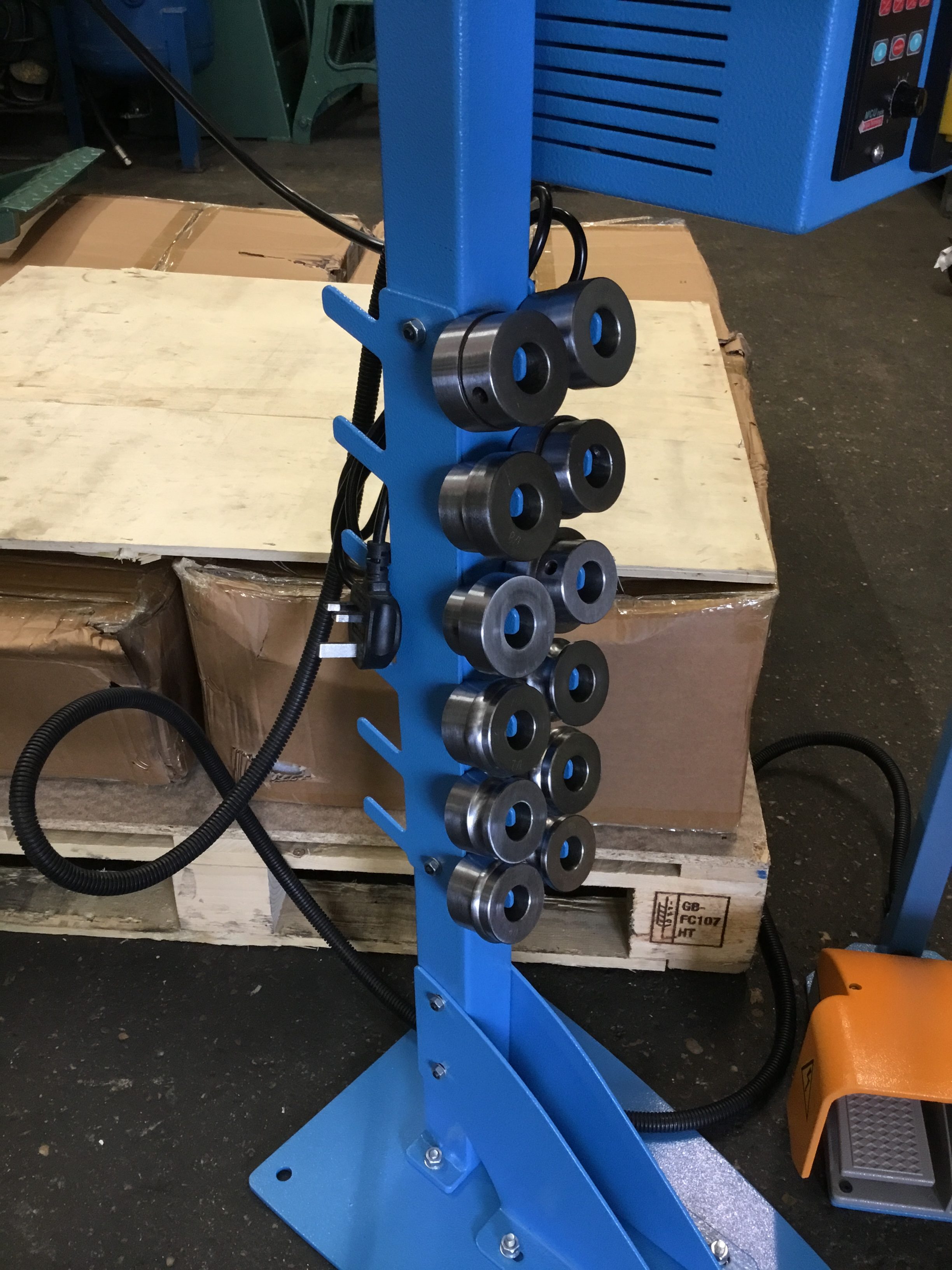

Round Bead/Swage Rolls (x 3): 6.35mm (1/4″) 9.0mm (3/8″) 12.7mm (1/2″)
Flange/Stepped Rolls (x 3): 1.6mm (1/16″) 3.0mm (1/8″) 6.35mm (1/4″)
Shearing Rolls (x 1): 1 Set
Roll – Inside Diameter: 22mm
Roll – Outside Diameter: 50-55mm
Shaft Diameter: 22mm
Direction: Forward & Reverse Foot Pedal
Speed – Variable: 0 – 17rpm
Motor Power: 250w
Supply Voltage: 240v, Single Phase, 50Hz
Dimensions – machine (apx): 1150mm x 350mm x 1250mm (l x w x h)
Dimensions – packaging (apx): 1150mm x 480mm x 200mm (l x w x h)
Weights – net/gross (apx):  63Kg/66Kg

*Subject to rolls **please see Terms & Conditions. ***fees apply.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
