WNS Bead Roller Rolls 22mm ID

  • 22mm Inside Diameter/Bore
  • Suitable for 22mm Shaft Bead Rollers
  • Choice of 12 Types of Rolls:
  • Tanking
  • Jenny/Flange
  • Swage
  • Hem
  • Spoiler
  • Louver
  • Tipping
  • Angle
  • Round Bead
  • Step
  • Worldwide Delivery*

Description

WNS BEAD ROLLER ROLLS are compatible with all electrical & manual WNS Bead Rollers with a 22mm diameter shaft. Rolls/dies available include tanking, jenny/flange, swage, hem, spoiler, louver, tipping, angle, round bead & step rolls.

N.B. These rolls are sold as individual sets (2 rolls per set).

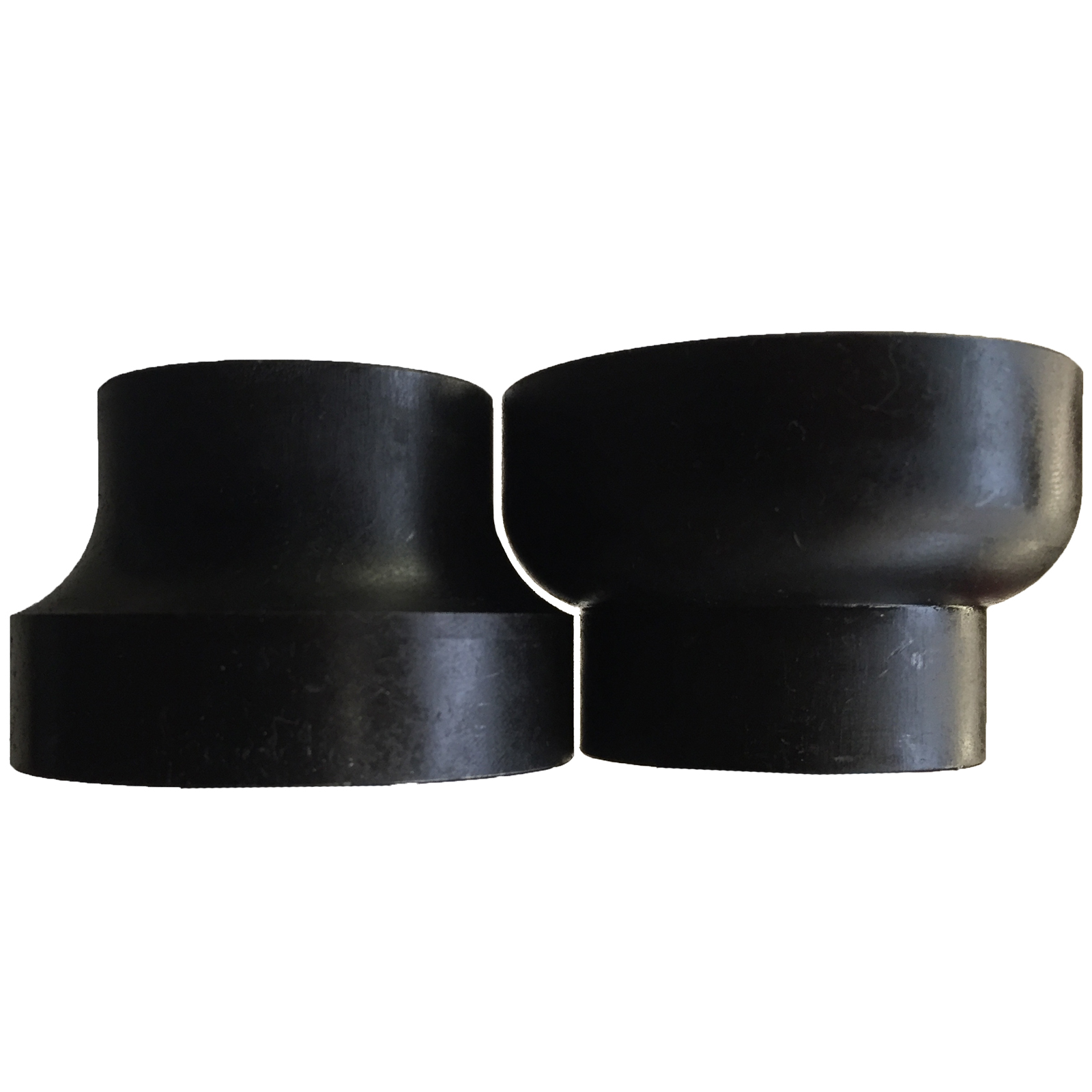

Tanking Rolls (TAN15-22)
WNS Bead Roller Tanking Rolls are often used to roll a radius on the end of a fuel tank. They can also stiffen sheet metal up to the maximum capacity of the bead roller being used. These rolls are ideal for edge flares when joining two panels together and also create a fantastic finish when two sheets are tank rolled to 45 degrees and butt welded together at 90 degrees.

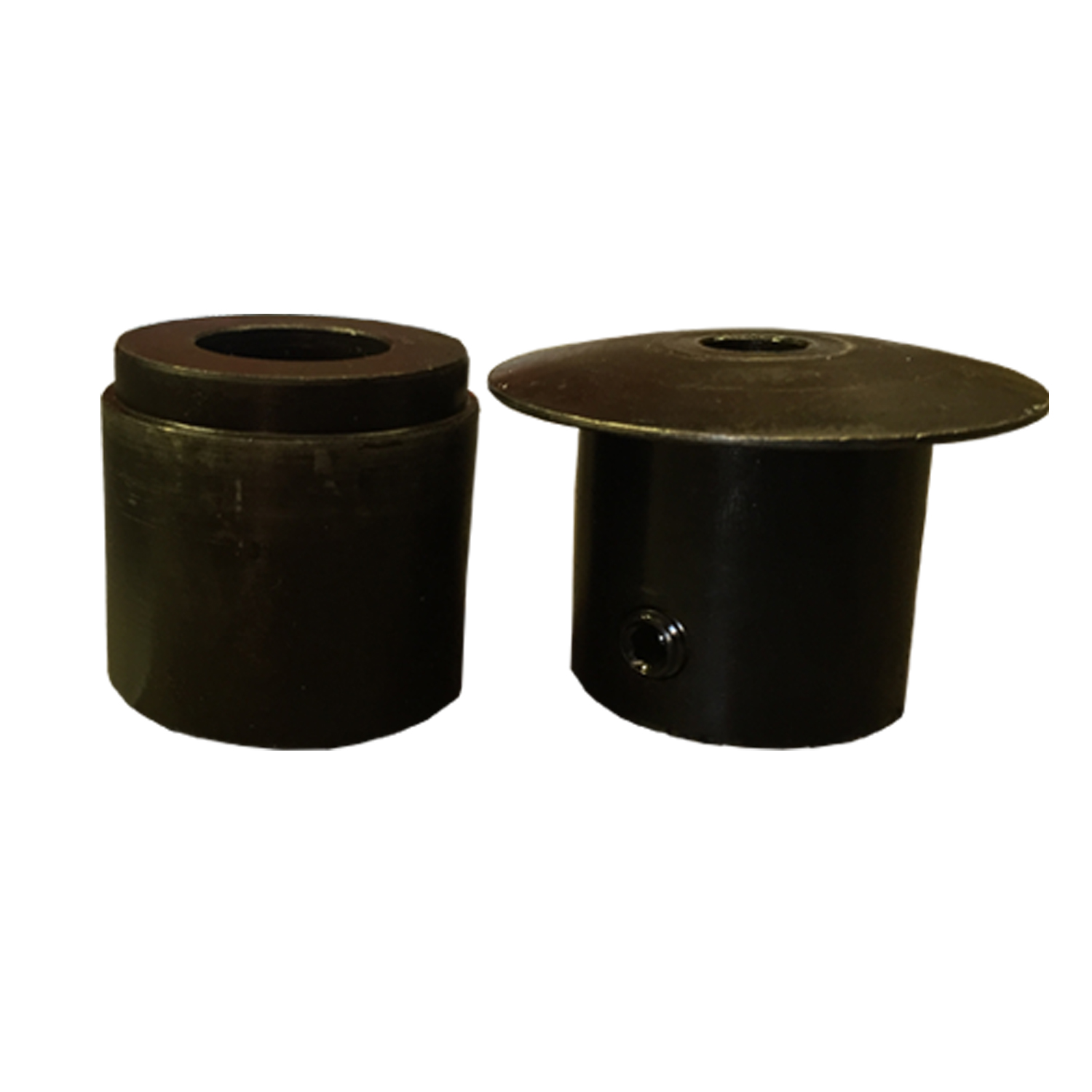

Jenny/Flange Rolls (JEN00-22)
WNS Bead Roller Jenny/Flange Rolls are principally used to strengthen metal panels by creating ridges and upstands in sheet metal. Jenny wheels are indispensable for the fabrication of race car interiors, fuel tanks, body panels etc.

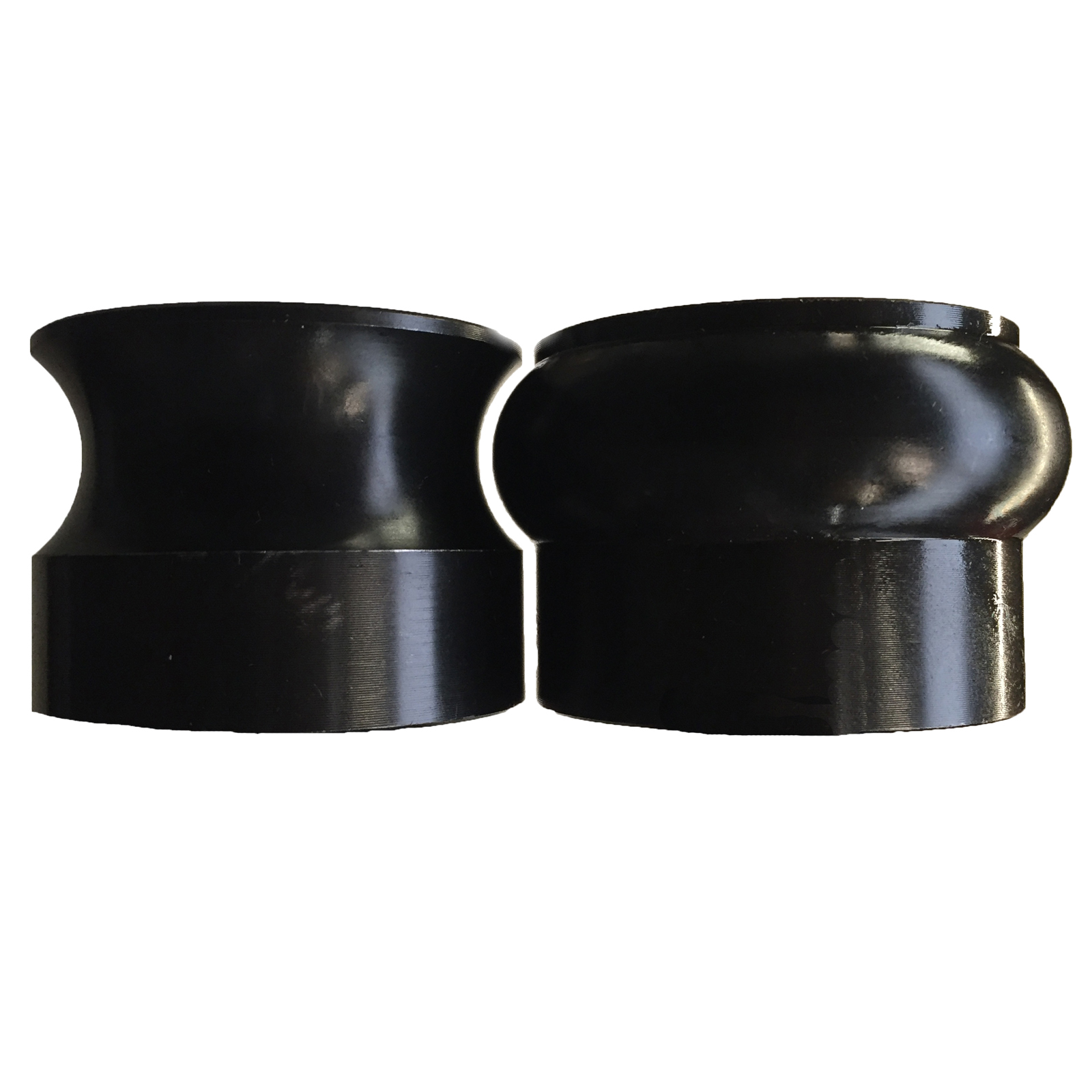

Swage/Round Bead Rolls (SWA24-22, SWA28-22, SWA32-22) / (RND19-22)
WNS Bead Roller Swage Rolls & Round Bead Rolls both create a round bead in a piece of sheet metal in order to add strength, or to stiffen the material, generally formed parallel to the outer edge of the workpiece.

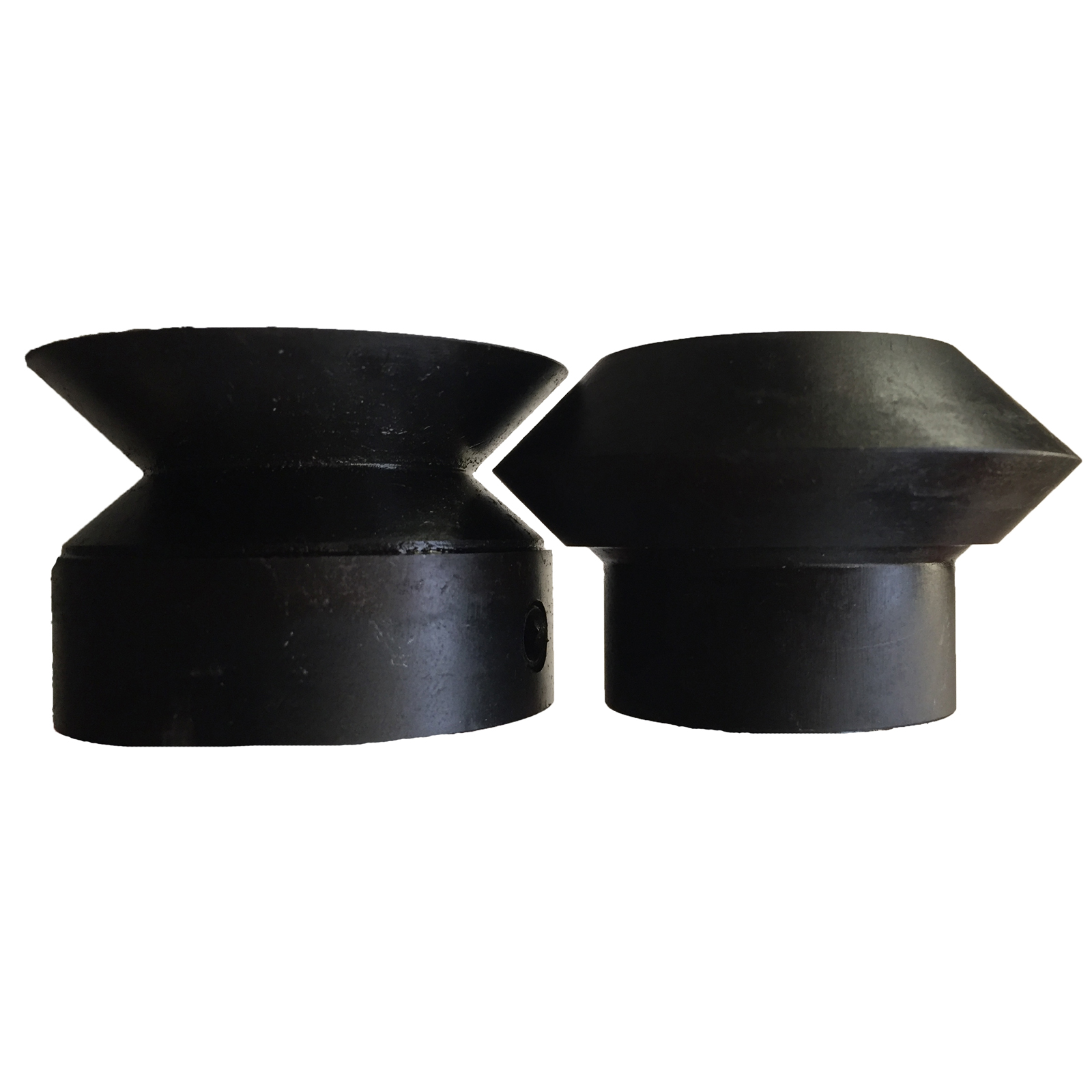

Hem Rolls (HEM00-22)
WNS Bead Roller Hem Rolls create rounded return edges on sheet metal panels to create a stronger, safer, and overall, more professional appearance. Hem rolls have an integrated guide to keep the edge consistent.

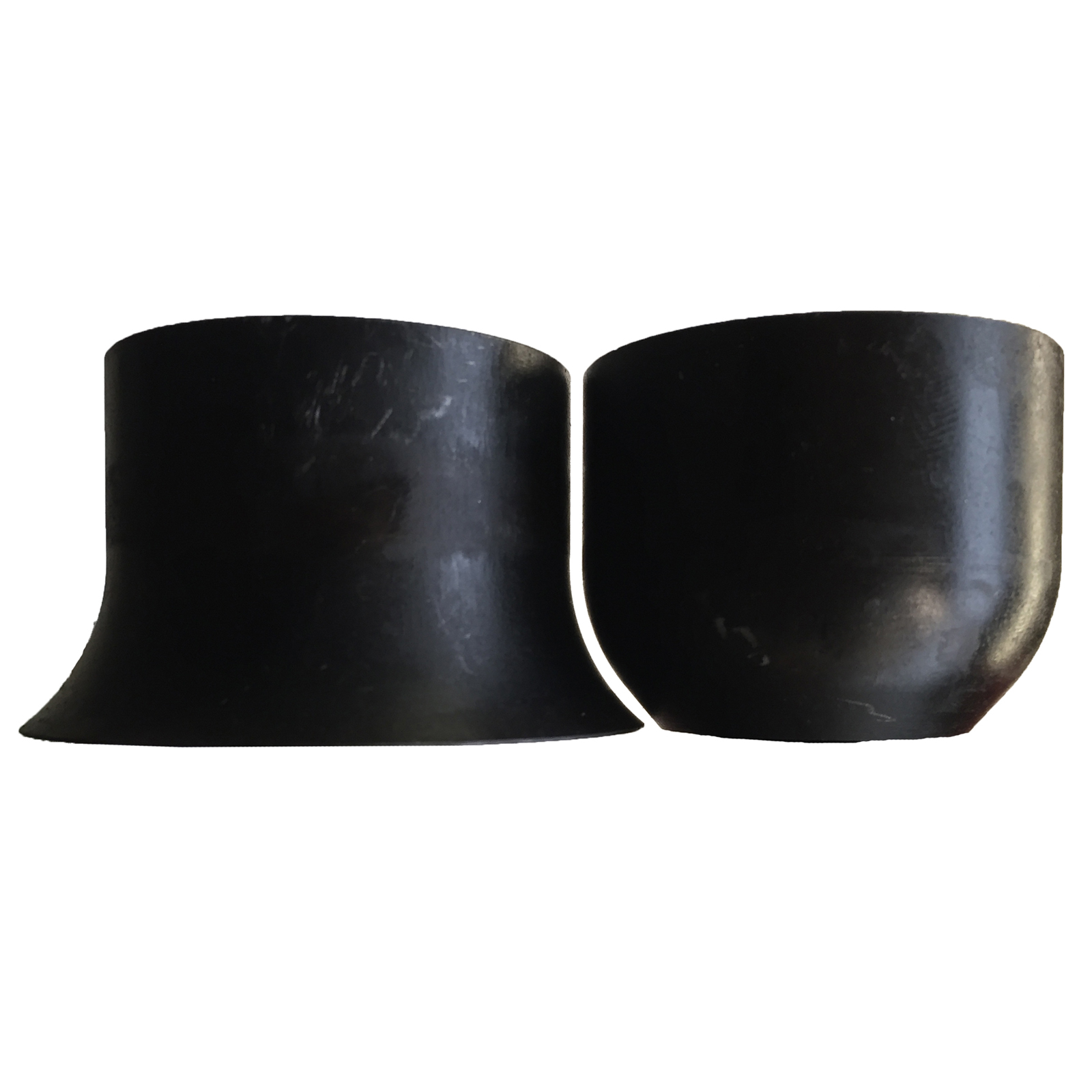

Spoiler Rolls (SPO00-22)
WNS Bead Roller Spoiler Rolls are used to create a long gradual radius in sheet panels, giving additional strength by stiffening the material. Effectively this creates a spoiler on the edge of the workpiece.

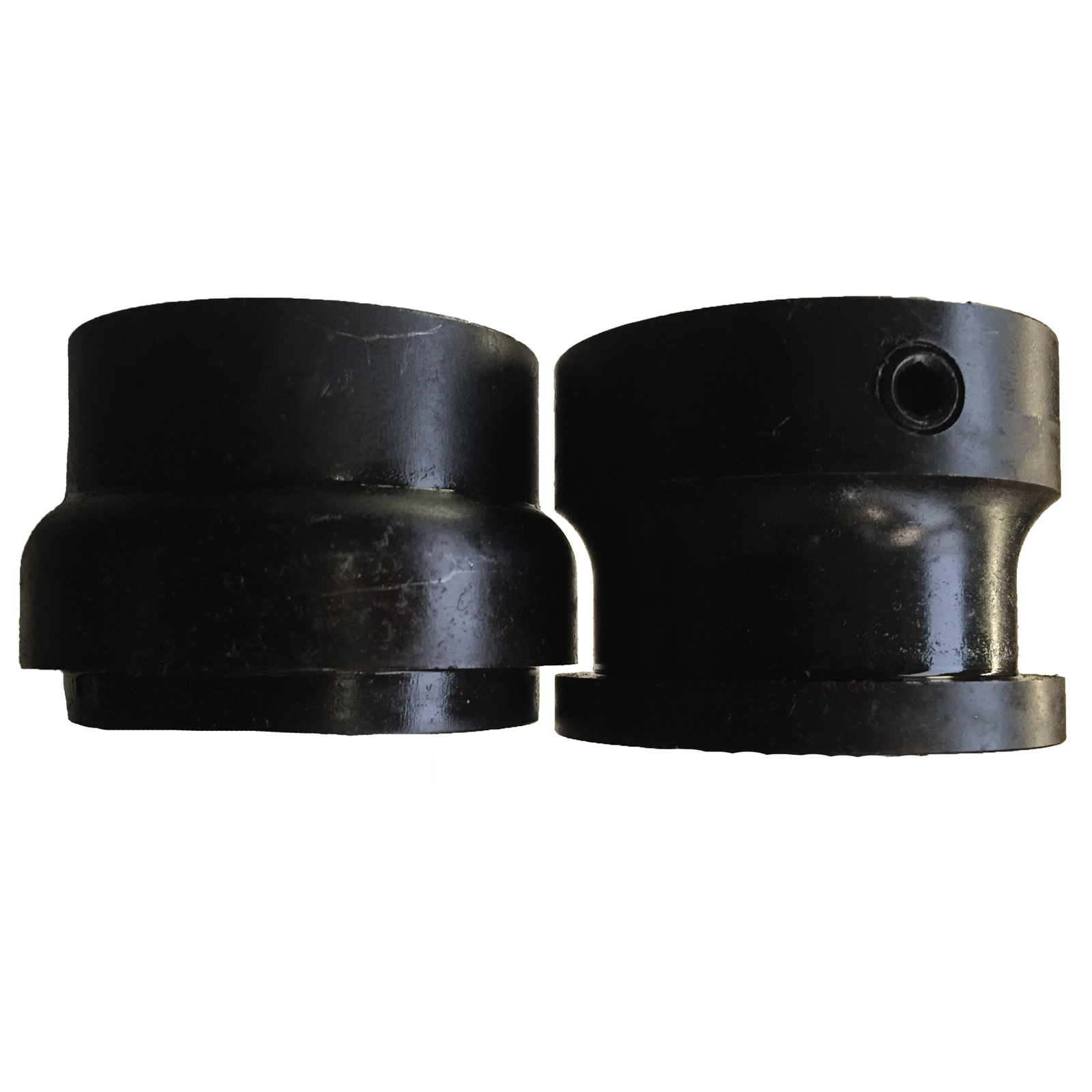

Louver Rolls (LOU00-22)
WNS Bead Roller Louver Rolls create louvers in sheet metal of any length. This is achieved by passing the sheet through the rolls multiple times to slice, and progressively form the louver profile.

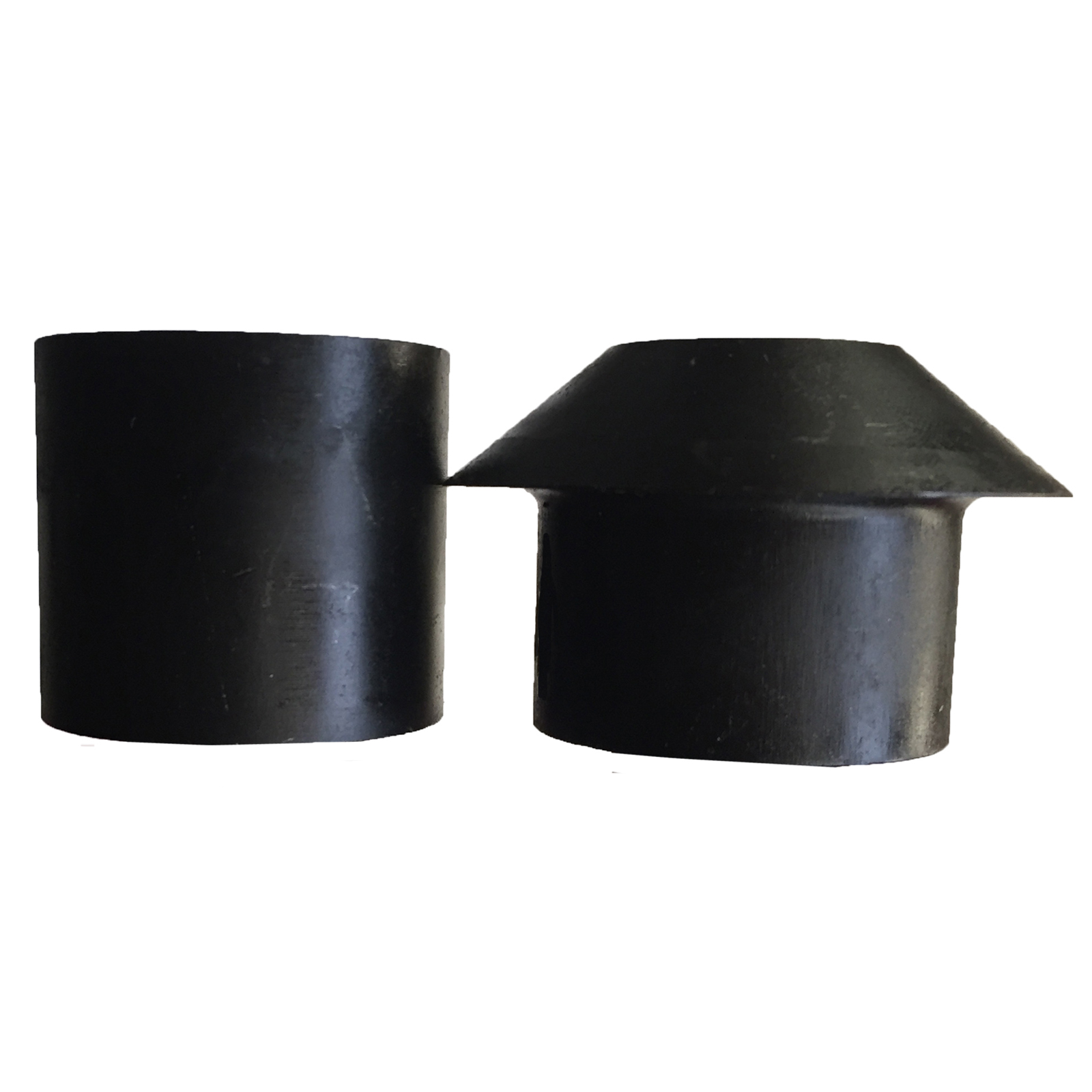

Tipping Rolls (TIP00-22)
WNS Bead Roller Tipping Rolls allow you to make tight creases in a piece of sheet metal. They are used to sharpen 90 degree bends to create a cleaner edge, or to bend a flange.

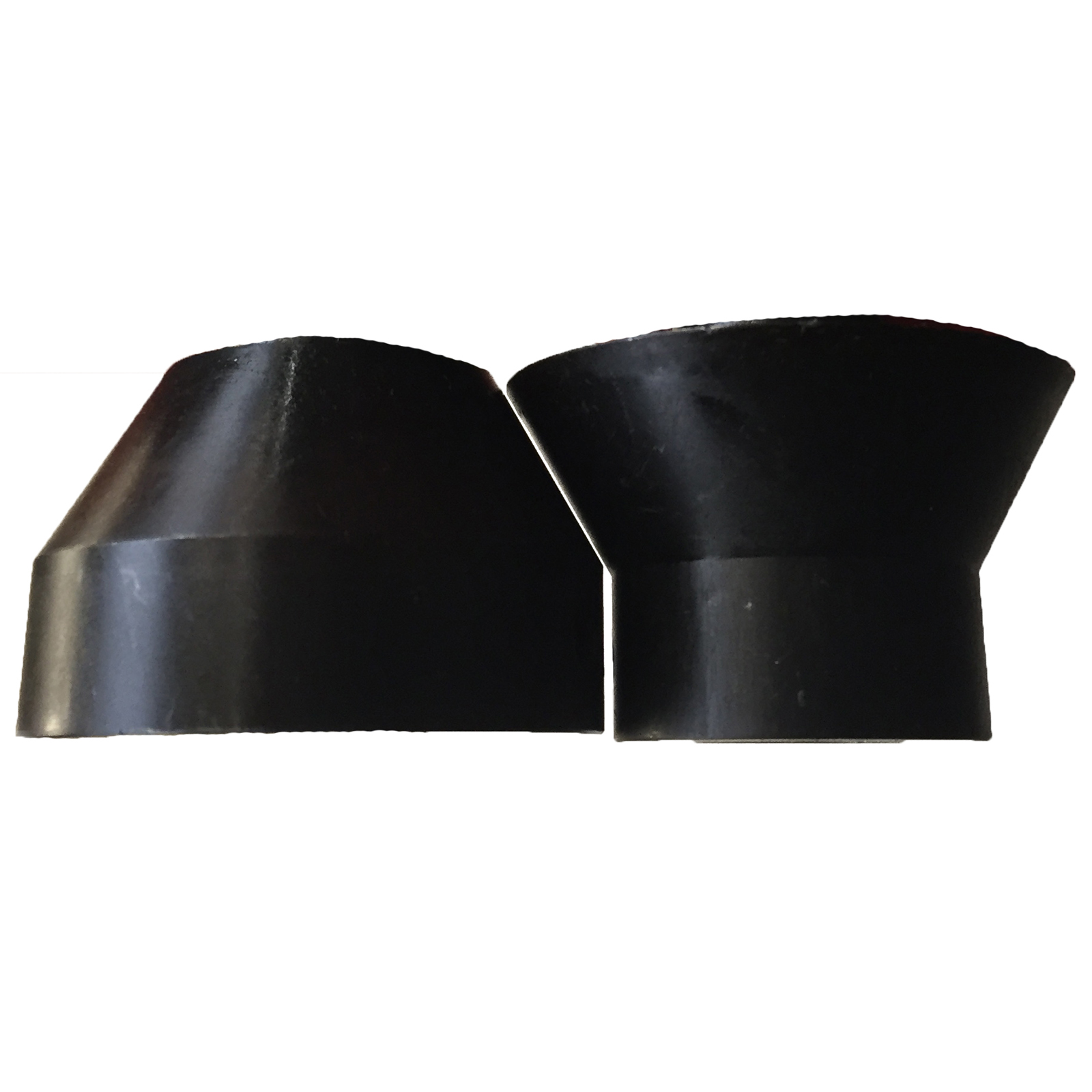

Angle Rolls (ANG30-22)
WNS Bead Roller Angle Rolls are used to create a 30 degree elevation in a piece of sheet metal.

Step Rolls (STP45-22)
WNS Bead Roller Step Rolls are principally used to add strength, function, and style to custom parts. These rolls form steps in sheet metal to make it easier to smoothly overlap metal without leaving a ‘weak spot’ along the joint.





Additional information

Weight N/A
Bead Roller Rolls

Tanking Rolls – 15mm Radius (TAN15-22), Jenny/Flange Rolls (JEN00-22), Swage Rolls – 24mm Bead (SWA24-22), Swage Rolls – 28mm Bead (SWA28-22), Swage Rolls – 32mm Bead (SWA32-22), Hem Rolls – 3/8", 90° (HEM00-22), Spoiler Rolls (SPO00-22), Louver Rolls – 16mm (LOU00-22), Tipping Rolls (TIP00-22), Angle Rolls – 30° (ANG30-22), Round Bead Rolls – 19mm (RND19-22), Step Rolls – 45° (STP45-22)

SPECIFICATIONS
Roll – Inside Diameter: 22mm
Roll – Outside Diameter: 50-55mm
Material: #45 Steel (Tempered not hardened)
Fixing: Grub Screws needed



ROLLS AVAILABLE
Tanking Rolls TAN15-22 15mm Radius
Jenny/Flange Rolls JEN00-22
Swage Rolls SWA24-22 24mm Bead
SWA28-22 28mm Bead
SWA32-22 32mm Bead
Hem Rolls HEM00-22 3/8″, 90°
Spoiler Rolls SPO00-22
Louver Rolls LOU00-22 16mm
Tipping Rolls TIP00-22
Angle Rolls ANG30-22 30°
Round Bead Rolls RND19-22 19mm
Step Rolls STP45-22 45°

*fees apply.

All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE
