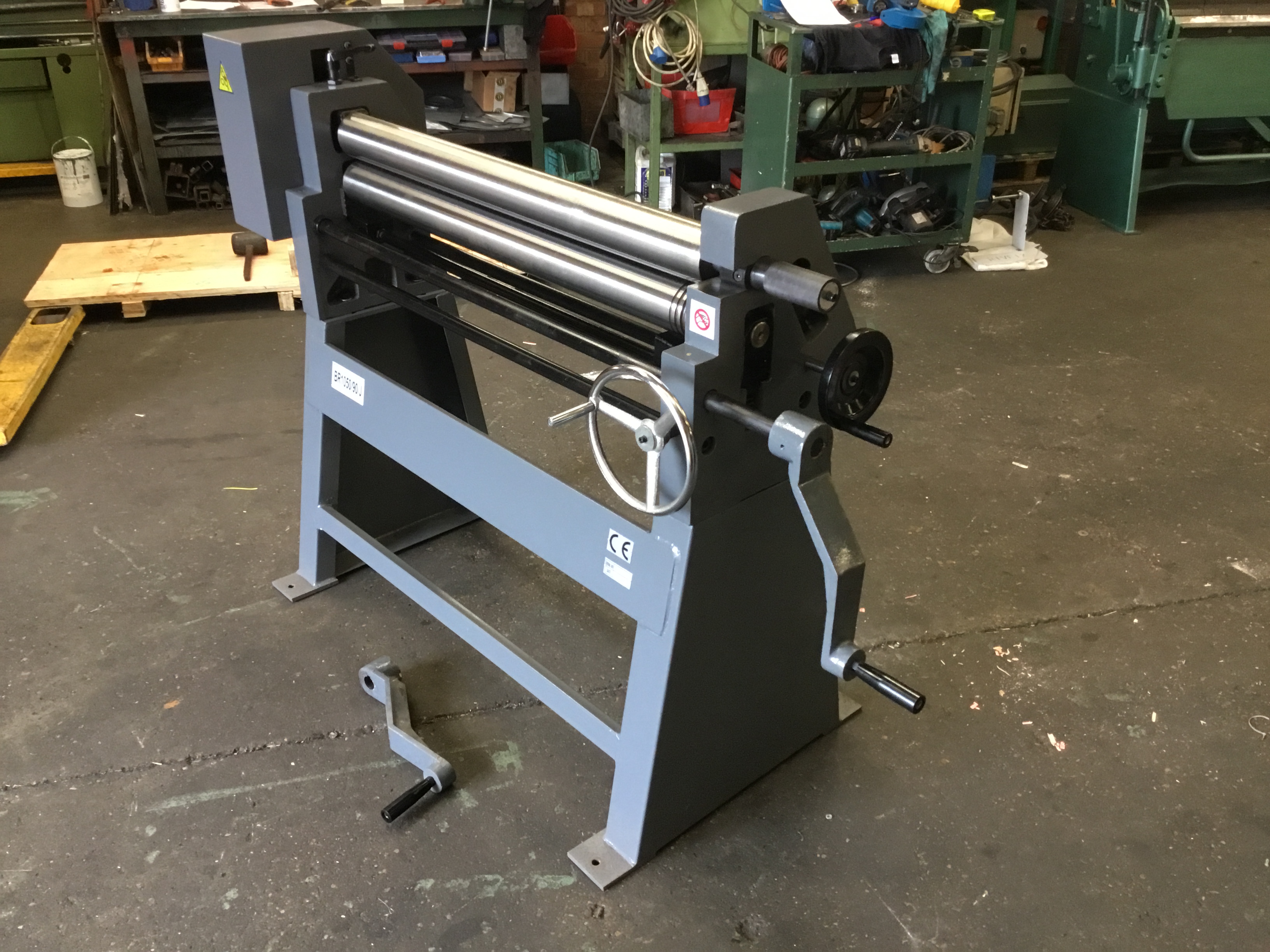

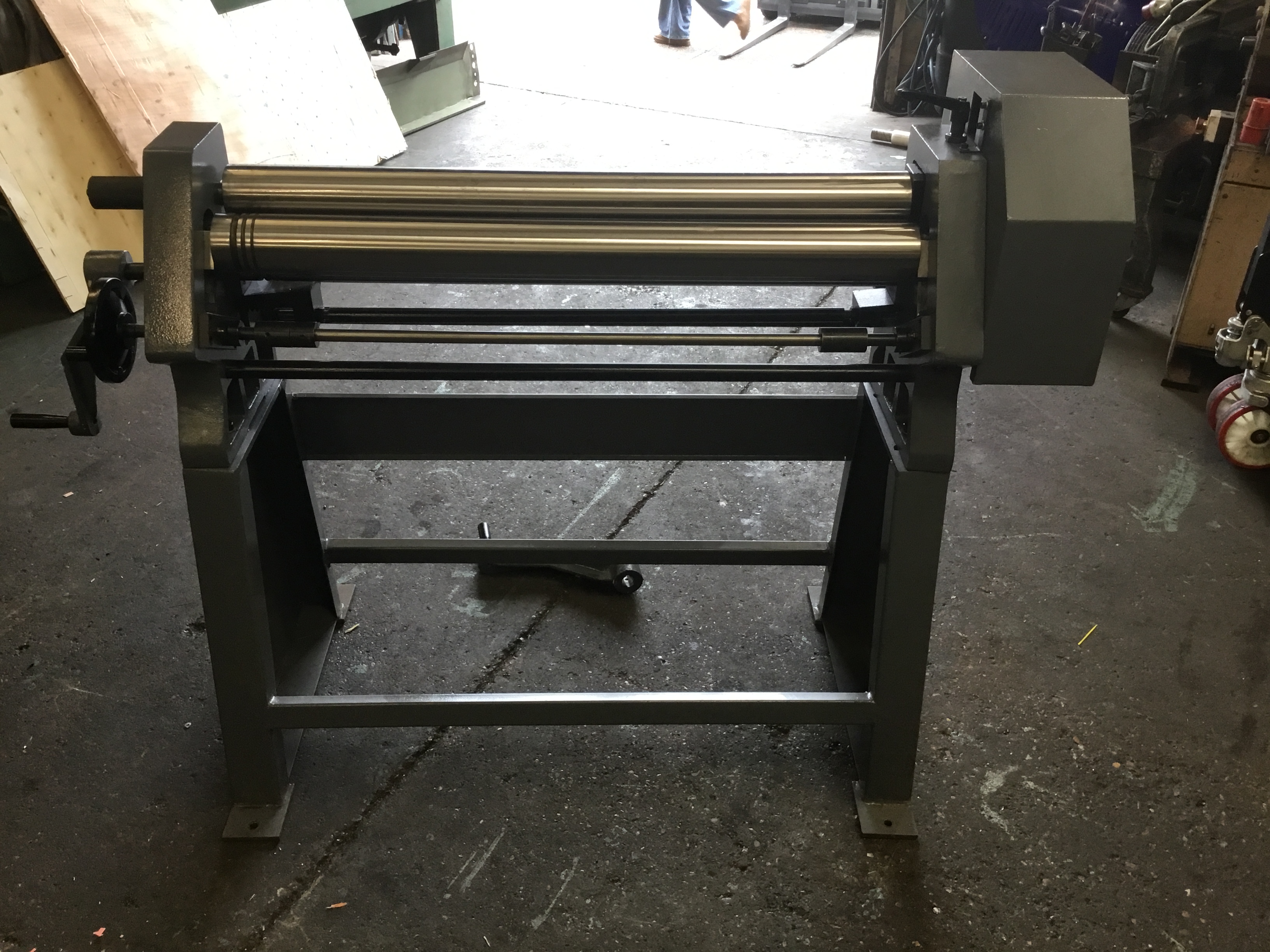

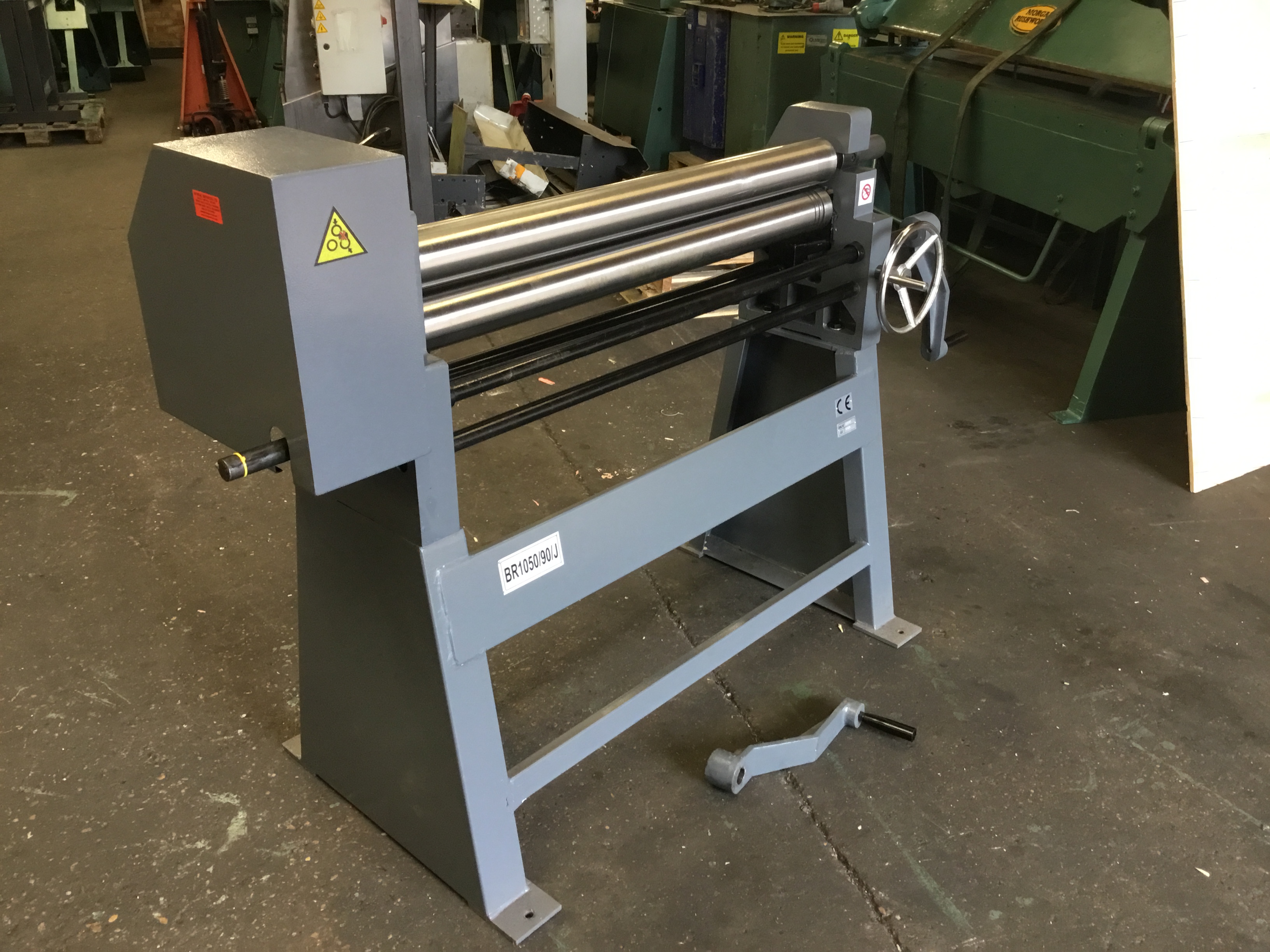

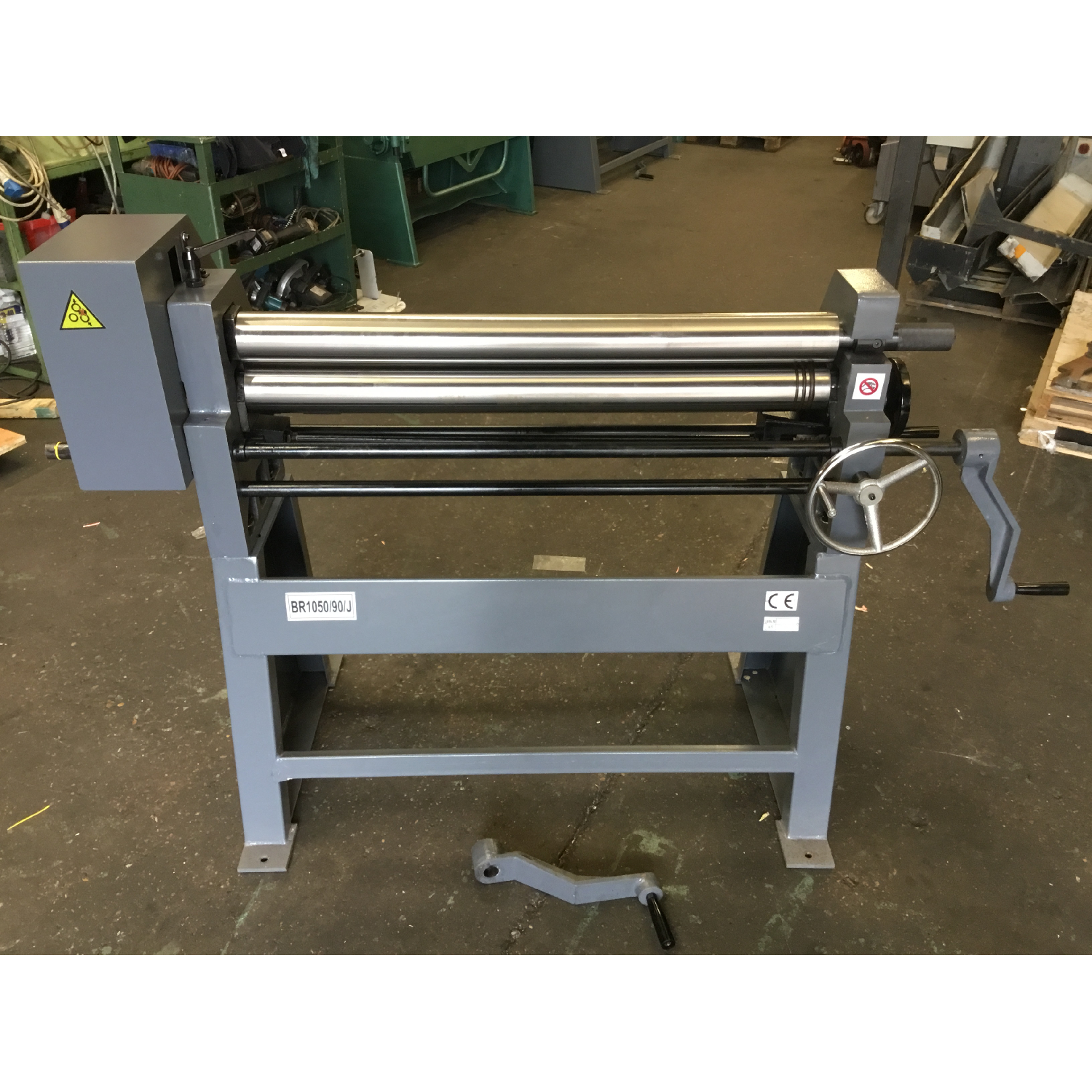

WNS INITIAL PINCH HAND BENDING ROLLS (BR1050/90J-1) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. This machine has a 1050mm roll length, 90mm roll diameter and can accommodate mild steel up to 2.5mm thick. These rolls are equipped with 3 wiring grooves and top slip with a quick release top roll. They also feature a quick back roll adjustment, cast iron roll end frame and a fabricated steel stand.
These bending rolls are manufactured with high strength steel rolls and hardened steel gears for ease of forming heavier/thicker gauged materials with a 4:1 ratio.
USED
This is a used machine (nearly new!) and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our available bending rolls, please click here.
To view all of our Used/Reconditioned machines please click here.
| SPECIFICATIONS | |
| Model: | Â BR1050/90J-1 |
| Roll Size: | 1050mm Roll Length x 90mm Roll Diameter |
| Maximum Thickness: | 2.5mm Mild Steel |
| Rolls: | Top Slip |
| Wiring Grooves (x 3): | 4.0mm |
| 6.0mm | |
| 10mm | |
| Stand: | Fabricated Steel |
| Roll End Frame: | Cast Iron |
| Dimensions – machine (apx): | 1740mm x 670mm x 1220mm (l x w x h) |
| Weight – net (apx): | 260Kg |
*please see Terms & Conditions. **fees apply.
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
