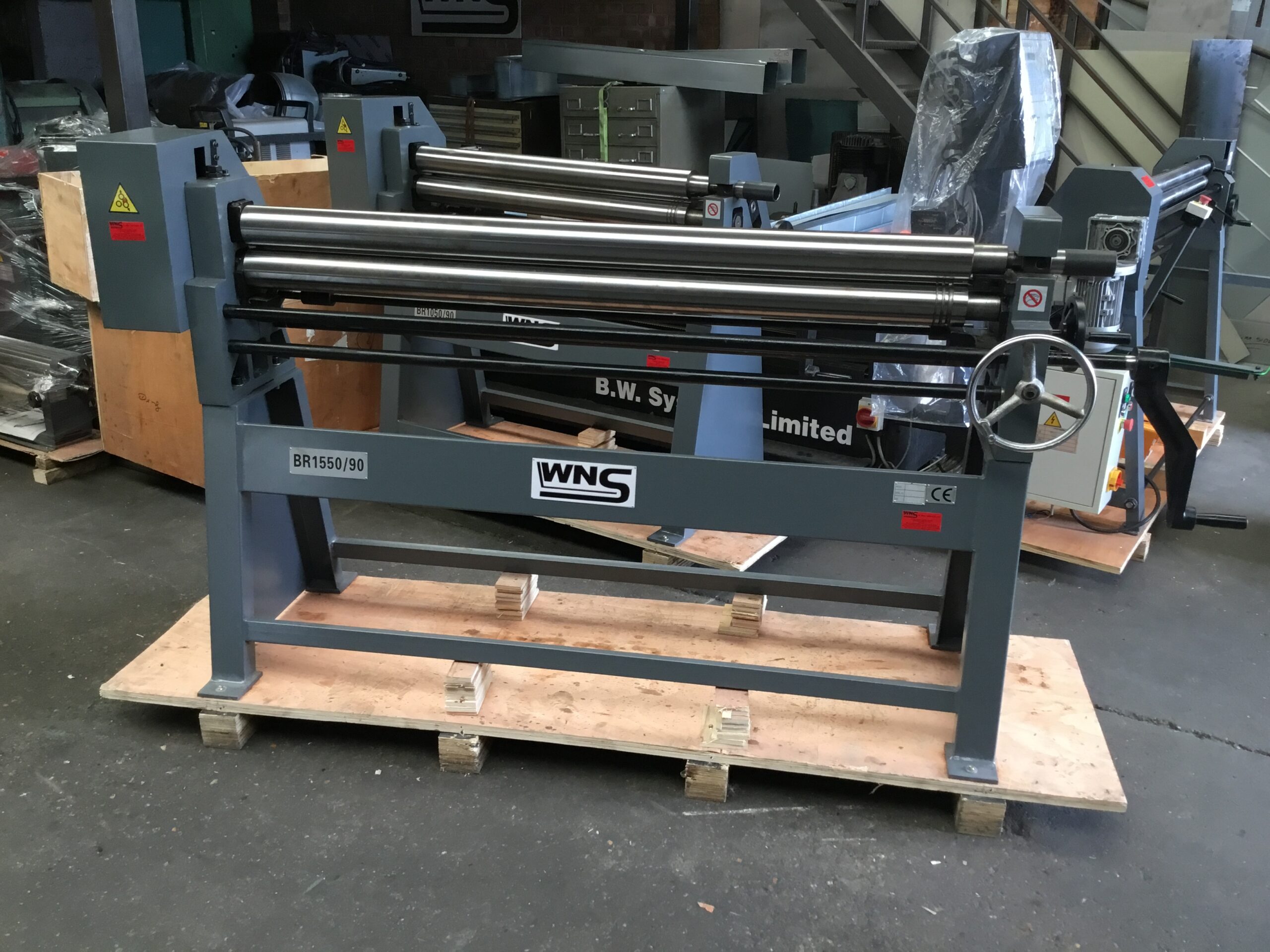

WNS Hand Bending Rolls 1550mm x 90mm

  • 1550mm Roll Length
  • 90mm Roll Diameter
  • 3.0mm Capacity Mild Steel

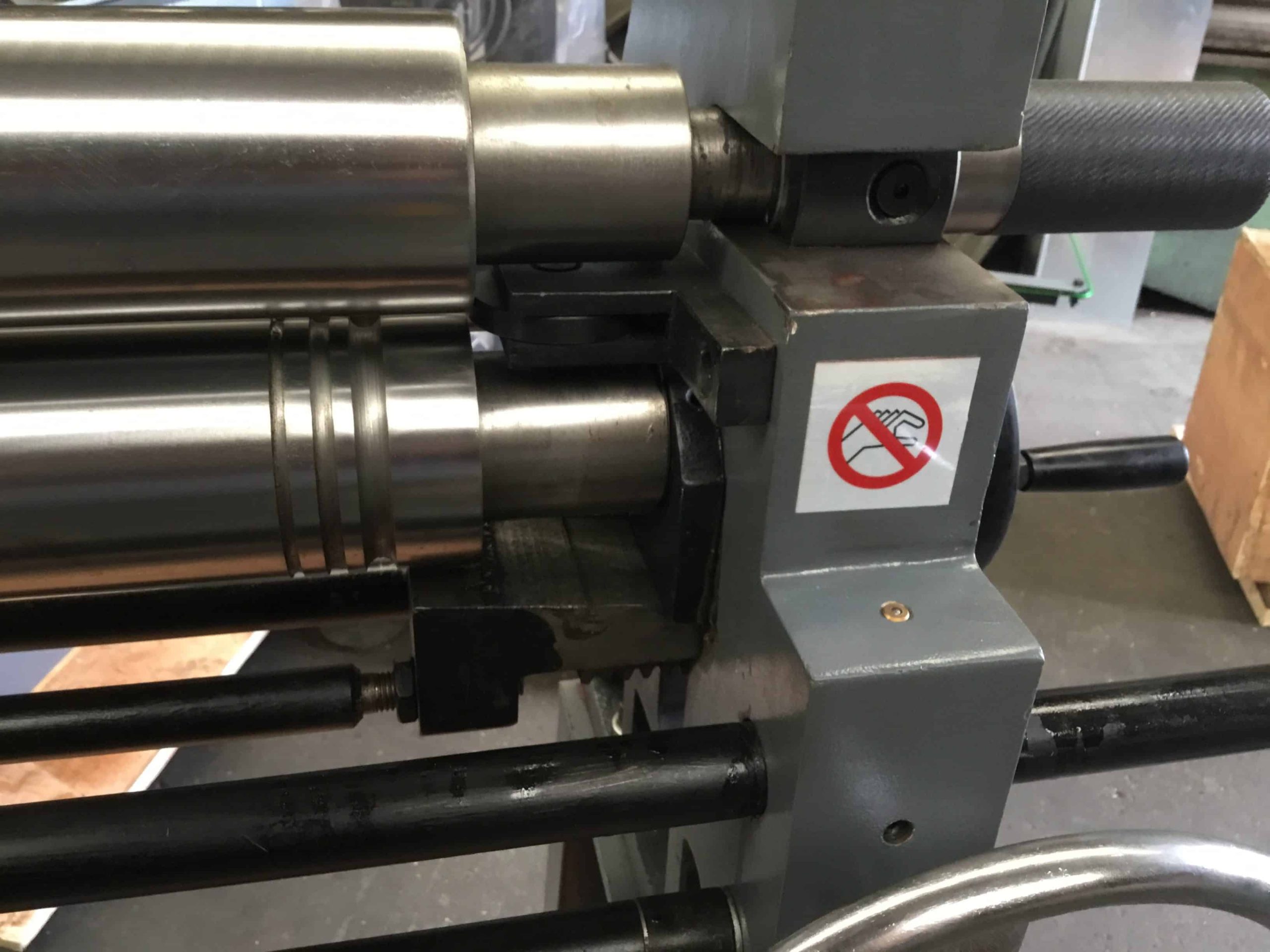

  • 3 x Wiring Grooves

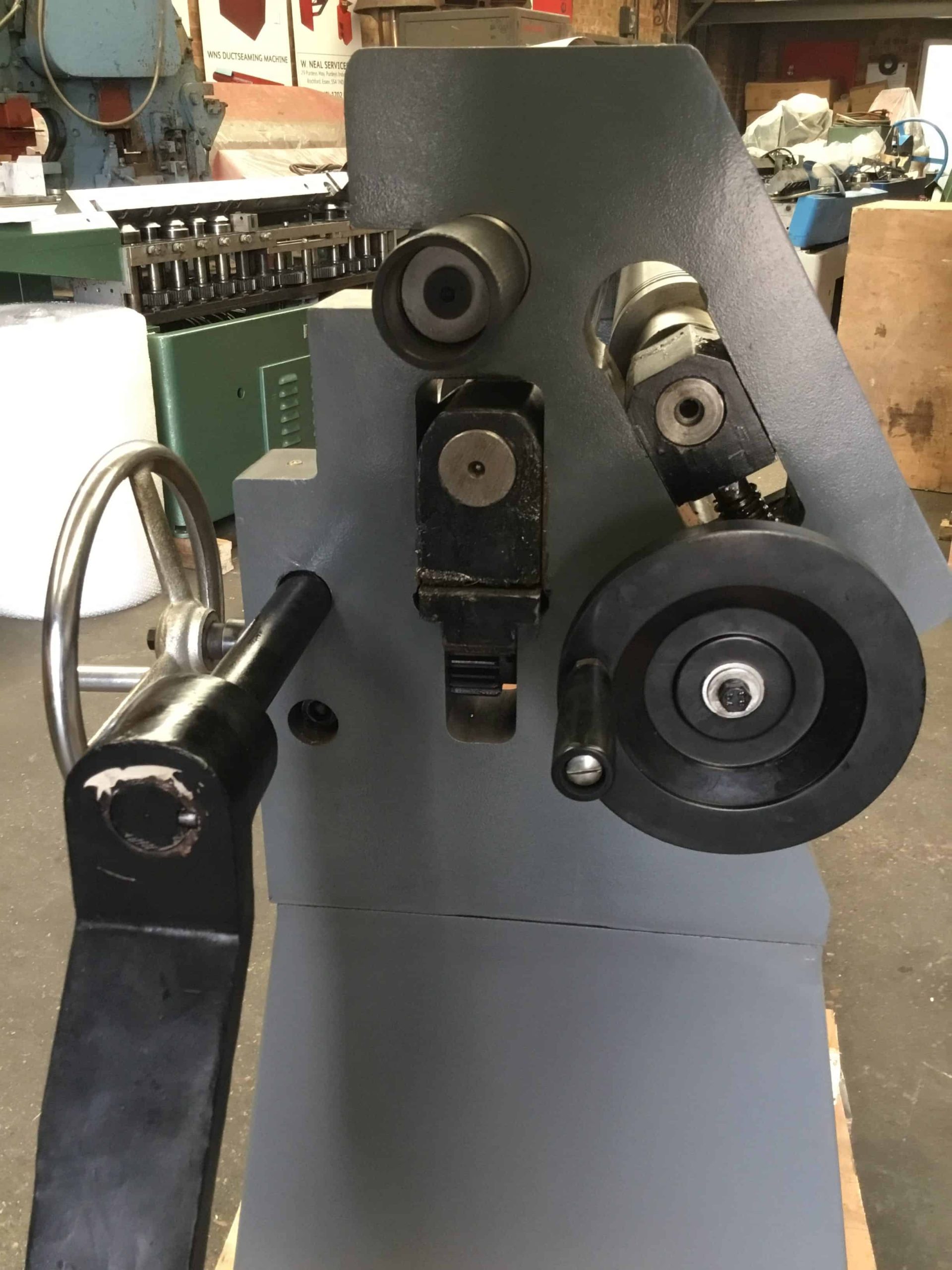

  • Top Slip with Quick Release Top Roll
  • Fabricated Steel Stand
  • Cast Iron End Frame
  • 12 Month Warranty*
  • Worldwide Delivery

Description

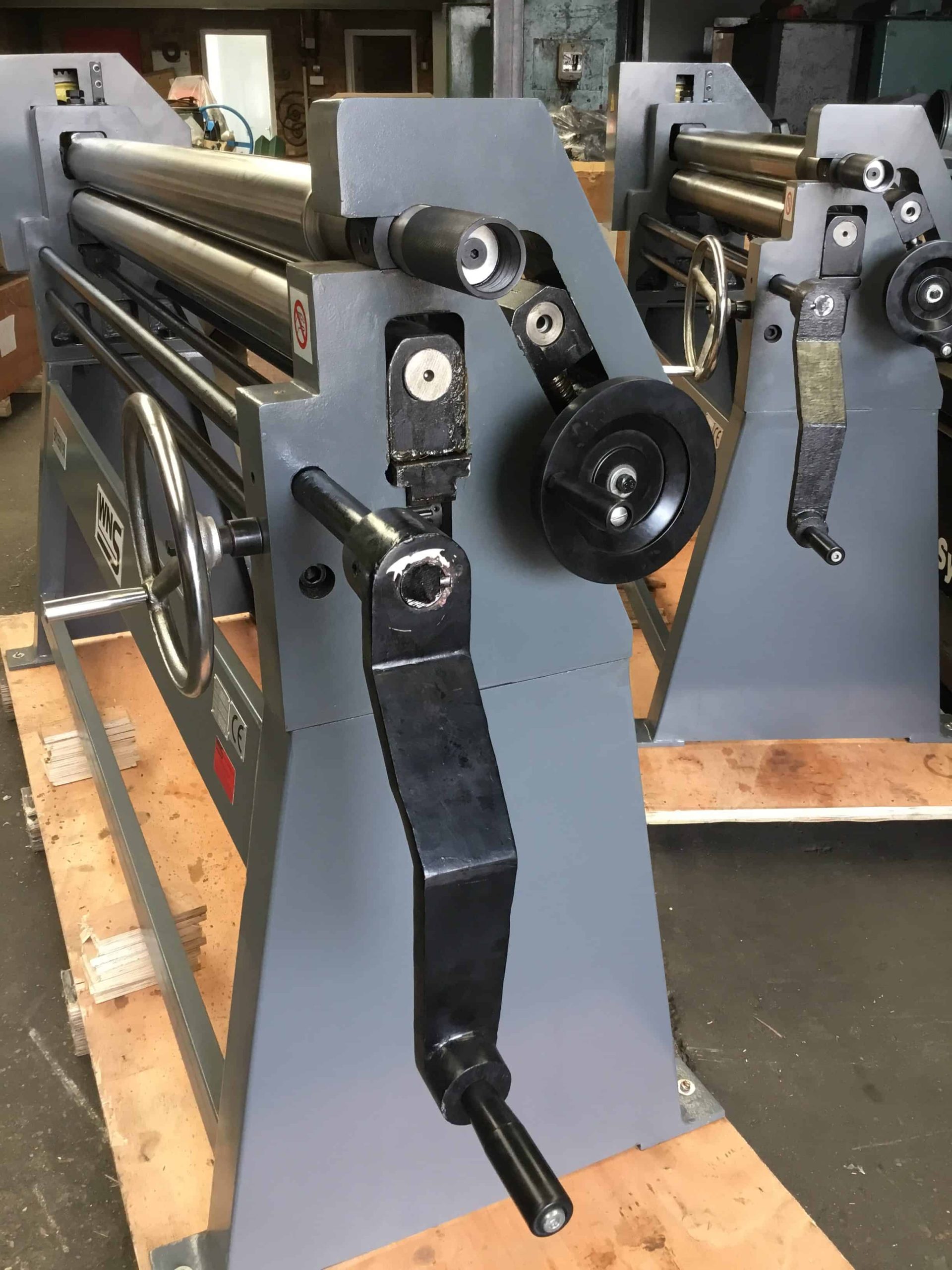

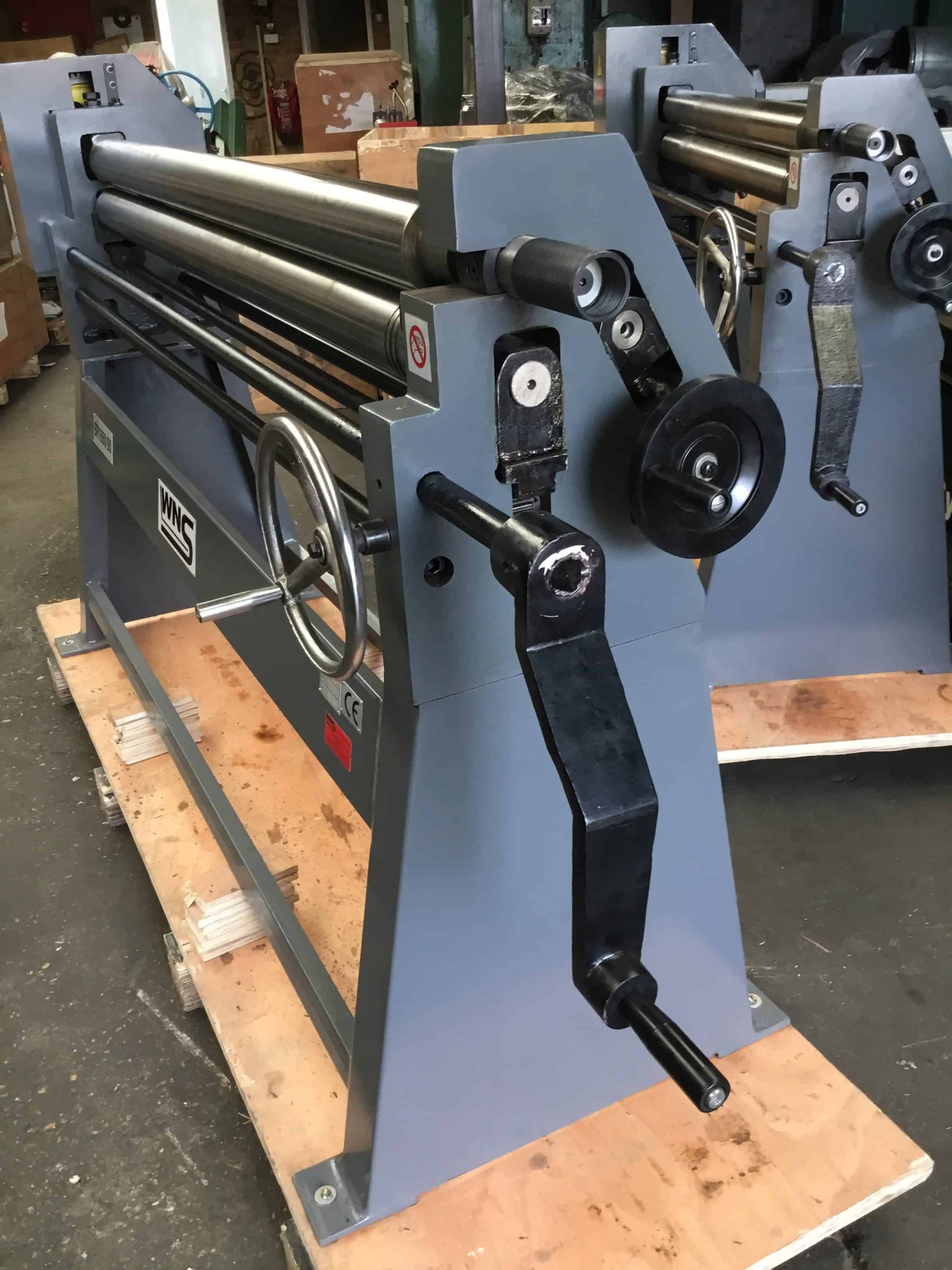

WNS INITIAL PINCH HAND BENDING ROLLS (BR1550/90J) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. The BR1550/90J has a 1550mm roll length, 90mm roll diameter and can accommodate mild steel up to 3.0mm thick. These rolls are equipped with 3 wiring grooves and have the following features: top slip with a quick release top roll, quick back roll adjustment, cast iron roll end frame, high strength steel rolls, hardened steel gears and a fabricated steel stand.





Additional information

Weight 1500 kg
SPECIFICATIONS
Model: BR1550/90J
Rolling Size: 1550mm Roll Length x 90mm Roll Diameter
Maximum Thickness: 3.0mm Mild Steel
Rolls: Top Slip
Wiring Grooves (x 3): 4.0mm
6.0mm
10mm
Stand: Fabricated Steel
Roll End Frame: Cast Iron
Dimensions – machine (apx): 2240mm x 690mm x 1310mm (l x w x h)
Dimensions – packing (apx): 2310mm x 710mm x 1370mm (l x w x h)
Weights – net/gross (apx): 400Kg/450Kg





All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
