WNS Heavy Duty Manual Ring Roller

£160.00

(excl. VAT)

WNS Heavy Duty Manual Ring Roller

£160.00

(excl. VAT)

WNS Heavy Duty Manual Ring Roller

£160.00

(excl. VAT)

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

  • Manual Ring Roller
  • Flat Bar
  • Round Bar
  • Square Bar
  • Round Tube
  • 4 x Wiring Grooves
  • Position Gauge & Depth Stop
  • 12 Month Warranty*
  • Worldwide Delivery**

Description

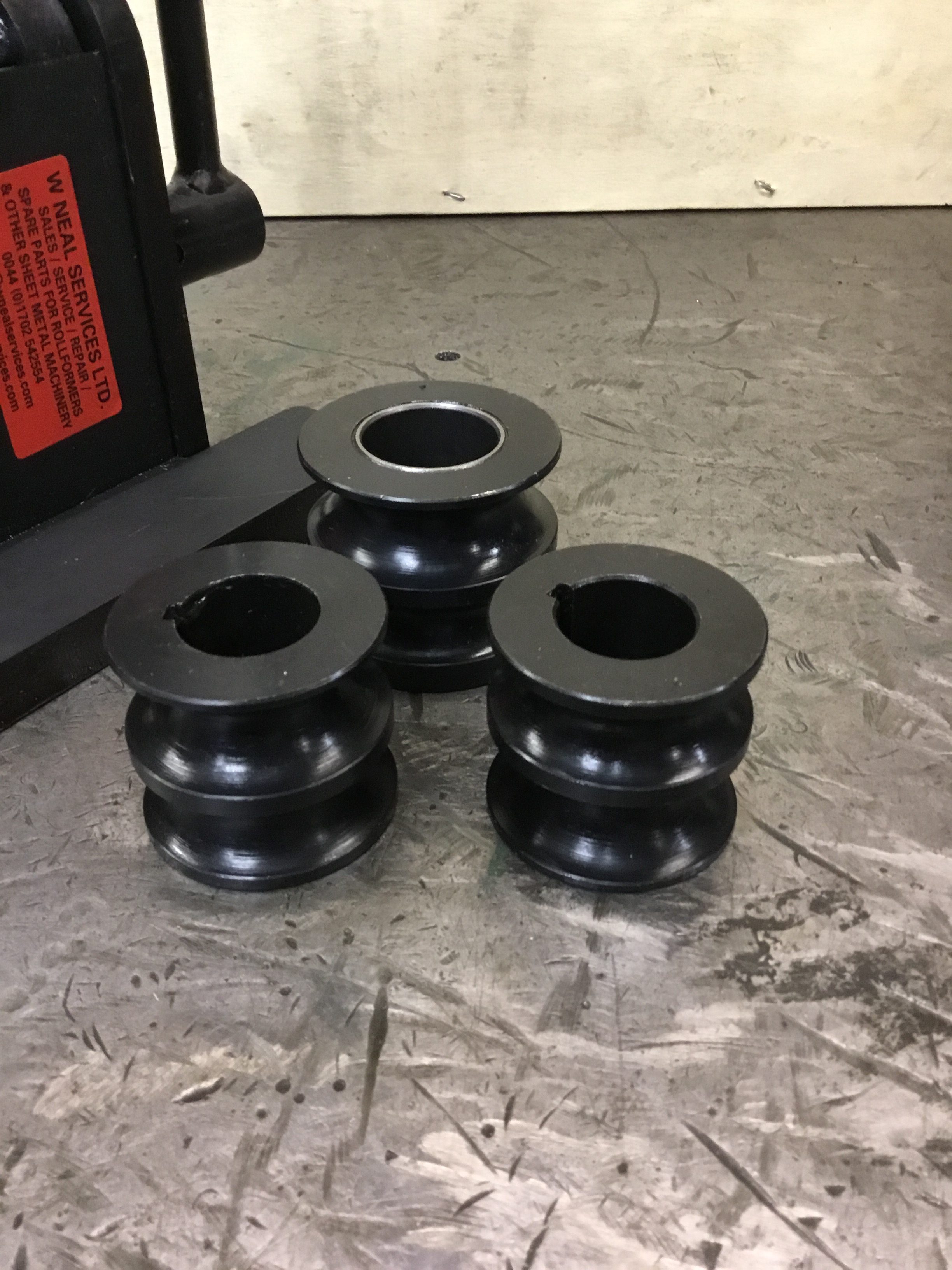

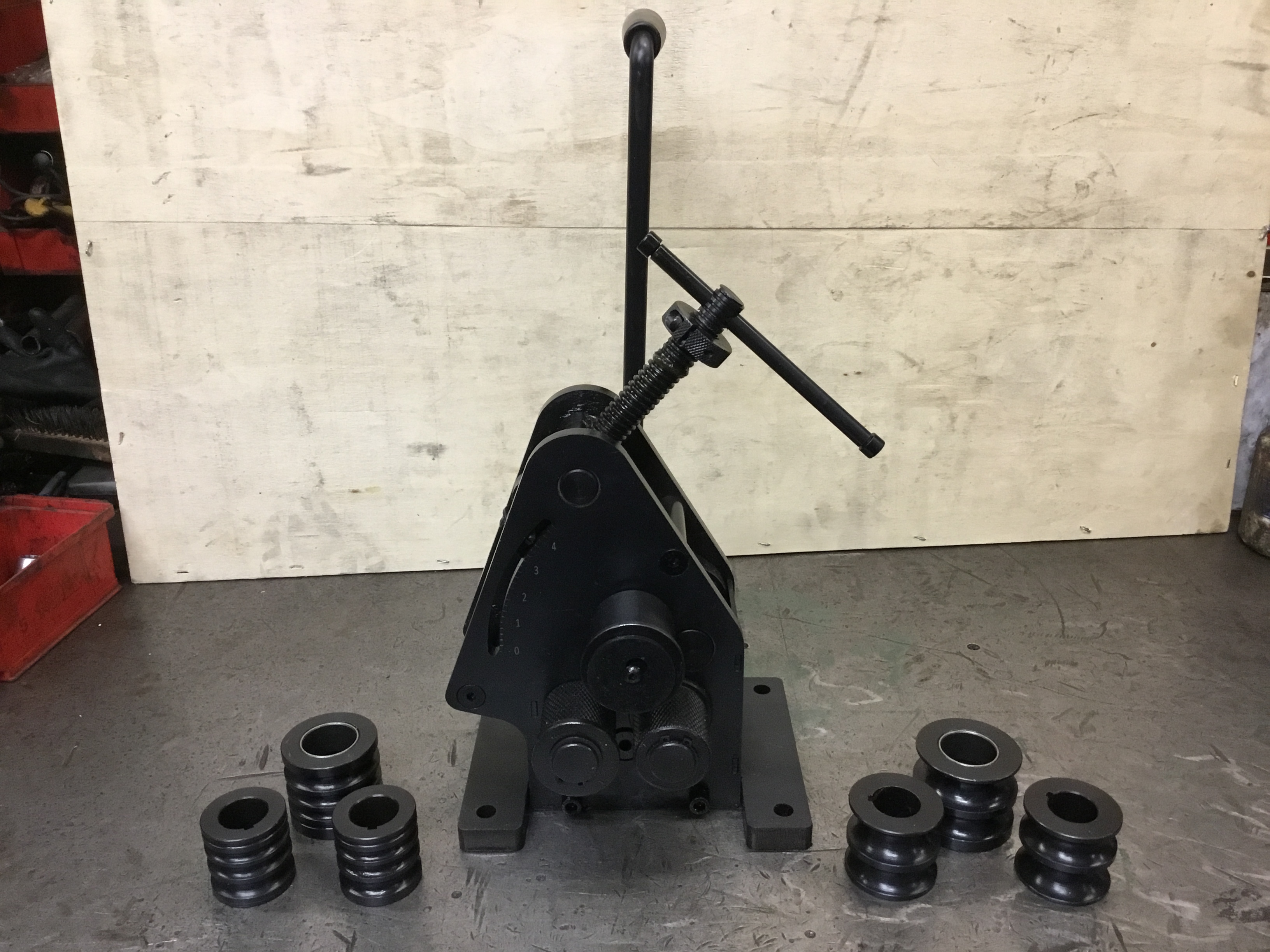

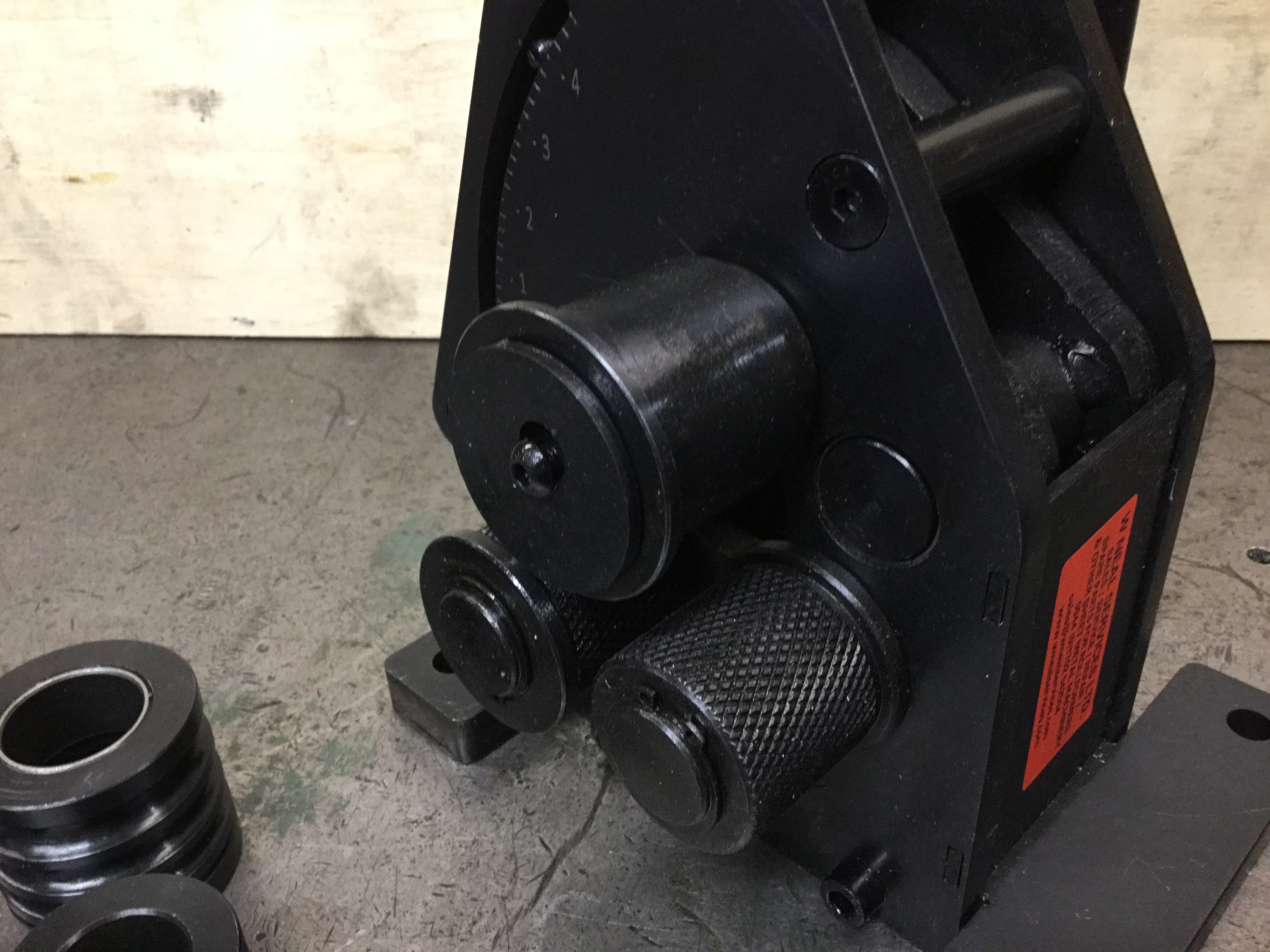

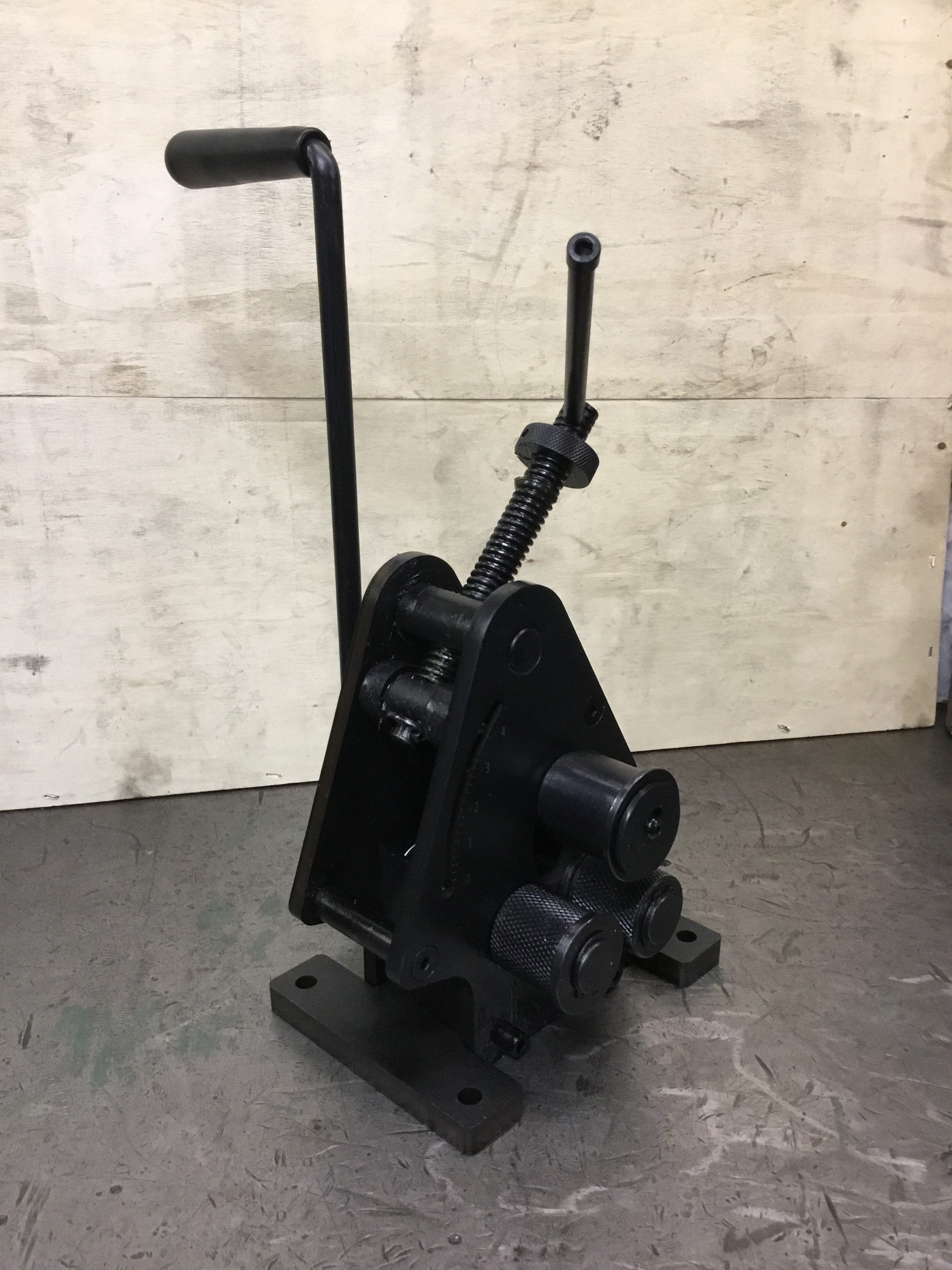

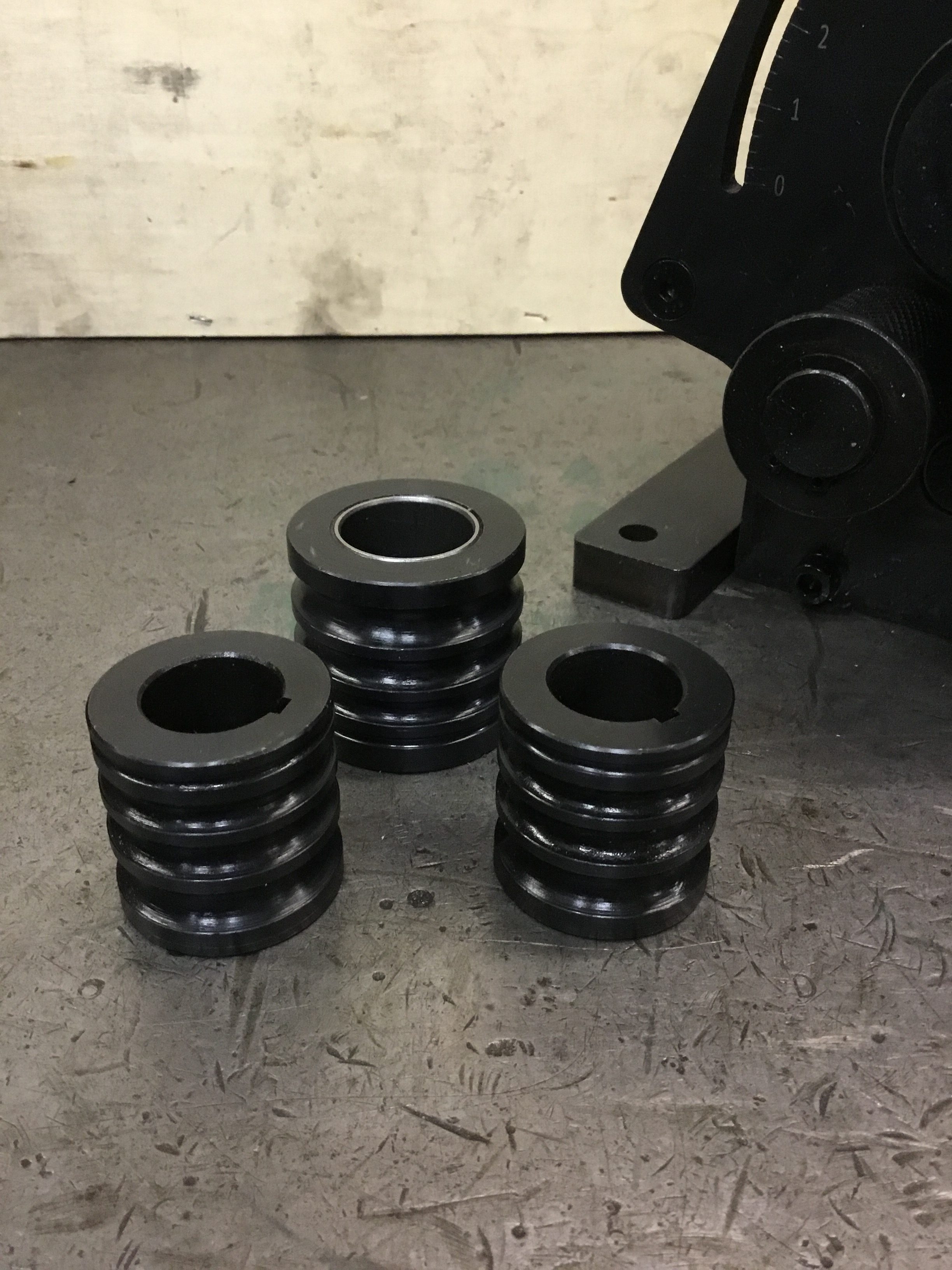

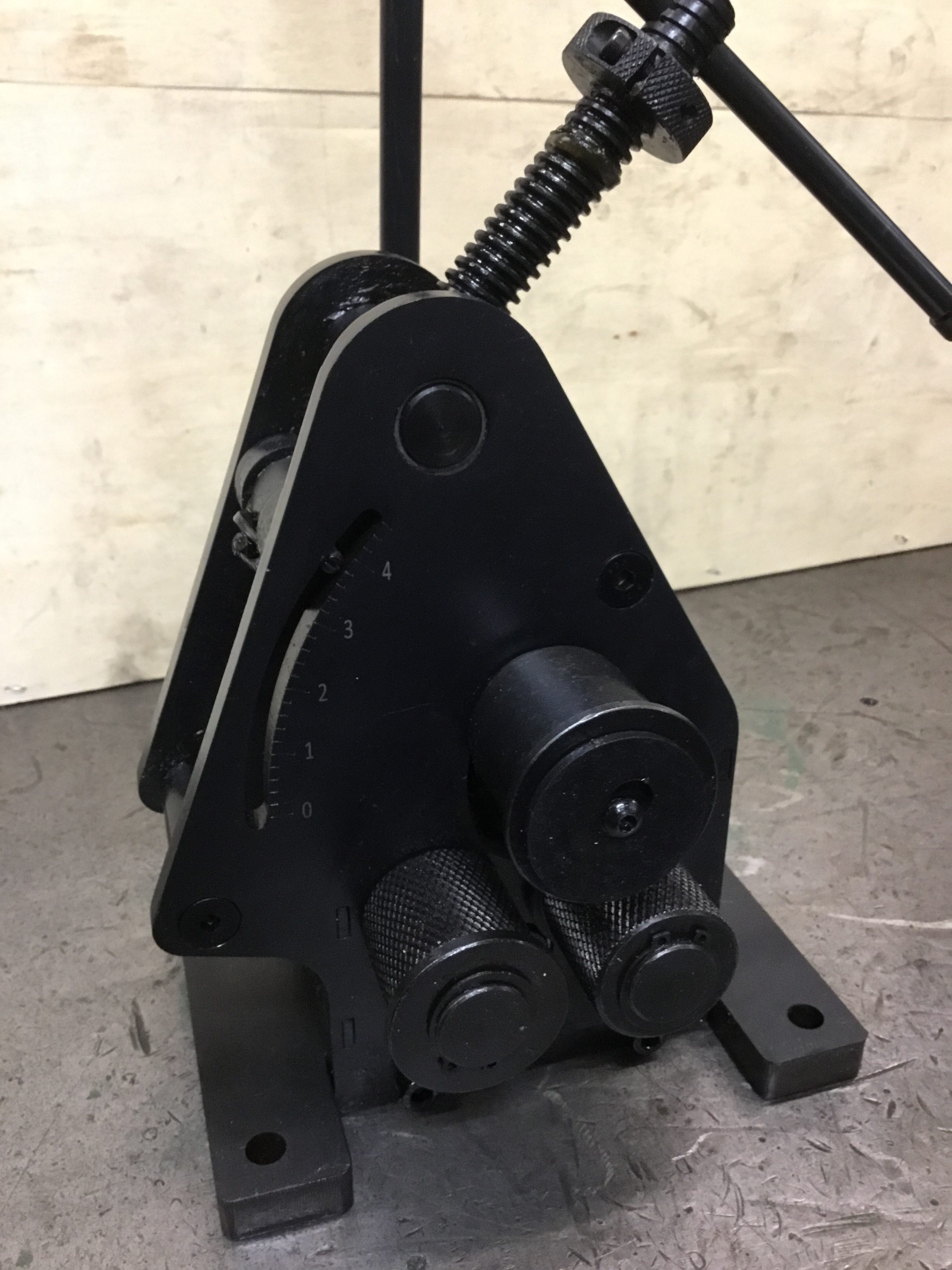

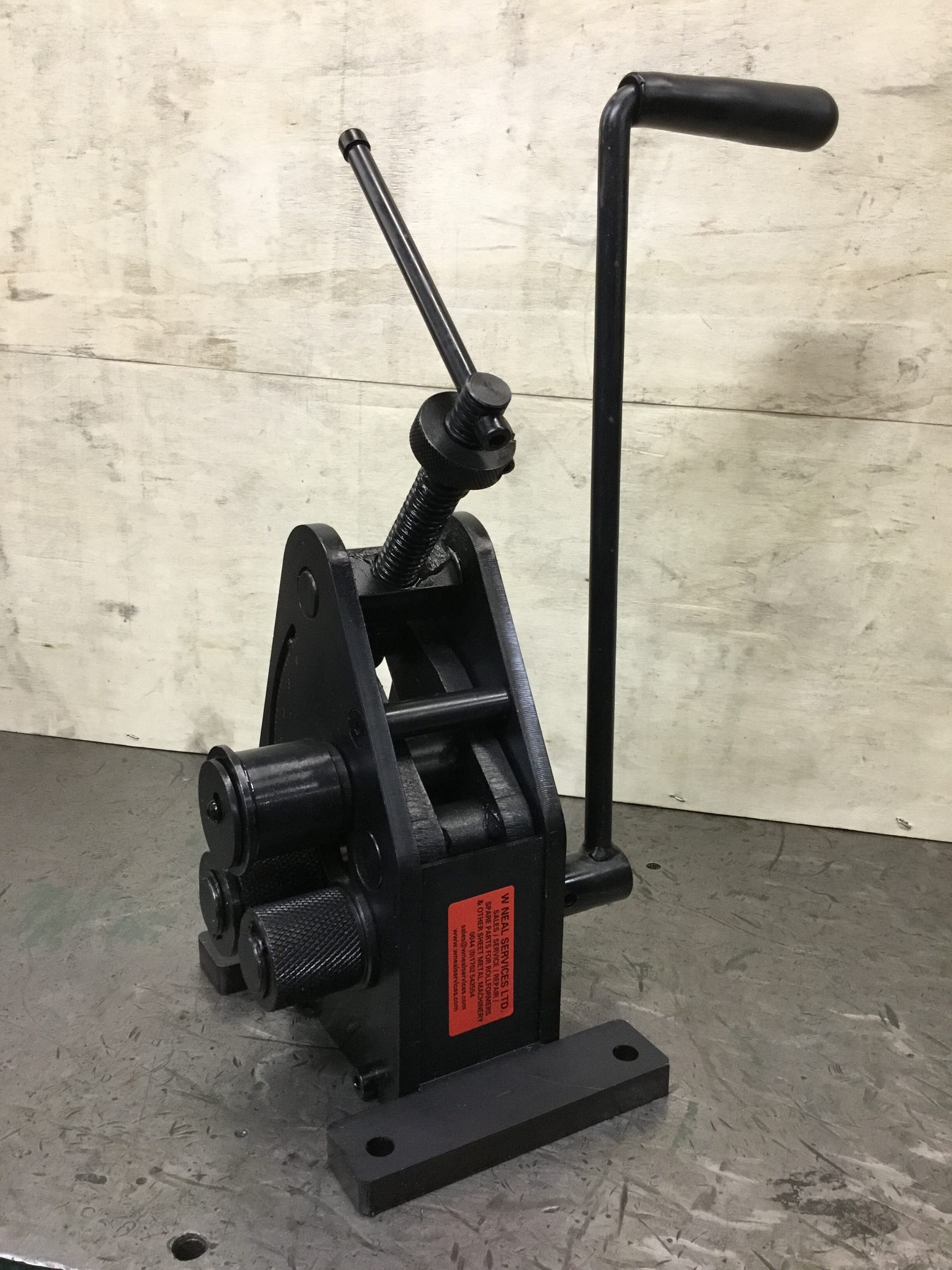

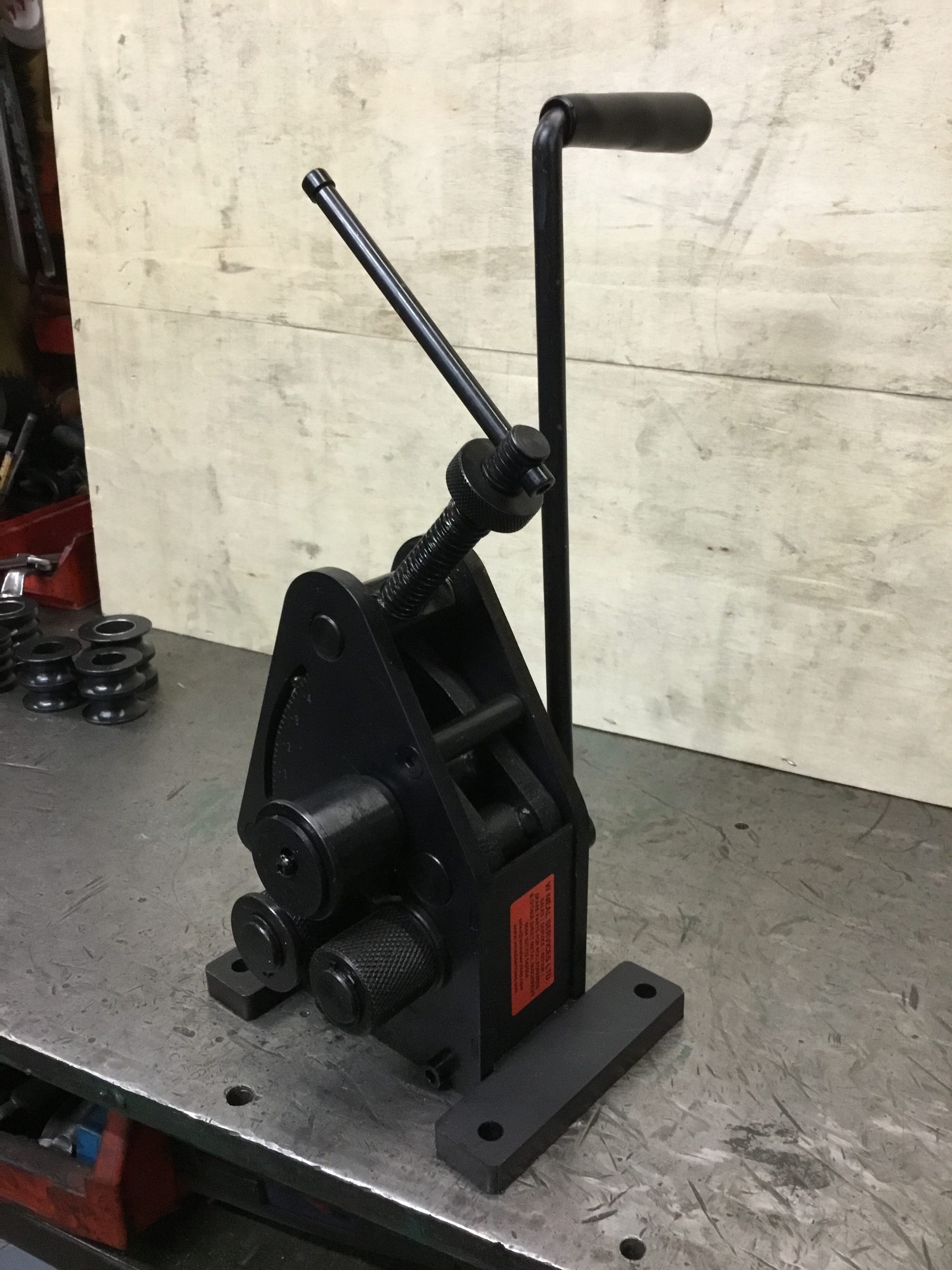

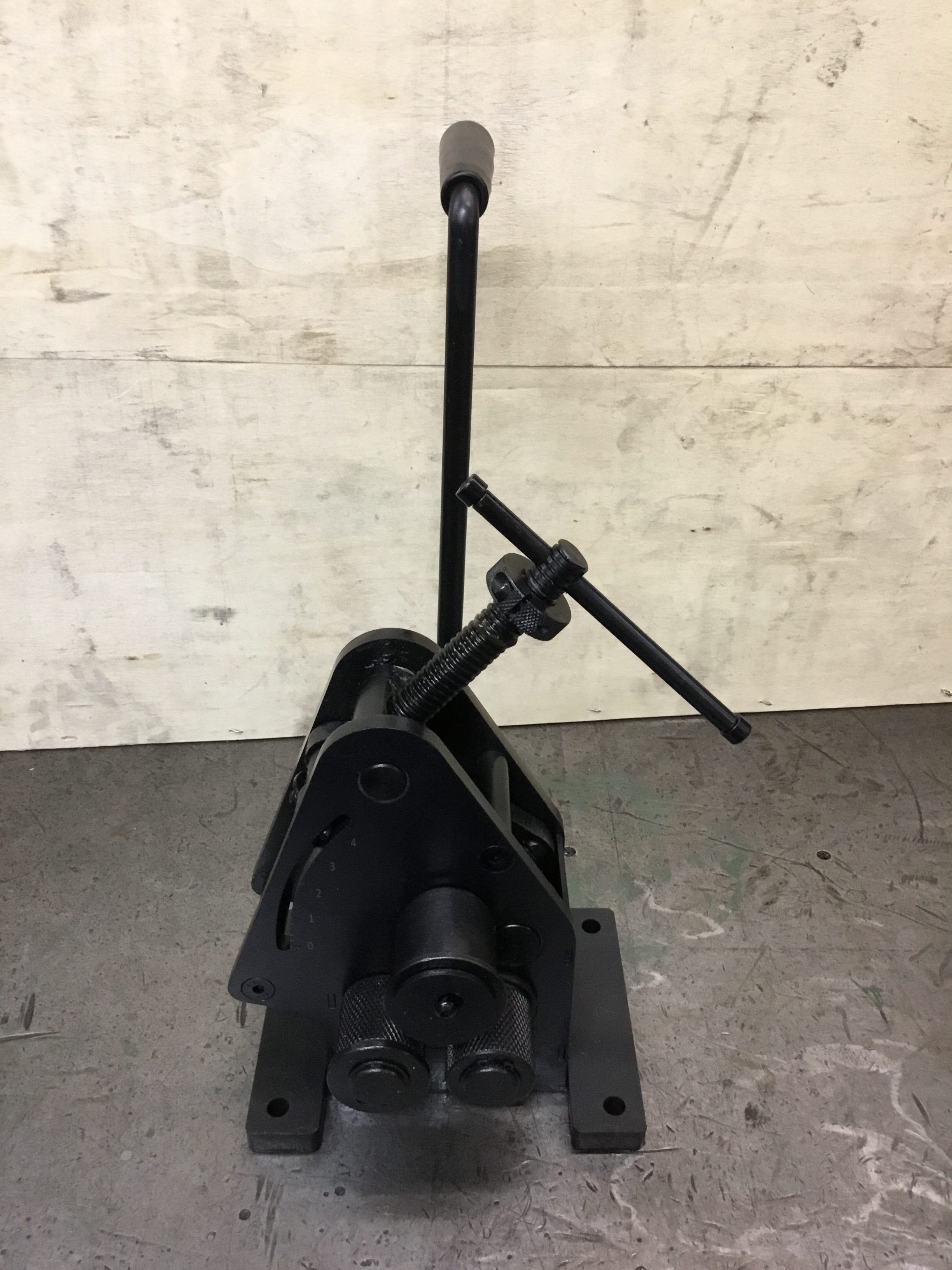

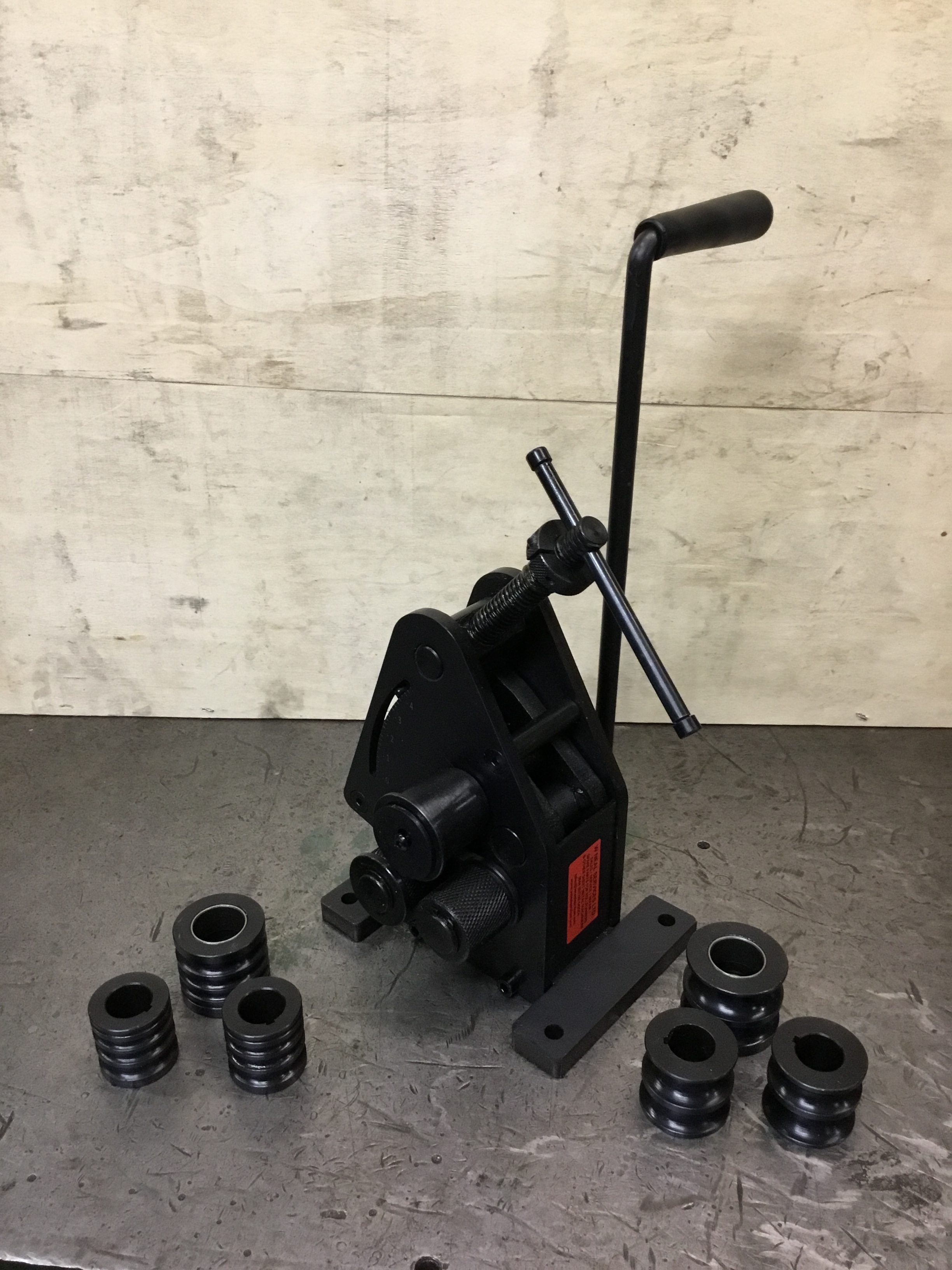

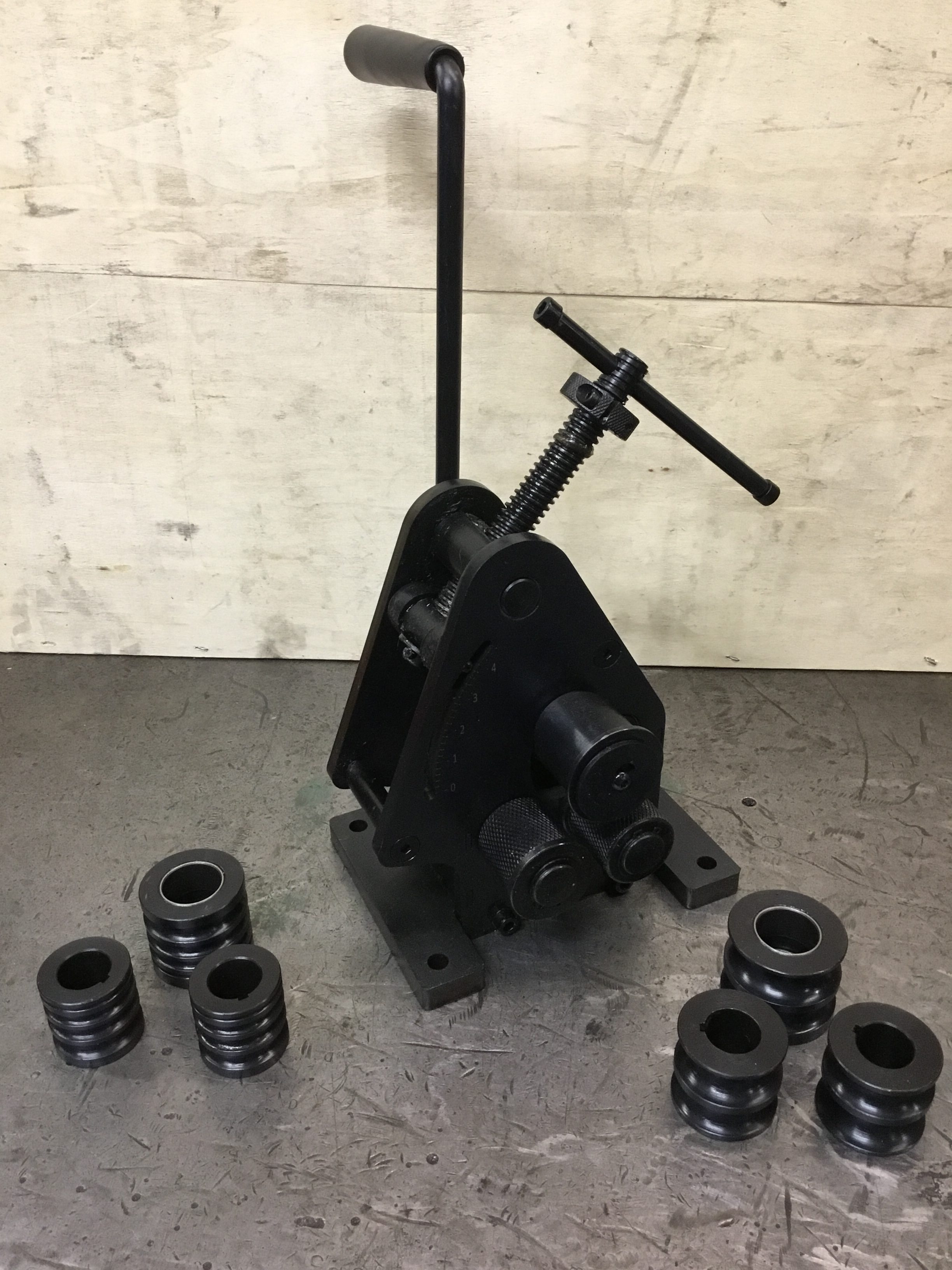

WNS HEAVY DUTY RING ROLLERS (RR40) create curves and rings in flat, round and square bar and round tube. Formed by three rolls comprising of an adjustable top roll (to give the desired bend) and two lower (to feed the material). Complete with 3 sets of dies and mounting holes to attach to a stand or bench top.



Additional information

Weight 14 kg
SPECIFICATIONS
Model: RR40
Top Roll (x 1): 40mm Wide x 46mm Diameter
Bottom Rolls (x 2): 40mm Wide x 42mm Diameter
Maximum Thickness: Flat Bar: 40mm Wide x 4.0mm Thick – 50mm Min Diameter
Round Bar: 10mm Diameter – 63mm Min Diameter
Square Bar: 10mm Wide x 10mm Thick – 100mm Min Diameter
Round Tube: 5/8 & 3/4″ Diameter x 1.5mm Wall – 200mm Min Diameter
Wiring Grooves (x 4): 3.2mm
6.5mm
8.0mm
10mm
Handle Length: 450mm
Dimensions – machine with handle (apx): 200mm x 220mm x 450mm (l x w x h)
Dimensions – machine without handle (apx): 200mm x 220mm x 300mm (l x w x h)
Dimensions – packing (apx): 400mm x 230mm x 230mm (l x w x h)
Weights – net/gross (apx): 13Kg/14Kg

*please see Terms & Conditions. **fees apply.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
