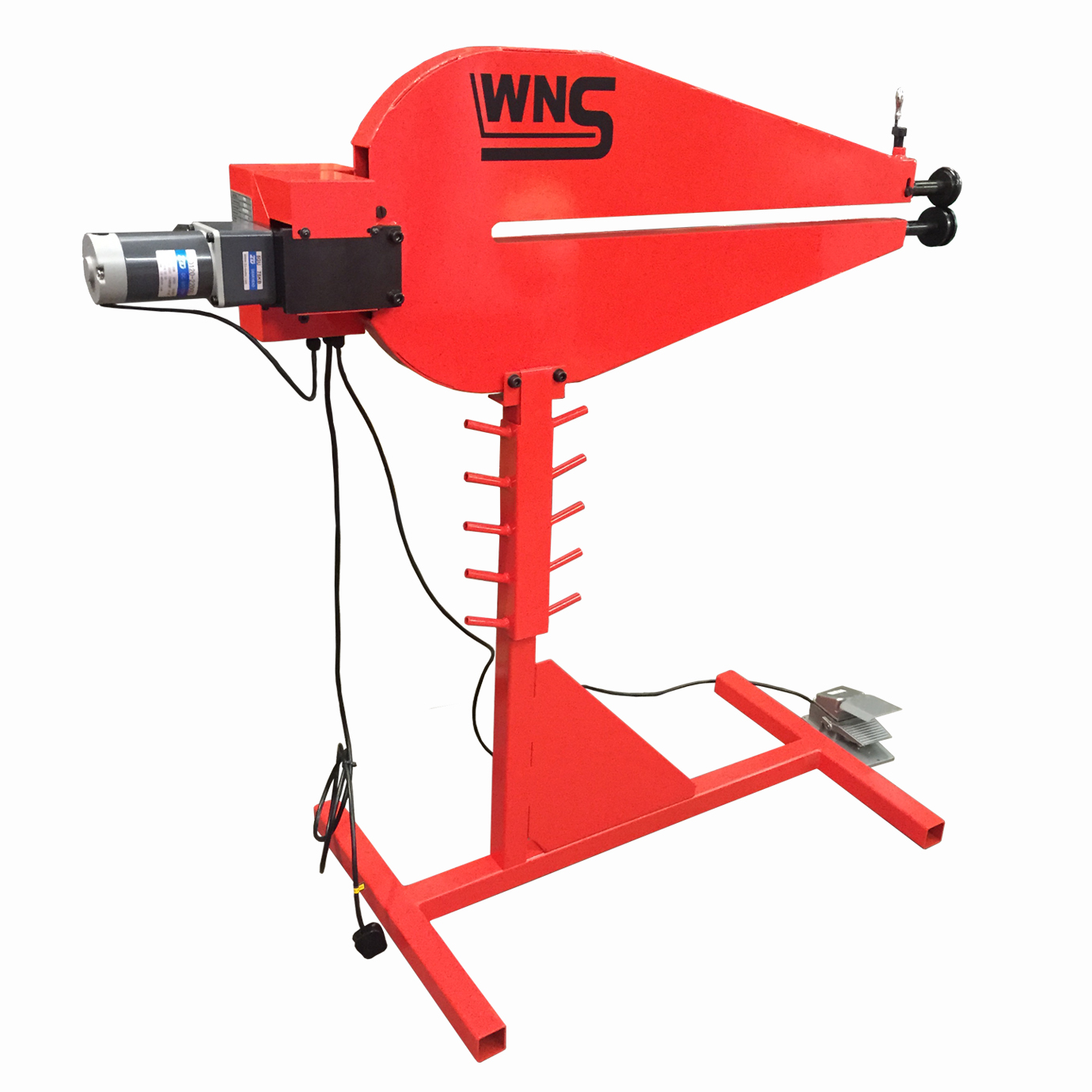

WNS Power Bead Roller 910mm

  • Power Operated
  • 910mm (36”) Throat
  • 1.25mm Capacity Mild Steel*
  • c/w 1 Sets of Rolls
  • c/w Stand
  • Forward & Reverse Switch
  • Variable Speed Food Pedal
  • 240v, Single Phase, 50Hz
  • 12 Month Warranty**
  • Worldwide Delivery***
  • Additional Rolls Available

Description

WNS POWER BEAD ROLLERS (PBR910) are principally used for swaging, beading and forming of sheet metal. The PBR910 has a 910mm (36″) throat and can accommodate mild steel up to 1.25mm thick*. This machine comes complete with 1 x set of 1/2″ x 2 3/4″ diameter round bead/swage rolls and a stand. This bead roller has a forward & reverse switch, and a variable speed foot pedal up to 30rpm.

Additional Rolls are available separately.





Additional information

Weight 132 kg
SPECIFICATIONS
Model: PBR910
Throat Depth: 910mm (36″)
Maximum Thickness: 1.25mm Capacity Mild Steel*
Round Bead/Swage Rolls Included (x 1): 1/2″ Round Swage x 2 3/4” Outside Diameter
Roll – Inside Diameter: 3/4” (19mm)
Roll – Outside Diameter: 2 3/4”
Shaft Size: 3/4” (19mm)
Direction: Forward & Reverse Switch
Speed – Variable: 0 – 30rpm
Motor Power: 120w
Supply Voltage: 240v, Single Phase, 50Hz
Dimensions – machine (apx): 1450mm x 610mm x 1370mm (l x w x h)
Dimensions – packing (apx): 1500mm x 700mm x 420mm (l x w x h)
Weights – net/gross (apx): 74Kg/82Kg

*Subject to rolls **please see Terms & Conditions. ***fees apply.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
