WNS Bead Roller Rolls 3/4″ (19mm) ID

  • ¾” (19mm) Inside Diameter/Bore
  • Suitable for 3/4″ Shaft Bead Rollers
  • Choice of 5 Types of Rolls:
  • Square Swage
  • Round Swage
  • Stepped Joggle
  • Stepped
  • Spoiler
  • Worldwide Delivery*

Description

WNS BEAD ROLLER ROLLS (BR-ROLLS-3/4) are compatible WNS Power Bead Rollers 910mm & 610mm. Rolls/dies available include round swage, square swage, stepped, stepped joggle & spoiler rolls.

N.B. These rolls are sold as individual sets (2 rolls per set).

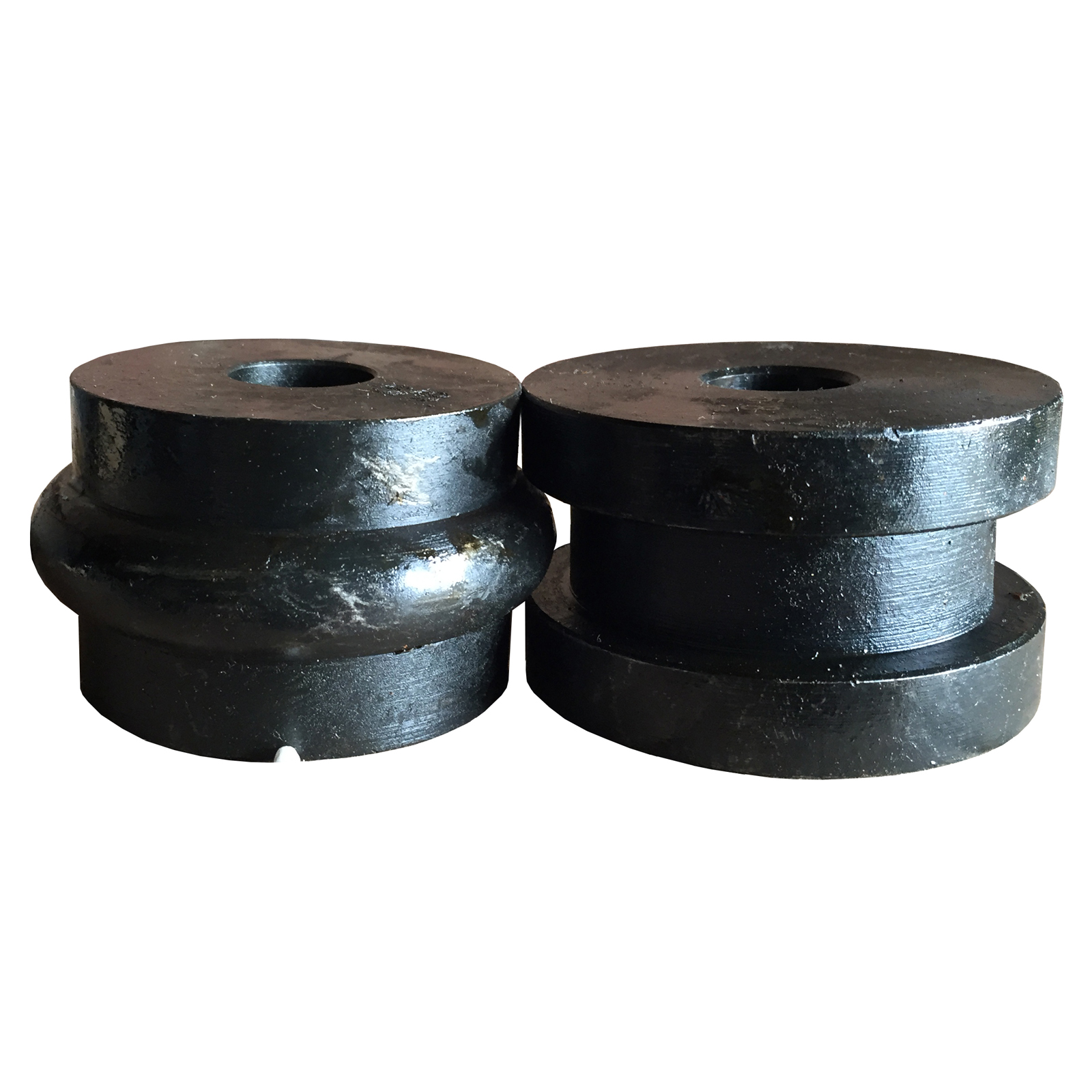

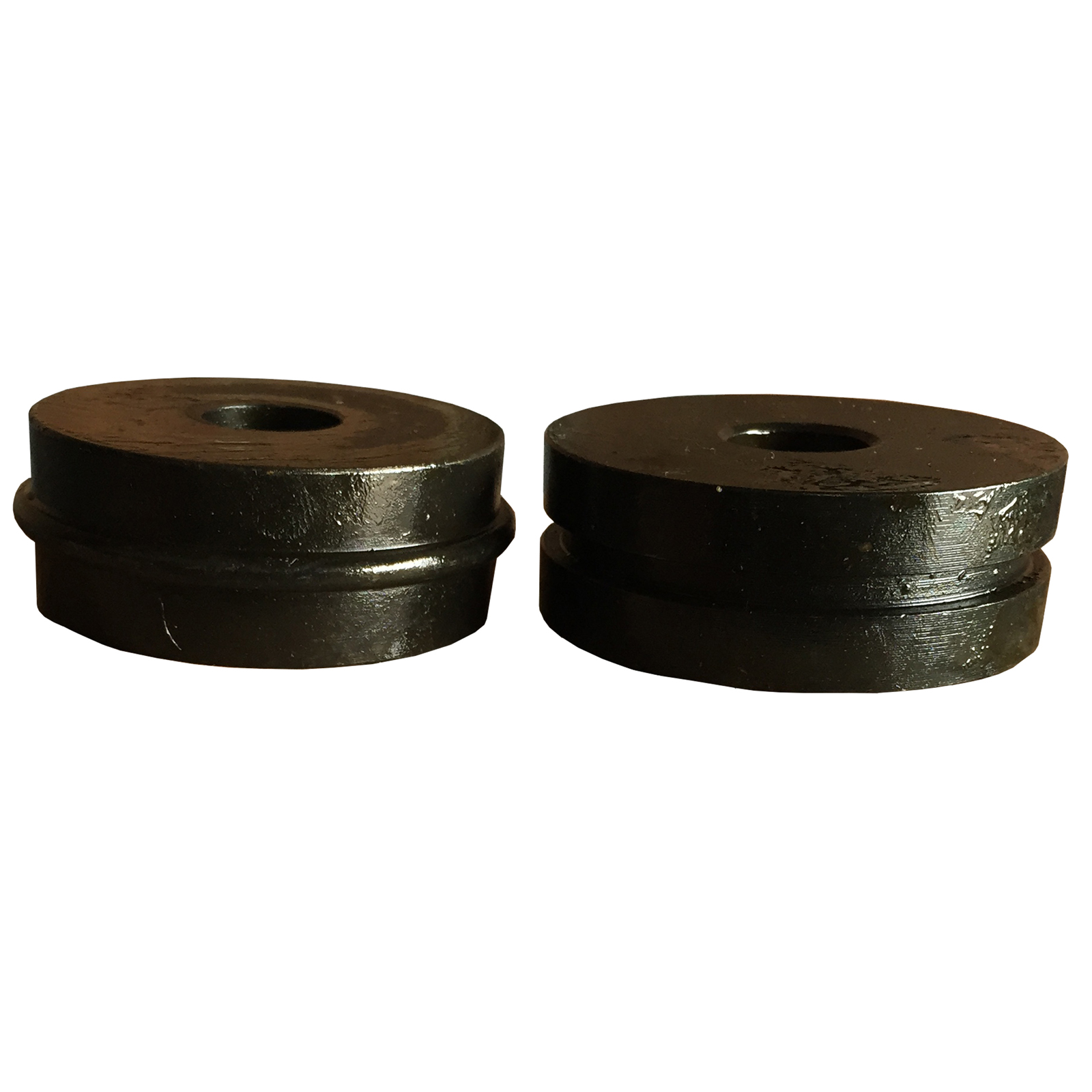

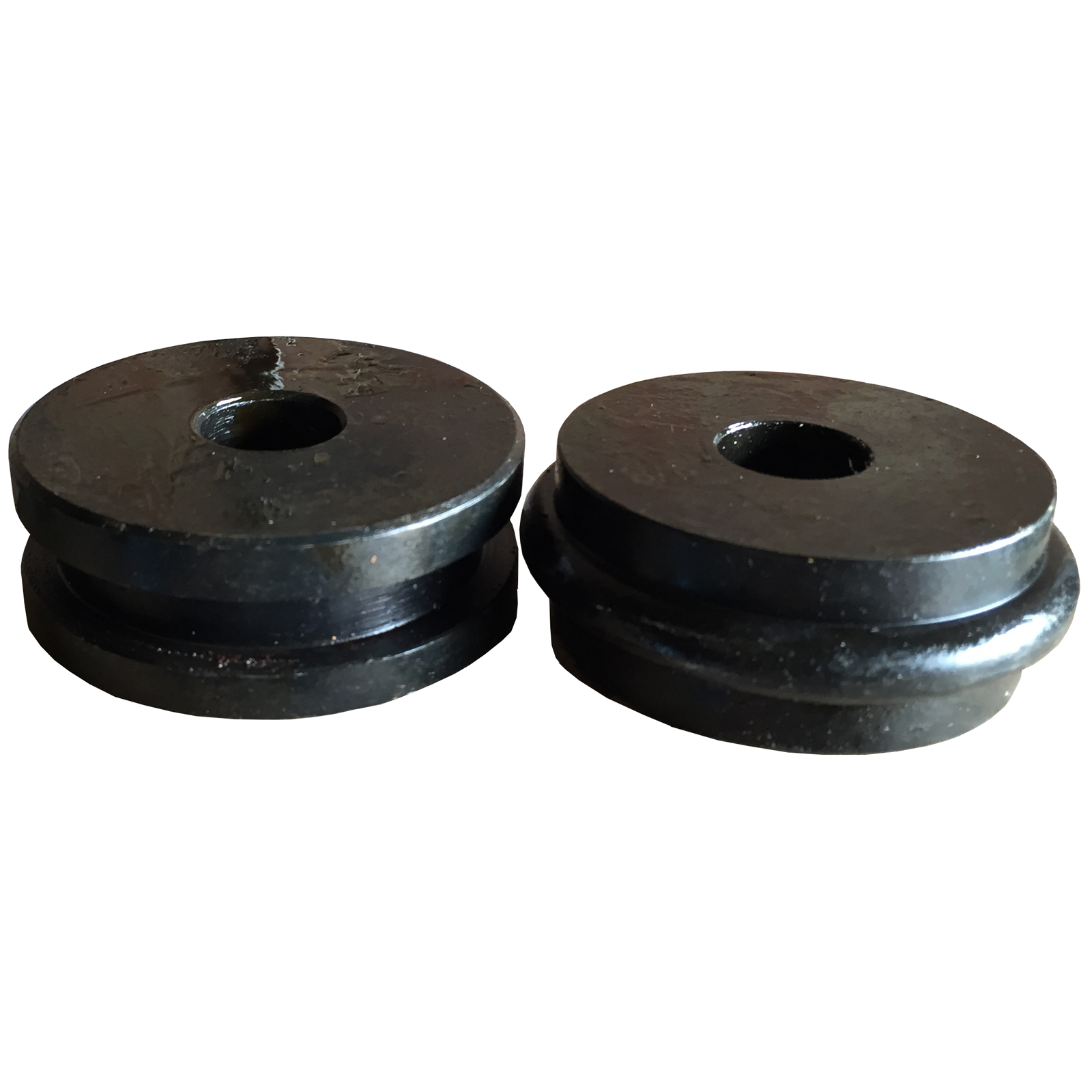

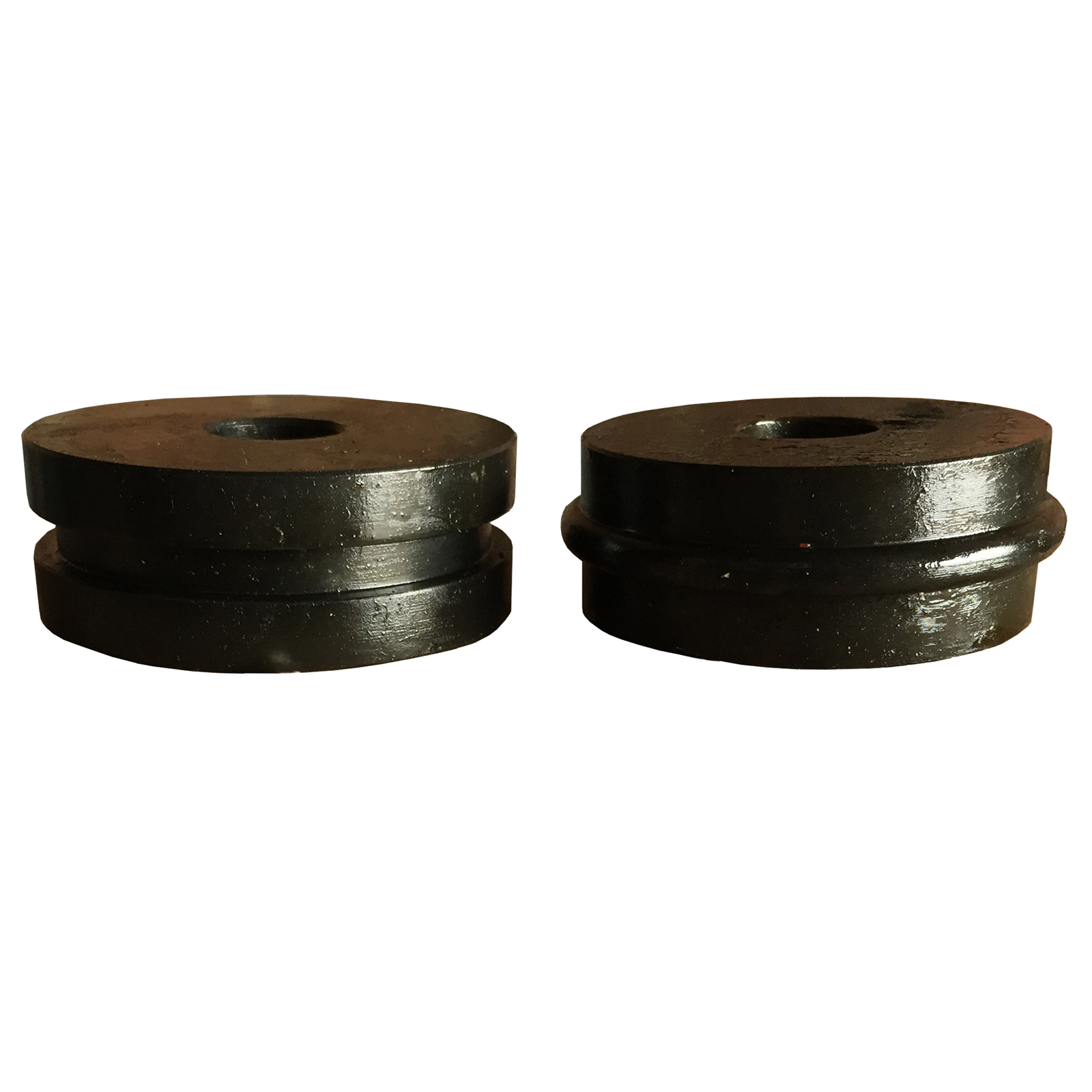

Round Swage Rolls (RDSW3/16, RDSW1/4, RDSW5/16, RDSW3/8, RDSW5/8, RDSW3/4)
WNS Bead Roller Round Swage Rolls create a round bead in a piece of sheet metal in order to add strength, or to stiffen the material, generally formed parallel to the outer edge of the workpiece.

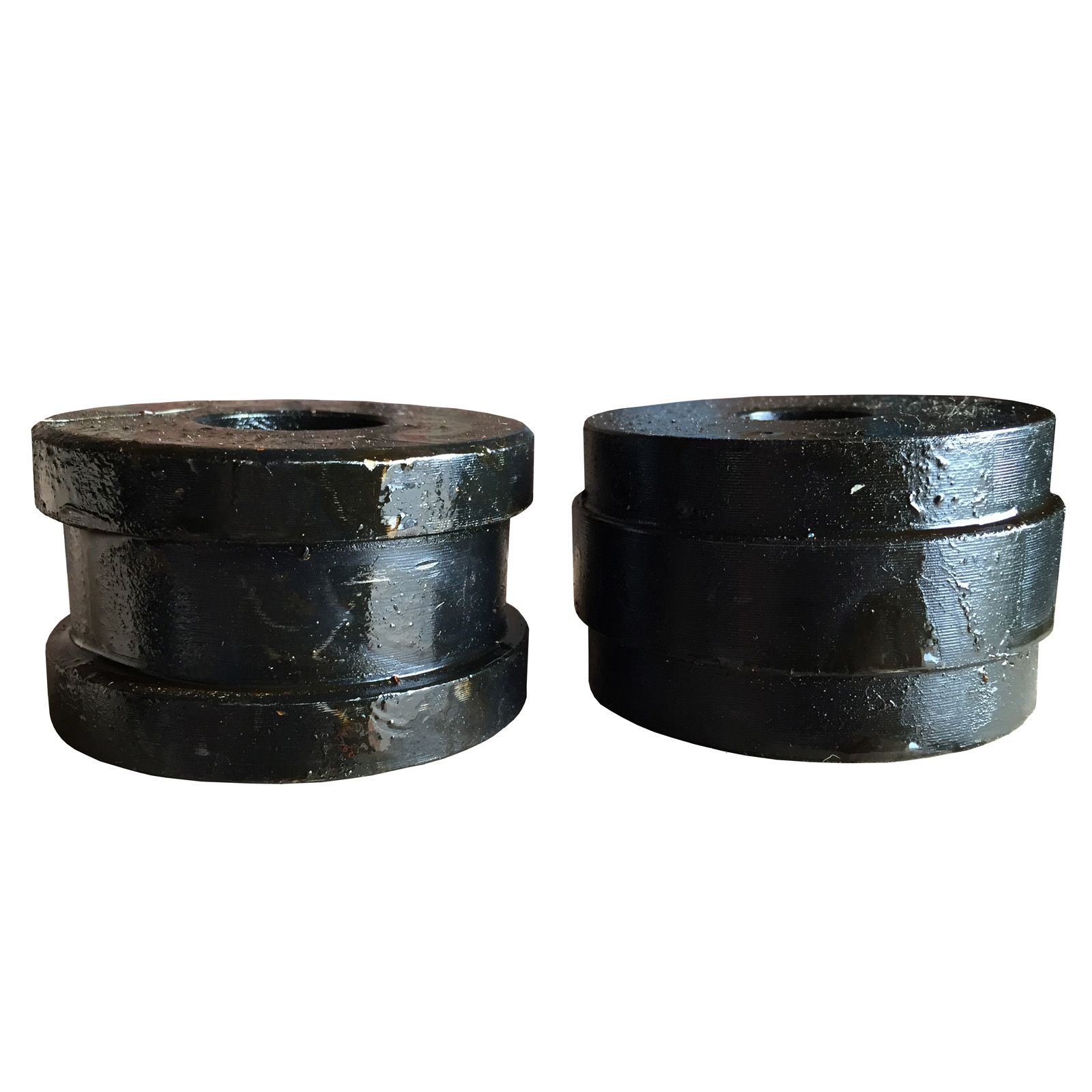

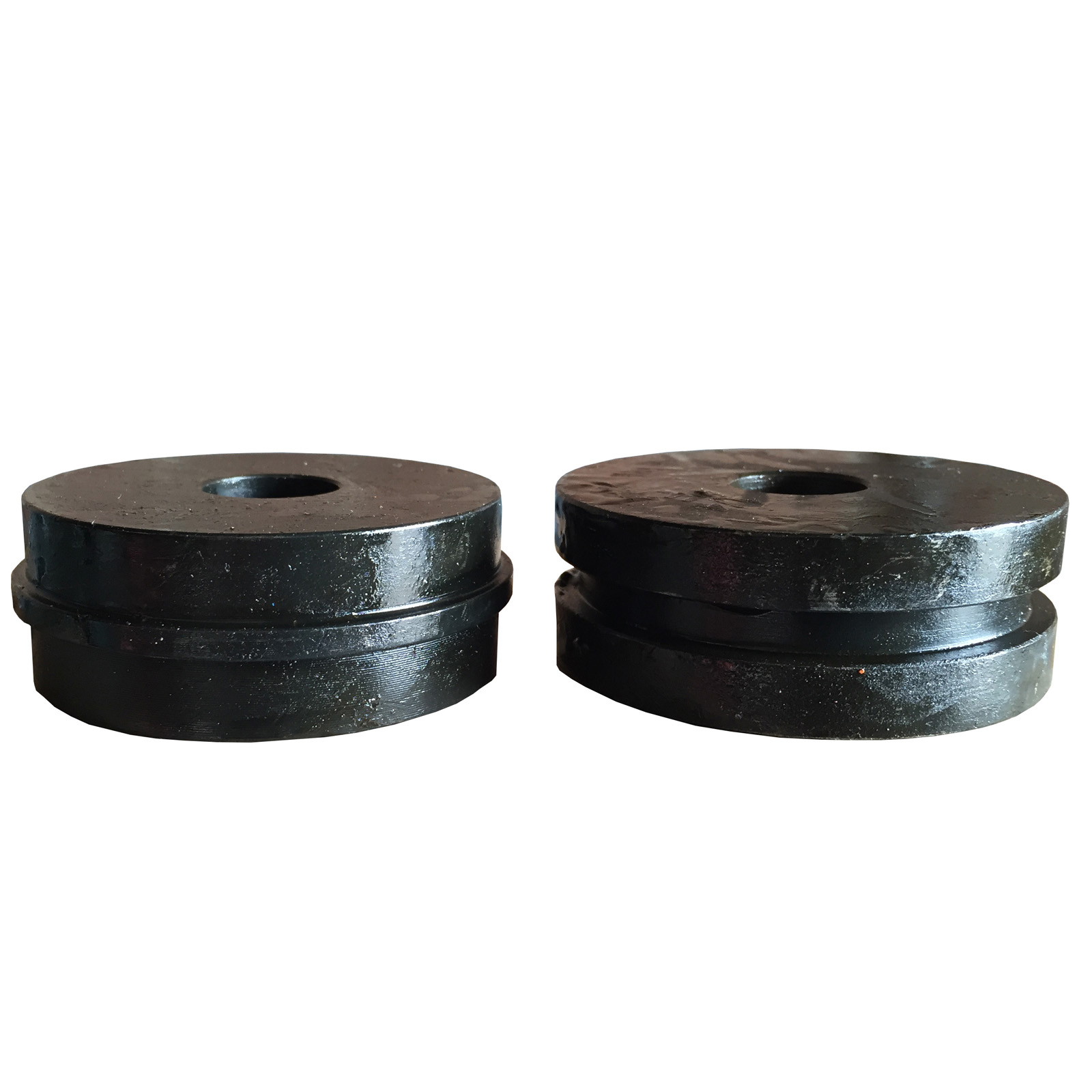

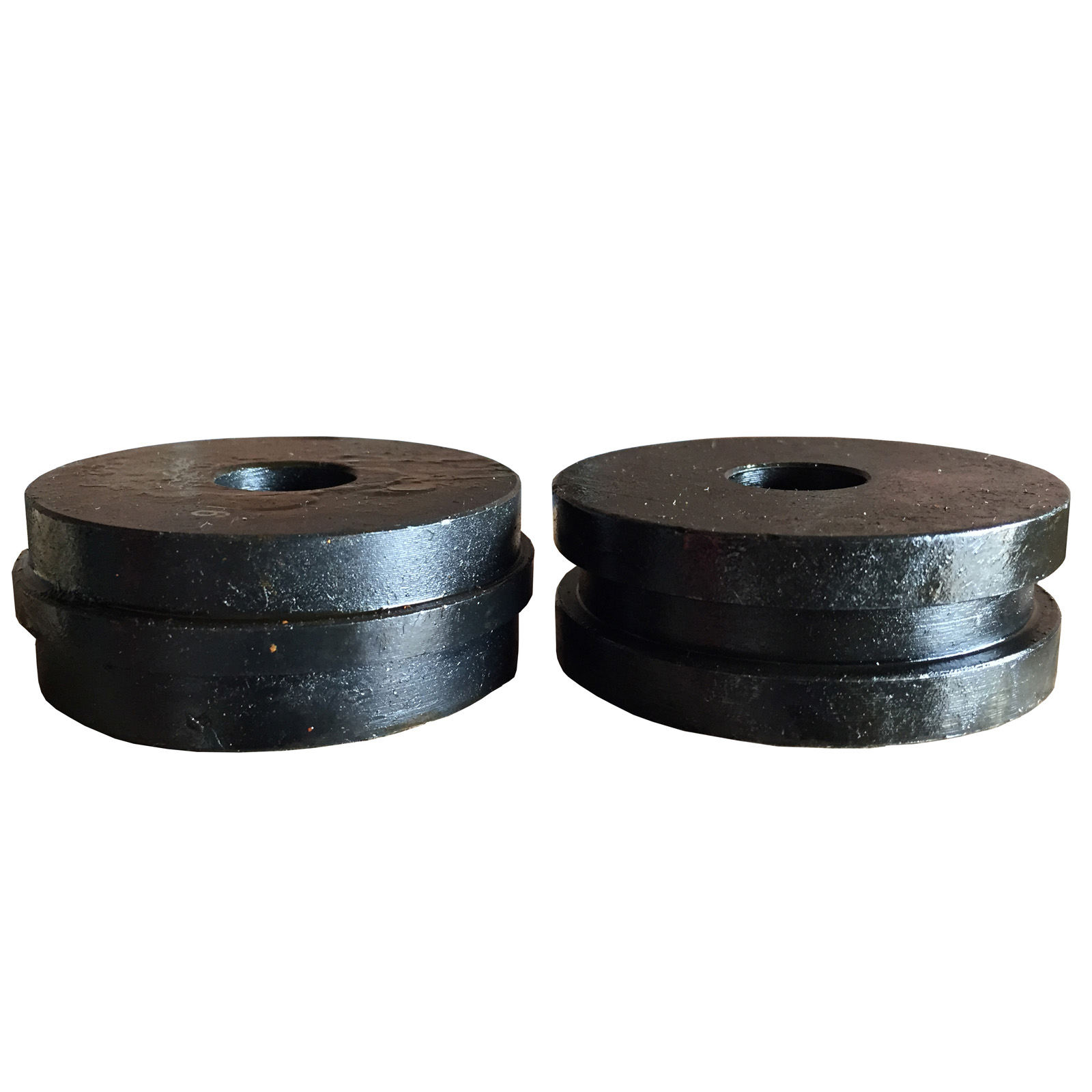

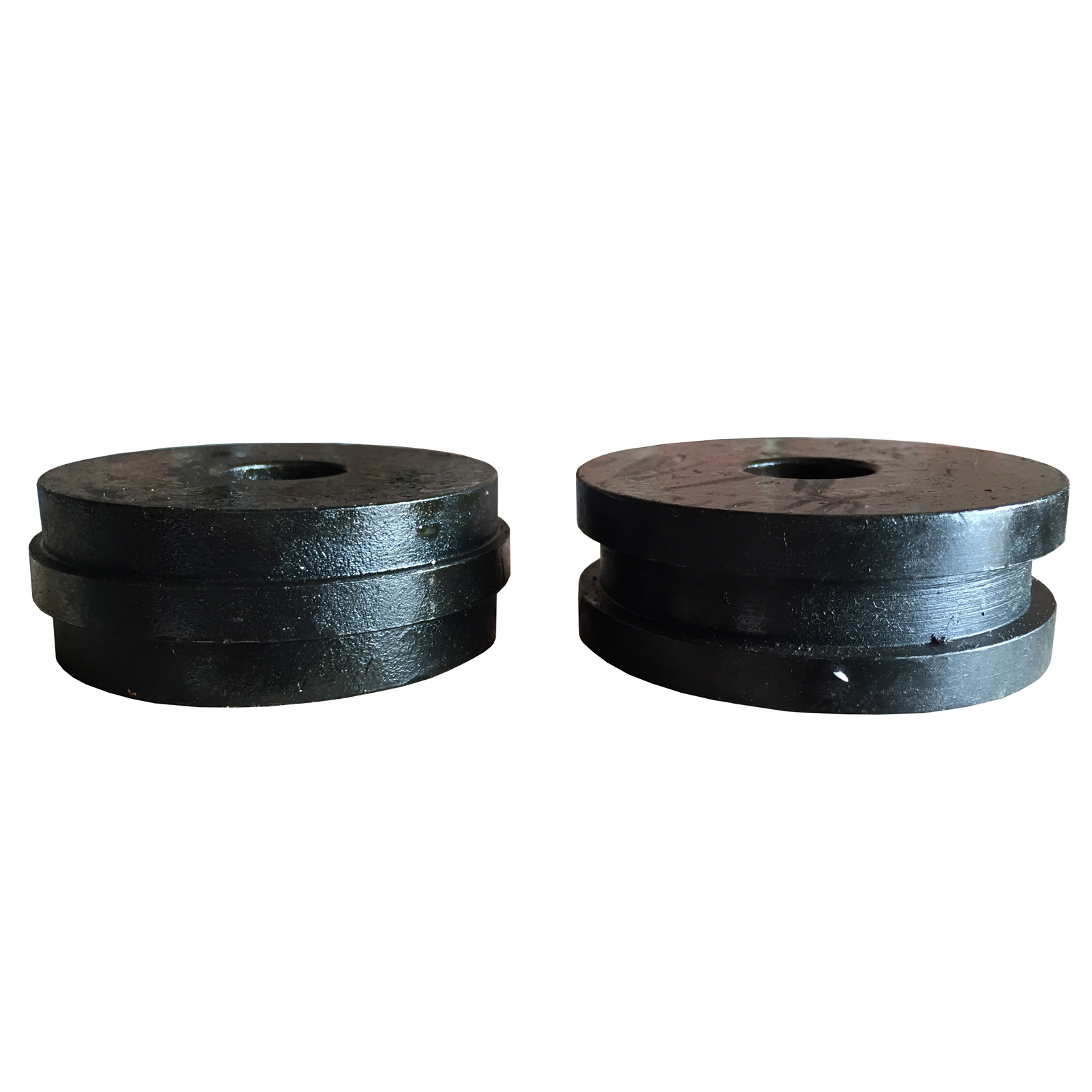

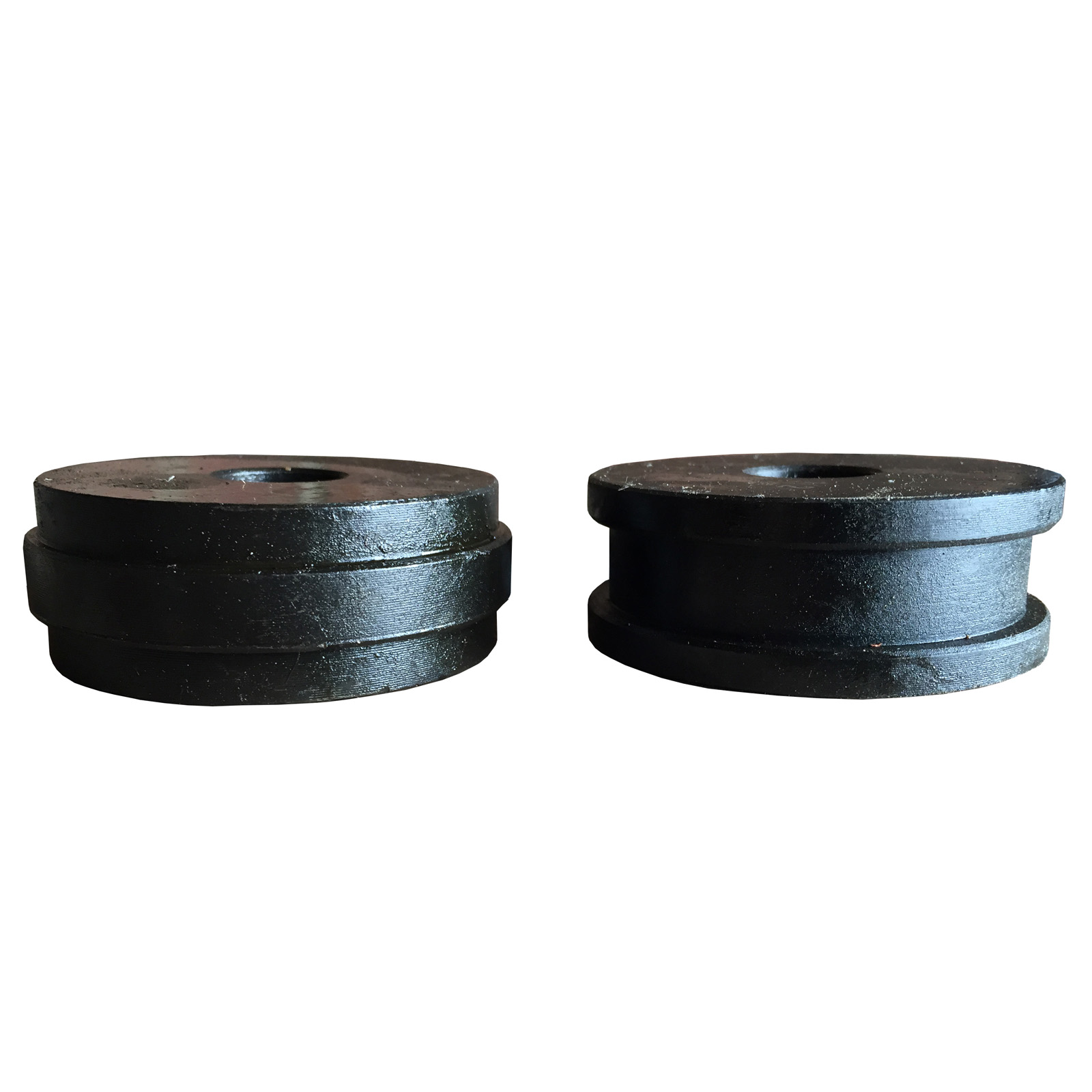

Square Swage Rolls (SQSW1/4, SQSW5/16, SQSW3/8, SQSW1/2, SQSW3/4)
WNS Bead Roller Square Swage Rolls create a square bead in a piece of sheet metal in order to add strength, or to stiffen the material, generally formed parallel to the outer edge of the workpiece.

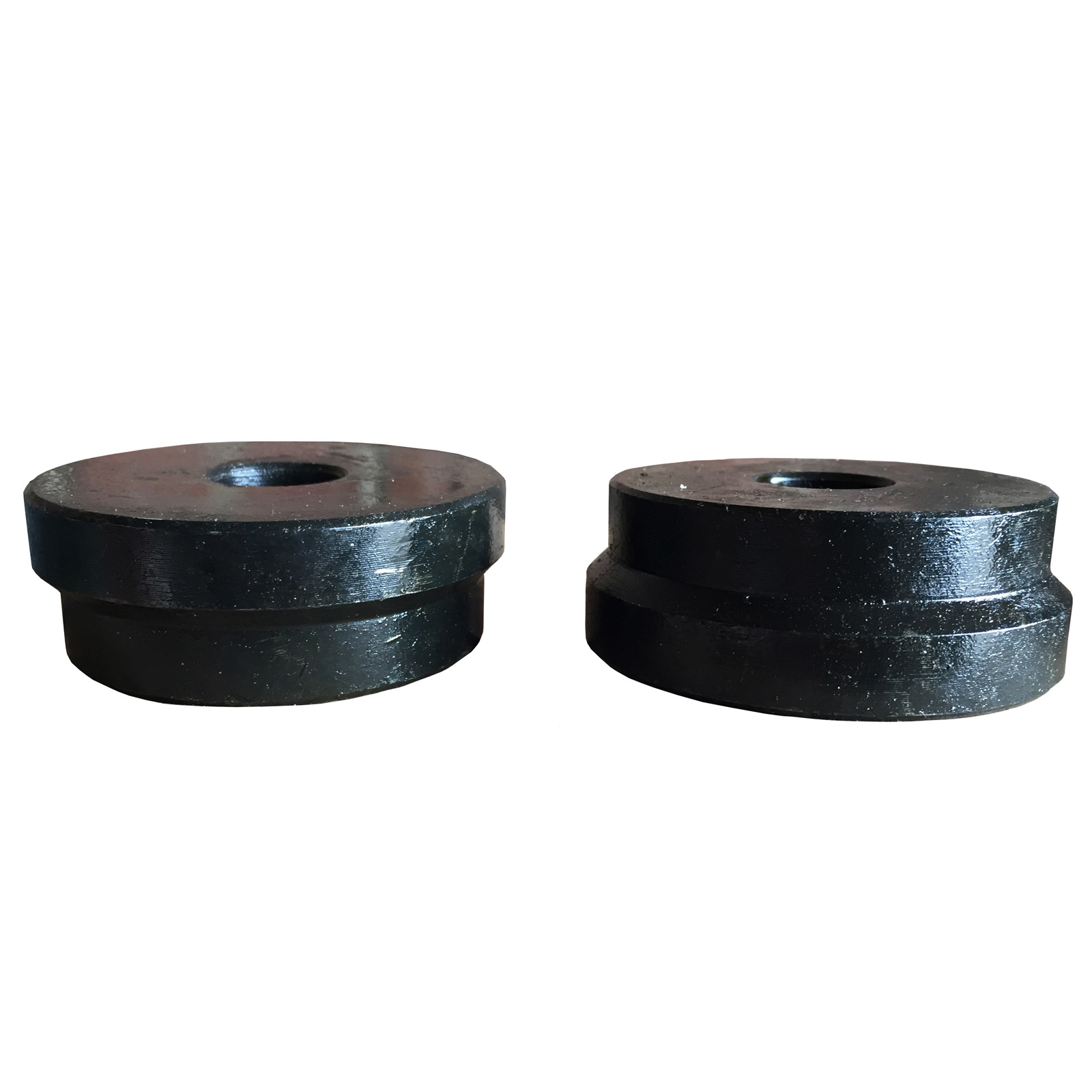

Stepped Joggle/Stepped Rolls (STJG1/16, STJG3/16, STJG1/4) / (STBD45)
WNS Bead Roller Stepped Joggle/Stepped Rolls are principally used to add strength, function, and style to custom parts. These rolls form steps in sheet metal to make it easier to smoothly overlap metal without leaving a ‘weak spot’ along the joint.

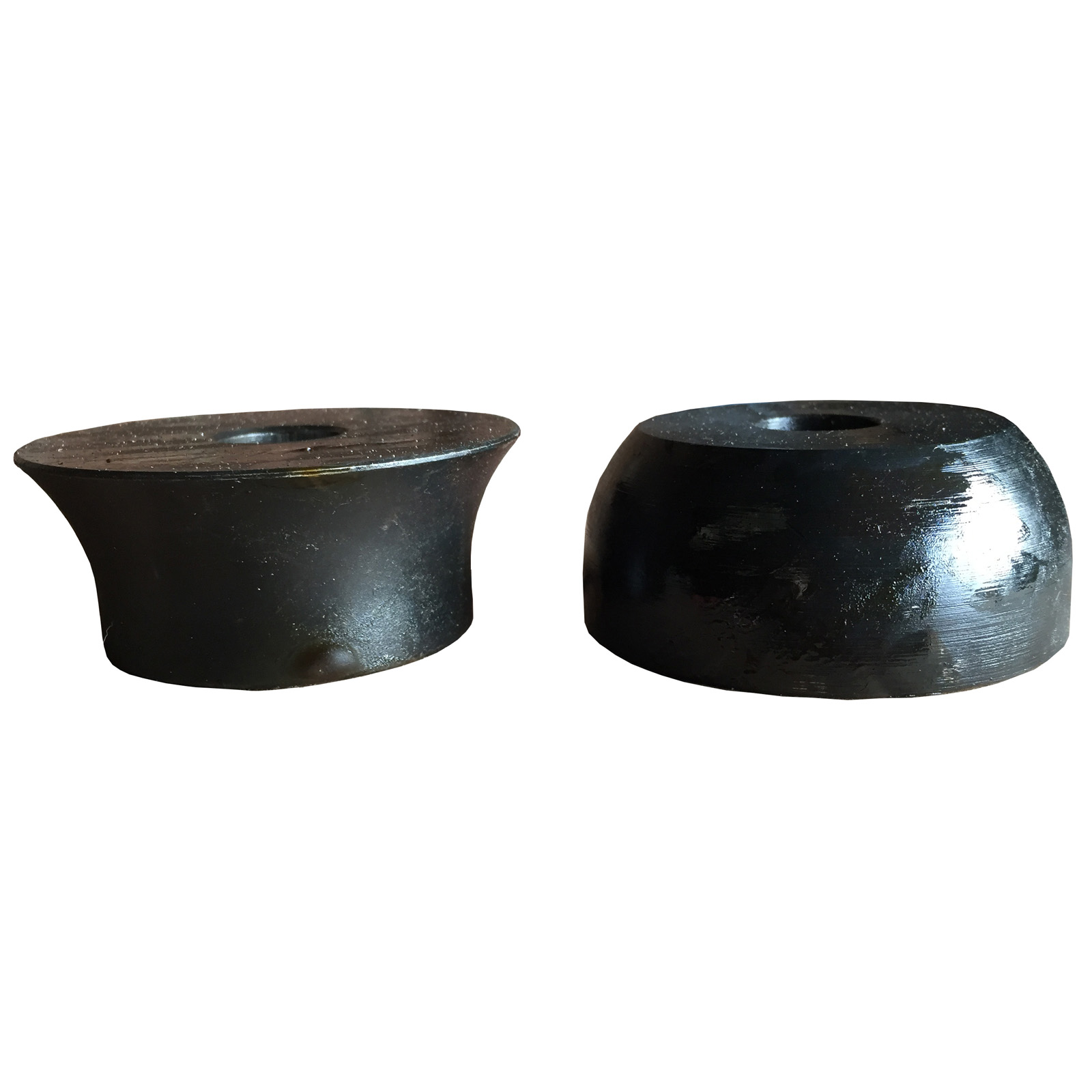

Spoiler Rolls (SPBD1-1/4)
WNS Bead Roller Spoiler Rolls are used to create a long gradual radius in sheet panels, giving additional strength by stiffening the material. Effectively this creates a spoiler on the edge of the workpiece.



Additional information

Weight 1 kg



SPECIFICATIONS
Square Swage: 1/4″ 5/16″ 3/8″
1/2″ 3/4″
Round Swage: 3/16″ 1/4″ 5/16″
3/8″ 5/8″ 3/4″
Spoiler: 1 1/4″
Stepped: 45°
Stepped Joggle: 1/16″ 3/16″ 1/4″
Roll – Inside Diameter: 3/4″ (19mm)

*fees apply.

All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE
