WNS Tube Roller (TR40B)

Tube & Pipe Machinery


Description

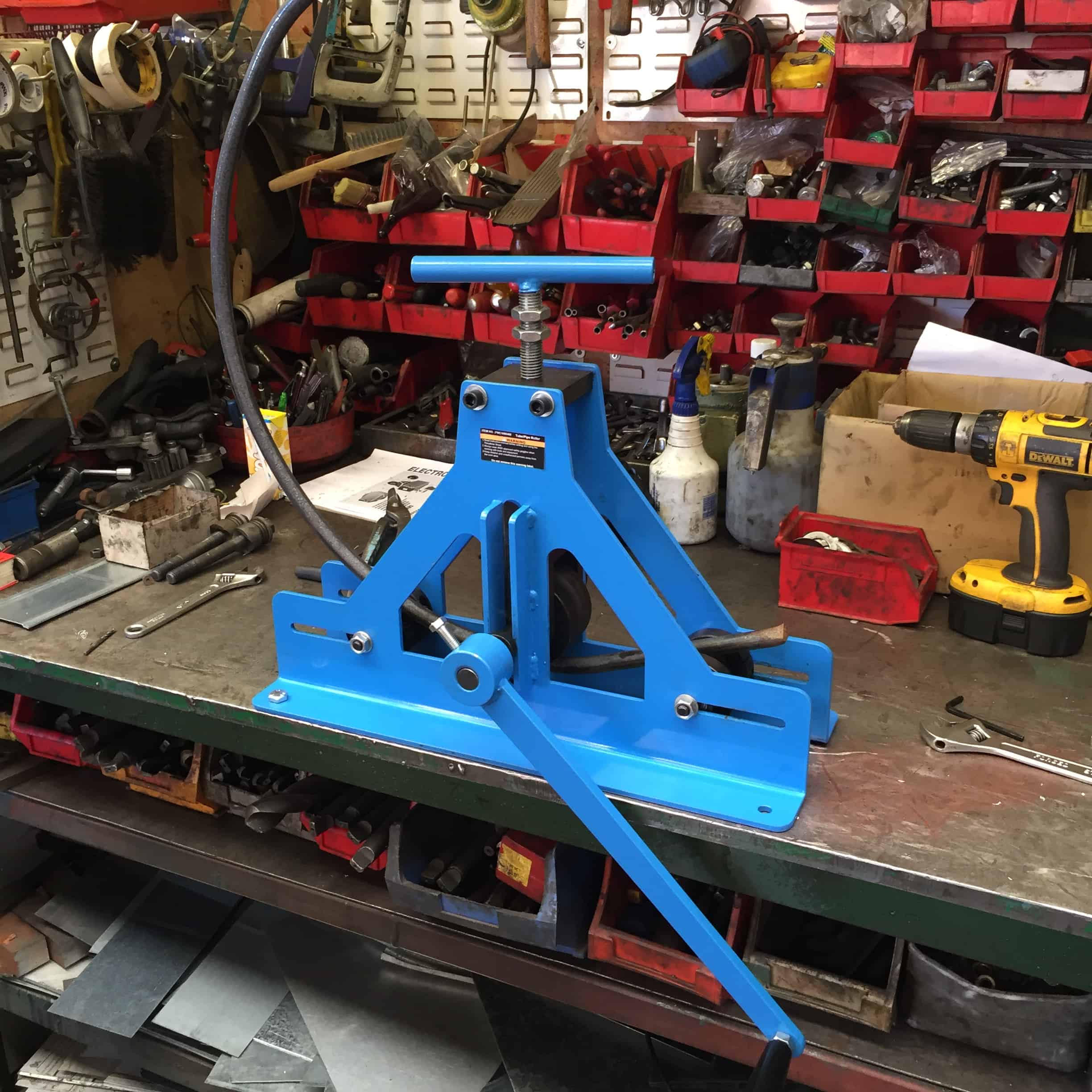

WNS TUBE ROLLER (TR40B) is primarily used for rolling Box Section & Flat Bar into curves, can also be used on Round and Square Bar & Square Tube. The TR40B can accommodate Flat Bar up to 40mm Wide x 8.0mm Thick, Round Bar up to 16mm diameter and Square Bar up to 12mm x 12mm.


View Literature



Additional information

Weight 21 kg
SPECIFICATIONS
Model: TR40B

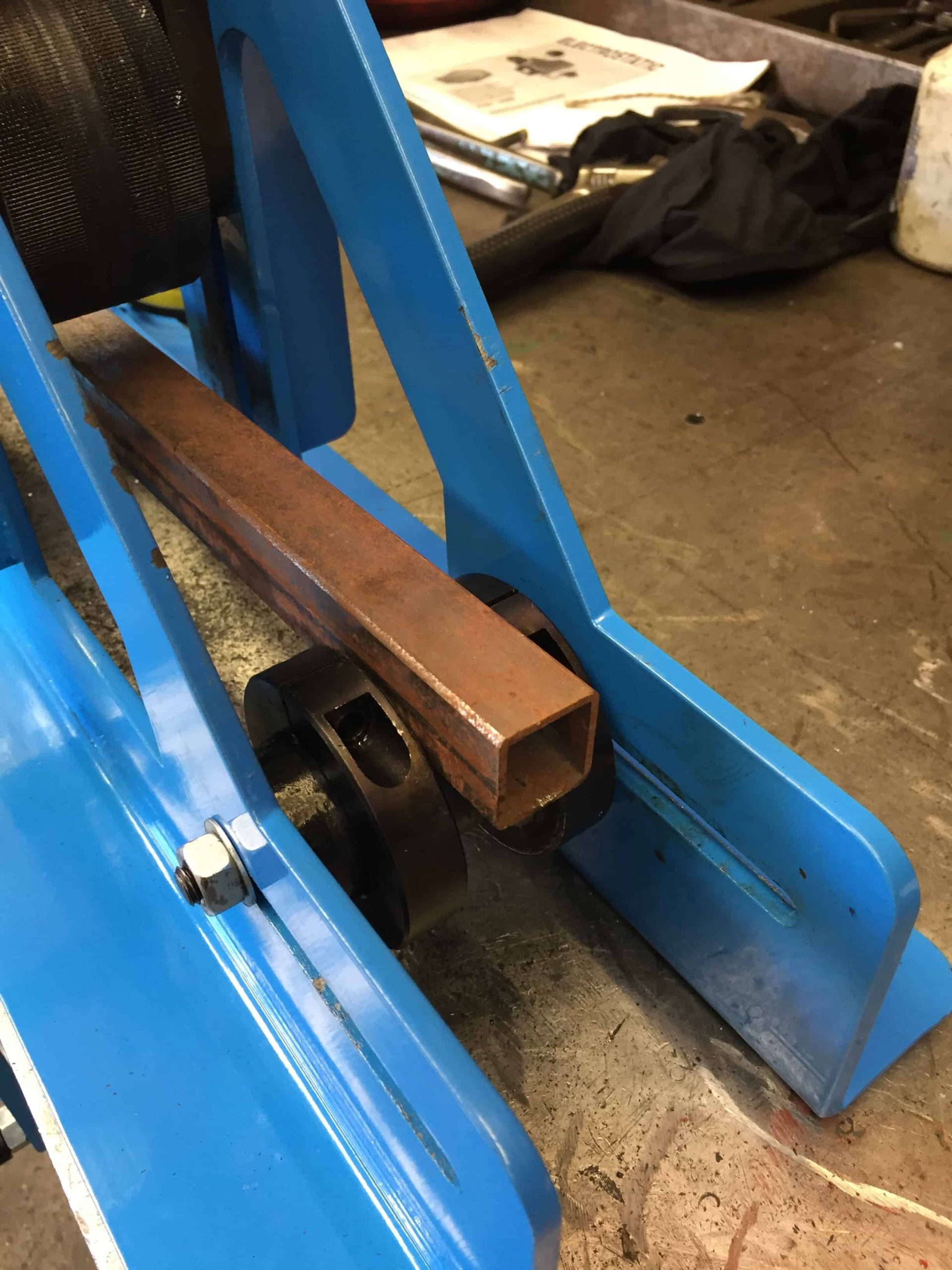

Square Tube: Mild Steel 20 x 20 x 1.2mm 25 x 25 x 1.2mm 30 x 30 x 1.5mm 40 x 40 x 1.5mm
Copper: 20 x 20 x 1.5mm 25 x 25 x 1.5mm 30 x 30 x 1.75mm 40 x 40 x 1.75mm
Aluminium: 20 x 20 x 1.75mm 25 x 25 x 1.75mm 30 x 30 x 2.0mm 40 x 40 x 1.75mm
Minimum Radius: 180mm 170mm 200mm 220mm
Minimum Diameter: 450mm 500mm 550mm 600mm
Flat Bar: Maximum Thickness: 40mm Wide x 8.0mm Thick
Round Bar: Maximum Thickness: 16mm Diameter
Square Bar: Maximum Thickness: 12mm²
Dimensions – machine (apx): 690mm x 340mm x 430mm (l x w x h) incl handle
Dimensions – packing (apx): 570mm x 260mm x 400mm (l x w x h)
Weights – net/gross (apx): 18Kg/21Kg

Material capacities and radius/diameters are given as guidance only. Please note: these can vary greatly dependant on material type and quality.
All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. Please note products are not to scale. E&OE.

SKU: TR40B

WNS Tube Roller (TR40B)

  • Flat Bar 40mm x 8.0mm
  • Round Bar 16mm diameter
  • Square Bar 12mm x 12mm
  • Mild Steel
  • Copper
  • Aluminium
