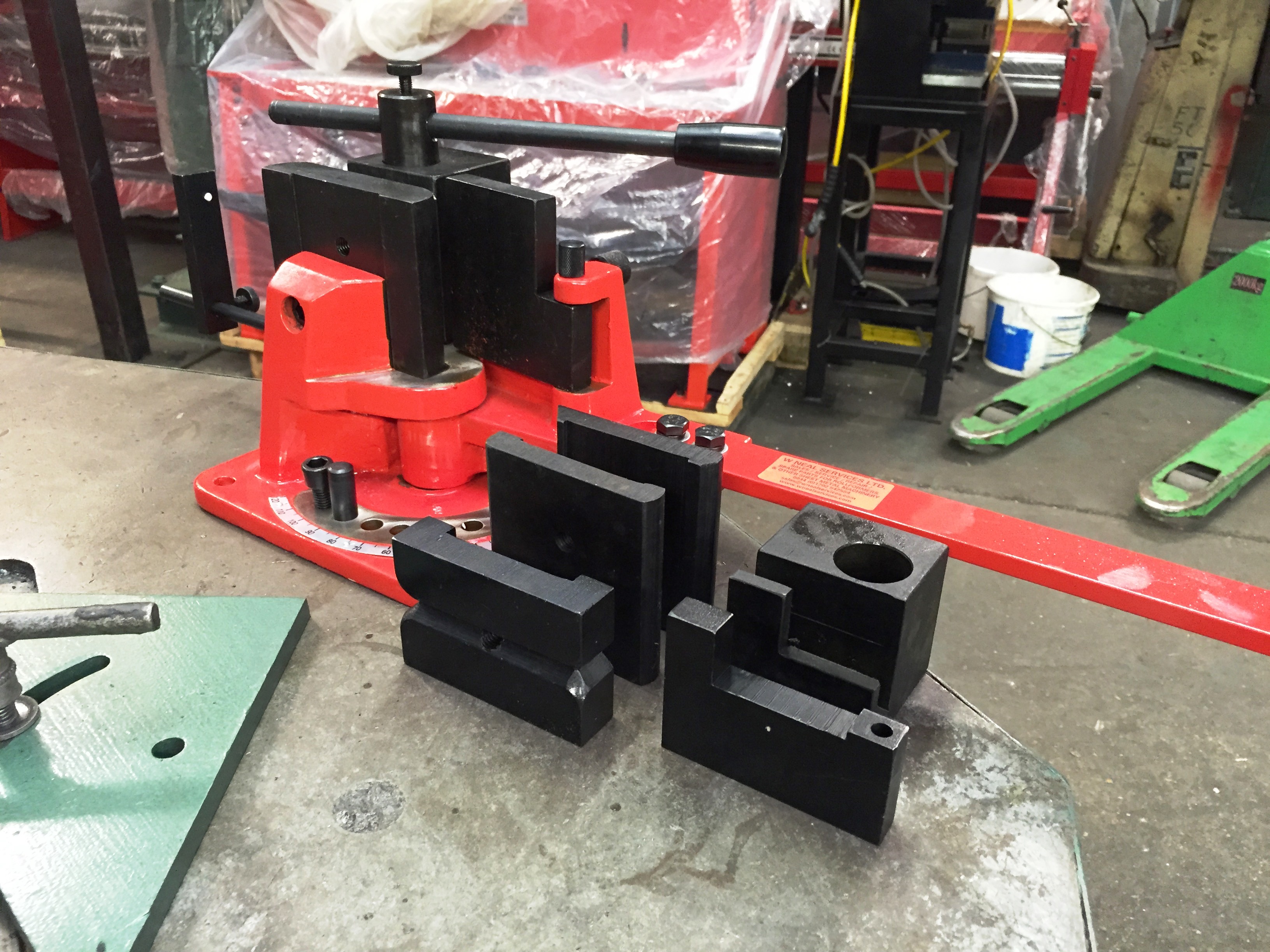

WNS UNIVERSAL BAR BENDER (UB100) is used for high precision bending. This machine has a wide supporting face ensuring safe and reliable operation. Bending angles of various radius’ can be achieved by changing and/or turning the die plate. Fixing holes allow secure mounting to a workbench or table.
| Weight | 30 kg |
|---|
| SPECIFICATIONS | |||
| Model: | UB100 | ||
| Bending Angle: | Up to 120° | ||
| Maximum Thickness: | Angle Steel: | Hot: | 100mm x 12mm |
| Cold: | 60mm x 8.0mm | ||
| Round Bar: | Hot: | 30mm Diameter | |
| Cold: | 18mm Diameter | ||
| Flat Bar: | Hot: | 100mm x 15mm | |
| Cold: | 100mm x 5.0mm | ||
| Square Bar: | Hot: | 30mm² | |
| Cold: | 16mm² | ||
| Dimensions – machine (apx): | 300mm x 200mm x 230mm (l x w x h) | ||
| Dimensions – handle (apx): | 800mm x 80mm x 20mm (l x w x h) | ||
| Dimensions – packing (apx): | 390mm x 290mm x 280mm (l x w x h) | ||
| Weights – net/gross (apx): | 31Kg/32Kg | ||
All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. Please note products are not to scale. E&OE.
