WNS Bead Roller Roll Set 22mm ID

£100.00

(excl. VAT)

WNS Bead Roller Roll Set 22mm ID

£100.00

(excl. VAT)

WNS Bead Roller Roll Set 22mm ID

£100.00

(excl. VAT)

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

  • Suitable for 22mm Diameter Shaft Bead Rollers
  • c/w 1 x Polyurethane Roll
  • c/w 9 x Steel Rolls
  • Worldwide Delivery*

Description

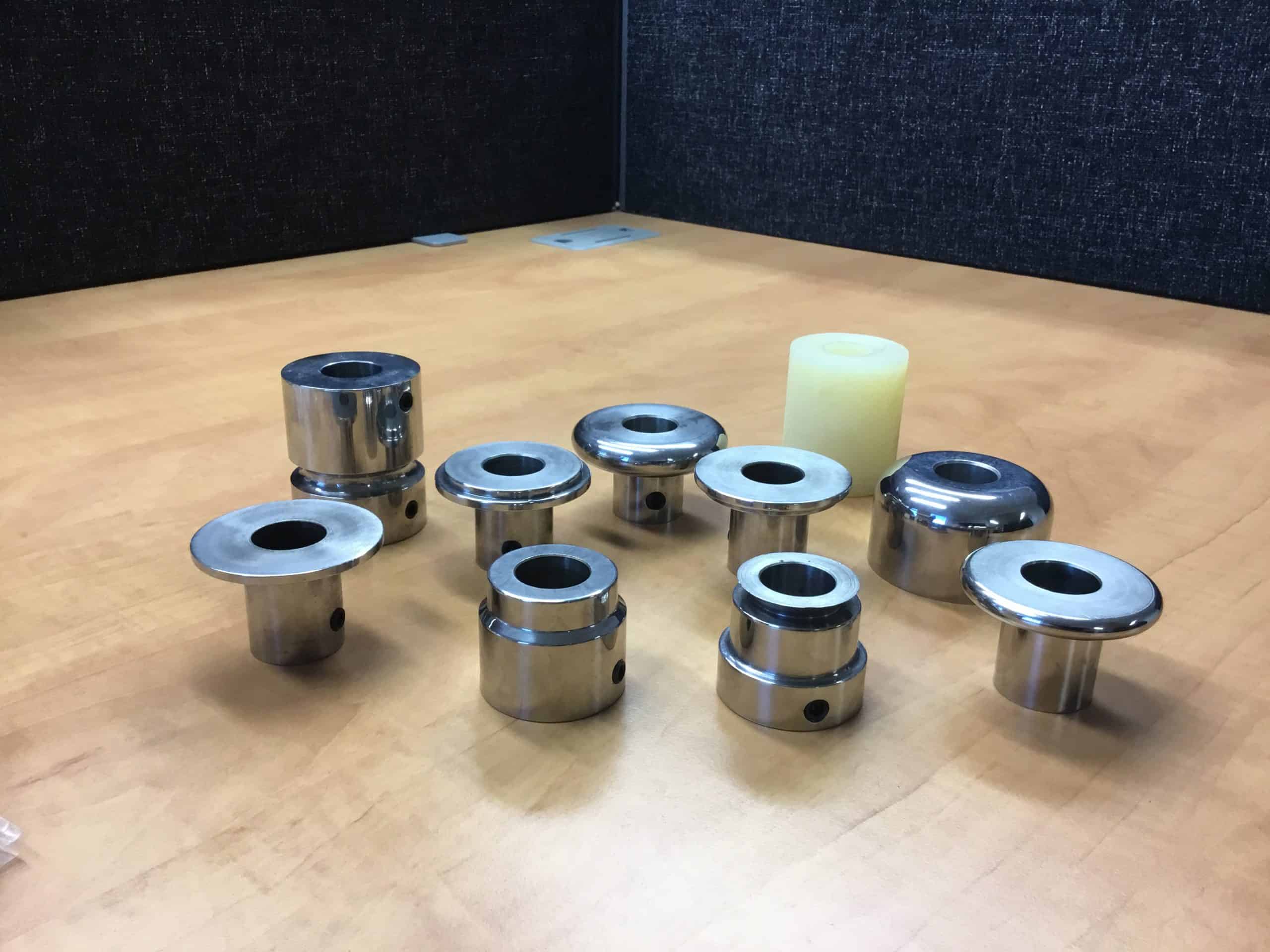

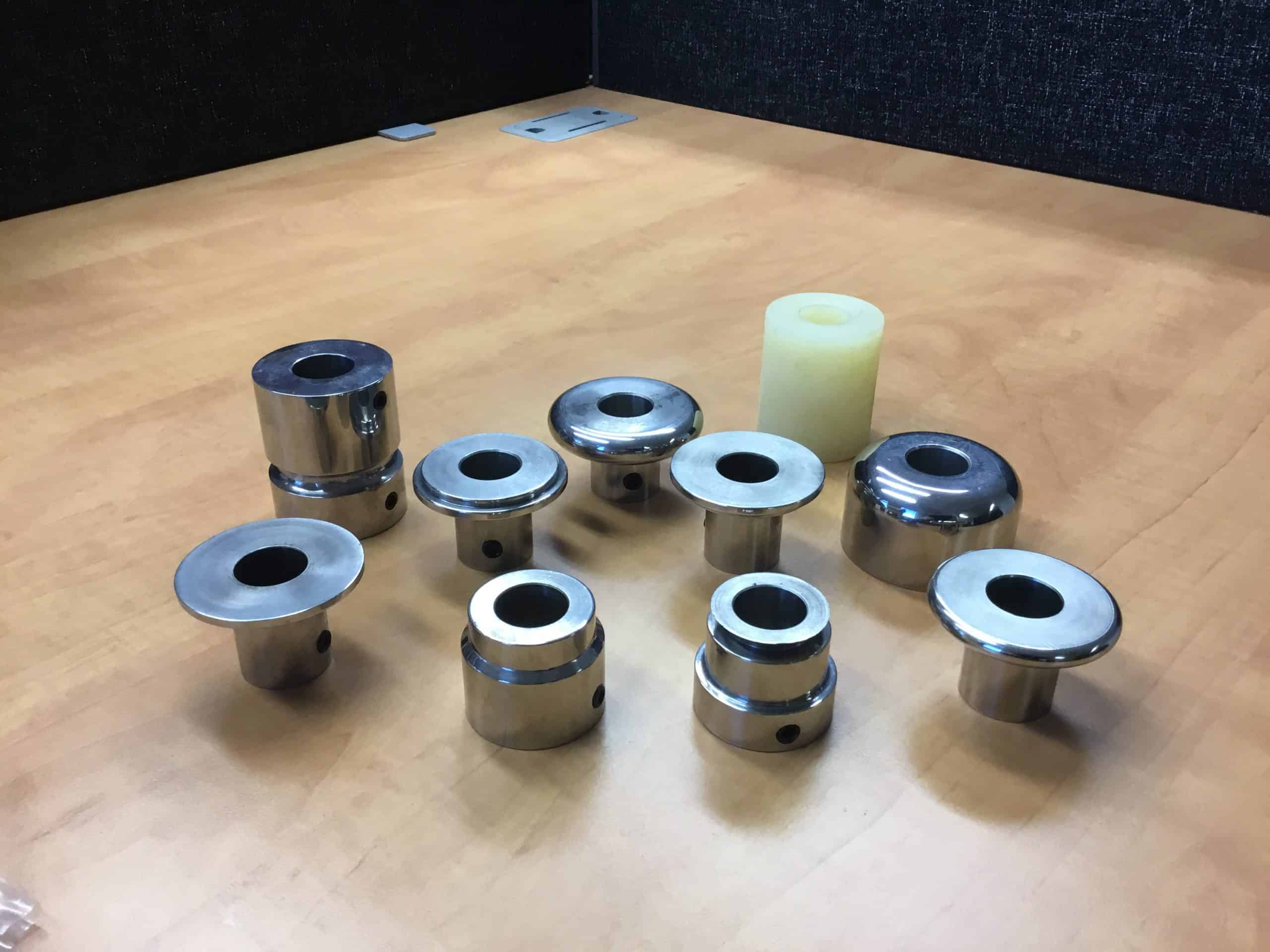

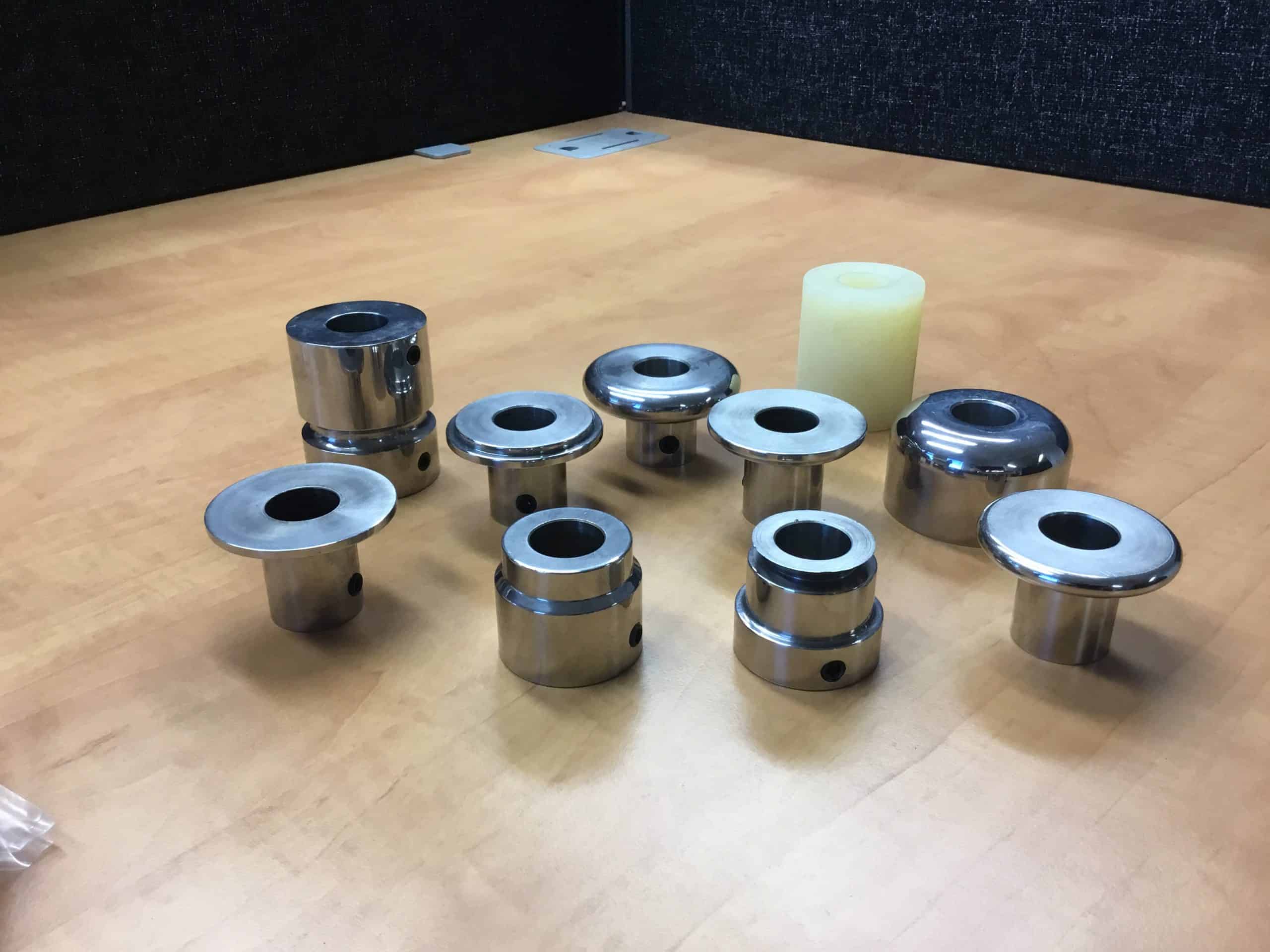

WNS BEAD ROLLER ROLL SET (BR-ROLLSET-22) includes 10 additional rolls/dies that are compatible with 22mm shaft bead rollers. By using these additional rolls on your bead roller, you can create hemmed edges, offset flanges, contours, deep channels, and style lines. The BR-ROLLSET-22 also includes 1 polyurethane lower wheel, this roll can be used as a replacement lower roll with various upper rolls.

Other Bead Roller Rolls also available.









Additional information

Weight 5 kg



WNS BEAD ROLLER ROLL SET
SPECIFICATIONS

Roll Length (apx): 46mm – 60mm
Roll Diameter (apx): 45mm – 55mm
Material: #45 Hardened Steel

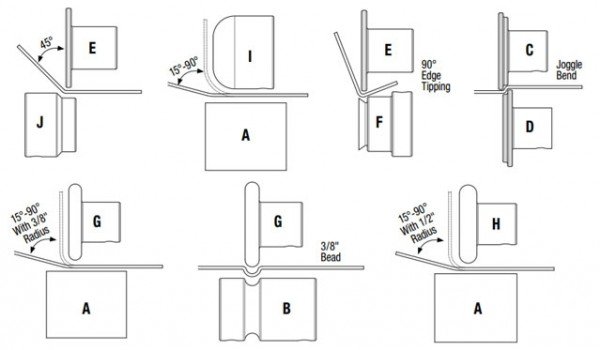

ROLLS INCLUDED
1 x Polyurethane Lower Roll
180° Lower Die
Inside Offset Die
Outside Offset Die
Knife Edge Tipping Die
Lower Edge Forming Die
3/8” Tipping Die
1/2” Tipping Die
Round Tipping Die
1 x Lower Forming Die

 *fees apply.

All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
