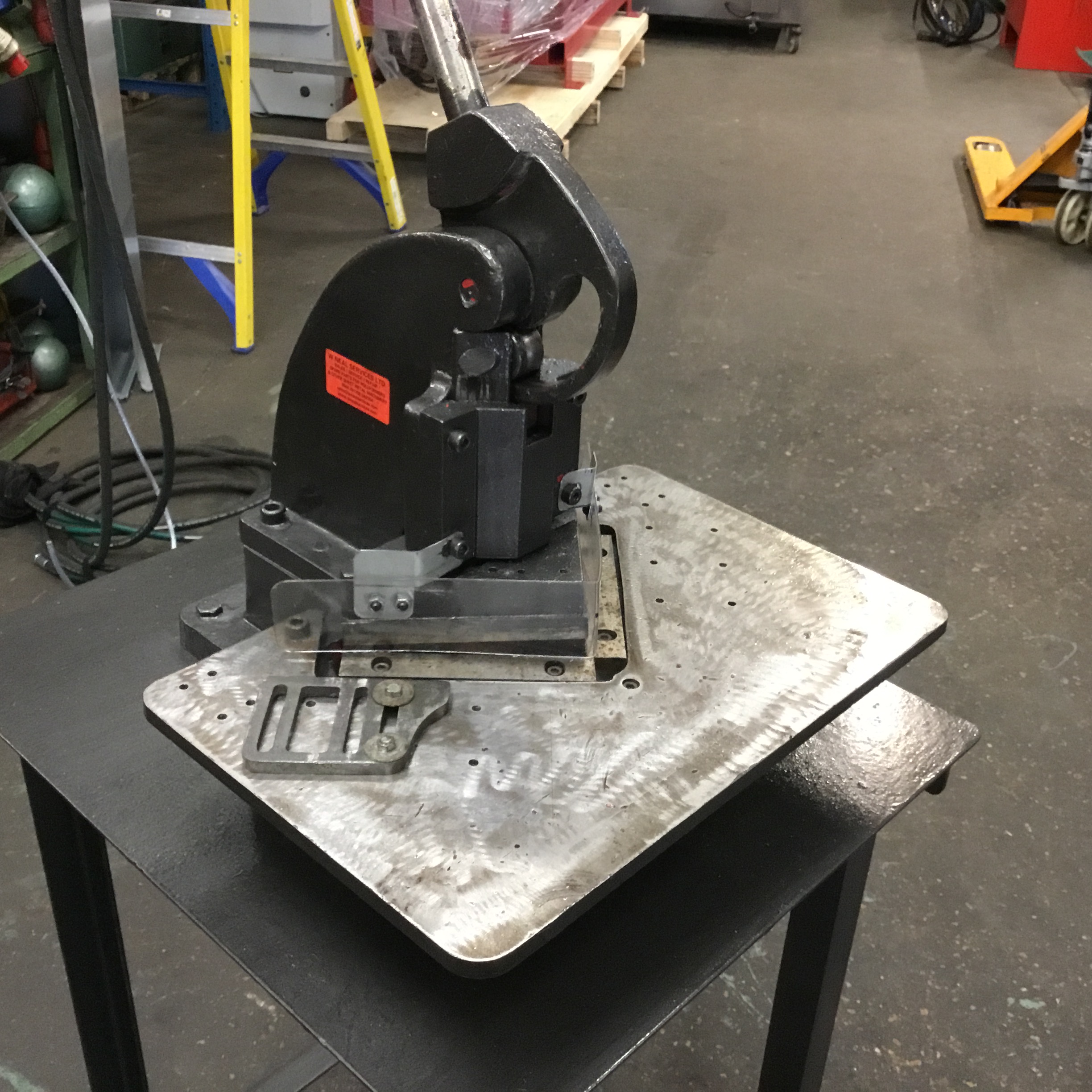

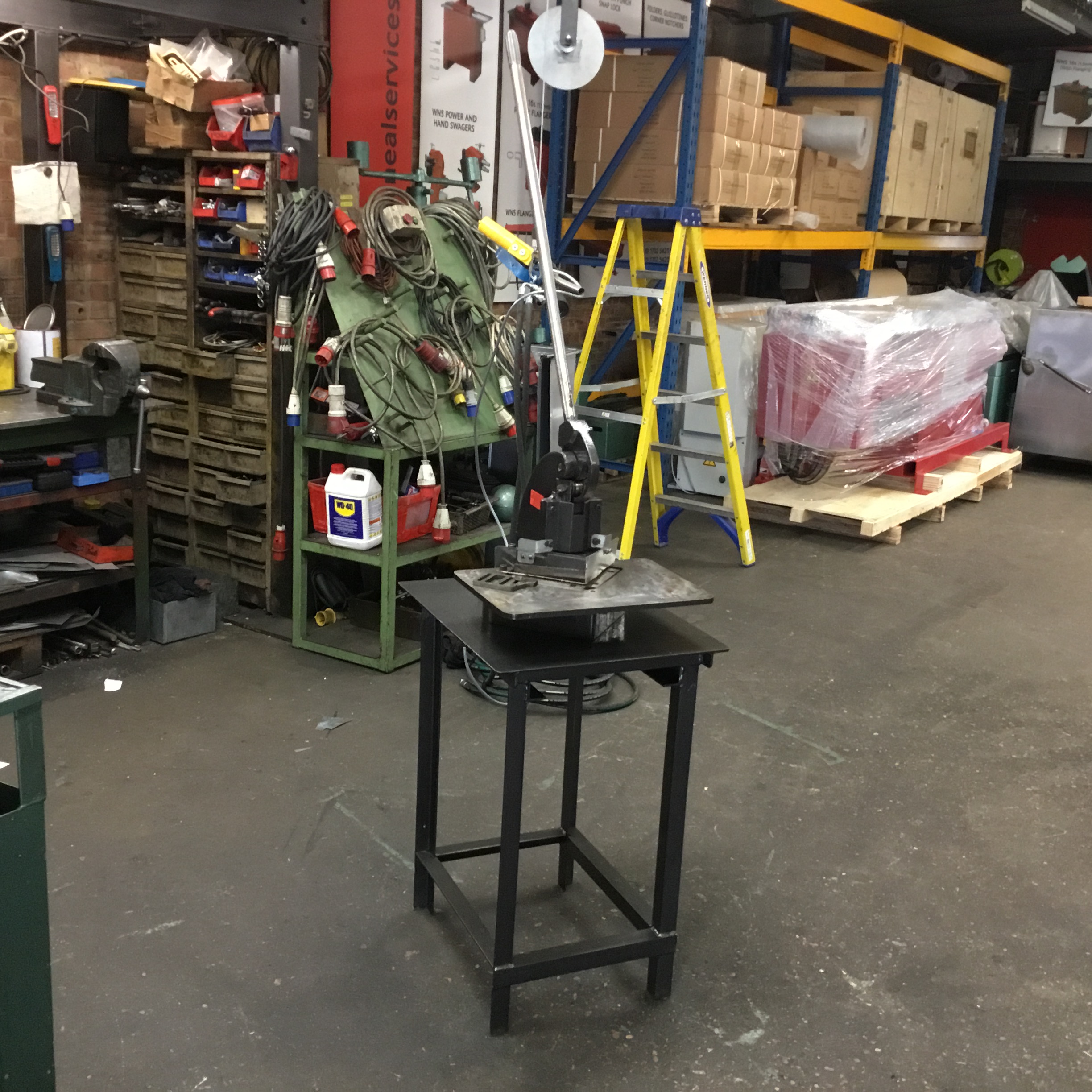

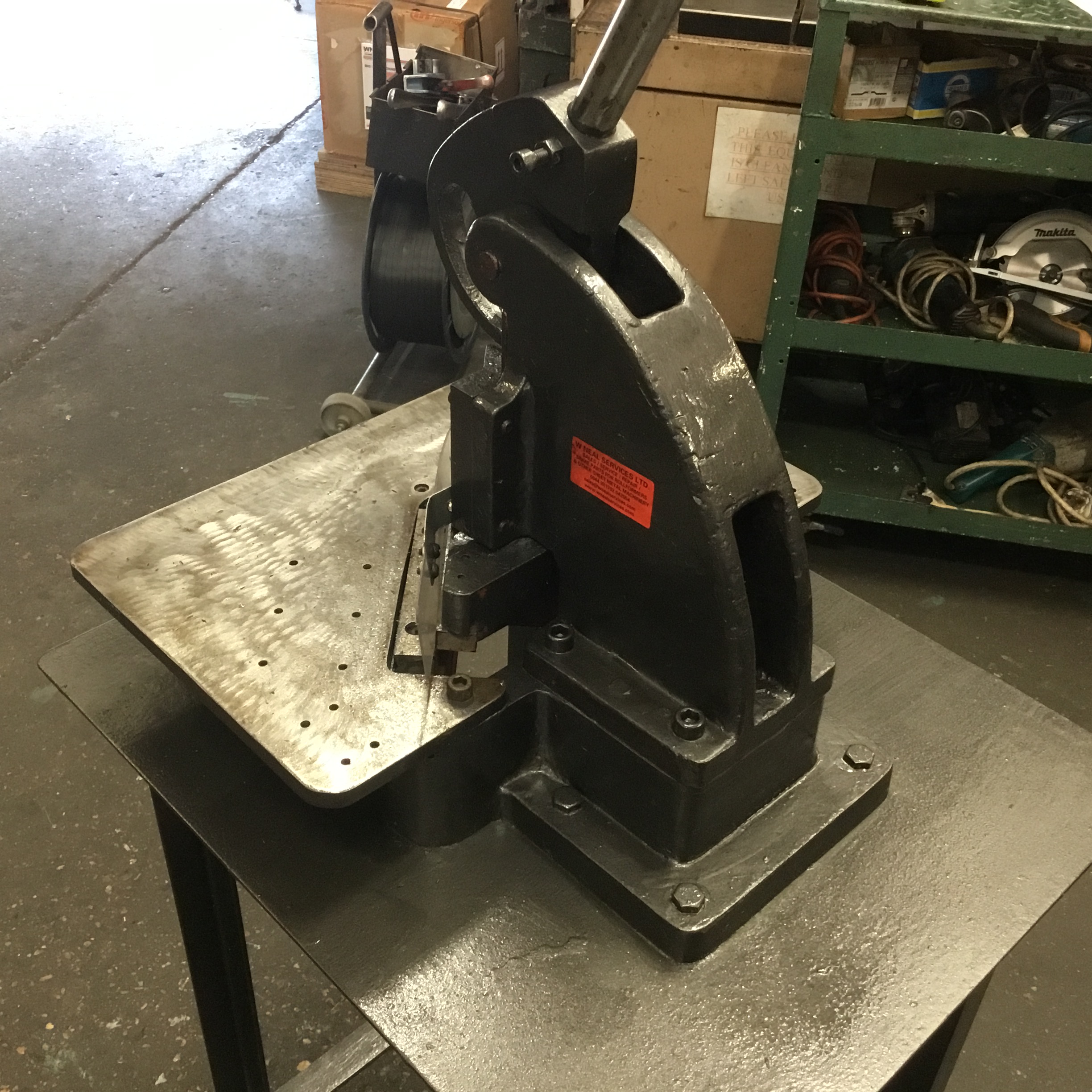

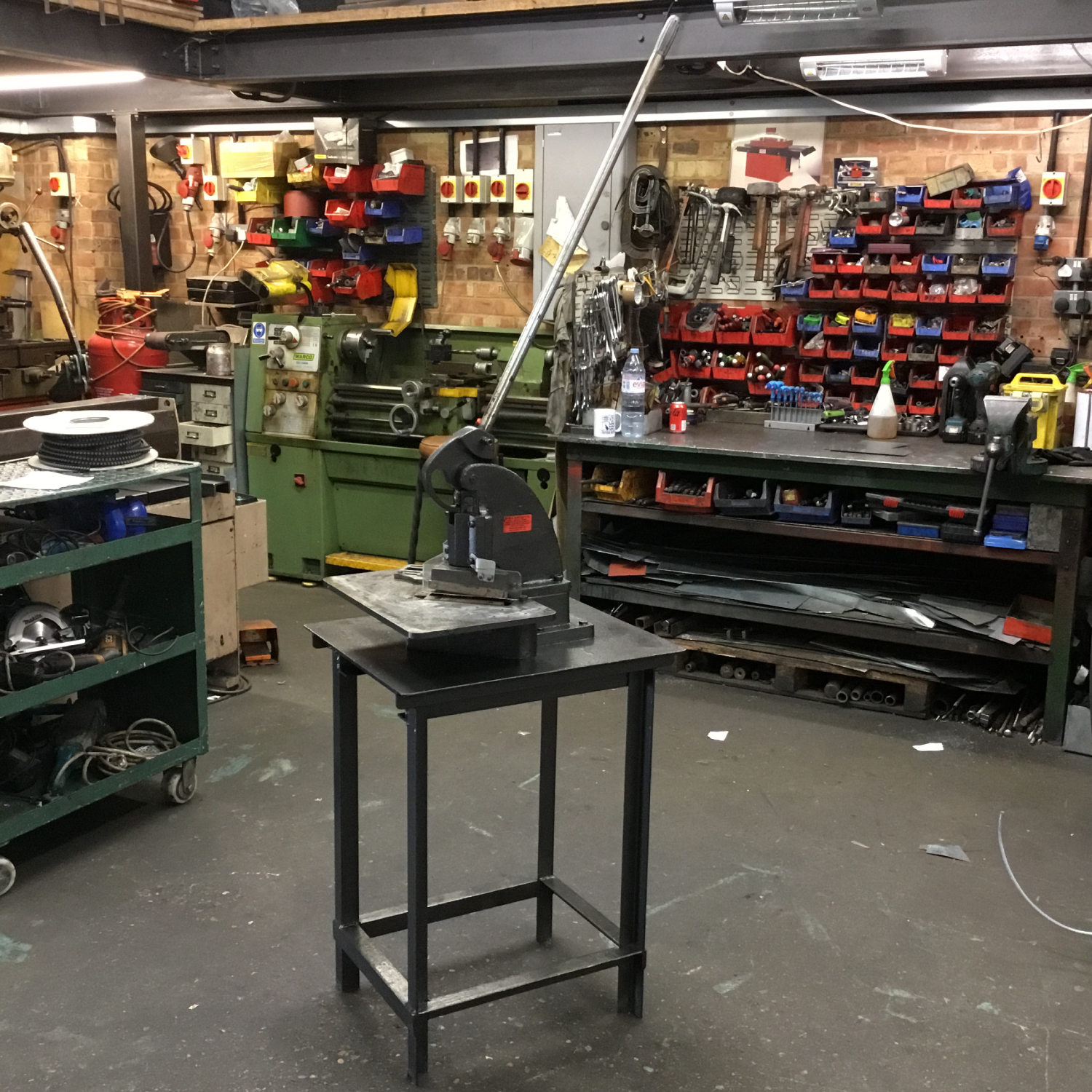

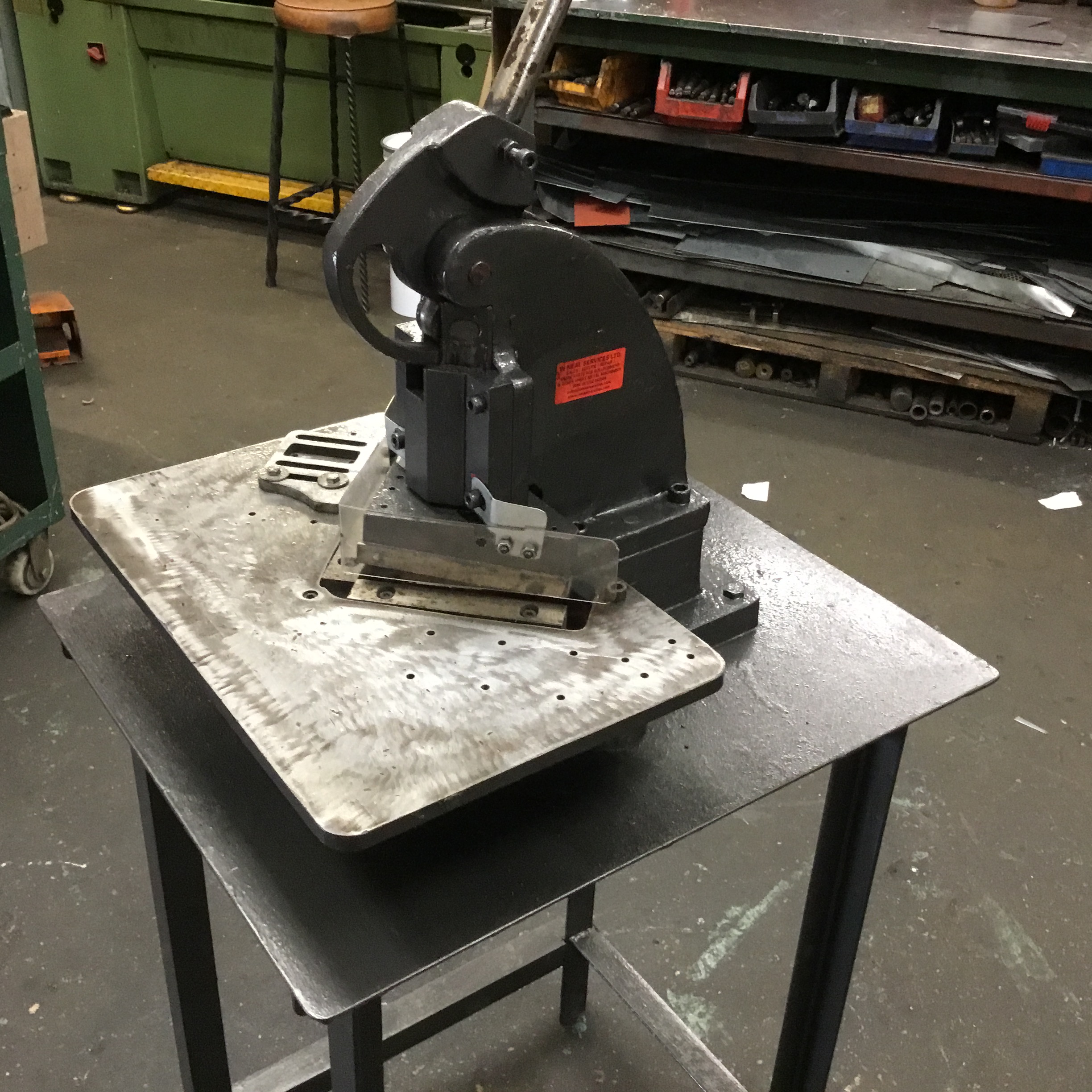

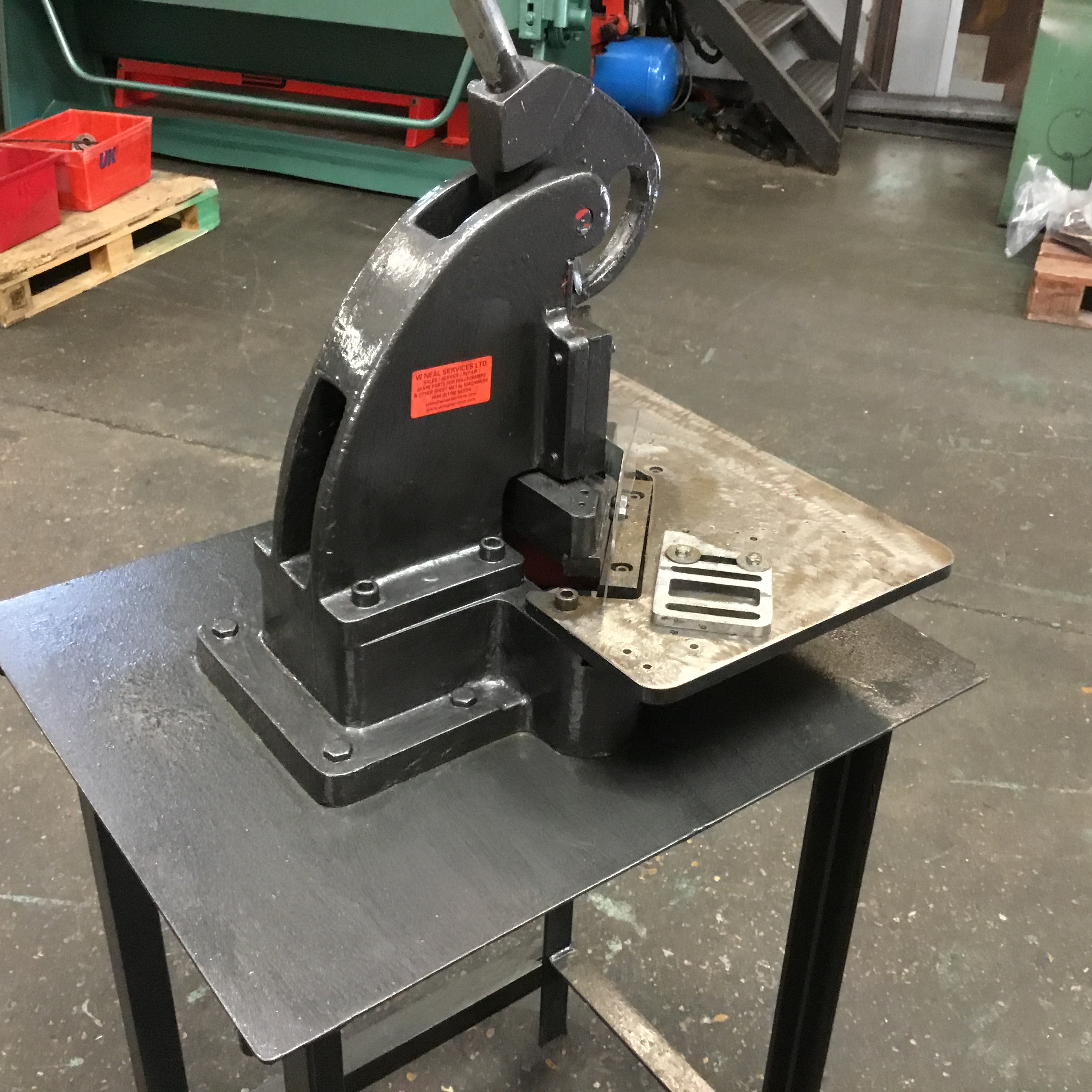

CORNER NOTCHER (CN01) has a cutting angle fixed at 90° and can notch 150mm notches at a maximum capacity of 1.5mm. This machine comes complete with a stand and is hand operated with a 450mm long handle. The corner notcher features fully adjustable precision ground guide plates and integrated rulers.
To view all of our used/reconditioned machines please click here.
| SPECIFICATIONS | |
| Model: | CN01 |
| Notch: | 150mm x 150mm |
| Maximum Thickness: | 1.5mm Capacity Mild Steel |
| Cutting Angle: | 90° |
| Ram Stroke: | 20mm |
| Dimensions – machine (apx): | 500mm x 800mm x 1100mm (l x w x h) |
| Weight – net (apx): | 105Kg |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
