REDUCED!
Now in stock at W. NEAL SERVICES LTDÂ

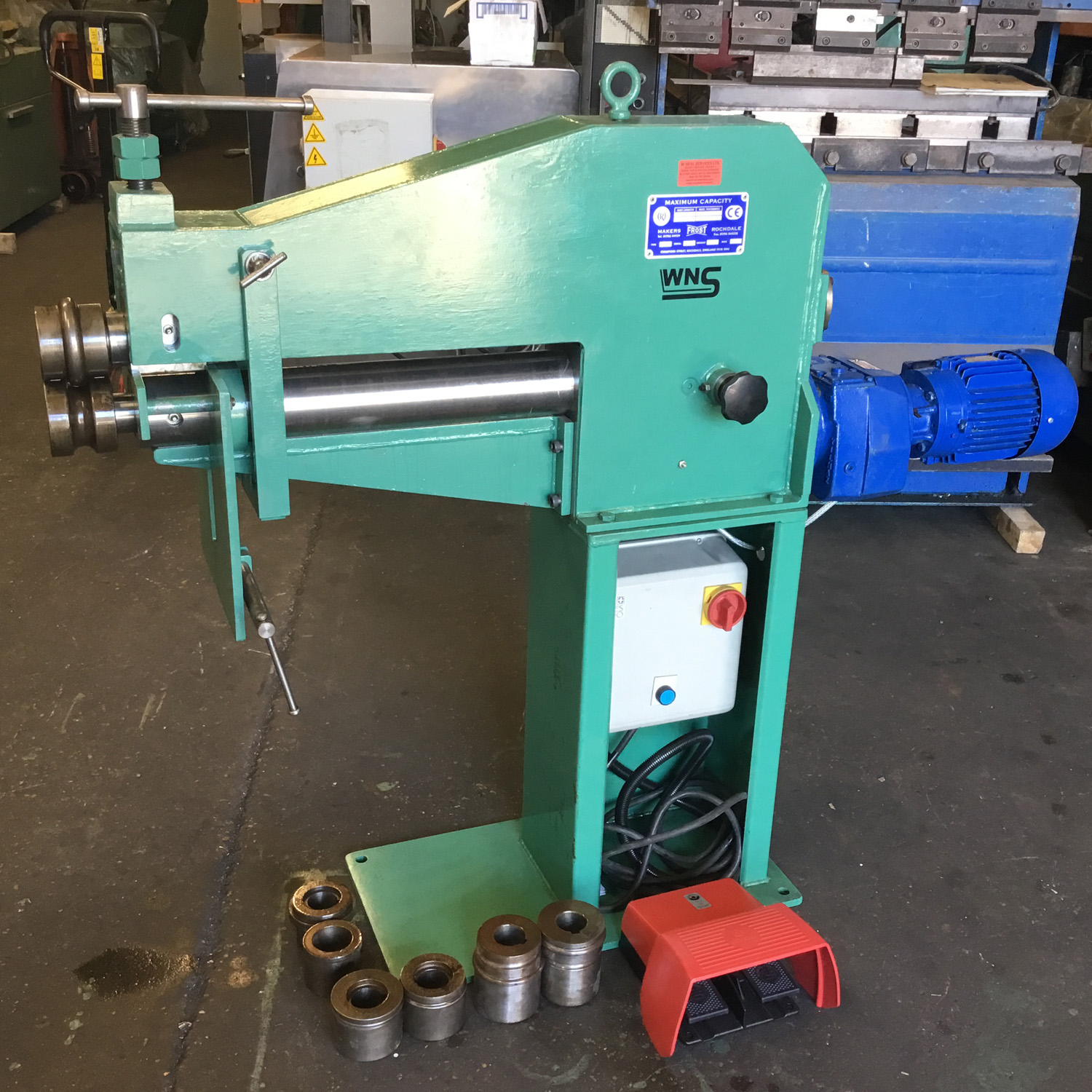

FROST POWER SWAGERS / HORIZONTAL SWAGING MACHINES (FPS491) are principally used for swaging, beading, wiring, crimping, and forming of sheet metal. This heavy duty power swager has a 600mm throat and can accommodate mild steel sheet up to 3.0mm thick*. This machine come complete with 4 sets of rolls.
Manufactured by FROST
Last of its kind!
Sold as seen!
This is a new machine – old stock and is in full working order.
*Video demonstrates forming 1″ (25mm) swage on 1/8″ (3.2mm) mild steel.
| Weight | 1501 kg |
|---|---|
| Dimensions | 1800 × 1500 × 700 cm |
| SPECIFICATIONS | |
| SKU: | FPS491 |
| Model: | 491 |
| Throat Depth: | 600mm |
| Maximum Thickness: | 3.0mm Capacity Mild Steel* |
| Rolls Included (x 4): (See Photos) |
1 x Set of 20mm Beading/Swaging Rolls (OD 25mm / 1″) |
| 2 x Sets of Tube End Rolls | |
| 1 x Set of Ogee Rolls | |
| Roll – Inside Roll Diameter (apx): | 45mm |
| Centres: | 90mm |
| Bottom Swage Head Height: | 860mm |
| Motor Power: | 1.5kW |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 1700mm x 500mm x 1400mm (l x w x h) |
| Dimensions – packing (apx): | 1800mm x 1500mm x 600mm (l x w x h) |
| Weights – net (apx): | 250Kg |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
