WNS Hand Swager 200mm

  • 200mm (8”) Throat
  • 1.2mm Capacity Mild Steel

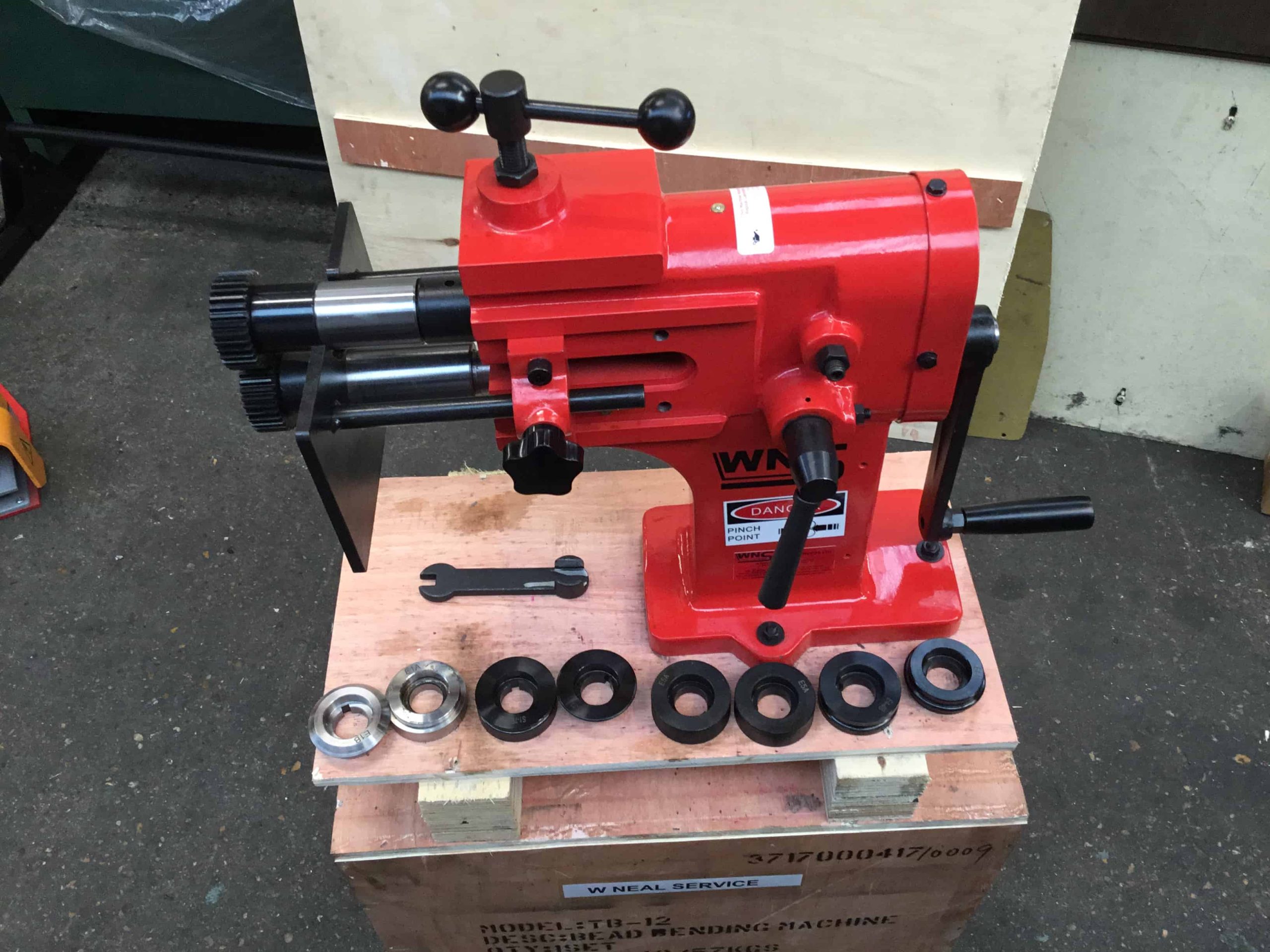

  • c/w 5 x Sets of Rolls
  • 12 Month Warranty*
  • Worldwide Delivery**
  • Additional Rolls Available

Description

WNS HAND SWAGERS / SWAGING MACHINES (HS200) are principally used for swaging, beading, wiring, crimping, and forming of sheet metal. This hand swager has a 200mm (8”) throat and can accommodate mild steel sheet up to 1.2mm thick. This machine comes complete with 5 set of rolls.





Additional information

Weight 57 kg
SPECIFICATIONS
Model: HS200
Throat Depth: 200mm (8″)
Maximum Thickness: 1.2mm Capacity Mild Steel
Wiring Rolls (S1): 1 x Set – 3.0mm
Crimping Rolls (S2): 1 x Set
Jenny Rolls (E1): 1 x Set
Swage Rolls (E4): 1 x Set – 6.0mm
Flat Rolls (E8): 1 x Set – 22mm
Roll – Inside Diameter (apx): 26mm
Roll – Outside Diameter (apx): 62mm
Shaft Size: 26mm
Cylinder Length: 140mm
Dimensions – machine (apx): 640mm x 340mm x 500mm (l x w x h)
Dimensions – packing (apx): 580mm x 320mm x 590mm (l x w x h)
Weights – net/gross (apx): 46Kg/57Kg

*please see Terms & Conditions. **fees apply.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
