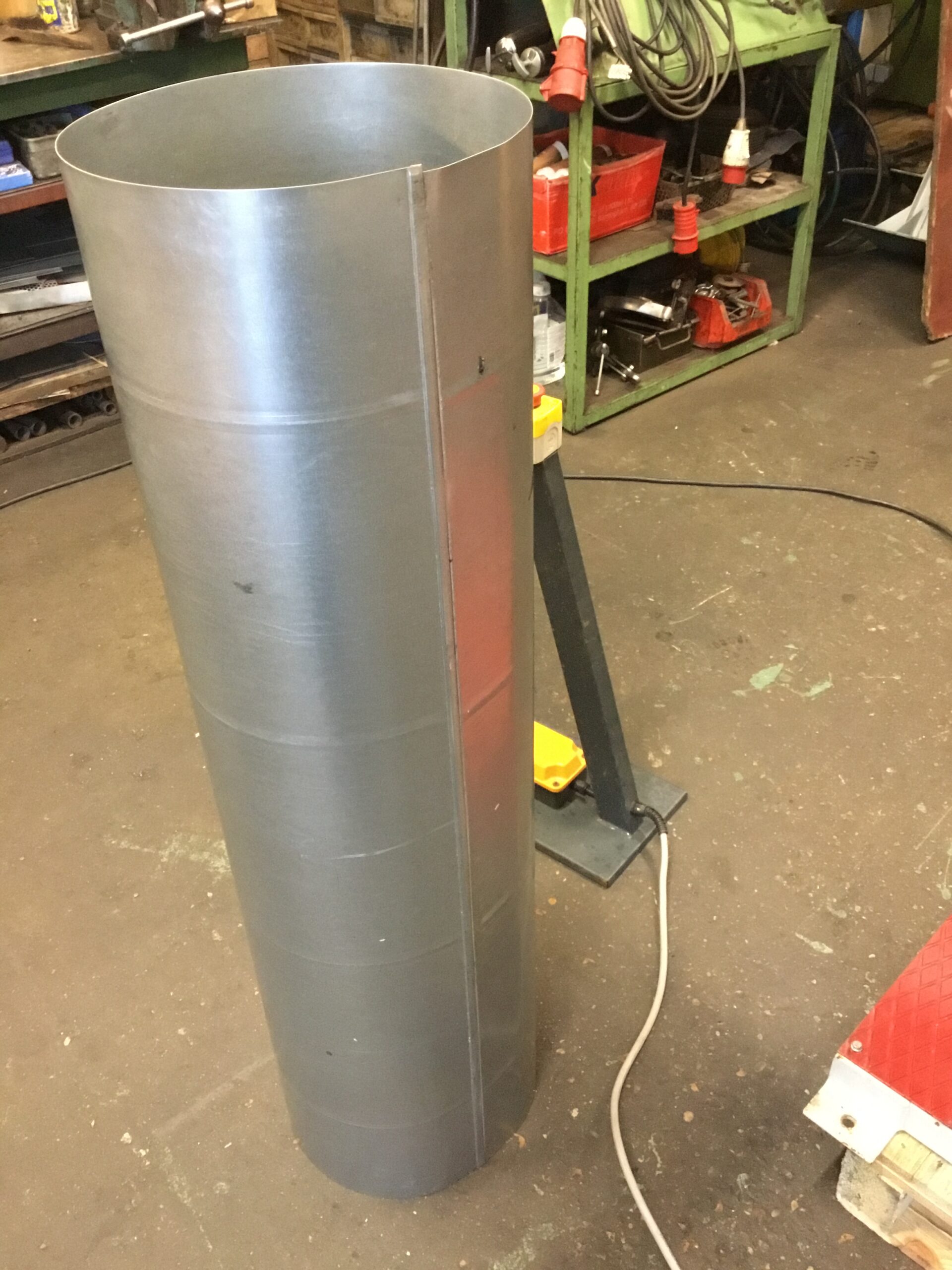

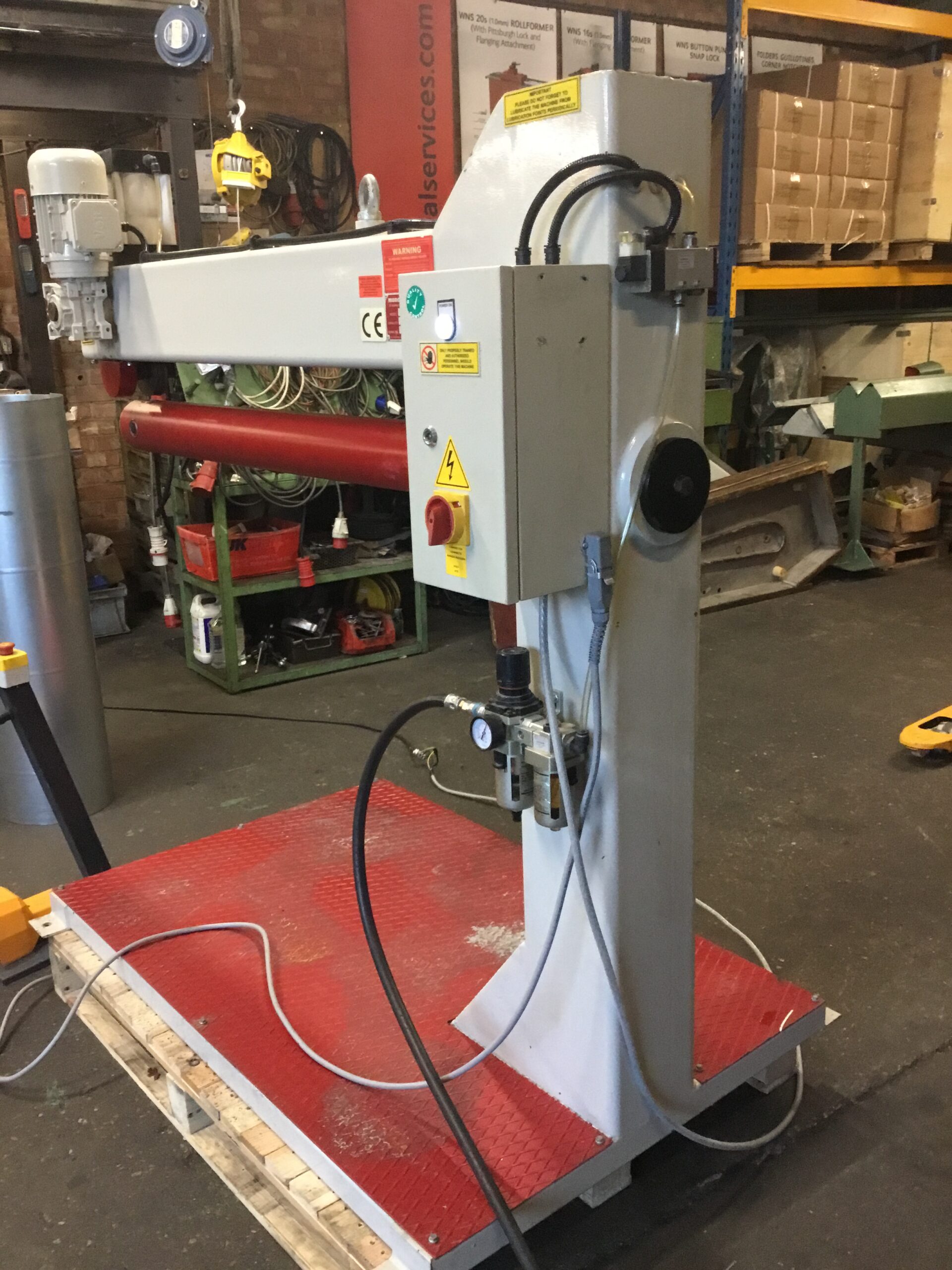

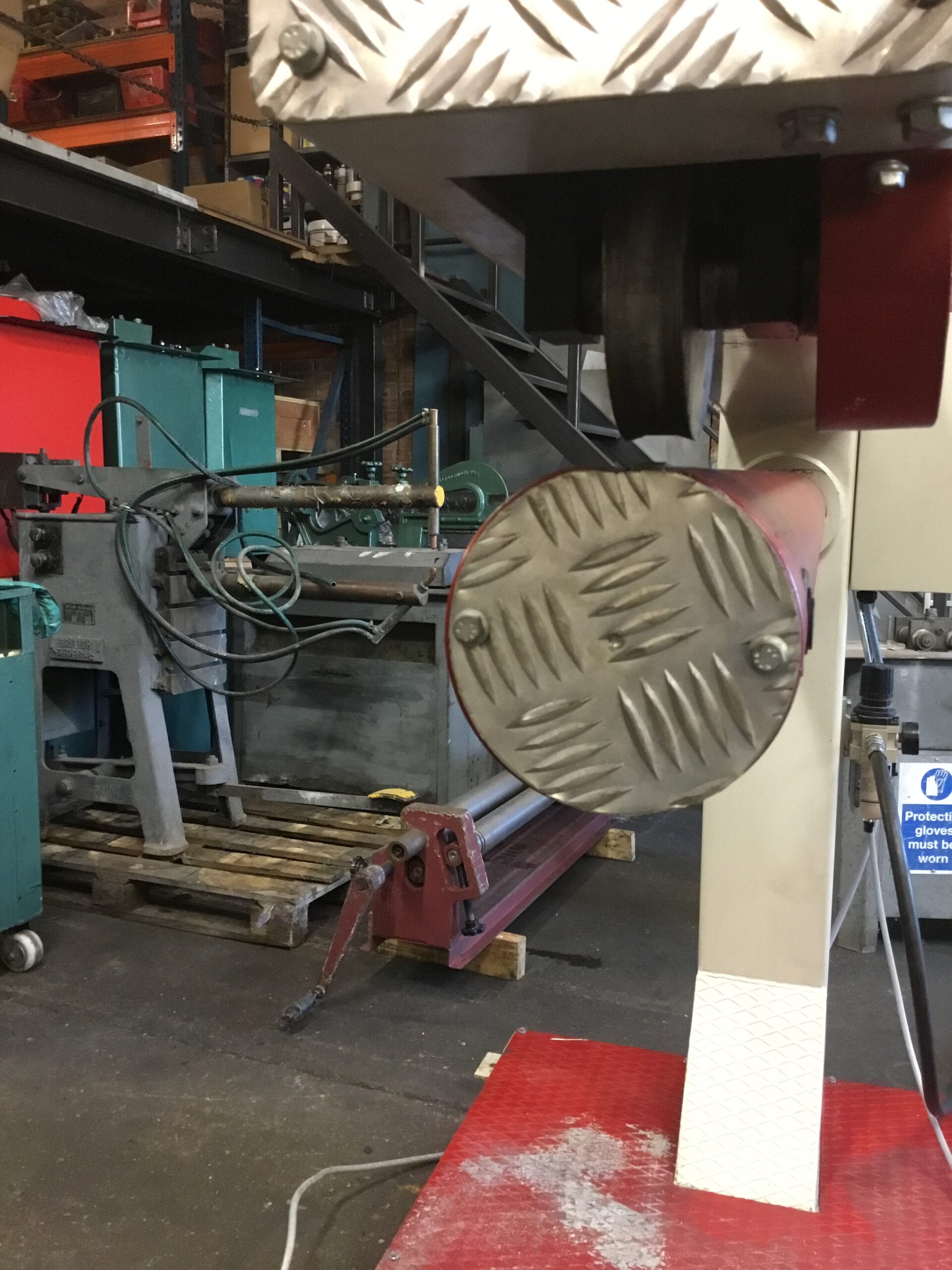

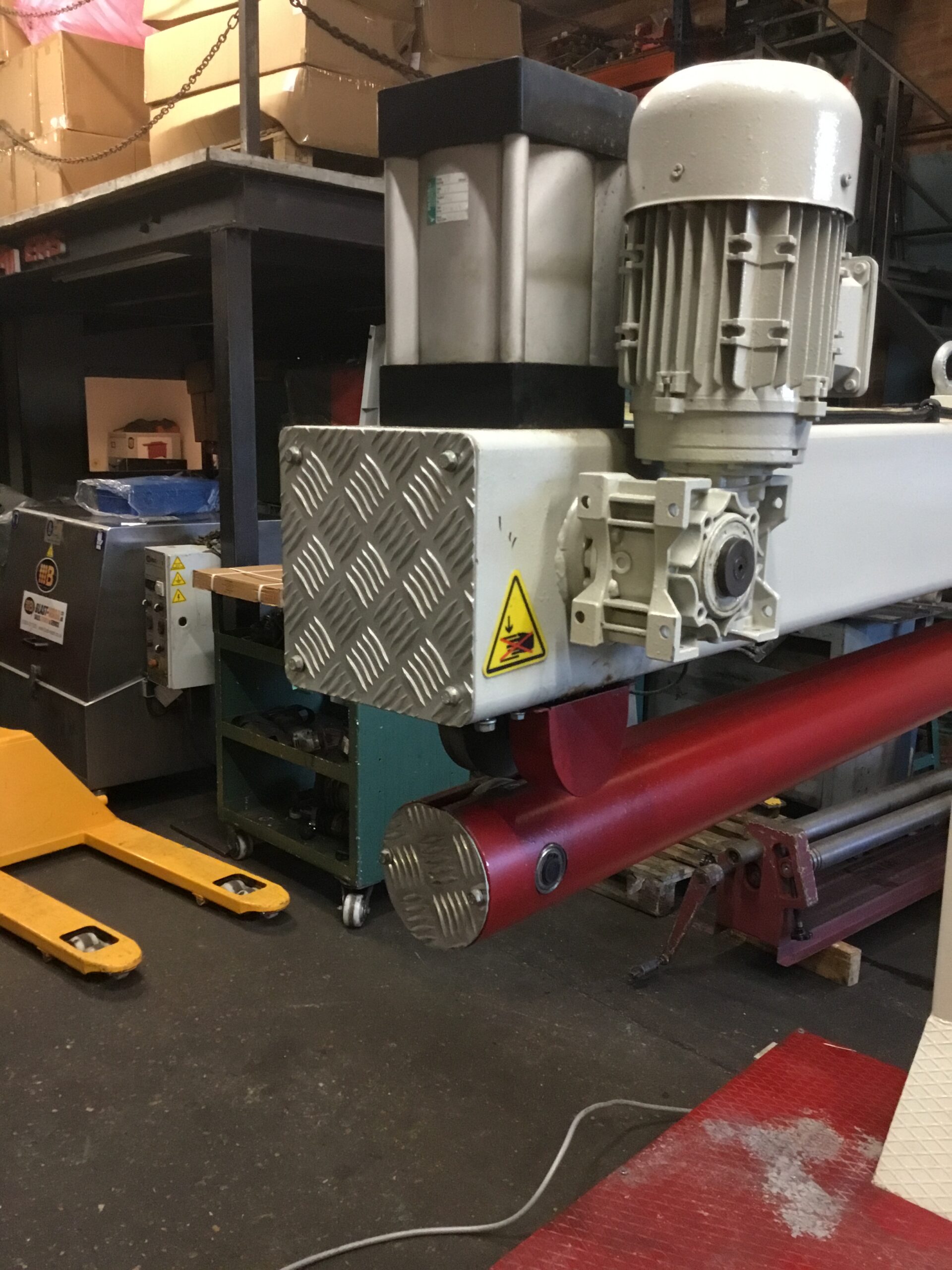

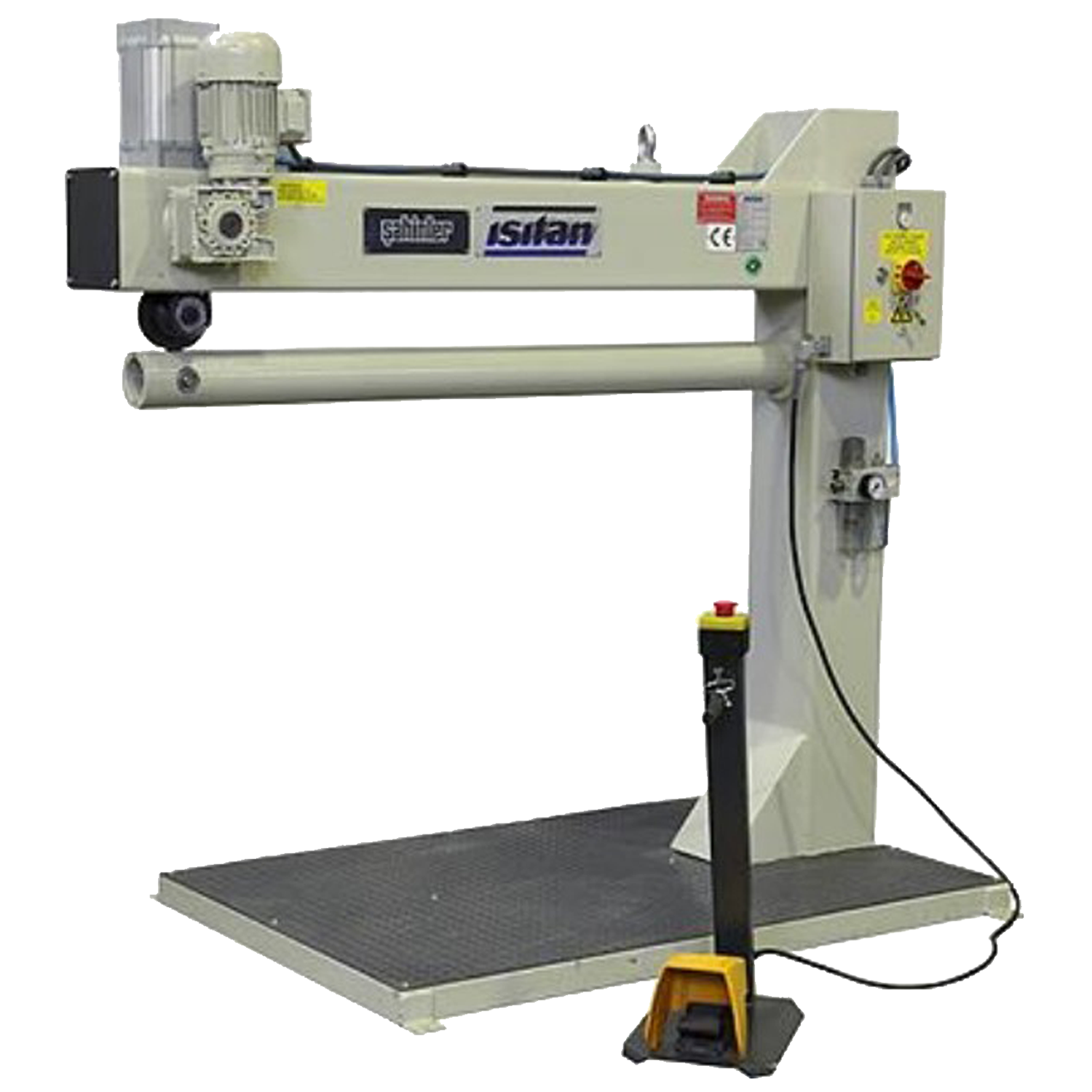

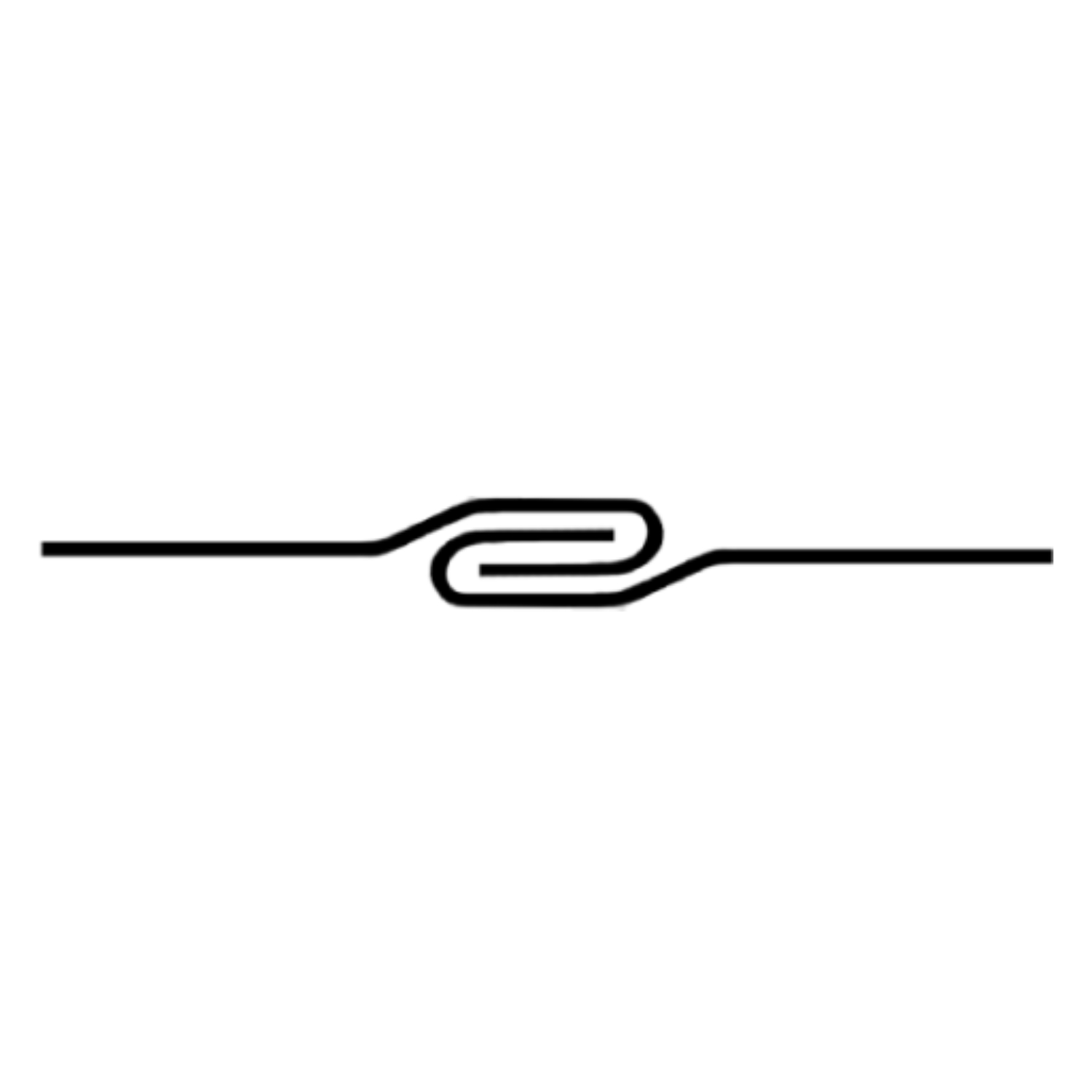

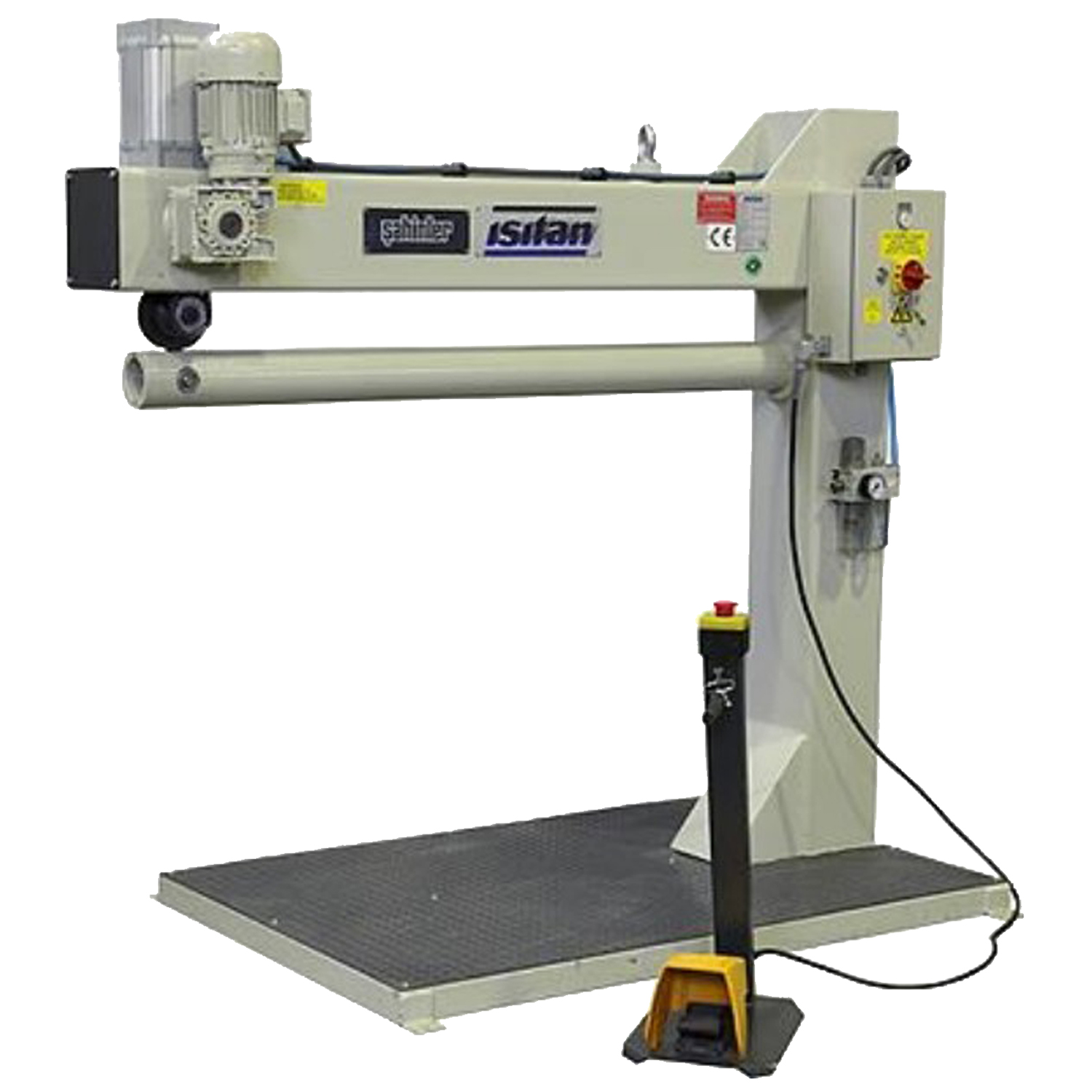

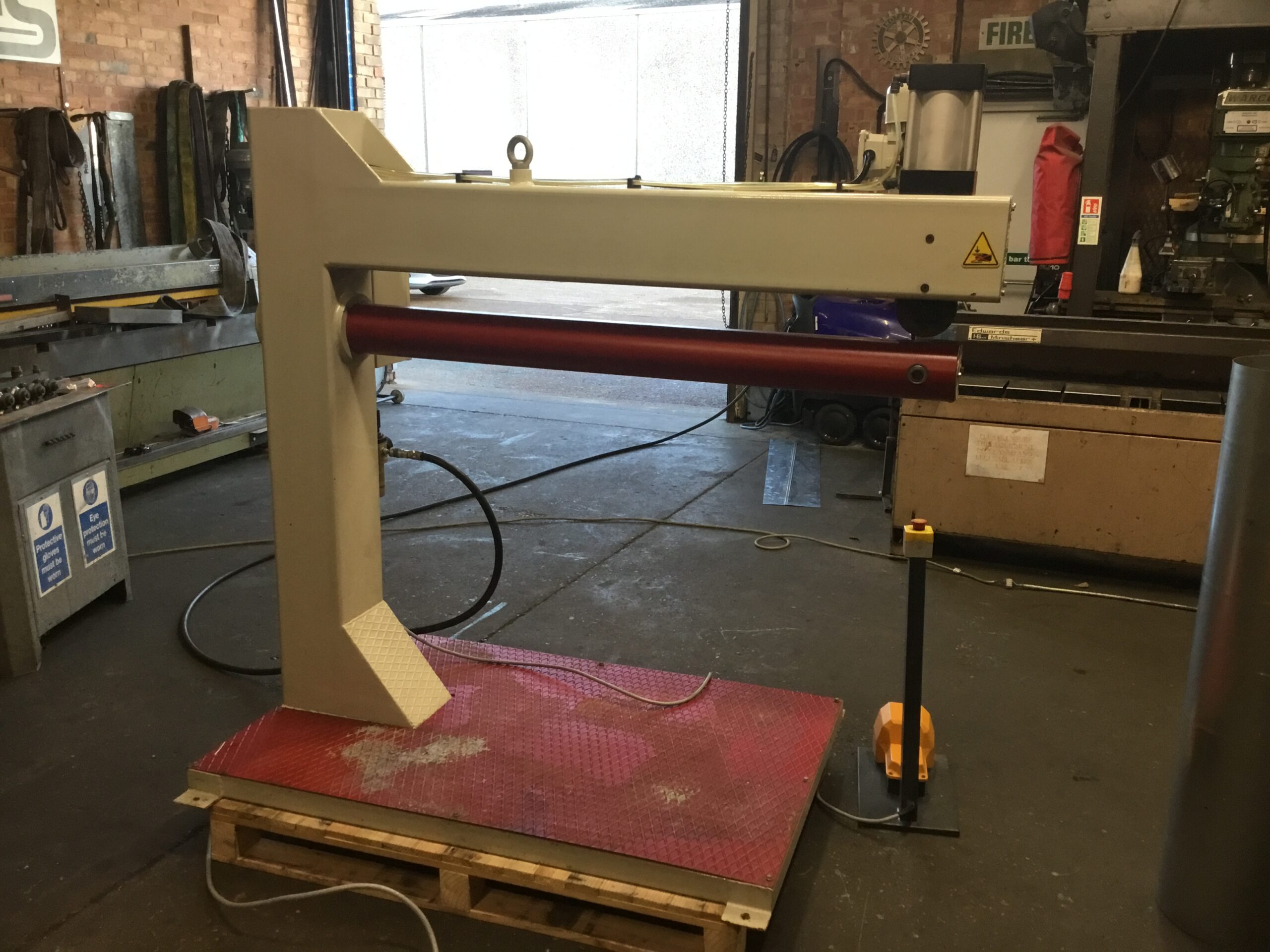

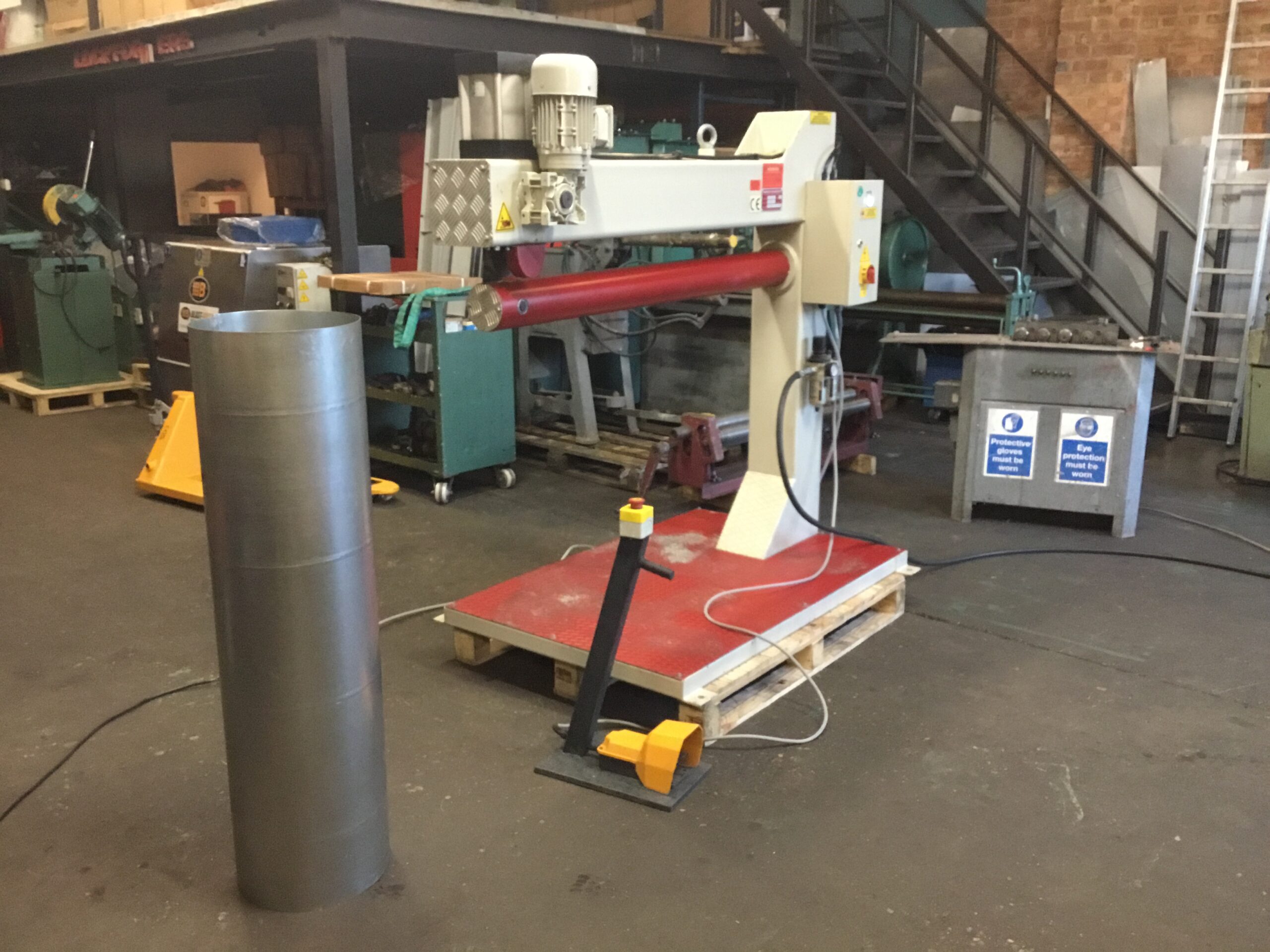

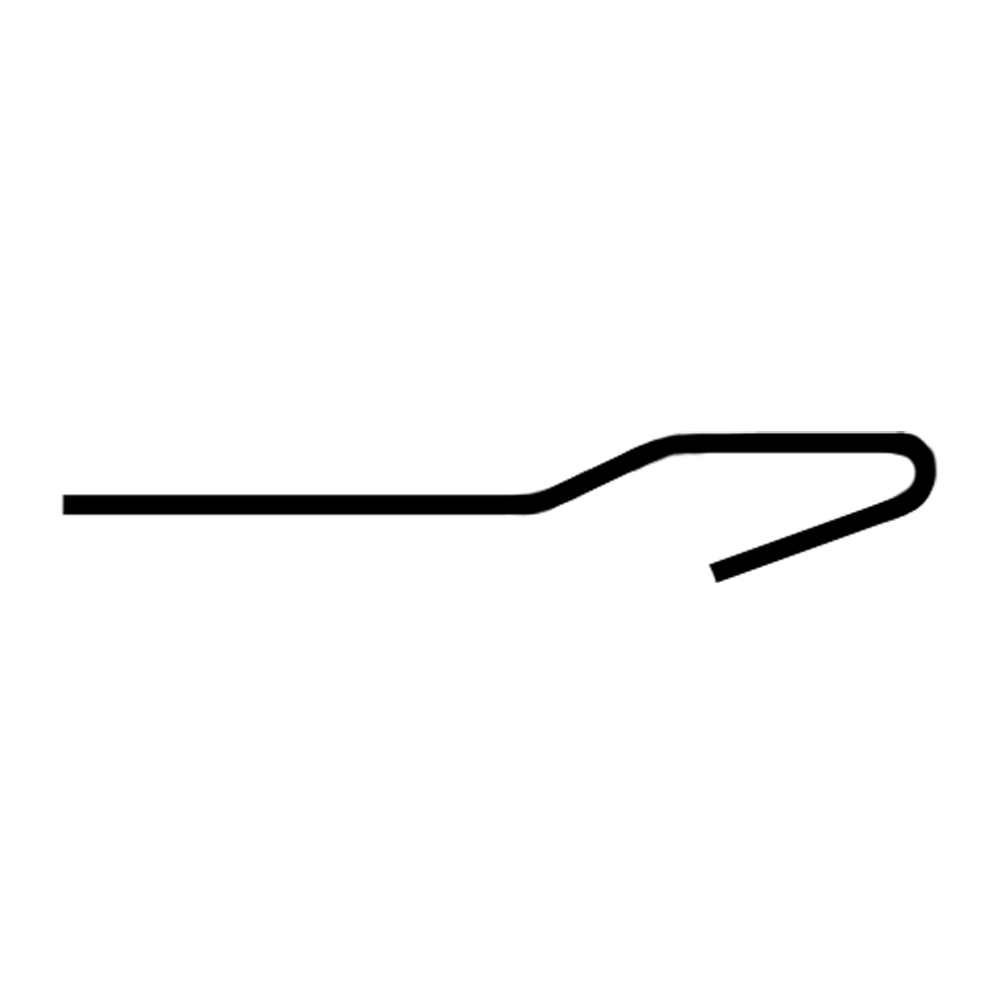

ISITAN PNEUMATIC DOUBLE SEAM CLOSER (PSC1320I) is designed to close a double seam join with a professional uniform finish. The motorised top roll is pneumatically lowered onto the material and raised at the completion of the closed seam. The double seam closer has an adjustable operating pressure, pneumatically operated top roll and fast closing of seams.
| Weight | 350 kg |
|---|
| SPECIFICATIONS | |
| Model: | PSC1320I |
| Maximum Working Length: | 1320mm |
| Maximum Thickness: | 1.2mm Capacity Mild Steel |
| Tube Diameter: | 100mm Minimum – 1250mm Maximum |
| Working Pressure: | 8 Bar |
| Motor Power: | 0.37kW |
| Supply Voltage: | 415v |
| Dimensions – machine (apx): | 1900mm x 800mm x 1650mm (l x w x h) |
| Weight (apx): | 350Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
